User Manual for Pioneer SP-BS22A-LR Dolby Atmos-Enabled Speakers Click to enlarge the picture
Contents of the user manual for the Pioneer SP-BS22A-LR Dolby Atmos-Enabled Speakers
- Product category: Rear Speakers Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Rear Speakers
 |
User manual for the Pioneer SP-BS22A-LR Dolby Atmos-Enabled Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|

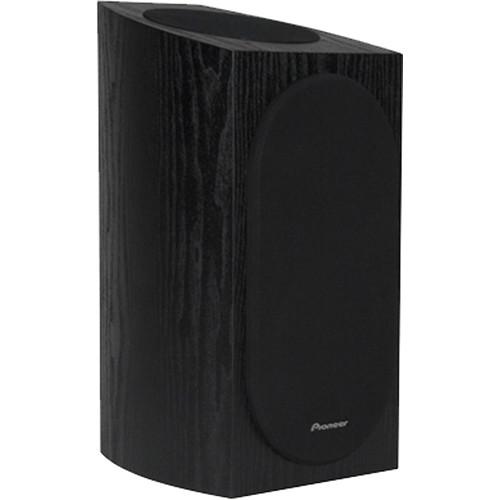

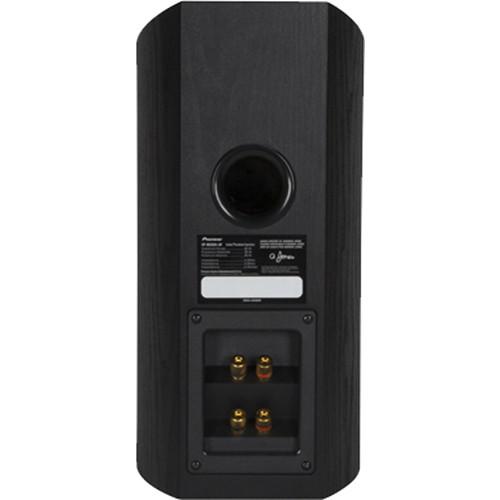

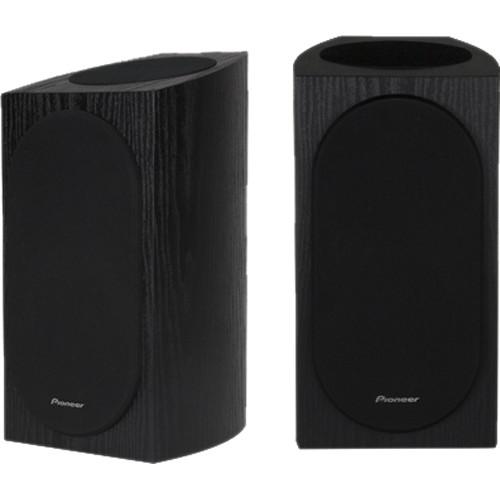

Product description Enjoy life-like surround sound with the Pioneer SP-BS22A-LR Dolby Atmos-Enabled Speakers in black. Each speaker in this pair features a hybrid design that incorporates front and height channels that can handle up to 80W in each of those channels. These speaker cabinets house 4" and 0.5" top-firing drivers for height-channel use, and a front-facing 4" woofer and 1" tweeter driver array. The top-firing driver is designed to beam overhead sound effects off of your ceiling for an immersive listening experience. - Fully integrated Dolby Atmos top-firing Concentric driver
- 1" high-efficiency soft dome tweeter for optimized clarity
- 4" textured surface woofer for enhanced vocal response
- Sophisticated crossover design for accurate sound reproduction
- Curved cabinet construction designed to reduce vibration
- Oversized vented magnet structure for extended bass response
- Andrew Jones-designed speaker for optimized audio reproduction
UPC: 012562909615 In the Box Pioneer SP-BS22A-LR Dolby Atmos-Enabled Speakers (Pair, Black) Speaker Grilles Limited 1-Year Warranty Guides & Manuals rtrcxtzasyetrbxraytqyswffutvdqvvewrcxy Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer SP-BS22A-LR Dolby Atmos-Enabled Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Pioneer SP-BS22A-LR Dolby Atmos-Enabled Speakers can be downloaded in PDF format at the link stated below.
Technical parametersPioneer SP-BS22A-LR Specs | | | Enclosure | Front: Bass-reflex, compact
Height: Sealed | | Configuration | Front: 2-way
Height: Concentric 2-way | | Drivers | Front:
1 x 4.0" / 10.2 cm Woofer
1 x 1" / 2.5 cm Tweeter
Height:
1 x 4.0" / 10.2 cm Woofer
1 x 0.5" / 1.3 cm Tweeter | | Frequency Range | Front: 55 Hz to 20 kHz
Height: 180 Hz to 20 kHz | | Nominal Impedance | 6 ohms | | Sensitivity | 85 dB (2.83 V) | | Maximum Input Power | Front: 80 W
Height: 80 W | | Crossover Frequency | Front: 3 kHz
Height: 4 kHz | | Magnetically Shielded | No | | | | Finish | Black vinyl | | Dimensions (WxHxD) | Without Grille: 7.1 x 14.3 x 8.1" / 18.0 x 36.3 x 20.6 cm
With Grille: 7.1 x 14.3 x 8.4" / 18.0 x 36.3 x 21.3 cm | | Weight | Each Speaker: 11.2 lb / 5.1 kg | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 23.0 x 17.9 x 11.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
