User Manual for Pioneer SP-SB23W 218W 2.1-Channel Soundbar System Click to enlarge the picture
Contents of the user manual for the Pioneer SP-SB23W 218W 2.1-Channel Soundbar System
- Product category: Soundbar Speakers Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Soundbar Speakers
 |
User manual for the Pioneer SP-SB23W 218W 2.1-Channel Soundbar System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|

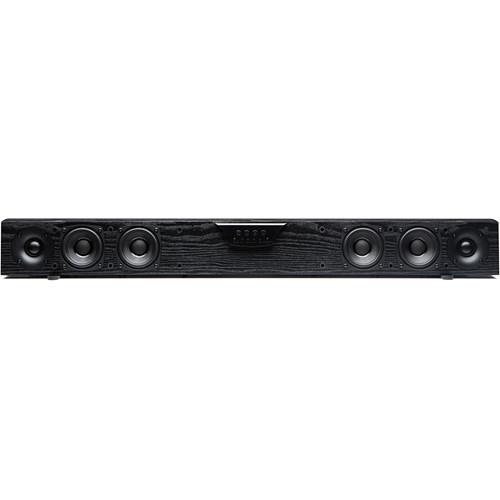

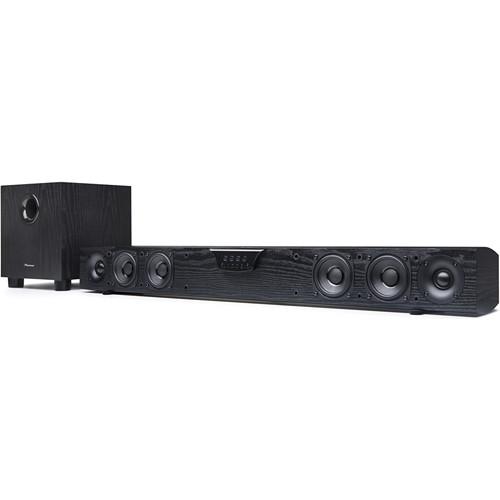

Product description How to Choose a Soundbar System Read More axufbrtwyccrszerz Designed with convenience in mind, the Pioneer SP-SB23W 218W 2.1-Channel Soundbar System features a wireless subwoofer, simplifying setup and providing one less cable to hide. It also has Bluetooth built in for wireless audio streaming from your smart devices. The system provides 218W of total power from its drivers, which are powered by their own individual amplifiers. It has an optical and a stereo RCA input, and has wall mounting keyholes built-in. The system includes a remote control for added convenience. - Dedicated Power: An Amplifier for Each Speaker
- Pioneer's SP-SB23W Speaker Bar is powered by six individual amplifiers - one for each independent driver. Each amplifier produces up to 28 Watts of power for increased audio dynamics and enhanced overall "headroom".
- Bass Made Easy with a Wireless Subwoofer

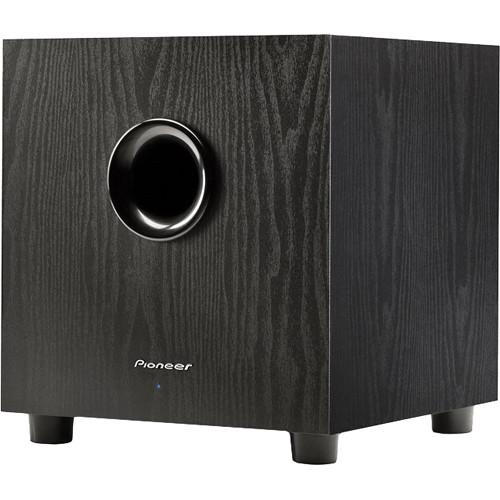

- To handle the low frequencies, the Speaker Bar system includes a wireless subwoofer featuring a 6.5" driver that's powered by a built-in 50W amplifier. The output level can be adjusted with the Speaker Bar remote.
- Use Your Favorite Remote with Command Learning
- The SP-SB23W system features a learning mode that lets you teach it to respond to commands from virtually any remote you choose.
- Enhanced Resonance from the Curved Composite Wood Cabinet
- The SP-SB23W Speaker Bar features a composite wood cabinet enclosure with a curved design, helping it resist the "flexing" that can occur when the speakers are at high volume. With its enhanced resistance to undesirable resonance, composite wood provides more faithful sound reproduction.
- Easy Listening and Setup
- The SP-SB23W system is designed to make set-up simple. With minimal cables to connect and an easy synchronization process, you'll be enjoying your media in just minutes.
- Tailored for Your Sound
- Three selectable listening modes designed specifically to optimize movies, music, and dialog.
- Bluetooth
- Enjoy your favorite music streamed wirelessly from your smartphone or tablet. Wireless connectivity from the subwoofer to the speaker bar allows for ideal placement within your room.

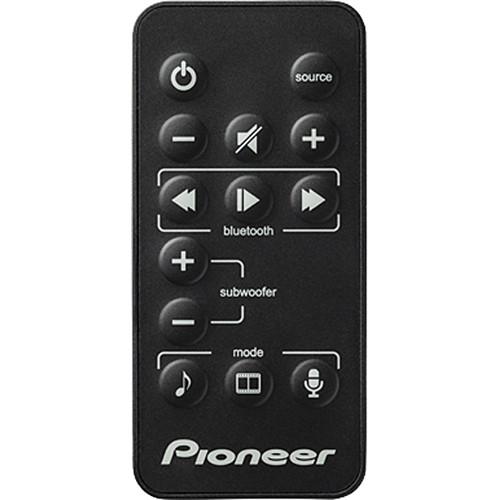

UPC: 012562907314 In the Box Pioneer SP-SB23W 218W 2.1-Channel Soundbar System 6' Optical Cable Remote Control with Battery 2 x Rubber Feet 2 x Power Cords Limited 1-Year Warranty Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 User Manual PDF 4.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer SP-SB23W 218W 2.1-Channel Soundbar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer SP-SB23W Specs | | | Speaker Configuration | 2.1-Channel | | Midrange Drivers | 4 x 3" / 76 mm Cone | | High-Frequency Drivers | 2 x 1" / 25 mm Tweeter | | Amplifier Output | 168 W | | Frequency Response | 45 Hz to 20 kHz | | Impedance | 4 Ohms | | Total Harmonic Distortion (THD) | 1% | | | | Drivers | 1 x 6.5" / 165 mm | | Amplifier Output | 50 W | | Impedance | 6 Ohms | | Total Harmonic Distortion (THD) | 1% | | | | Inputs | 1 x Optical TOSLINK
1 x Stereo RCA | | Wireless Audio Protocols | Bluetooth | | Bluetooth Profiles | A2DP | | | | Audio Decoding | Dolby Digital | | | | Power Consumption | 60 W (Soundbar)
60 W (Subwoofer)
4 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Material of Construction | MDF | | Wall Mountable | Yes | | Dimensions | 36.0 x 4.1 x 4.7" / 91.4 x 10.3 x 12.0 cm (Soundbar)
9.0 x 10.0 x 9.0" / 22.9 x 25.4 x 22.9 cm (Subwoofer) | | | | Package Weight | 28.75 lb | | Box Dimensions (LxWxH) | 38.0 x 17.9 x 11.5" |
Rating66% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
