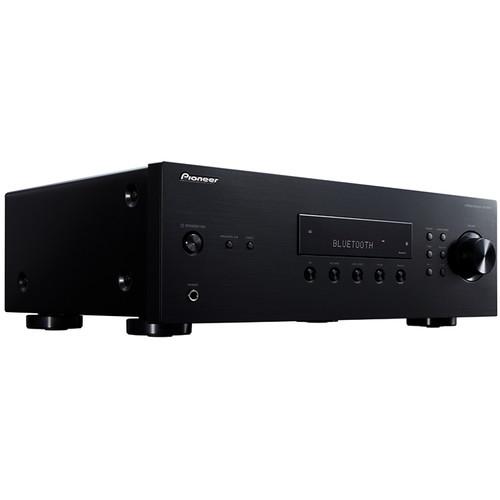

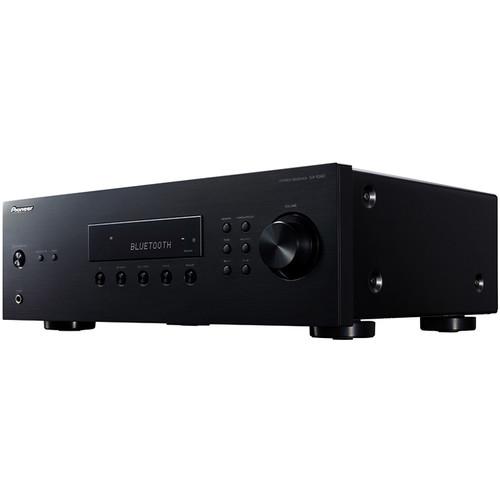

User Manual for Pioneer SX-10AE Stereo Receiver Click to enlarge the picture
Contents of the user manual for the Pioneer SX-10AE Stereo Receiver
- Product category: Receivers Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Receivers
 |
User manual for the Pioneer SX-10AE Stereo Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|
Product description Enjoy music from a variety of sources with the Pioneer SX-10AE Stereo Receiver. Built-in Bluetooth allows you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets. It also has four stereo RCA inputs for connecting your wired audio sources. It outputs up to 45W per channel to your speakers at 8 Ohms and features outputs for up to two pairs of speakers. The SX-10AE also features a subwoofer output for enhanced low end. The integrated AM/FM tuner allows you to enjoy free over-the-air content. - Direct Energy Design
- The chassis was designed with a short transmission path, clean grounding, and a rigid structure with enhanced damping to help augment sound quality.
- Bluetooth Wireless Technology
- With built-in Bluetooth 4.2, you can stream songs from compatible devices such as smartphones and tablets. The SX-10AE features A2DP and AVRCP profiles with support for SBC and AAC codecs.
- AM/FM Tuner with Presets
- The automatic tuning feature helps you easily find stations in your area; manual tuning is also available. You can save up to 40 stations in the receiver's preset storage for quick access.
- Auto Standby
- The SX-10AE will automatically turn off after being left uncontrolled for a certain time that you preset.
- Additional Features
-
- Screw-type binding posts compatible with thick cables
- Direct Mode designed to output sound as originally intended
- Preset station naming (up to 10 characters)
- Speaker A/B/A+B selector
- FL display
- Sleep timer
UPC: 889951001102 In the Box Pioneer SX-10AE Stereo Receiver Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer SX-10AE Stereo Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer SX-10AE Specs | | | Number of Channels | 2 | | Amplifier Type | Direct Energy | | Power Output | 45 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.1% THD, 2 channels driven, FTC
100 W per channel @ 6 Ohms, 1 kHz, 10% THD, 2 channels driven | | THD | 0.08% | | Frequency Response | 10 Hz to 100 kHz, +1 dB, -3 dB | | Signal-to-Noise Ratio | Line In, SP Out: 100 dB | | Tone Control | Bass: ±10 dB, 100 Hz
Treble: ±10 dB, 10 kHz | | Speaker Impedance | A or B: 4 to 16 Ohms
A + B: 8 to 16 Ohms | | | | Bluetooth | Version: 4.2
Profiles: A2DP, AVRCP

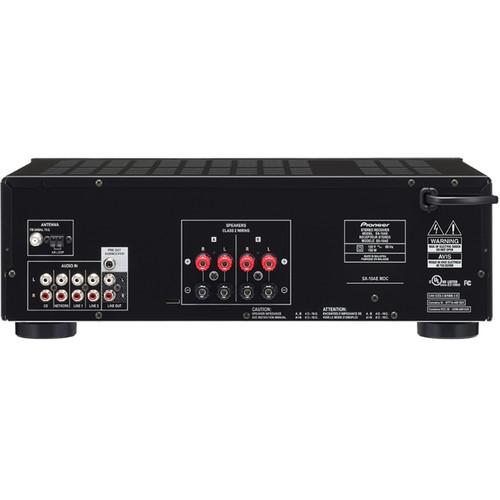

Codecs: SBC, AAC | | Inputs | 4 x stereo RCA | | Outputs | 1 x stereo RCA | | Other Connectors | 1 x subwoofer RCA pre-out
1 x FM antenna in
1 x AM antenna in
1 x 1/4" (6.35 mm) headphone out (front) | | Speaker Connectors | 4 x binding post pairs (A & B) | | | | AM/FM Tuner | Yes/Yes | | Number of Presets | 40 | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Active: 150 W
Standby: 0.4 W | | Dimensions (W x H x D) | 17.1 x 5.8 x 12.6" (43.5 x 14.7 x 32.1 cm) | | Weight | 14.8 lb (6.7 kg) | | | | Package Weight | 19.15 lb | | Box Dimensions (LxWxH) | 20.7 x 15.5 x 9.0" |
