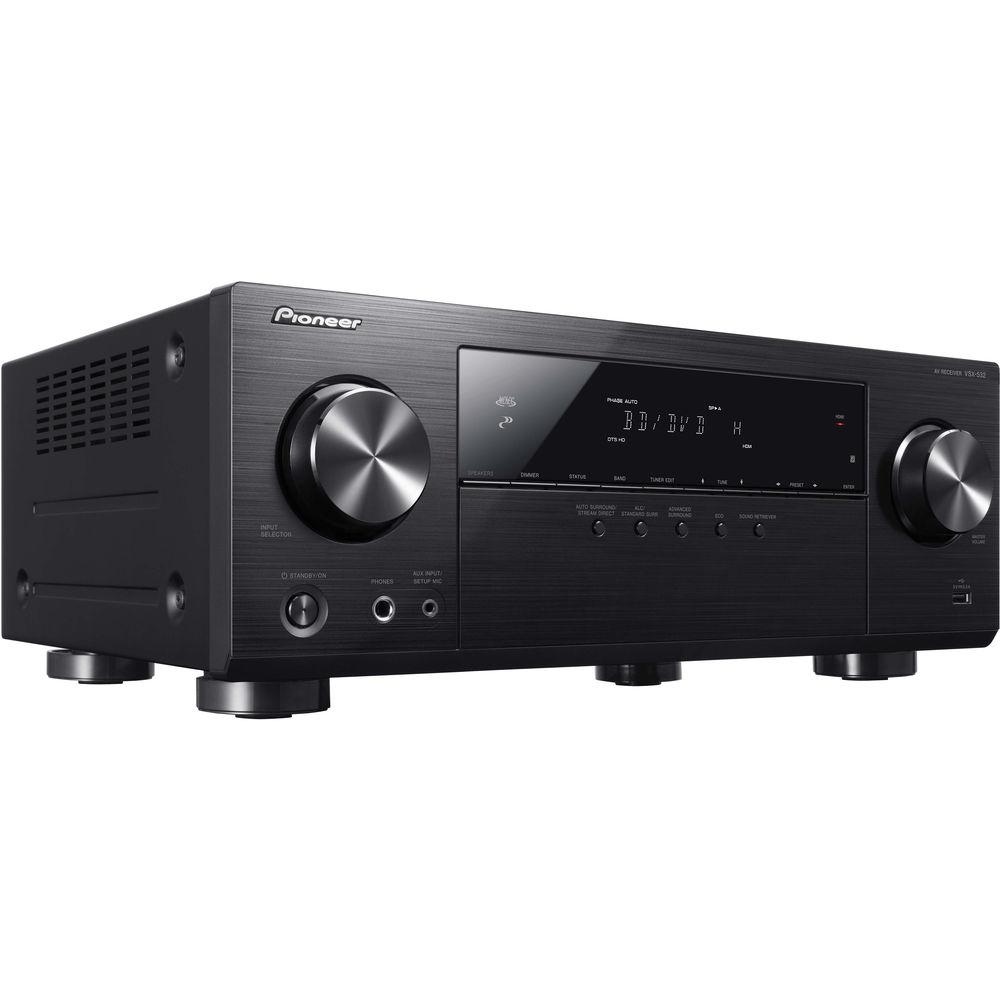

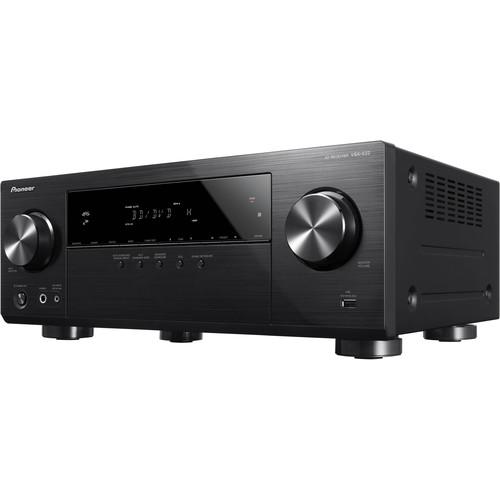

Product description Enjoy 4K Ultra HD pass-through with HDR and 3D support via HDMI with the Pioneer VSX-532 5.1-Channel A/V Receiver. It produces up to 80W of power per channel at 8 Ohms for room-filling sound. MCACC sound optimization will allow you to tailor the sound to your room's specific acoustics. Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices. You can also attach a USB drive to the USB port on the front panel to play your stored multimedia files. The VSX-532 is equipped with four HDMI inputs and one HDMI output. The HDMI output supports ARC for the reproduction of TV-based audio, such as your TV's built-in Netflix or Hulu apps. - 4K/60p Pass-Through
- The feature lets you pass through 4K/60p/4:4:4 signals for viewing on a compatible display. The VSX-532 supports HDCP 2.2, so by connecting to a compatible device, you can enjoy premium content such as 4K videos with digital copy protection.
- HDR-Ready
- The VSX-532 is ready to pass through HDR (High Dynamic Range) signals, which is a technology designed to expand the brightness peak, providing a higher contrast between light and dark images, which creates more lifelike images.
- MCACC Auto Room Tuning
- With the included microphone, MCACC is designed to automatically compensate for differences in speaker size, level, and distance, and equalize response accordingly to help you achieve an enhanced acoustic environment.
- Synchronized Sound with Phase Control
- When amplifying multi-channel audio signals, receivers use a low pass filter (LPF) to process low-frequency signals for subwoofer output. This can cause a phase shift of the low-frequency signals compared to the main channel signals, and the delayed bass makes the sound lack synchronization. Pioneer's Phase Control technology is designed to effectively eliminate phase lag and reproduce clearer mid- and high-range sound.
- Master Quality with Dolby TrueHD and DTS-HD Master Audio
- The VSX-532 supports Dolby TrueHD and DTS-HD Master Audio surround soundtracks, letting you experience lossless codecs that are identical to the studio master.
- Enjoy Quality Sound from Compressed Audio
- The Advanced Sound Retriever restores the output of compressed audio such as WMA, AAC, and MP3 files, to the level of CD sound. The technology creates new signals to restore the minor details left out during the compression process.
- Built-In Bluetooth Wireless Technology
- With built-in Bluetooth wireless technology (ver. 3.0), you can stream songs from compatible devices. The VSX-532 features A2DP profile, with support for SBC and AAC codecs.
- Front USB Input
- The front-panel USB input terminal allows direct connection for a USB memory stick. This plug-and-play connectivity enables you to easily play digitally stored music files.
- Additional Features
-
- Discrete direct energy design
- Digital Core Engine with Texas Instruments Aureus DSP
- 48 kHz / 16-bit MP3, WMA, and AAC playback via USB
- Auto subwoofer crossover
- Auto surround
- Advanced surround 10+1
- Front stage surround advance
- Direct, Stream Direct, Pure Direct modes
- 2-channel DSD music file
- 2-channel tone control
- Sound delay (lip sync) of 500 ms
- 4K UHD pass-through with HDR10 support
- 3D-ready
- HDMI standby through with input switch and last memory
- On-screen display via HDMI
- Auto power down
- FL dimmer
- Sleep timer
- Brushed front panel

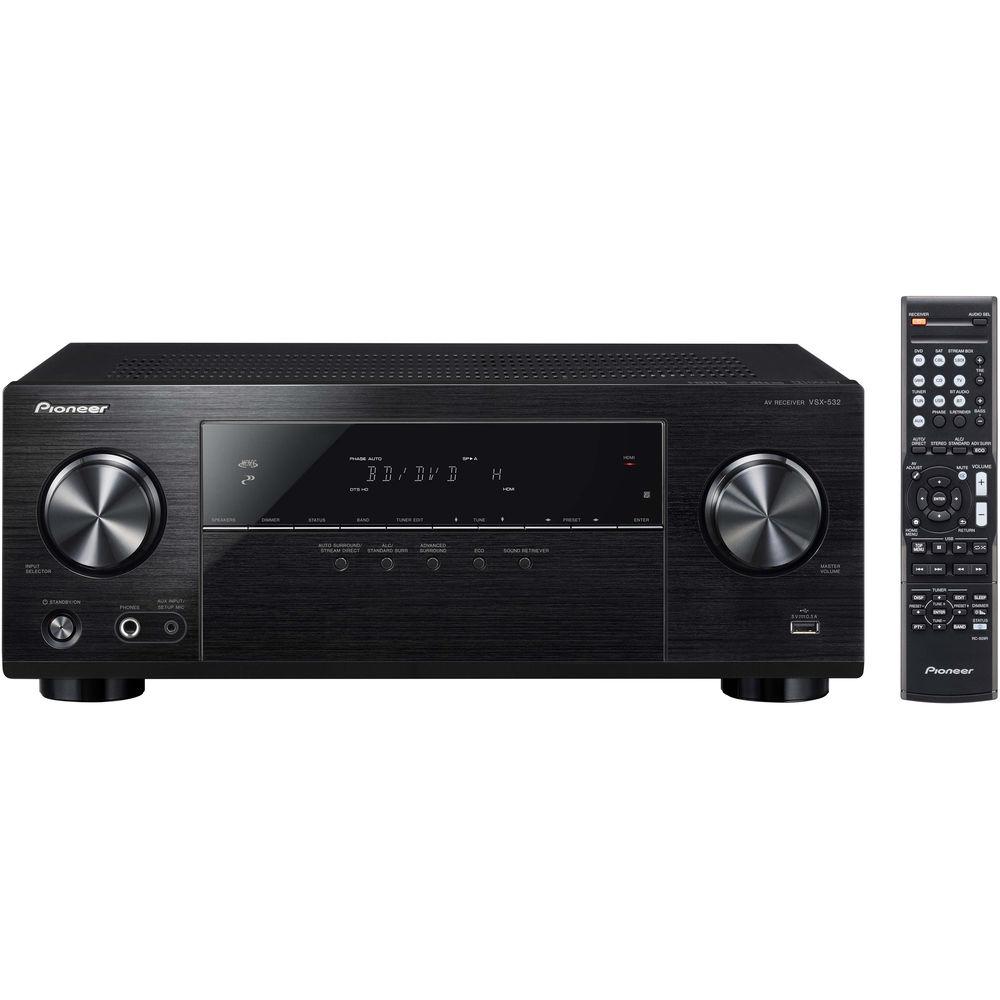

UPC: 889951000914 In the Box Pioneer VSX-532 5.1-Channel A/V Receiver Remote Control 2 x AAA Batteries Setup Microphone FM Wire Antenna AM Loop Antenna Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer VSX-532 5.1-Channel A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer VSX-532 Specs | | | Channels | 5.1 | | Power Output | 80 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2-channels driven
150 W per channel @ 6 Ohms, 1 kHz, 10% THD, 1-channel driven | | Input Sensitivity and Impedance | Line: 200 mV / 47 kOhms | | Signal to Noise Ratio | Line: 106 dB (IHF-A network, 1 kOhm shortened) | | Tone Control | 2-channel | | | | Dolby | Dolby TrueHD, Dolby Digital Plus | | DTS | DTS-HD Master Audio | | DAC Type | 192 kHz / 24-bit | | Calibration | MCACC | | | | AM Frequency Range | 530 to 1700 kHz | | FM Frequency Range | 87.5 to 108 MHz | | Antenna Input Impedance | AM: loop antenna
FM: 75 Ohms unbalanced | | FM/AM Preset Memory | 30 stations | | | | Bluetooth | Version: 3.0 class 2
Profile: A2DP
Codec: SBC/AAC
Range: Up to 33' (10 m)

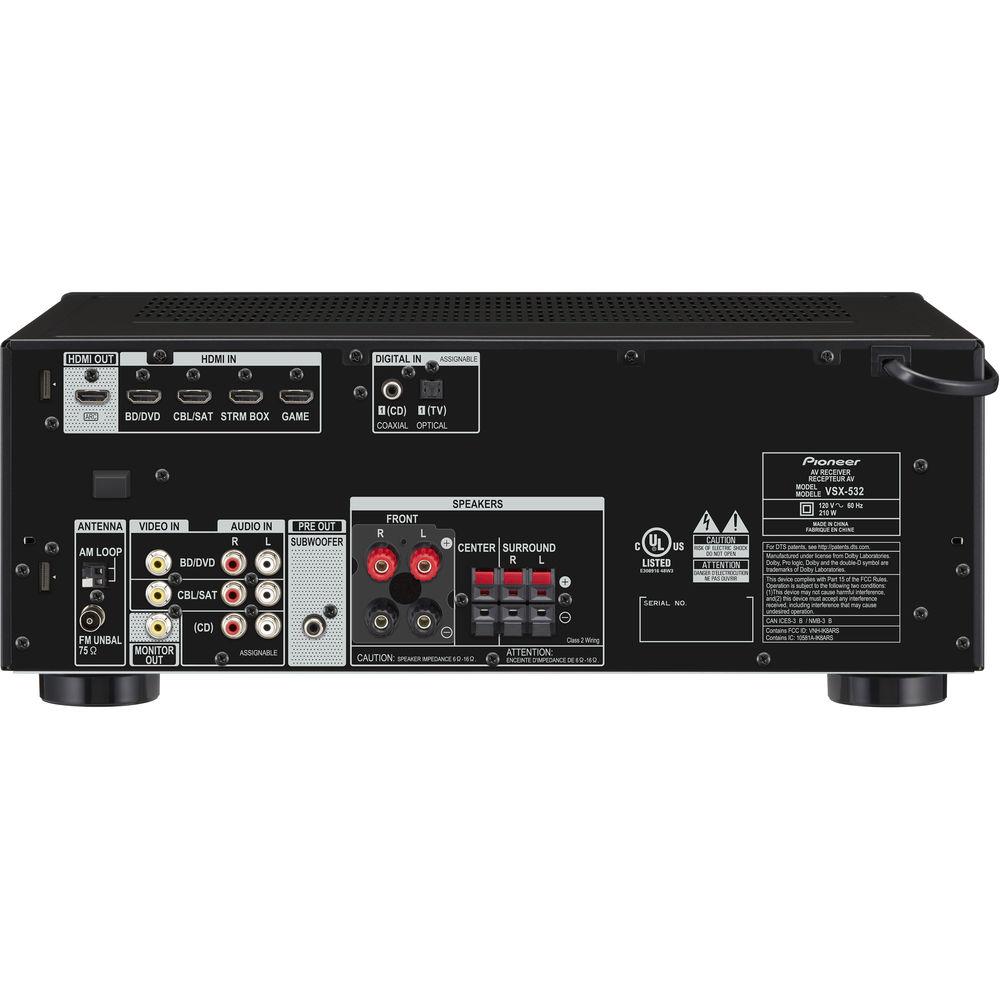

Frequency Range: 2.4 GHz | | Audio Return Channel (ARC) | Yes | | Inputs | 4 x HDMI
2 x composite video
3 x stereo RCA audio
1 x digital coaxial
1 x optical TOSLINK | | Outputs | 1 x HDMI
1 x composite video
1 x subwoofer pre-out
1 x 1/4" (6.35 mm) headphone (front) | | Other Interfaces | 1 x USB 2.0 (front)
1 x AM antenna
1 x FM antenna
1 x calibration microphone (front) | | Speaker Connectors | 2 x binding post pairs (front L/R)
3 x spring-clip pairs (center, surround L/R) | | Video Signal Level | Composite: 1 Vp-p (75 Ohms) | | HDMI Output | 5 V, 55 mA | | USB Power | 5 V, 0.5 A | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 210 W
Standby: 0.35 W | | Dimensions (W x H x D) | 17.13 x 6.63 x 12.63" (435 x 168 x 320.5 mm) | | Weight | 17.6 lb (8.0 kg) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 20.0 x 17.0 x 10.0" |
