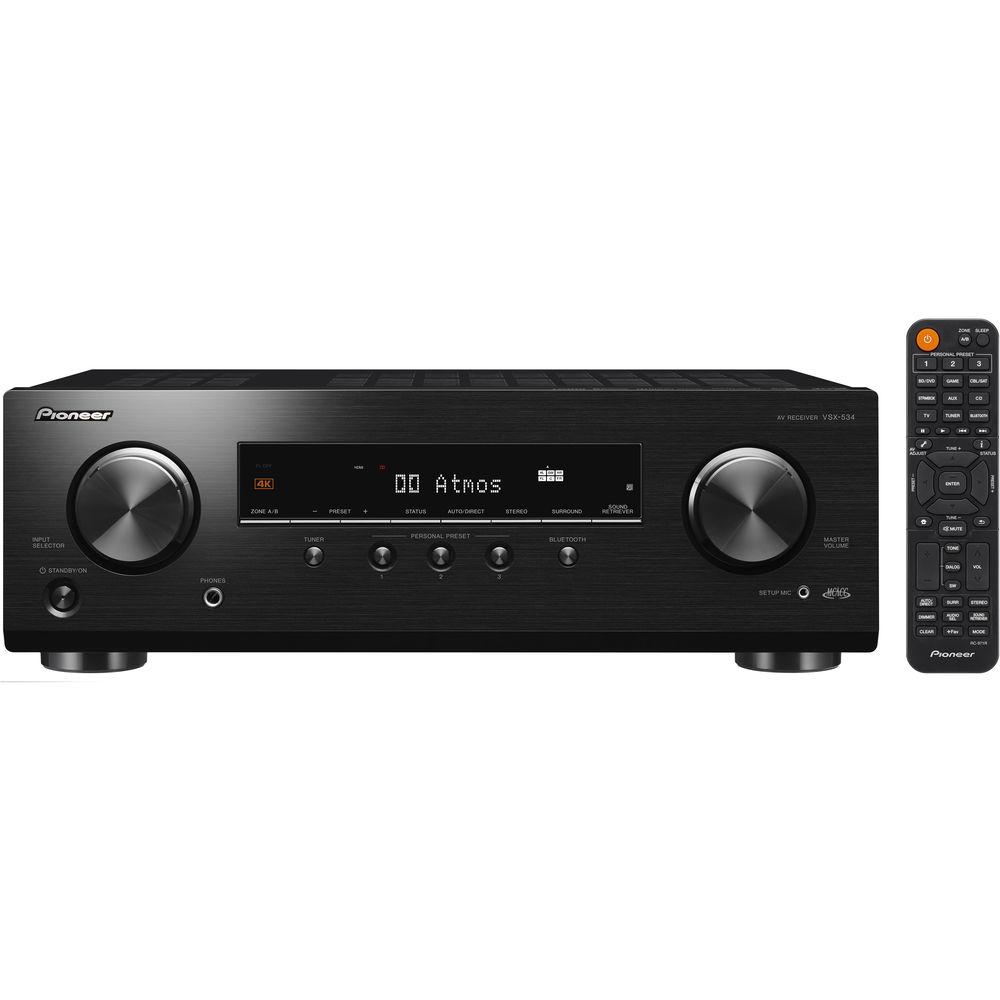

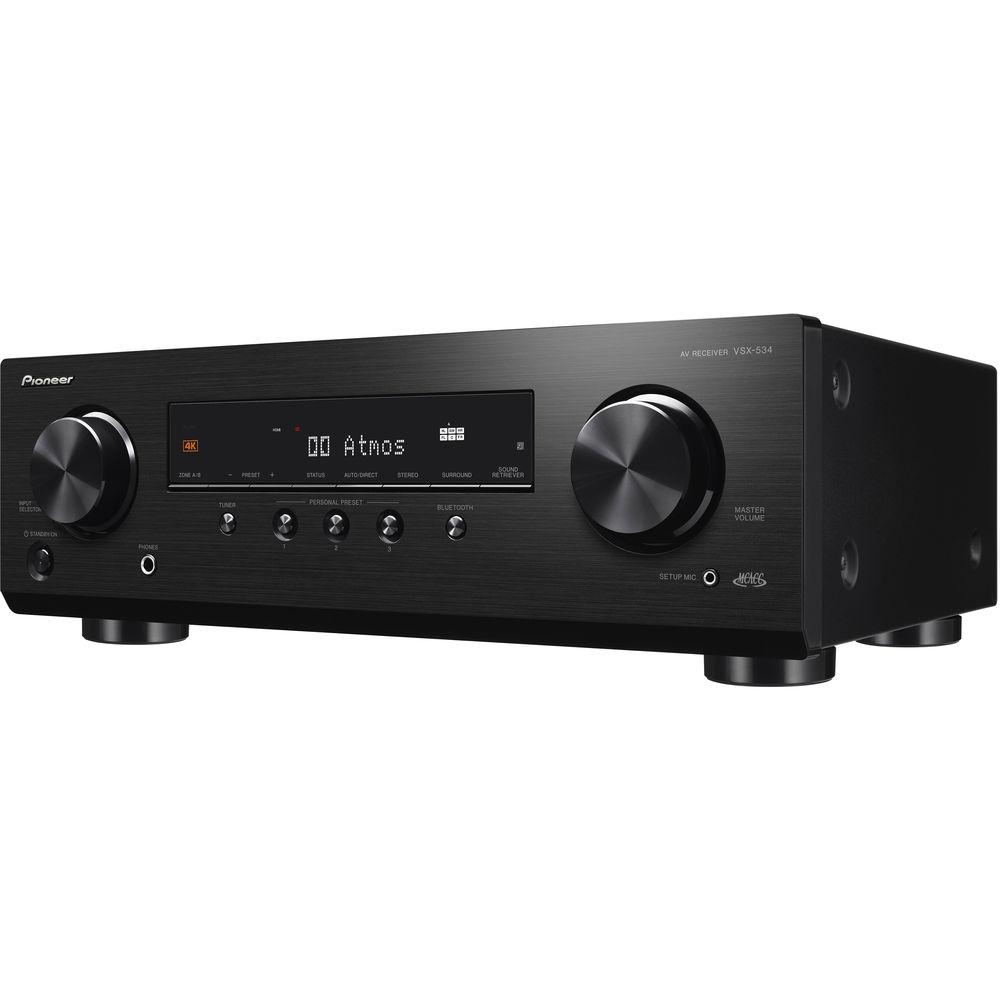

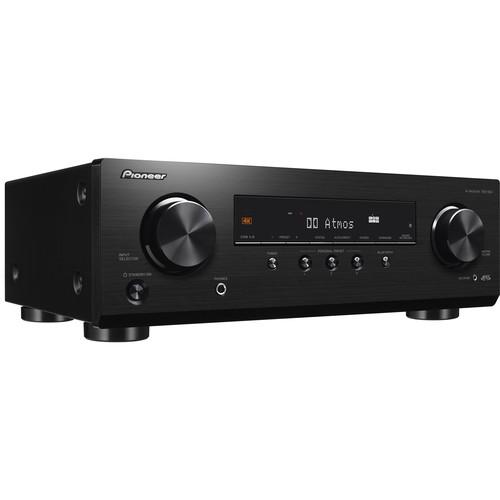

Pioneer VSX-534 5.2-Channel A V Receiver

Search your instruction manual in PDF to download

User Manual for Pioneer VSX-534 5.2-Channel A V Receiver

Click to enlarge the picture
Pioneer VSX-534 5.2-Channel A V Receiver Contents of the user manual for the Pioneer VSX-534 5.2-Channel A V Receiver
  • Product category: Receivers Pioneer
  • Brand: Pioneer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Pioneer Receivers

Pioneer VSX-534 5.2-Channel A V Receiver Pioneer VSX-534 5.2-Channel A V Receiver Pioneer VSX-534 5.2-Channel A V Receiver
User manual for the Pioneer VSX-534 5.2-Channel A V Receiver contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Pioneer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!



Product description

Enjoy 4K Ultra HD pass-through with HDR10, HLG, and Dolby Vision support via HDMI with the Pioneer VSX-534 5.2-Channel A/V Receiver. It produces up to 80W of power per channel at 8 Ohms for room-filling sound and supports the Dolby Atmos and DTS:X 3-dimensional audio formats. MCACC sound optimization allows you to tailor the sound to your room's specific acoustics.

Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices. The VSX-534 is equipped with four HDMI inputs and one HDMI output, which supports ARC for the reproduction of TV-based audio, such as your TV's built-in Netflix or YouTube apps.
    Dolby Atmos and Dolby Surround Upmixing
  • Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The VSX-534 features the ability to connect a 3.1-channel surround sound speaker system and two additional overhead speakers, or two additional Dolby Atmos-certified up-firing speakers. Additionally, audio codecs such as PCM and DSD can be upmixed using Dolby Surround for 3D surround sound.
    DTS:X and DTS Neural:X Upmixing
  • DTS:X is designed to leverage object-based audio to enable immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required for an immersive soundscape with lifelike audio. Audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for 3D surround sound.
    Dolby Atmos Height Virtualization, Available via a Future Firmware Update
  • When playing any Dolby format, engaging this mode enables a more immersive listening experience by creating virtual surround and height effects from traditional speaker layouts without using surround or height speakers.
    DTS Virtual:X
  • DTS Virtual:X is designed to provide a three-dimensional immersive sound similar to DTS:X, but without height or rear speakers. It supports 2- to 7.1.4-channel input sources for delivery via 2- to 5.1-channel speaker layouts. It works with all DTS codecs, including DTS:X.
    Supports HDR10, HLG, Dolby Vision, and BT.2020
  • The VSX-534 supports pass-through for HDR10, HLG, and Dolby Vision signals. By connecting a compatible source device, you can enjoy these video standards on your compatible display. Additionally, all the onboard HDMI terminals support 4K (60p/4:4:4, 24-bit), Wide Color Gamut (BT.2020), and HDCP 2.2 for enhanced compatibility.
    MCACC Auto Room Tuning
  • MCACC (Multi-Channel Acoustic Calibration System) is designed to automatically compensate for differences in speaker size, level, and distance, and equalize response accordingly to help you achieve an enhanced acoustic environment.
    Zone B Output
  • The VSX-534 is equipped with Zone B audio output terminals for expanding the Main Zone sound by connecting your wireless headphone dock. You can listen to the sound playing in the living room via wireless headphones. Alternatively, you can connect an amplifier located in a second room to play synchronized audio in both rooms.
    Built-In Bluetooth Wireless Technology
  • With built-in Bluetooth wireless technology, you can stream songs from compatible devices. The VSX-534 supports the A2DP and AVRCP profiles and the SBC and AAC codecs. By pressing the Bluetooth button on the front panel, you can start the Bluetooth function, even from standby mode.
    Personal Preset
  • Press the Personal Preset button on the front panel for three seconds and your current settings, such as volume level and listening mode, will be saved. Up to three presets can be registered and recalled via the front panel button or the remote control.
    Dialogue Enhancement
  • This mid-range sound control feature allows you to make independent volume adjustments to boost the dialogue in your movies. These volume adjustments can be made with the up/down keys on the remote control.
    On-Screen Information for Audio/Video Status
  • The on-screen display shows detailed input and output information for the playing content, so you can see whether your video is being output in Dolby Vision, or if the movie is processing Dolby Atmos or DTS:X audio.
    Soundfield Calibration
    • Phase control
    • MCACC memory
    • 9-band EQ
    • Symmetric EQ
    • Distance adjustment of 0.1'
    • Auto subwoofer crossover
    Listening Modes
    • Auto Surround
    • Direct & Pure Direct
    • 10+1 Advanced Surround
    • Front Stage Surround Advance
    Audio Features
    • Advanced Sound Retriever
    • Multi tone control
    • Lip Sync sound delay
    • Bi-amp capable
    Video Processing
    • 4K UHD video upscaling
    • 3D-ready
    • HDMI with Audio Return Channel (ARC)
    • HDMI Standby Through with Input Switch / Last Memory
    • 36-bit Deep Color via HDMI
    • HDMI x.v.Color
    • Video converter to HDMI
    • Super Resolution
    Installation Features
    • Auto power down
    • FL dimmer
    • Sleep timer
    • Surround channels can alternatively be used as height channels
    Additional Features
    • Direct energy design
    • Digital quad-core 32-bit DSP (Cirrus Logic)
    • 2-channel HDMI SACD transfer
    • Brushed front panel
UPC: 889951001447 In the Box Pioneer VSX-534 5.2-Channel A/V Receiver
  • Remote Control
  • 2 x AAA Batteries
  • Setup Microphone
  • Indoor FM Antenna
  • AM Loop Antenna
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Pioneer VSX-534 5.2-Channel A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Pioneer VSX-534 5.2-Channel A V Receiver can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Pioneer VSX-534 5.2-Channel A V Receiver can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Pioneer VSX-534 5.2-Channel A V Receiver can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Pioneer VSX-534 5.2-Channel A V ReceiverDownload PDF User Manual - https://www.search-manual.com/ upload/ pioneer-vsx-534-5-2-channel-a-v-receiver-269883-user-manual.pdf
    (PDF file, 4.88 MB)


    Technical parameters

    Pioneer VSX-534 Specs

    Channels 5.2
    Rated Power Output 80 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 Channels Driven
    150 W per Channel @ 6 Ohms, 1 kHz, 10% THD, 1 Channel Driven
    Maximum Power Output Effective: 150 W @ 6 Ohms, 1 kHz, 10% THD, 1 Channel Driven
    THD + N 0.08% (20 Hz to 20 kHz, Half Power)
    Input Sensitivity and Impedance RCA Line: 200 mV / 47 kohms
    Output Level and Impedance Subwoofer Pre-Out, Rated: 1 V / 470 Ohms
    Zone B Line Out, Rated: 1 V / 2.3 kohms
    Signal to Noise Ratio Line In, Speaker Out: 109 dB (IHF-A)
    Frequency Response 10 Hz to 100 kHz, +1/-3 dB (Pure Direct)
    Speaker Impedance 4 to 16 Ohms
    Tone Control Bass, 20 Hz: ±10 dB
    Treble, 20 kHz: ±10 dB
    Dolby Dolby Atmos, Dolby TrueHD, Dolby Digital Plus
    DTS DTS:X, DTS-HD Master Audio, DTS Neural:X
    DAC Type 384 kHz / 32-Bit D/A Conversion with AK4438 (AKM)
    AM Frequency Range 530 to 1710 kHz
    FM Frequency Range 87.5 to 107.9 MHz
    FM/AM Preset Memory 40 Stations
    50dB Quieting Sensitivity FM Mono: 1 μV, 11.2 dBf (IHF, 1 kHz, 100% MOD)
    Bluetooth Version: 4.2
    Profiles: A2DP 1.3, AVRCP 1.5, HFP 1.6, HSP 1.2, SPP 1.2
    Codecs: SBC, AAC
    Frequency Range (A2DP): 20 Hz to 20 kHz, Sampling Frequency 44.1 kHz
    Communication Range: Up to 49.2' / 15 m
    Frequency Band: 2.4 GHz
    Modulation Method: FHSS

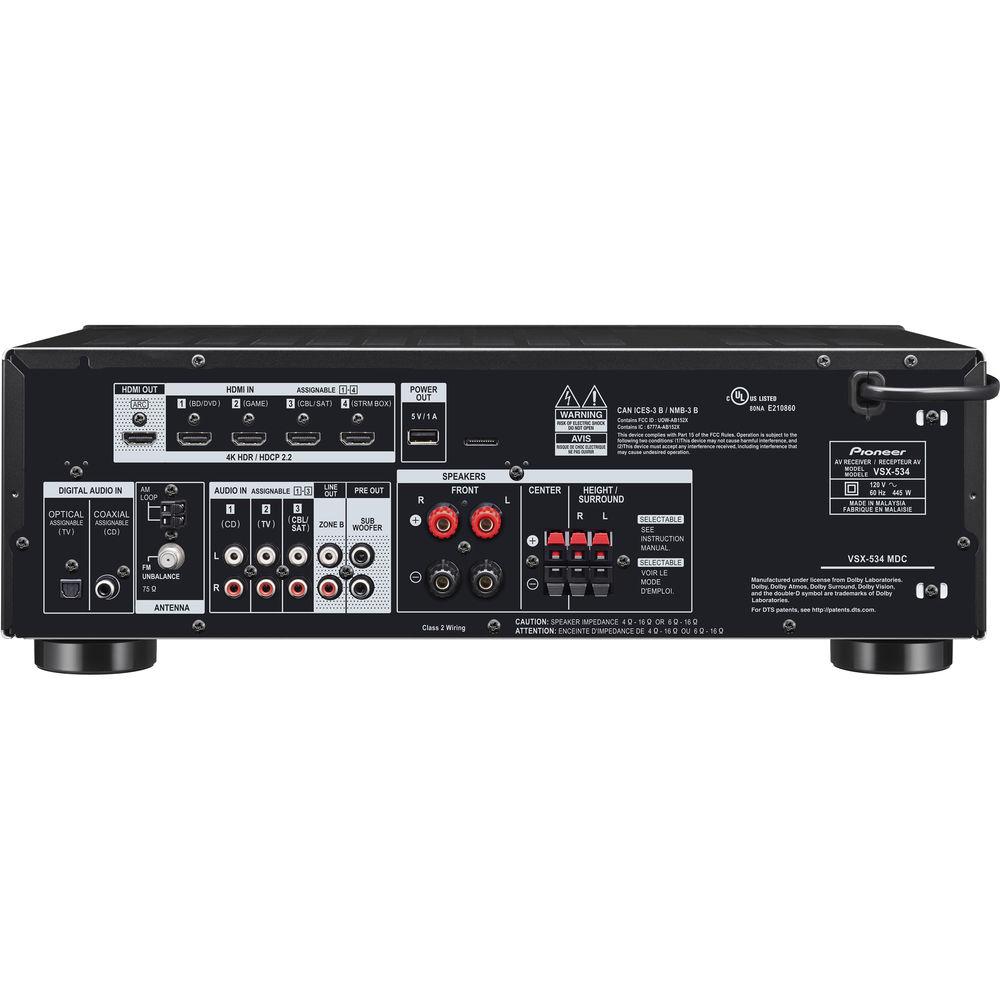

    Inputs 4 x HDMI
    1 x Digital Coaxial
    1 x Optical TOSLINK
    3 x Stereo RCA
    Outputs 1 x HDMI
    1 x Stereo RCA (Zone B)
    1 x 1/4" / 6.35 mm Headphone (Front)
    2 x Subwoofer Pre-Out
    Speaker Connectors 2 x Binding Post Pairs (Front L/R)
    3 x Spring-Clip Pairs (Center, Surround L/R)
    Other Connectors 1 x USB Power Out (5 V, 1 A)
    1 x AM Antenna
    1 x FM Antenna
    1 x Calibration Microphone (Front)
    HDCP Version 2.2
    Maximum Video Resolution 4K UHD
    Headphone Output Rated: 80 mW per Channel (32 Ohms, 1 kHz, 10% THD)
    Headphone Impedance Supported: 8 to 600 Ohms
    Frequency Response Headphones: 10 Hz to 100 kHz
    Power Requirements 120 VAC, 60 Hz
    Power Consumption (Operational) 445 W
    No Sound: 38.6 W
    Power Consumption (Standby) Full Standby: 0.1 W
    HDMI CEC: 0.1 W
    HDMI Standby Through: 25.7 W
    Dimensions (W x H x D) 17.13 x 5.83 x 12.64" / 435 x 148 x 321 mm
    Weight 17.6 lb / 8 kg
    Package Weight 21.1 lb
    Box Dimensions (LxWxH) 20.8 x 15.0 x 9.0"

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4.0 of 5

    This product has already been rated by 83 owners. Add your rating and experience with the product.
