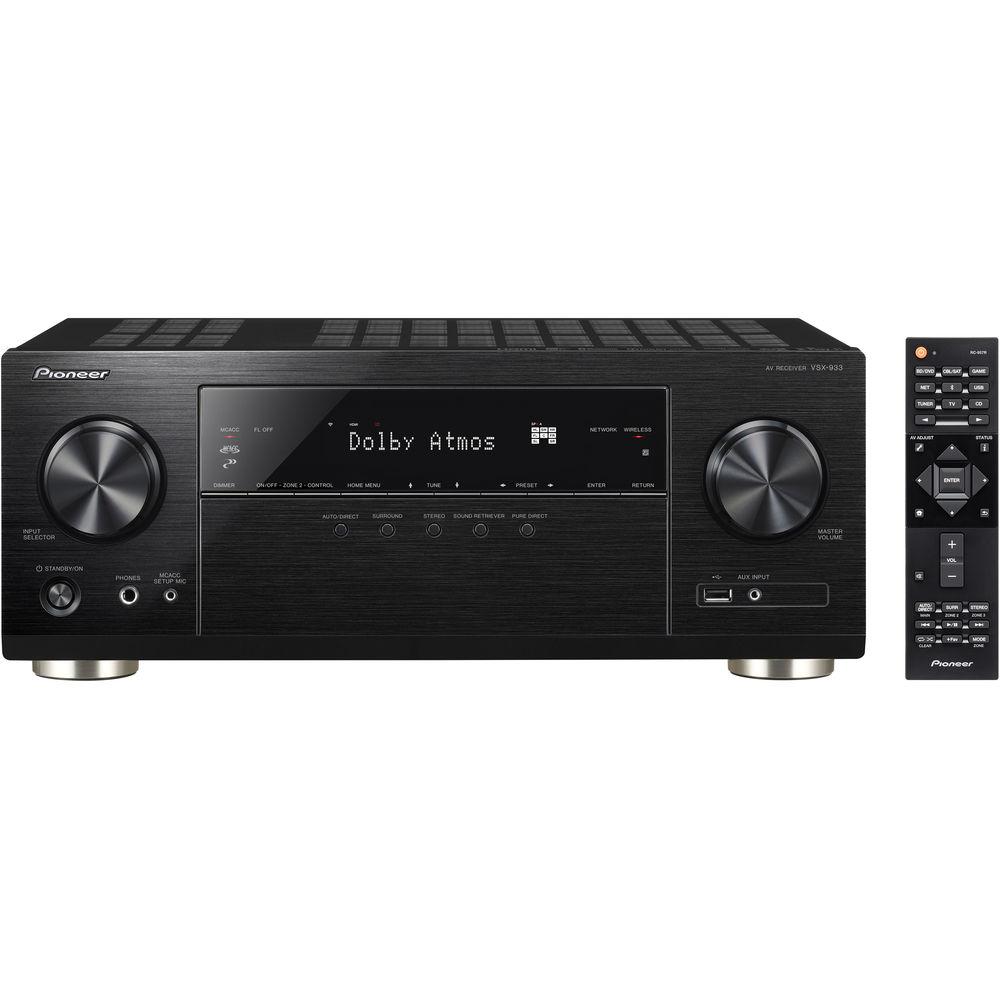

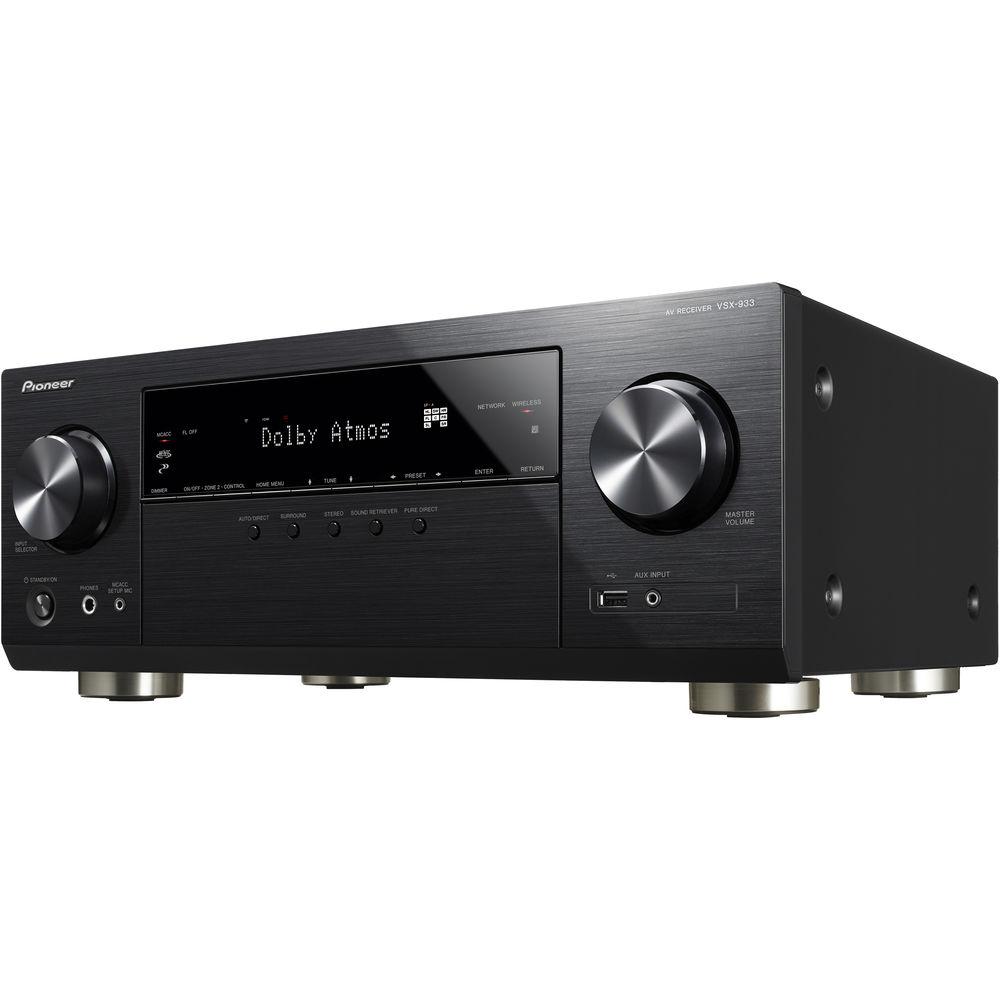

User Manual for Pioneer VSX-933 7.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Pioneer VSX-933 7.2-Channel Network A V
- Product category: Receivers Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Receivers
 |
User manual for the Pioneer VSX-933 7.2-Channel Network A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|
Product description Enjoy wireless audio streaming and object-based, multi-channel audio with the Pioneer VSX-933 7.2-Channel Network A/V Receiver. The receiver features Dolby Atmos and DTS:X compatibility for object-based audio support. It delivers up to 80W per channel at 8 Ohms for robust audio playback. Built-in AirPlay and Bluetooth connectivity allow you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets. Onboard Wi-Fi and Ethernet connectivity give you the ability to stream music from Internet radio sources.
The VSX-933 has six HDMI inputs for interfacing audio and video sources, including support for HDR UHD video sources. There are also USB ports on the rear and front panels for attaching a USB drive. The free Pioneer Remote app will allow you to control your receiver from a smartphone or tablet. Built-in high-resolution audio support allows you to take advantage of dynamic surround sound formats like DTS-HD Master Audio and Dolby TrueHD. Note: Access to certain Internet-based content may require a subscription to a service. - Supports Dolby Atmos and DTS:X Playback
- Object-based soundtracks allow independently mixed sound to play through any speaker in your system. Effects move all around as they do in real life, so you experience 5.2.2-channel Dolby Atmos or DTS:X formats as the director intended. DTS Neural:X is designed to identify spatial effects in multichannel soundtracks and upmix them for 3D playback, while DTS:X offers independent dialogue volume control for movies. Dolby Surround is also included to upmix legacy multichannel formats for playback in a Dolby Atmos-enabled environment.
- Dolby Surround Upmixing
- The VSX-933 can upmix other audio codecs like DTS using Dolby Surround for 3D surround sound.
- Supports 4K HDR, BT.2020, 4K/60 Hz, and HDCP 2.2
- Six HDMI inputs and one ARC-enabled output pass 4K (60p, 4:4:4, 24-bit) video in HDR10, HLG, and Dolby Vision formats through to compatible displays. All support the BT.2020 4K video standard and HDCP 2.2.
- MCACC Audio Calibration
- Tailor the audio to your room's acoustics with the MCACC (Multi-Channel Acoustic Calibration) system. With the included microphone, the system automatically compensates for differences in speaker size, level, and distance, and equalizes response.
- Synchronized Sound with Phase Control
- A solution for the phase lag between the subwoofer and main speakers caused by the bass management filter, Phase Control compensates for the delayed bass to enhance sound synchronization.
- Powered Zone 2
- Powered Zone 2 speaker outputs let you send amplified audio to a pair of speakers in another room. Play one source in both rooms for synchronized audio, or enjoy a different audio source in each zone at the same time.
- Reflex Optimizer
- The Reflex Optimizer, which uses Phase Control technology, adjusts the shift between Atmos-enabled speaker sound and direct speaker sound and helps augment the localization of the sound image by aligning the frequencies with those of the floor speakers.
- FlareConnect Multi-Room Audio
- FlareConnect shares audio from network and external audio input sources between compatible components. Enjoy multi-room playback of records, CDs, network music services, and more with supported components and speaker systems. Music selection, speaker grouping, and playback management across the home are built into the Pioneer Remote app, which is available on the App Store and Google Play for compatible devices.
- Chromecast built-in with the Google Assistant
- Stream nearly any audio from your compatible smartphone or computer to the receiver and control playback with Chromecast-enabled apps from your iOS or Android phone or tablet, Mac or Windows laptop, or Chromebook. If you have a smart device featuring the Google Assistant, you can cue and control music on the receiver with just your voice.
- DTS Play-Fi Wireless Multi-Room Audio
- DTS Play-Fi is a wireless protocol that is designed to work with any audio app on mobile devices and computers. Stream whatever's playing to the receiver, even different sources to different components at the same time.
- Additional Smart Features
-
- AirPlay built-in
- Spotify Connect
- TIDAL Music Streaming Service-ready
- Amazon Music
- Pandora Internet Radio
- Internet Radio
- Additional Processing Features
-
- Digital quad-core 32-bit Cirrus Logic DSP
- AKM AK4458 384 kHz / 32-bit D/A conversion
- 2-channel HDMI SACD transfer
- Additional Calibration Features
-
- 9-band symmetric EQ
- 0.1' distance adjustment
- Auto subwoofer crossover
- Listening Mode Features
-
- Auto Surround
- Direct & Pure Direct modes
- 10+1 advanced surround
- Front Stage Surround Advance
- Additional Audio Features
-
- Advanced Sound Retriever
- 2-channel 2.8 / 5.6 DSD playback, multi-channel 2.8 MHz DSD playback
- Multi tone control
- Lip Sync sound delay
- Bi-amp
- Additional Video Features
-
- UHD upscaling
- 3D-ready
- HDMI standby through with input switch & last memory
- Video converter to HDMI
- 480i to 480p video scaling
- Super Resolution
- Installation Features
-
- On-screen GUI with system/network setup menu
- Auto power down
- FL dimmer
- Sleep timer
- Brushed front panel
UPC: 889951001232 In the Box Pioneer VSX-933 7.2-Channel Network A/V Receiver Remote Control 2 x AAA Batteries Indoor FM Antenna AM Loop Antenna Speaker Setup Microphone Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer VSX-933 7.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer VSX-933 Specs | | | Channels | 7.2 | | Power Output per Channel | 80 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 channels driven
165 W per channel @ 6 Ohms, 1 kHz, 10% THD, 1 channel driven | | Dynamic Power per Channel | 85 W @ 8 Ohms, front
125 W @ 4 Ohms, front
160 W @ 3 Ohms, front | | Speaker Impedance | 4 to 16 Ohms | | THD & Noise | 0.08% (20 Hz to 20 kHz, half power) | | Damping Factor | Not specified by manufacturer | | Amplifier Class | Not specified by manufacturer | | Frequency Response | 10 Hz to 100 kHz / +1, -3 dB (Direct/Pure Direct) | | Signal to Noise Ratio | Line In, Speaker Out, IHF-A: 106 dB
Phono In, Speaker Out, IHF-A: 80 dB | | | | DAC | 384 kHz/32-bit | | Dolby | Dolby Atmos, Dolby TrueHD, Dolby Digital, Dolby Digital Plus | | DTS | DTS:X, DTS Neural:X, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express, DTS | | Additional Support | DSD, PCM | | | | Maximum Resolution Supported | HDMI: 4K 60 Hz (YCbCr 4:4:4)
Component Video: 480i / 576i | | Signal Level | Composite, Component Video Y: 1 Vp-p / 75 Ohms
Component Video B/R: 0.7 Vp-p / 75 Ohms | | | | Tuning Frequency Range | FM: 87.5 to 107.9 MHz
AM: 530 to 1710 kHz | | FM/AM Preset Memory | 40 stations | | 50dB Quieting Sensitivity | FM: 1.56 μV, 15 dBf (IHF, 1 kHz, 100% MOD) | | | | Wi-Fi | Dual-band 2.4 / 5 GHz IEEE 802.11a/b/g/n | | Bluetooth | Version: 4.1 + LE
Frequency Band: 2.4 GHz
Modulation Method: FHSS (frequency-hopping spread spectrum)
Profiles: A2DP v1.2, AVRCP v1.3, HOGP-Host (client), HOGP-HID Device (server), HID Service (HIDS)
Codecs: SBC, AAC
Frequency Range: 20 Hz to 20 kHz (A2DP, sampling frequency 44.1 kHz)

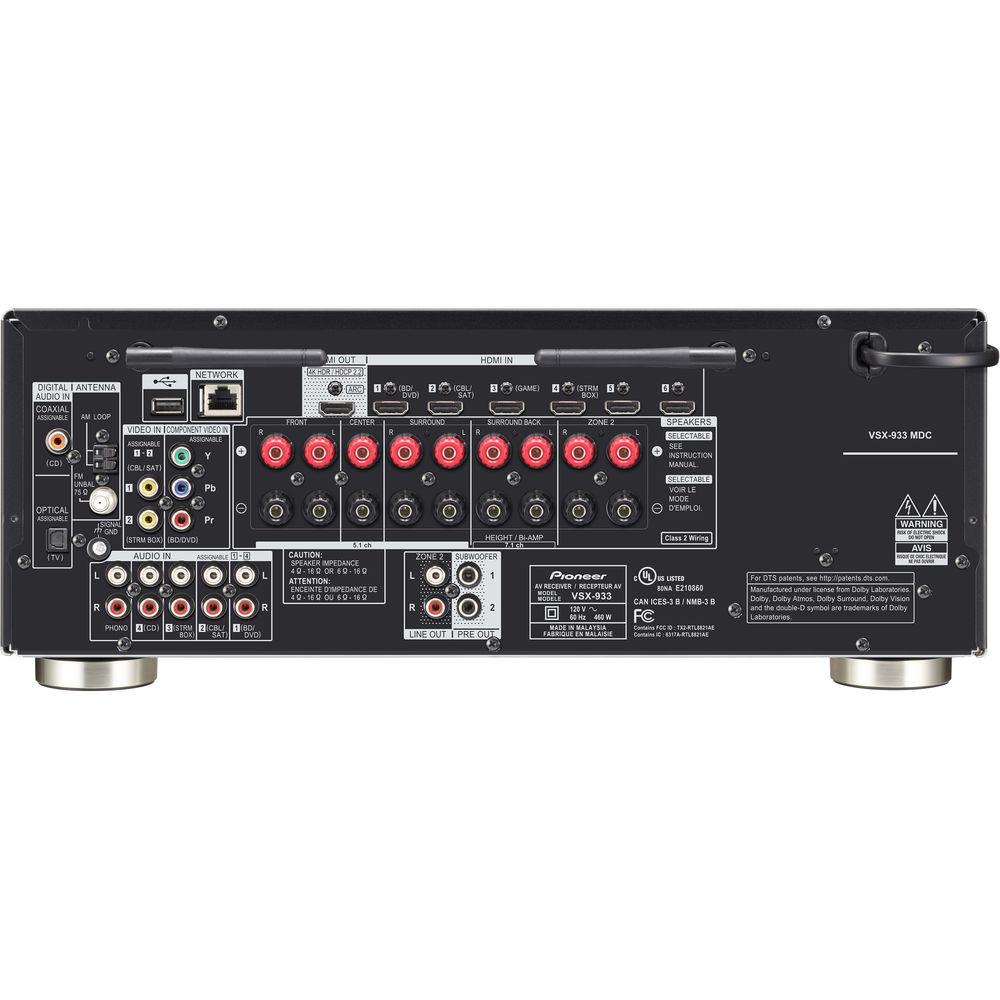

Transmission Range: Up to 49.2' / 15 m | | AirPlay | Yes | | Inputs | 6 x HDMI
1 x component video
2 x composite video
1 x optical TOSLINK
1 x digital coaxial
4 x stereo RCA
1 x stereo RCA phono with ground screw
1 x 1/8" / 3.5 mm aux (front) | | Outputs | 1 x HDMI
1 x stereo RCA Zone 2
1 x 1/4" / 6.35 mm headphone (front) | | Other Interfaces | 1 x Ethernet LAN
2 x USB (1 front)
1 x 1/8" / 3.5 mm calibration microphone (front)
1 x AM antenna
1 x FM antenna
2 x subwoofer pre-out | | Speaker Connectors | 9 x binding post pairs | | USB Playback Formats | 192 kHz / 24-bit ALAC, AIFF, FLAC, WAV | | Maximum Input Voltage | Phono: 70 mV (MM 1 kHz 0.5%) | | Input Sensitivity and Impedance | RCA Line: 200 mV / 47 kOhms
Phono MM: 3.5 mV / 47 kOhms | | RCA Output Level and Impedance | Subwoofer Pre-Out, Rated: 1 V / 470 Ohms
Zone Line Out, Rated: 200 mV / 2.3 kOhms | | | | Rated Output | 80 mW per channel (32 Ohms, 1 kHz, 10% THD) | | Impedance | 8 to 600 Ohms | | Frequency Response | 10 Hz to 100 kHz | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Typical: 460 W
No Sound: 55 W
HDMI Standby Through: 6 W
Wired Network Standby: 1.8 W
Wireless Network Standby: 2 W
Bluetooth Wakeup: 1.7 W
HDMI CEC Standby: 0.15 W
Standby Mode, All On: 2.1 W
Full Standby: 0.15 W | | Dimensions (W x H x D) | 17.1 x 6.8 x 14.9" / 435 x 173 x 370.5 mm | | Weight | 20.7 lb / 9.4 kg | | | | Package Weight | 24.1 lb | | Box Dimensions (LxWxH) | 20.5 x 17.25 x 10.0" |
