User Manual for Pioneer VSX-S520 5.1-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Pioneer VSX-S520 5.1-Channel Network A V
- Product category: Receivers Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Receivers
 |
User manual for the Pioneer VSX-S520 5.1-Channel Network A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|

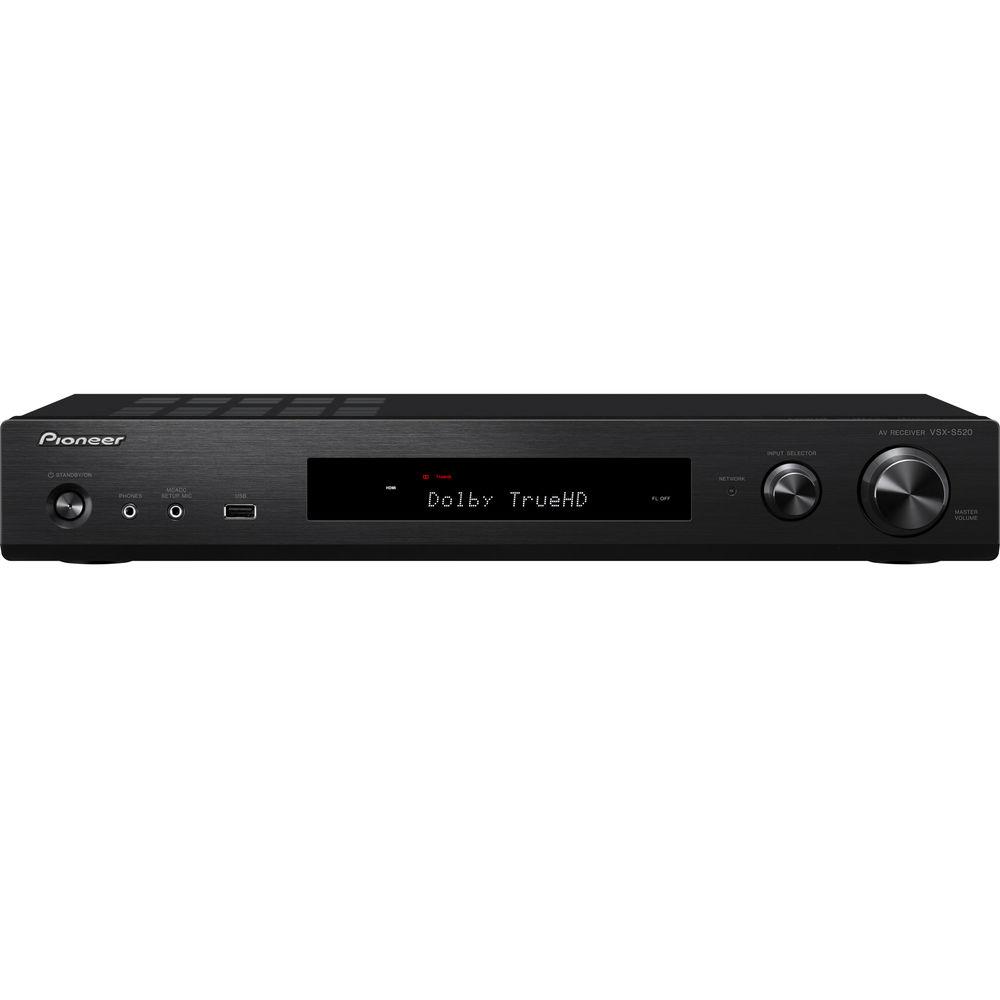

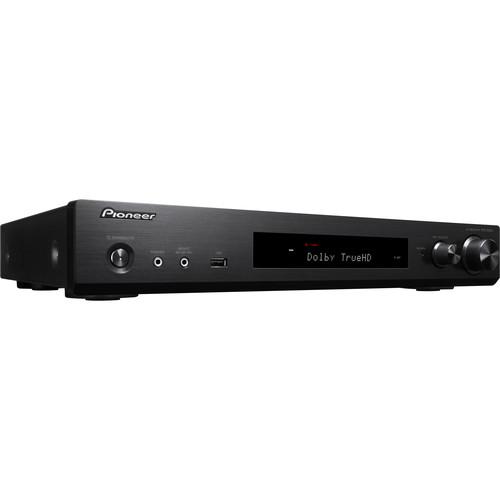

Product description Achieve 4K Ultra HD pass-through with 3D support via HDMI with the Pioneer VSX-S520 5.1-Channel Network A/V Receiver. It produces up to 50W of power per channel at 4 Ohms for room-filling sound. MCACC sound optimization will allow you to tailor the sound to your room's specific acoustics. Built-in Bluetooth connectivity allows you to listen to music wirelessly from your favorite Bluetooth-capable device and AirPlay will allow you to connect to your compatible iOS devices. You can also attach a USB drive to the USB port on the front panel to play your MP3, WMA, AAC files, and more.
The VSX-S520 is equipped with four HDMI inputs and one HDMI output. The HDMI output supports ARC for the reproduction of TV-based audio, such as your TV's built-in Netflix or Hulu apps. It also features an on-screen GUI for simplified setup and control. You can also control it with the iOS- and Android-compatible Pioneer Remote app. - Audio Features
-
- Dolby TrueHD, Dolby Digital Plus, Dolby Pro Logic II
- DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-HD Express, DTS Neo:6 5.1
- Dolby Atmos and DTS:X support with future firmware update
- DSD playback via network/USB (5.6 MHz/2-channel, 2.8 MHz/2-channel)
- DSD disc (SACD) playback via HDMI (2.8 MHz/5.1-channel, 2-channel)
- Digital Core Engine with Cirrus Logic (Quad Core)
- HDMI Audio Return Channel (ARC)
- MCACC Auto Room Tuning: Phase Control, Subwoofer EQ (4 Band)
- Advanced Sound Retriever (2-channel)
- Advanced Surround Modes: Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround
- Video Features
-
- Ultra HD pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
- HDR and BT.2020 support
- Ultra HD upscaling (1080p, 4K)
- 3D ready (Blu-ray Disc, broadcast, and games)
- Deep Color (36-bit), x.v.Color
- Home Network Features
-
- FireConnect technology (powered by Blackfire Research, available via a future firmware update; requires compatible speakers) – Wireless protocol that mirrors some audio sources, such as Bluetooth audio, front USB audio files, and Internet radio
- Google Cast available via a future firmware update
- Apple AirPlay Certified
- Pandora, Spotify, TIDAL (via future firmware update), and DEEZER (via future firmware update) music streaming services ready
- Internet radio (TuneIn)
- Hi-Res audio file playback via USB/network: Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV; 5.6/2.8 MHz DSD Playback
- Convenience Features
-
- Built-in Wi-Fi (Dual-band 5 GHz/2.4 GHz)
- Built-in Bluetooth wireless technology (Version 4.1, A2DP/AVRCP, SBC/AAC)
- Works with Pioneer Remote App for iOS/Android
- GUI with System/Network Setup Menu
- Auto Power Off in HDMI Standby Through mode
- FM tuner with 40 presets
- Sleep Timer

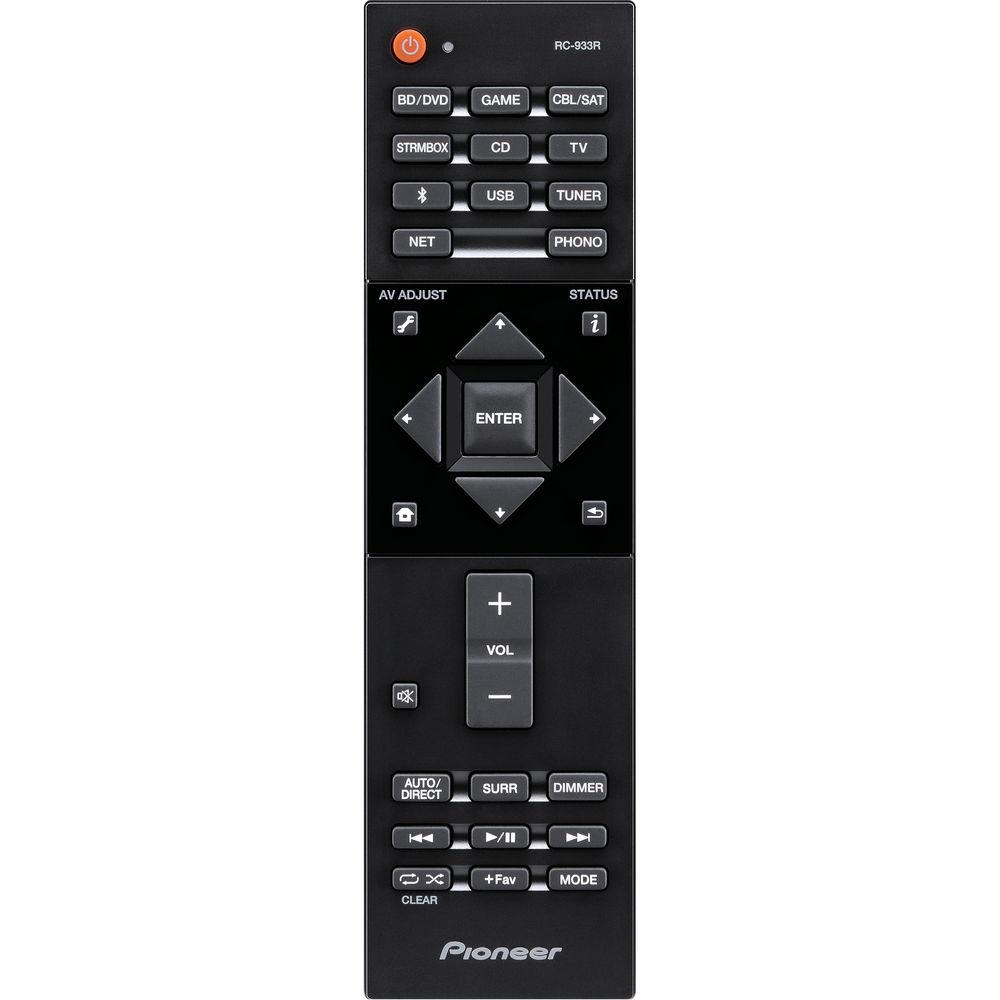

- Remote control designed for user friendliness
UPC: 889951000471 In the Box Pioneer VSX-S520 5.1-Channel Network A/V Receiver Remote Control 2 x AAA Batteries Speaker Setup Microphone Indoor FM Antenna Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer VSX-S520 5.1-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer VSX-S520 Specs | | | Power Output | 50 W per channel at 4 Ohms, 1 kHz, 1% THD, 2-channel driven FTC
80 W per channel at 4 Ohms, 1 kHz, 1% THD, 1-channel driven FTC | | No. of Channels | 5.1 | | Amplifier Type | Class D | | Impedance | 4 to 8 Ohms | | | | Dolby | Dolby TrueHD, Dolby Digital Plus, Dolby Pro Logic II
Dolby Atmos with future firmware update | | DTS | DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-HD Express, DTS Neo:6 5.1
DTX:X with future firmware update | | USB Support | MP3, WMA, WAV, AIFF, AAC, FLAC, Apple Lossless, DSD, Dolby TrueHD | | Phase Control | Yes | | Surround Modes | Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround | | HDMI SACD/DSD Support | 2.8 MHz / 5.1-channel, 2-channel | | ARC (Audio Return Channel) | Yes | | | | Pass-Through | 4K, 60p, 4:4:4, 24-bit
4K, 24p, 4:4:4, 36-bit

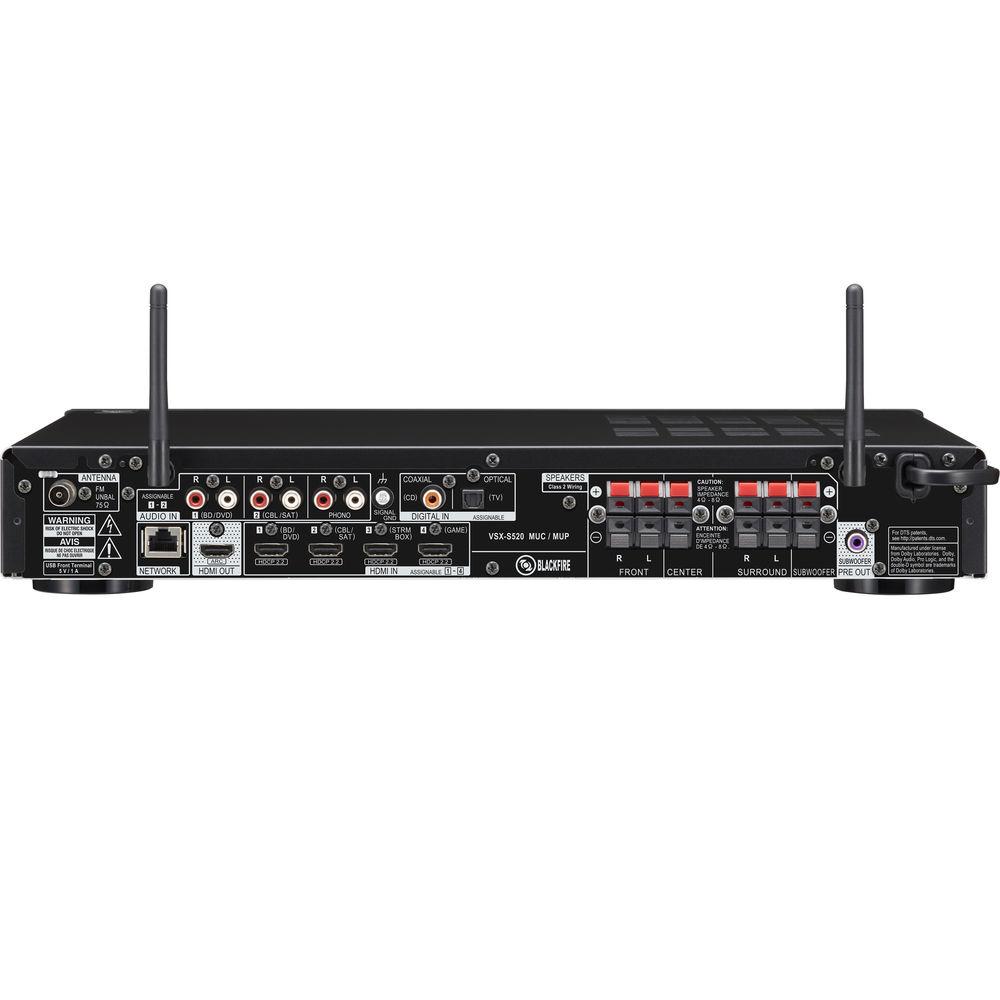

4K, 60p, 4:2:0, 36-bit | | 3D Support | 3D ready | | Deep Color / x.v. Color Support | Yes / Yes | | | | AM/FM Tuner | No/Yes | | FM Station Presets | 40 | | OSD Languages | English, German, French, Spanish, Italian, Dutch, Swedish | | Auto Power Off | Yes | | Sleep Timer | Yes | | | | Analog Inputs | 3 x Stereo RCA audio in (1 phono) | | Digital Inputs | 4 x HDMI with HDCP 2.2
1 x Digital coaxial
1 x Optical TOSLINK
1 x USB (front) | | Analog Outputs | 1 x 1/8" (3.5 mm) Headphone | | Digital Outputs | 1 x HDMI with ARC | | Speaker Connectors | 6 x Spring clip pairs (front L/R, center, surround L/R, subwoofer)
1 x RCA subwoofer pre-out | | Other Ports | 1 x Ethernet LAN in
1 x 1/8" (3.5 mm) setup mic in (front)
1 x FM Antenna in | | | | Bluetooth Version | 4.1 | | Bluetooth Profiles | A2DP, AVRCP | | Bluetooth Codecs | SBC/AAC | | Wi-Fi | Dual-band 5 / 2.4 GHz | | | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Typical: 60 W
Standby: 0.2 W | | Dimensions (W x H x D) | 17.1 x 2.8 x 12.8" (43.4 x 7.1 x 32.5 cm) | | Weight | 8.8 lb (4 kg) | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 21.5 x 15.5 x 7.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Pioneer VSX-S520 5.1-Channel Network A V Receiver
| Subject: Arc Function not producing sound | | Date: 18.07.2022 19:02:30 | Name: Efrain Fernandez | | Good Afternoon, I connected my Sony tv to my pioneer Av receiver model# VSX-S520 with an hdmi cable using the arc function. I’m not getting any sound. My tv is brand new and also has an arc hdmi port. So it is compatible. The only way I get sound is using a optical cable. Although it works fine with the opt cable, I would like to control my system with one remote. I tried everything and could really use some help in this matter. Thank you. | | Post reply |
