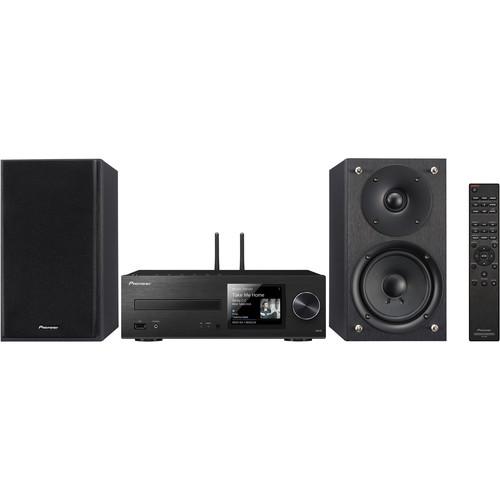

User Manual for Pioneer X-HM76B 40W Network Wireless Mini Music System Click to enlarge the picture
Contents of the user manual for the Pioneer X-HM76B 40W Network Wireless Mini
- Product category: Mini Hi-Fi Systems Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Mini Hi-Fi Systems
|
User manual for the Pioneer X-HM76B 40W Network Wireless Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|
Product description Enjoy stereo sound and Bluetooth, Wi-Fi, and AirPlay streaming with the Pioneer X-HM76B 40W Network Wireless Music System. It will produce up to 20W per channel at 8 Ohms and features tone controls to fine-tune audio playback. The amplifier features two USB inputs for MP3/WMA playback from compatible drives, plus a stereo RCA and an optical input for playback from wired devices. It also offers an 1/8" headphone output for private listening. The speakers feature a 2-way design with a 1" tweeter and 4.7" woofer. - Streaming Services & Internet Radio
- Enjoy listening to your music with streaming services such as Pandora, Spotify, TIDAL (via future firmware upgrade), and Deezer (via future firmware upgrade). The system also has the TuneIn service for accessing thousands of free Internet radio broadcasts of music, sports, news, and talk shows from around the world.
- Connect with AirPlay and Wi-Fi
- You can also stream songs from your music library with AirPlay, or enjoy network features via dual band (5 GHz/2.4 GHz) Wi-Fi. With Google Cast (via future firmware upgrade), you can use your mobile device to cast your favorite music, radio, or podcasts to your speaker. You can control the audio from anywhere in the house using Cast-enabled apps.
- Plug-and-Play External HDD
- Connect an external HDD via USB and you can listen to your whole music library without using your computer.
- 3.5" LCD Display
- The X-HM76 features a 3.5" LCD display with a user-friendly GUI. You'll have access to view the song file format, sampling rate, bit rate, elapsed time, and album artwork. It also becomes an operational display for setting up and controlling functions without having to use a computer or mobile device.
- Wireless Multi-Room Audio
- The X-HM76 will support FireConnect (Powered by Blackfire) via a future firmware update. FireConnect is a wireless protocol that mirrors most digital audio sources played back on the network mini stereo system to optional FireConnect compatible speakers in other rooms.
- Intuitive Control with the Pioneer Remote App for iOS and Android
- With the system connected to your LAN, the free Pioneer Remote app allows you to use your compatible iOS or Android smartphone for operating the system or play back tunes stored on your device. You can also select Internet radio stations and play songs from your media server.
- Designed for Quality
- With 4.7" woofers and 1" soft-dome tweeters, the included speakers are designed to deliver dynamic bass and clear high frequencies for Hi-Res Audio and other sources.
- Audio Features
-
- Audio playback from HDD devices via USB
- FM/AM tuner with 40 presets
- Bass/treble control
- Bass Enhancer (P.BASS)
- Additional Network Features
-
- Pandora
- Internet Radio via TuneIn
- Conveniences
-
- On-screen support for nine languages
- Bluetooth Auto Reconnect
- Bluetooth Wakeup
- Auto Standby
- Clock & Program Timer x2 (Daily/Once Timer)
UPC: 889951000556 In the Box Pioneer X-HM76B 40W Network Wireless Mini Music System Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer X-HM76B 40W Network Wireless Mini Music System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer X-HM76B Specs | | | Power Rating | 20 W per channel (1 kHz, 0.02% THD, 4 Ohms FTC)
50 W per channel (1 kHz, 10% THD, 4 Ohms) | | No. of Channels | 2 | | Amplifier Type | Class D (digital) | | CD Playback Format | CD-Audio, CD-R/RW (MP3/WMA) | | Input | 1 x Optical TOSLINK
1 x Stereo RCA
2 x USB Type-A (1 front) | | Output | 1 x 1/8" (3.5 mm) headphone (front)
1 x RCA subwoofer pre-out | | Additional Connections | 1 x Ethernet LAN
1 x AM antenna
1 x FM antenna
2 x Dual-band (5/2.4 GHz) Wi-Fi antennas | | Speaker Connectors | 2 x Binding post pairs | | Wireless Connectivity | Wi-Fi
Bluetooth (ver. 4.1, A2DP/AVRCP, SBC/AAC)
Apple AirPlay
FireConnect | | File Types Supported | CD: MP3, WMA
USB, Wi-Fi: DSD/WAV/FLAC/AIFF/Apple Lossless/MP3/WMA/AAC
USB/Wired Network: Up to 192 kHz/24-bit Audio Playback (WAV/FLAC/AIFF); up to 11.2 MHz DSD Playback | | Preset Memory | 40 | | Display | 3.5" (8.9 cm) LCD | | On Screen Display Languages | English, French, German, Dutch, Italian, Spanish, Russian, Swedish, Chinese | | Dimensions (W x H x D) | 11.4 x 3.9 x 13.1" (29 x 9.9 x 33.3 cm) | | Weight | 7.71 lb (3.5 kg) | | | | Configuration | 2-Way | | Speaker Type | Bookshelf | | Drivers | 1 x 1" (25 mm) soft dome tweeter
1 x 4.7" (120 mm) cone woofer | | Dimensions (W x H x D) | 5.8 x 8.4 x 10.4" (14.7 x 21.3 x 26.4 cm) per speaker | | Weight | 7.26 lb (3.3 kg) per speaker | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 40 W
Standby, Network Standby Off: 0.3 W
Standby, Network Standby On: 2.8 W | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 19.5 x 15.0 x 14.5" |
