User Manual for Pioneer XDP-02U Digital Audio Player with Wi-Fi and Bluetooth Click to enlarge the picture
Contents of the user manual for the Pioneer XDP-02U Digital Audio Player with
- Product category: iPods & Media Players Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer iPods & Media Players
 |
User manual for the Pioneer XDP-02U Digital Audio Player with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|

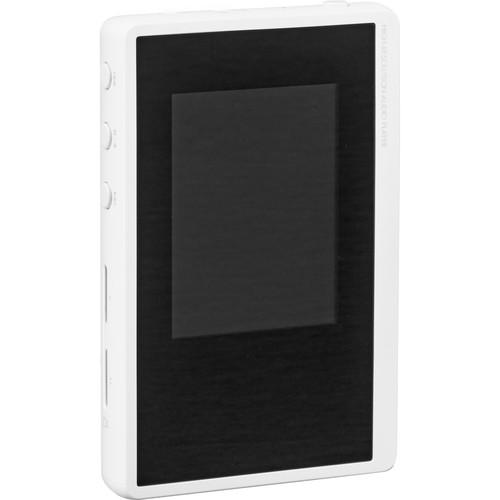

Product description The white Pioneer XDP-02U is a high-quality digital audio player with integrated Wi-Fi and Bluetooth wireless streaming capabilities, well suited for audiophiles and music connoisseurs. Expect premium sound from the twin ESS SABRE DACs and twin ESS SABRE high-output amplifiers, as well as dual clocks (44.1 / 48 kHz) for precision playback and a symmetrical channel layout with isolated processing/amp boards. The player is capable of driving headphones from 16 to 600 Ohms and features a 3-stage gain switch (Low, Normal, High) to ensure the highest-quality sound reproduction.
The compact, lightweight, and highly portable device features a rounded design that fits comfortably in hands and pockets. The full-color 2.4" touchscreen features an intuitive touch interface with customizable home-screen tiles. The internal 16GB memory can be fully expanded to 528GB via two microSD card slots (2 x 256GB). The XDP-02U supports a variety of audio formats including MQA, native DSD 5.6 MHz playback, DSD-IFF, FLAC/ALAC/WAV/AIFF up to 192 kHz/32-bit, MP3, and AAC. What's more, the player can adjust the sound without diminishing fidelity by way of a 10-band EQ, three digital filters, or by upsampling standard audio for 192 kHz/32-bit playback. The Pioneer XDP-02U Digital Audio Player includes a built-in rechargeable battery with up to 15 hours of playback and ships with a screen protector and a USB cable for data and charging. - Design and Functionality
-
- Rounded design fits comfortably in hands and pockets
- Compact, lightweight, and highly portable
- Full-Color Touchscreen: 2.4" (320 x 240 pixels)
- Intuitive touch interface with customizable home-screen tiles

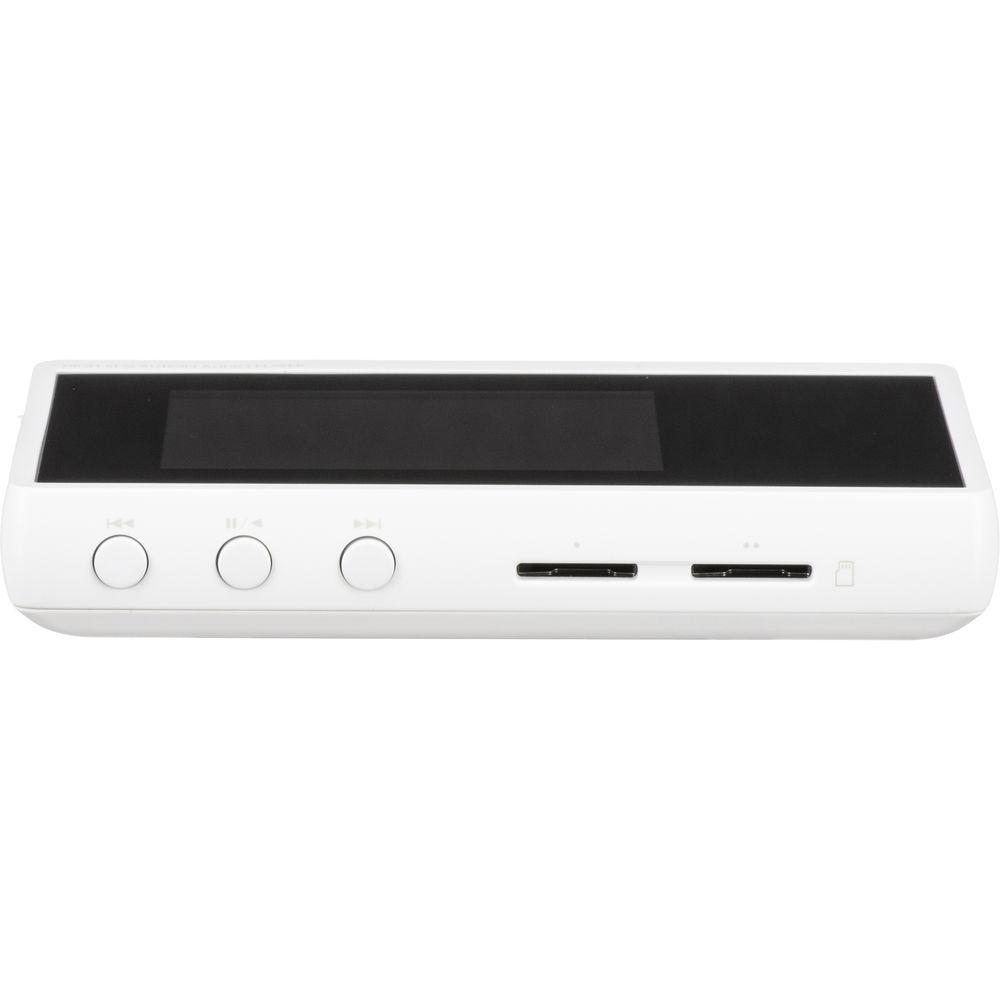

- Up to 528GB storage (16GB internal/256GB microSDXC x 2)
- Built-in 2.4 / 5 GHz Wi-Fi (802.11) for network streaming
- Bluetooth wireless technology
- Support for Deezer HiFi, TIDAL, and TuneIn streaming services
- Direct Hi-Res Audio downloads from Onkyo Music store (via future firmware update)
- Supports MQA, native DSD 5.6 MHz playback, DSD-IFF, FLAC/ALAC/WAV/AIFF up to 192 kHz/32-bit, MP3, and AAC

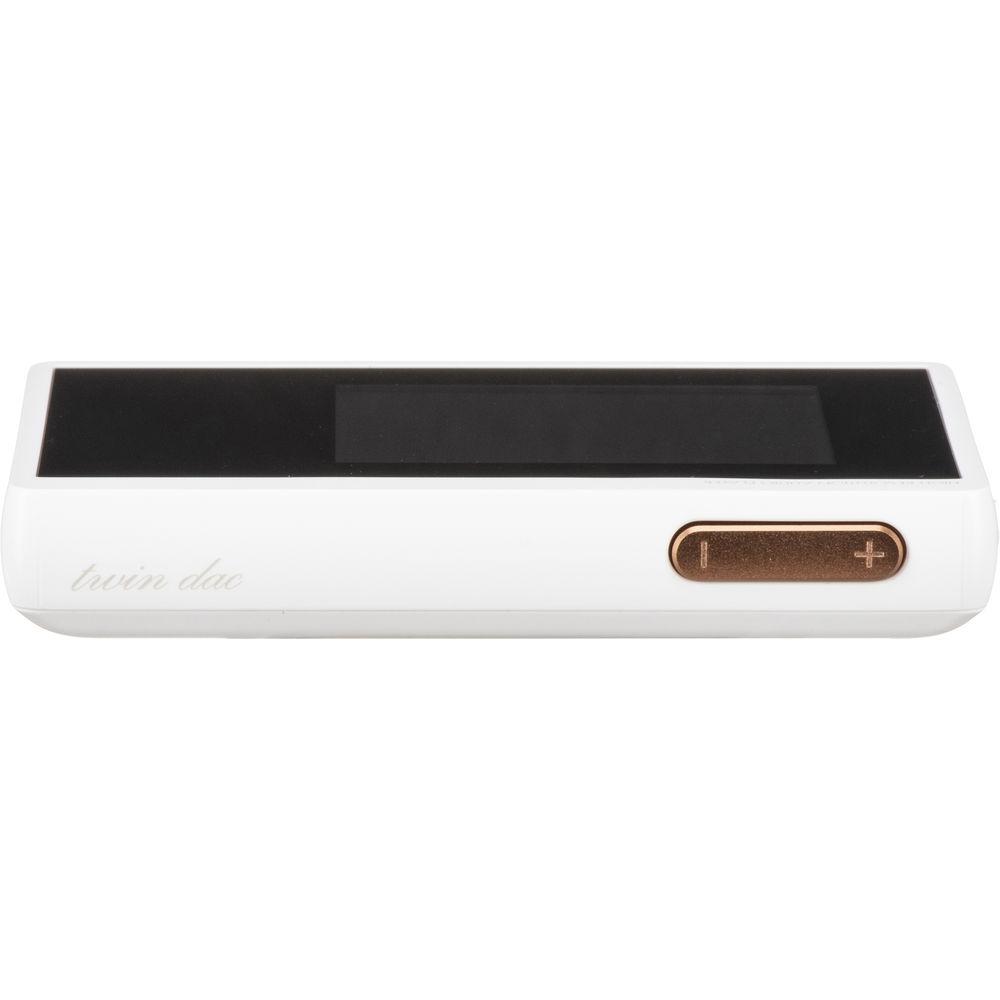

- Easy side-button controls for volume, Play/Pause/Hold, and Skip/Scan
- Pioneer DuoRemote App enables playback control from smartphone
- Displays album art, song details, and audio file information
- Playlist creation, folder playback, Index Display, and scroll bars for easy navigation
- Rechargeable battery for up to 15 hours playback time
- Pioneer X-DAP Link transfer software for Windows 7
- Recharge with supplied USB cable
- USB-OTG function enabled via future firmware update
- Robust construction and high-quality finish
- Premium Sound Features
-
- Twin ESS SABRE ES9018C2M DACs
- Twin ESS SABRE ES9601K high-output amplifiers
- Dual clocks (44.1 kHz/48 kHz) for high-precision playback
- Symmetrical channel layout and isolated processing/amp boards

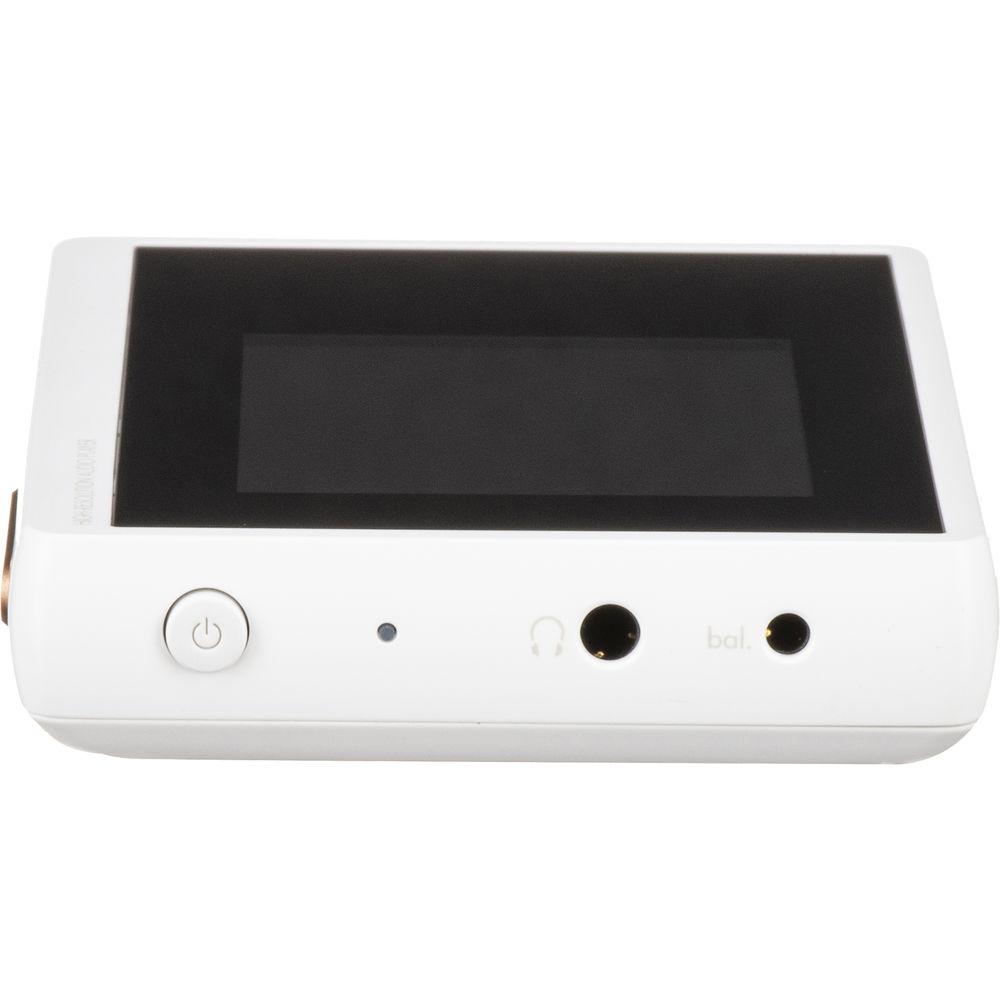

- Unbalanced 3.5mm and balanced 2.5mm headphone outputs
- BTL (Bridge-Tied Load) and ACG (Active Control Ground) balanced drive
- 3-Stage gain (Low/Normal/High) to suit different headphones
- 192 kHz/32-bit and 176.4 kHz/32-bit upsampling functions
- Precision 10-band equalizer with 6 presets and 3 customizable presets
- 7-step lock range adjustment (Wide/Normal/Narrow)
- Three selectable digital output filters (Sharp/Short/Slow)
- 32-bit high-resolution digital signal processing (DSP) technology
UPC: 814633021338 In the Box Pioneer XDP-02U Digital Audio Player with Wi-Fi and Bluetooth (White) USB Charge/Data Cable Protective Screen Film Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer XDP-02U Digital Audio Player with Wi-Fi and Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer XDP-02U Specs | | | DAC | 2 x ESS SABRE ES9018C2M 32-Bit | | Amplifier | 2 x ESS SABRE ES9601K | | Audio Resolution | PCM: 192 kHz / 32-Bit
DSDNative: 5.6 MHz / 1-Bit | | Frequency Response | 20 Hz - 80 kHz | | Impedance | 16 to 300 Ohms (Unbalanced Headphone Out)
16 to 600 Ohms (Balanced Headphone Out) | | Gain Settings | High1, Normal, Low | | Volume Control | Digital | | THD + N | 0.006% | | Audio Power Output | 75 mW at 32 Ohms (Unbalanced Headphone Out)
150 mW at 32 Ohms (Balanced Headphone Out) | | Signal to Noise Ratio | >115 dB | | Custom Equalizer | Yes | | | | Internal Storage Capacity | 16 GB | | Maximum Storage Capacity | 528 GB | | Flash Media Slot | 2 x microSDXC | | Display | 2.4" LCD (320 x 240 Resolution) | | Operation Method | Physical Buttons, Touchscreen | | | | FM Tuner | No | | Video Recording | No | | Video Playback | No | | Formats Supported | Audio: MQA, DSD, DSD-IFF, FLAC, ALAC, WAV, AIFF, MP3, AAC | | | | Wireless | Bluetooth AVRCP
Wi-Fi 4 (802.11n) | | Connections | 1 x 1/8" (3.5 mm) Stereo Headphone, 1/8" (3.5 mm) Stereo Line-out
1 x 2.5 mm Balanced Headphone

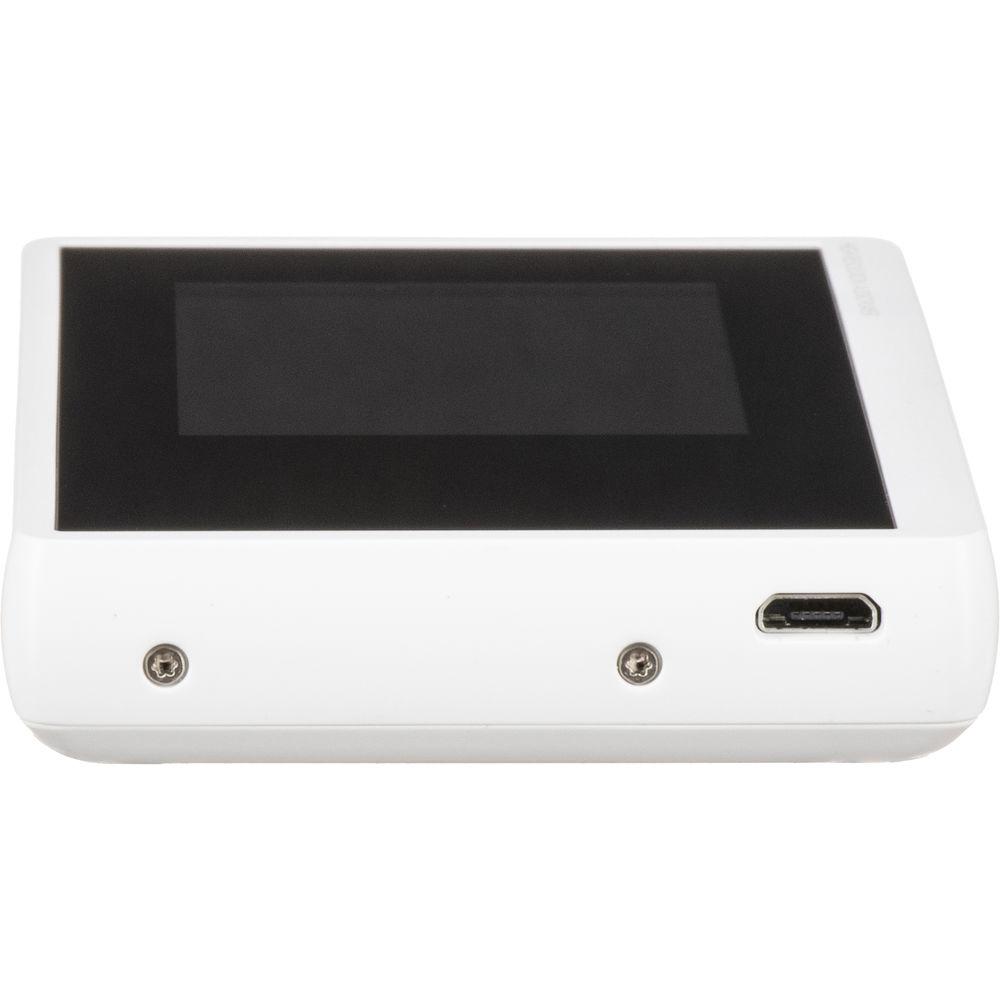

1 x Micro-USB 2.0 | | Built-In Mic | No | | | | Battery | Built-in Rechargeable Lithium-ion Battery
Providing up to 15 Hours per Charge for Audio Playback | | | | Water Resistance | None | | Dimensions (W x H x D) | 2.5 x 3.9 x 0.6" / 63.5 x 99.1 x 15.2 mm | | Weight | 4.4 oz / 125 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
