User Manual for Pioneer XDP-30R Portable High-Resolution Digital Audio Player Click to enlarge the picture
Contents of the user manual for the Pioneer XDP-30R Portable High-Resolution Digital Audio
- Product category: iPods & Media Players Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer iPods & Media Players
 |
User manual for the Pioneer XDP-30R Portable High-Resolution Digital Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|

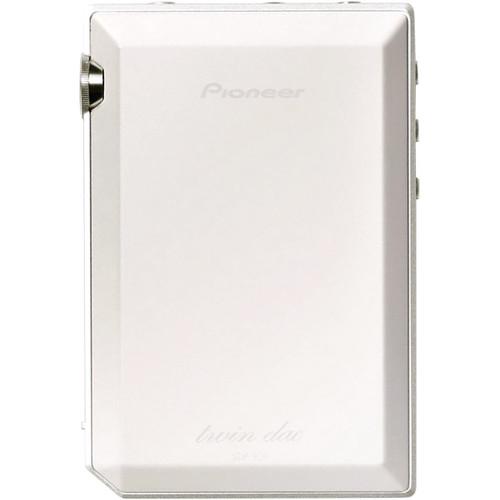

Product description Styled in a silver and white finish, the XDP-30R by Pioneer is a portable digital audio player that puts high-resolution audio—streaming or otherwise—right in your pocket. The player supports formats up to DSD 5.6 MHz, 192 kHz/32-bit FLAC/WAV/ALAC/AIFF files, and, with a future-scheduled firmware update, the high-res lossless MQA codec for streaming.
In addition to two on-board SABRE ES9018C2M DACs & two SABRE ES9601K headphone amps, this device offers symmetrical channel layout for equal signal paths inside its solid brushed aluminum chassis. 16GB of internal storage is provided, though disk space can expand with the insertion of one or two microSD cards (available separately). The unit also features Bluetooth and dual-band Wi-Fi.

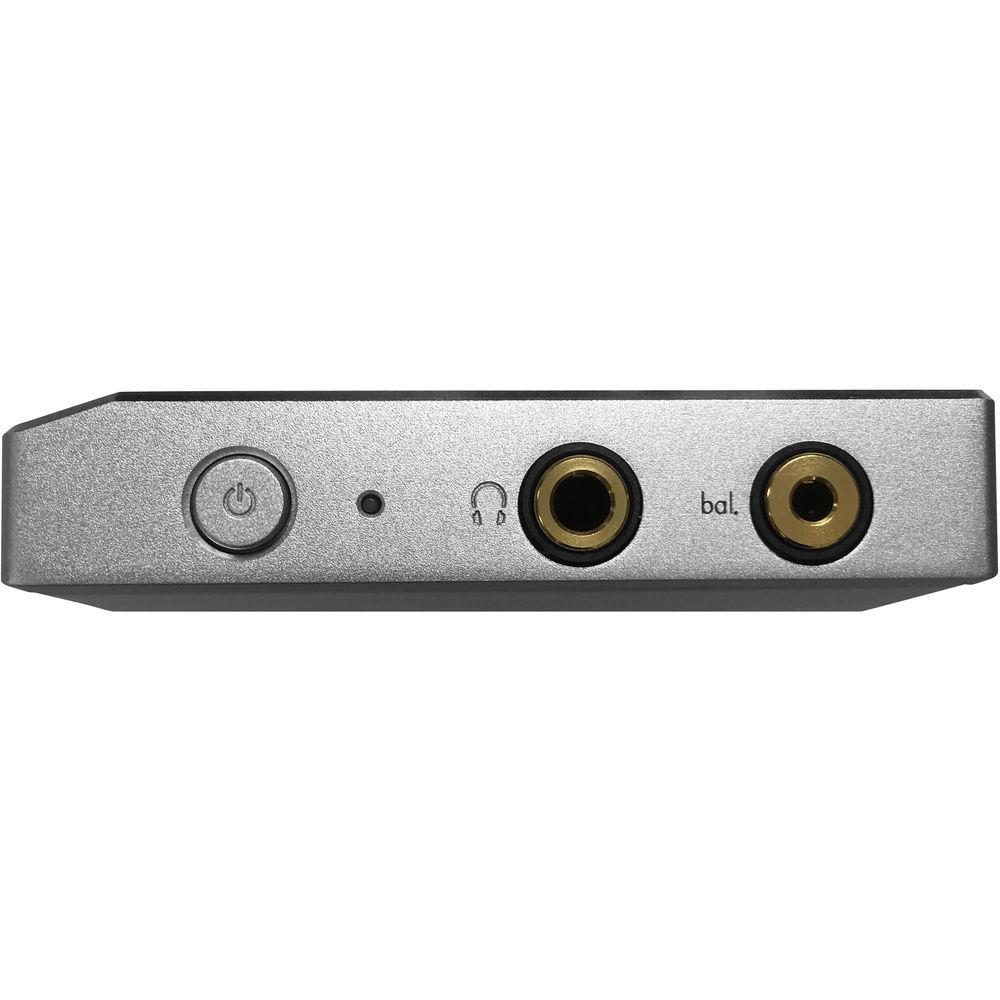

The XDP-30R's wired connectivity options include two headphone jacks. One is a standard three-pole 3.5mm jack while the other is a balanced four-pole 2.5mm jack. There are two balanced headphone modes, one for improved stereo separation and power for driving demanding headphones and the other for enhanced channel separation and a cleaner, less noisy experience. Automatic signal detection activates one of two internal clocks, either the 44.1/88.2/176.4 kHz or 48/192 kHz, reducing jitter. - Audio Optimization
-
- Bridge-Tied Load (BTL) and Active Control Ground (ACG) balanced audio output via 2.5mm headphone/balanced line output
- 176.4 kHz/32-bit and 192 kHz/32-bit upsampling modes
- Two precision clocks (44.1 kHz or 48 kHz) for enhanced signal clarity
- Seven-step lock range adjustment (wide/normal/narrow)
- Three selectable digital output filters (sharp/short/slow)
- Precision 10-band EQ with six presets and three customizable presets
- Adjustable gain (low/normal/high) to suit different headphones
- Design & Build
-
- Dual SABRE ES9018C2M DACs
- Dual SABRE ES9601K high-output amplifiers
- Symmetrical channel layout
- Solid brushed aluminum casing
- 32-bit DSP

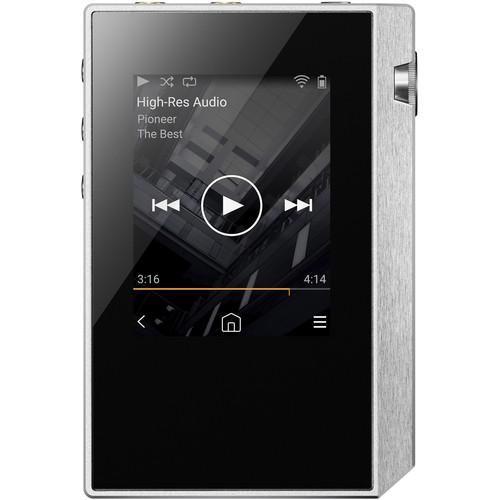

- Scratch-resistant 2.4-inch 320 x 240 touchscreen
- Dual-band 5 GHz/2.4 GHz Wi-Fi (802.11 a/b/g/n)
- Bluetooth wireless audio streaming (Profiles: A2DP/AVRCP, Codec: SBC)
- Intuitive user interface
- Large knurled volume control

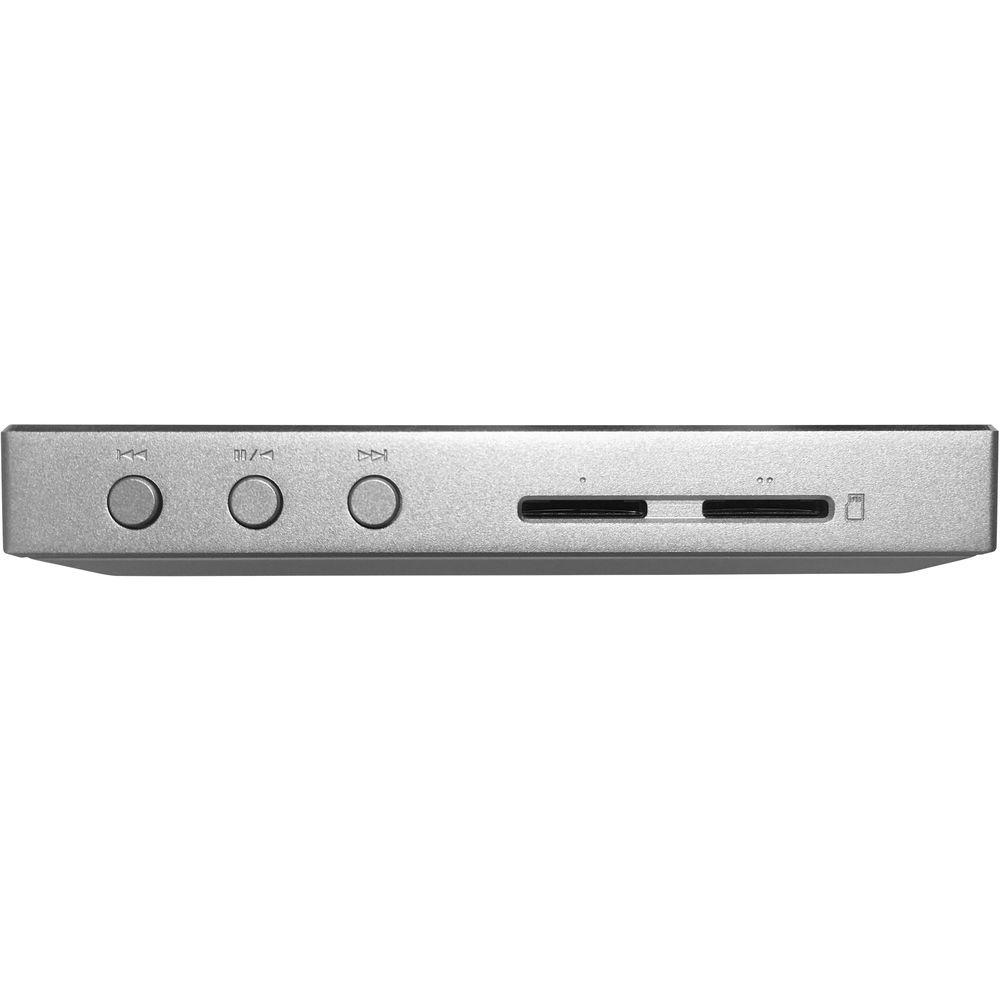

- Side buttons for play/pause, skip/scan
- Playback
-
- DSD (5.6 MHz/2.8 MHz), DSD-IFF, MP3, FLAC, ALAC, WAV, AIFF, and AAC (Maximum 192 kHz/32-bit)
- MQA support with scheduled firmware update
- Supports TIDAL and TuneIn streaming services
- Control playback from smartphone with Pioneer DuoRemote App for iOS and Android
- Displays album artwork
- Sort by album, artist, genre, and more
- Playlist creation, shuffle, and repeat functions
UPC: 814633020607 In the Box Pioneer XDP-30R Portable High-Resolution Digital Audio Player (Silver/White) Micro-USB Cable Screen Protector Limited 2-Year Warranty More from Manufacturer cqauxrxaxebcrftrrcutuscddbbfq Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer XDP-30R Portable High-Resolution Digital Audio Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer XDP-30R-S Specs | DAC | 2 x SABRE ES9018C2M 32-Bit | | Amplifier | 2 x SABRE ES9601K | | Frequency Response | 20 Hz - 80 kHz (Balanced) | | Impedance | 32 to 600 Ohms (Balanced)
16 to 300 Ohms (Unbalanced) | | Gain Settings | High1, High2, Low | | Audio Power Output | 150 mW (Balanced)
75 mW (Unbalanced) | | Signal to Noise Ratio | 115 dB (Balanced) | | Custom Equalizer | Yes | | Operating System | Proprietary | | Internal Storage Capacity | 16 GB | | Maximum Storage Capacity | 528 GB | | Flash Media Slot | 2 x microSDXC | | Display | 2.4" LCD (240 x 320 Resolution) | | Formats Supported | Audio: MP3 (44.1 kHz / 48 kHz), AAC (44.1 kHz / 48 kHz / 96 kHz), FLAC / ALAC / WAV / AIFF (44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz), DSF / DSDIFF (2.8 MHz / 5.6 MHz) | | Wireless | Bluetooth AVRCP
Wi-Fi 4 (802.11n) | | Connections | 1 x 1/8" (3.5 mm) Stereo Headphone, 1/8" (3.5 mm) Stereo Line-out
1 x 2.5 mm Audio Output, 2.5 mm Balanced Headphone
1 x Micro-USB 2.0 | | Built-In Mic | No | | Battery | Built-in Rechargeable Lithium-ion Battery 1630 mAh
Providing up to 15 Hours per Charge for Audio Playback | | Supported Languages | English
French
German
Italian
Russian
Spanish
Simplified Chinese
Traditional Chinese | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 2.5 x 3.7 x 0.6" / 63.0 x 94.0 x 15.0 mm | | Weight | 4.23 oz / 120 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.7 x 5.0 x 1.7" |
