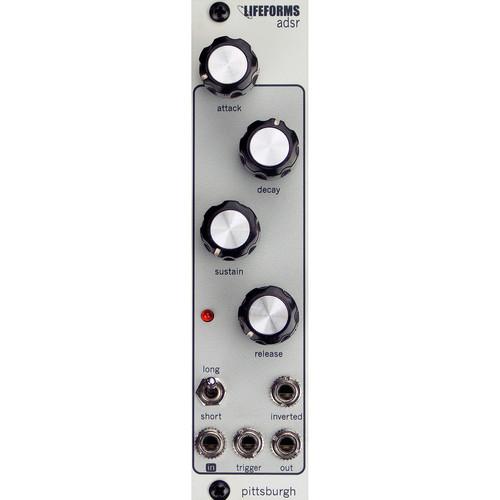

Product description The Lifeforms ADSR from Pittsburgh Modular is a four-stage envelope generator with independent controls over attack, decay, sustain, and release parameters. The module is designed to shape gate or trigger signals over time to produce a more expressive instrument. Typically, the module is used to control the amplitude of an oscillator or the cutoff frequency of a filter, but may be used to create a modulation envelope on any function on a module that accepts CV inputs.
The incoming gate signal passes through each stage of the envelope. The initial gate/trigger signal passes to the attack portion, which determines the amount to time needed for the envelope generator to reach the peak output voltage before moving onto the decay stage. Decay sets the amount of time needed to transition to the level set by the sustain knob. The sustain level is maintained if the gate / trigger remains on or high. Once the gate/trigger is released, the release stage takes over and is controlled by the release knob, which causes an abrupt cut of the signal when set low, or will slowly fade out with higher setting. The Lifeforms ADSR module is 6hp wide, 0.9" / 24mm deep and requires 23mA of power. The module includes a ribbon cable. - ADSR Controls
-
- Attack Knob: Attack stage control
- Decay Knob: Decay stage control
- Sustain Knob: Sustain stage control
- Release Knob: Release stage control
- Input Jack: Gate or trigger input
- Range Switch: Sets the range of the four stage controls
- Trigger Out Jack: A trigger is generated at the end of the release stage
- Inverted Out Jack: A positive only, inverted envelope
- Output Jack: Envelope output
In the Box Pittsburgh Modular Lifeforms ADSR 4-Stage Envelope Generator Eurorack Module Ribbon Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pittsburgh Modular Lifeforms ADSR 4-Stage Envelope Generator Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPittsburgh Modular PMS2035 Specs | Controls | Attack Knob: Attack stage control
Decay Knob: Decay stage control
Sustain Knob: Sustain stage control
Release Knob: Release stage control
Range Switch: 2-way toggle sets the range of the four stage controls (short or long) | | Patch Points | Gate/Trigger Input: 1/8" / 3.5 mm
Audio Input: 1/8" / 3.5 mm
Envelope Output: 1/8" / 3.5 mm
Inverted Output: 1/8" / 3.5 mm | | Power | Power Usage: +12 V 23 mA, -12 V 12 mA
Does not require +5 V
Reversed power polarity protection | | Size | Horizontal Pitch (hp): 6 | | Depth | 0.9" / 24 mm | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.8 x 3.4 x 3.3" |
