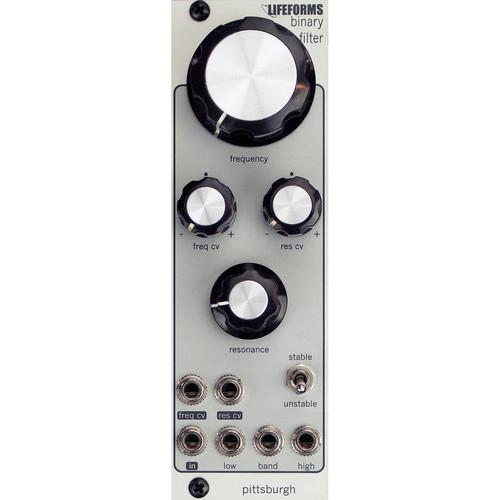

Product description Borrowed from the Lifeforms SV-1 Eurorack module, the Lifeforms Binary Filter from Pittsburgh Modular is a classic voltage-controlled, analog, state-variable filter, which offers a wide variety of sounds from very smooth and natural to unpredictable and distorted. The filter offers multiple responses simultaneously including low-pass, high-pass, and band-pass.
With the stable mode selected, the filter provides a warm, organic sweep through the full frequency range. The low-pass is gummy and relaxed, while the high-pass is clean and defined. Switching to unstable mode and without an incoming audio signal, the filter produces a high-quality voltage-controlled sine wave. Adjusting the Q while in unstable mode modifies the shape of the waveform. Add an incoming audio signal to the unstable mode and the output changes dramatically, resulting in anything from ringing fuzz to heavy distortion. The Binary Filter module is 8hp wide, 0.9" (24mm) deep, and requires 22mA of power. The module includes a ribbon cable. - Binary Filter Controls
-
- Frequency Knob: Adjusts the center frequency of the filter
- Resonance Knob: Adjusts the resonance (Q) of the filter
- Frequency CV Knob: Frequency control voltage attenuverter
- Resonance CV Knob: Resonance (Q) control voltage attenuverter
- Stable | Unstable Mode Switch: Switch between stable and unstable modes
- Frequency CV In Jack: CV input used to modulate the filter frequency
- Resonance CV In Jack: CV input used to modulate the filter resonance
- Input Jack: Audio signal input
- Low-pass Output Jack: Low-pass filter response output
- Band-pass Output Jack: Band-pass filter response output
- High-pass Output Jack: High-pass filter response output
In the Box Pittsburgh Modular Lifeforms Binary Filter Classic Multi-Mode Filter Eurorack Module Ribbon Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pittsburgh Modular Lifeforms Binary Filter Classic Multi-Mode Filter Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPittsburgh Modular PMS2037 Specs | Controls | Frequency control knob
Resonance control knob
Frequency CV control knob
Resonance CV control knob
Unstable/stable switch | | Patch Points | Frequency CV In: 1/8" / 3.5 mm
Resonance CV In: 1/8" / 3.5 mm
Audio In: 1/8" / 3.5 mm
Low-pass Filter Out: 1/8" / 3.5 mm
High-Pass Filter Out: 1/8" / 3.5 mm
Band-Pass Filter Out: 1/8" / 3.5 mm | | Power | Power Usage: +12 V 22 mA, -12 V 22 mA
Does not require +5 V
Reversed power polarity protection | | Size | Horizontal Pitch (hp): 8 | | Depth | 0.9" / 24.0 mm |
