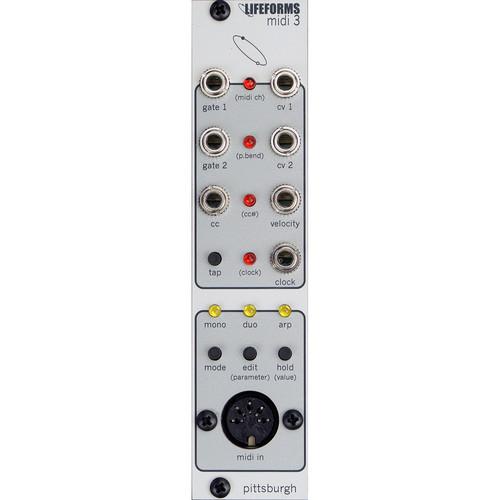

Product description The Lifeforms MIDI 3 from Pittsburgh Modular is a 3rd generation MIDI-to-CV converter compatible with the Eurorack format and is designed to convert MIDI note messages into the analog control voltages used by modular and other analog synthesizers, allowing synthesizers to be controlled by a MIDI keyboard, sequencer or DAW. The MIDI 3 has a robust feature set including monophonic and duophonic MIDI response modes, assignable CC, and dedicated velocity outputs. Additionally, the module offers a feature-rich clock source with tap tempo, MIDI and external gate-clock dividers, and multiple arpeggiator responses.
The two CV outputs can be used to control the pitch of an oscillator, the cutoff frequency of a filter, or any other voltage-controlled function. The two gate outputs can be used to trigger envelope generators or any module expecting a gate or clock source. The MIDI 3 is 6hp wide, 1.4" (35mm) deep, and uses 60mA of power. The module includes a ribbon cable. - Performance Modes
-
- Monophonic: Monophonic mode works great when using a modular as a single-voice synthesizer patch. Channel 2 Gate and CV outputs mirror the outputs of Channel 1. Monophonic mode has several keyboard responses to choose from: last-note priority, low-note priority, and high-note priority. Each response is available with and without gate retriggering.
- Duophonic: The MIDI 3 module uses the two sets of Gate and CV outputs to allow two notes to be played simultaneously. The first MIDI note is sent to Channel 1 Gate and CV outputs and the second is sent to Channel 2 Gate and CV outputs. Duophonic mode has three keyboard response modes to choose from. Unused channel and new-note priority, unused channel and low-note priority, and split-keyboard priority. Duophonic mode is designed for working with a two-voice modular-synthesizer patch.
- Arpeggiator: The MIDI 3 module includes a robust arpeggiator mode with multiple mono and duophonic responses to choose from. Available responses are monophonic response as played, double-triggered monophonic response as played, random monophonic response, random monophonic with a random Channel-2 gate, and random duophonic response with dual random gates. The arpeggiator can be clocked using tap tempo, MIDI clock, or external gate.
- Clock Modes
-
- Internal Clock: The internal MIDI 3 clock utilizes the tap tempo button to modify the rate of the internal clock. The internal clock is used to clock the arpeggiator and is also output to the CLOCK jack.
- External MIDI Clock: The external MIDI clock responds to MIDI start/stop messages and MIDI tempo from an external MIDI clock source. The external MIDI clock is used to clock the arpeggiator and is also output to the CLOCK jack. In external MIDI-clock mode, the tap tempo button cycles through five available clock divisions.
- External Gate Clock: The external gate clock responds to gate signals patched into the CLOCK jack. The external gate clock is used to clock the arpeggiator. In external-gate clock mode, the tap tempo button cycles through six available clock divisions.
- Additional Features
-
- Assignable MIDI Channel: The MIDI 3 can be assigned to respond to all channels or any individual MIDI channel.
- Assignable Pitch-Bend Range: The range of pitch bend can be set to +/- 2 notes, +/- 5th, +/- 1 octave, +/- 2 octaves.
- Control Change Output: Provides a CC response of 0 - 5V.
- Assignable Control-Change Channel Assign: Allows you to assign the MIDI CC channel the MIDI 3 responds to.
- Velocity Output: Provides a velocity response of 0 - 5V based on active note.
In the Box Pittsburgh Modular Lifeforms MIDI 3 MIDI-to-CV Converter Eurorack Module Ribbon Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pittsburgh Modular Lifeforms MIDI 3 MIDI-to-CV Converter Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPittsburgh Modular PMS2038 Specs | Input | MIDI: 5-pin DIN | | Output | 2 x CV 1/8" / 3.5 mm
2 x Gate 1/8" / 3.5 mm
1 x CC 1/8" / 3.5 mm
1 x Velocity 1/8" / 3.5 mm
1x Clock 1/8" / 3.5 mm | | Control Buttons | Tap tempo
Mode
Edit
Hold | | LED Indicators | MIDI channel
Pitch bend
CC #
Clock
Mono
Duo
Arp | | Power Usage | +12 V 60 mA, -12 V 15 mA
Does not require +5v | | Size | Horizontal Pitch (hp): 6 | | Depth | 1.4" / 35 mm | | | | Package Weight | 0.34 lb | | Box Dimensions (LxWxH) | 6.8 x 3.4 x 3.3" |
