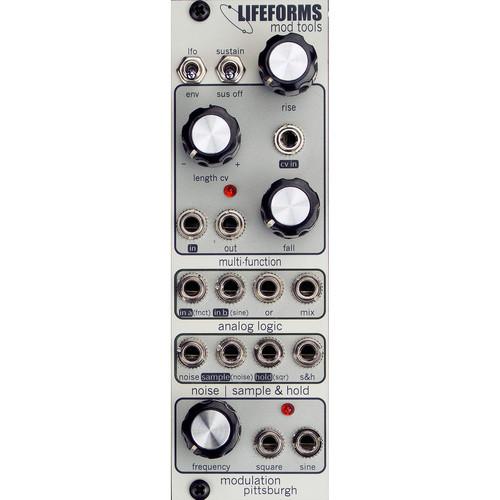

User Manual for Pittsburgh Modular Lifeforms Mod Tools Multi-Function Modulation Eurorack Module Click to enlarge the picture
Contents of the user manual for the Pittsburgh Modular Lifeforms Mod Tools Multi-Function
- Product category: Synthesizer Modules Pittsburgh Modular
- Brand: Pittsburgh Modular
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pittsburgh Modular Synthesizer Modules
|
User manual for the Pittsburgh Modular Lifeforms Mod Tools Multi-Function contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pittsburgh Modular product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pittsburgh Modular user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pittsburgh Modular product will considerably shorten its lifespan!
|
Product description The Lifeforms Mod Tools from Pittsburgh Modular provides a diverse analog ecosystem of modulation capable of a variety of functions including an envelope generator, LFO, noise source, sample & hold, mixer, analog logic, slew, and oscillator.
The module is broken up into four sections: Multi-Function, Analog Logic, Noise / Sample & Hold, and Modulation. The Multi-Function section is a voltage-controlled slope generator that can be used as a voltage-controlled envelope, LFO, oscillator, slew, envelope follower, and more. The Analog Logic section is a two-channel mixer with standard unity gain mix out as well as an analog "or" logic output. The "or" logic outputs the current highest positive-only voltage from either of the inputs, creating interesting modulation or wave shaping options. Patching audio signals through the "or" output creates a half-rectified waveform.
The Noise / Sample & Hold section pairs an analog noise source with a sample & hold circuit to create random stepped CV signals. The Modulation section provides a free-running LFO with both square and wine wave outputs. The Lifeforms Mod Tools module is 8hp wide, 1.5" (37mm) deep and requires 53mA of power. The module includes a ribbon cable. Mod Tools Controls - Multi-Function Controls
-
- LFO/Envelope Switch: Switch between envelope and LFO cycling mode
- Sustain / Sustain Off Switch: Input level following sustain on or off
- Rise Control Knob: Adjusts the rise/attack time of the envelope or rising side of the LFO
- Length CV Attenuverter Knob: Rise and fall modulation level attenuverter
- Length CV Input Jack: Rise and fall modulation input jack
- Signal Indicator LED: Signal indicator LED represents the current voltage level within circuit
- Input Jack: Main signal input jack
- Output Jack: Main signal output jack
- Fall Control Knob: Adjusts the fall/decay time of the envelope or falling side of the LFO
- Analog Logic Jacks
-
- Input A Jack: Mixer channel A input jack normaled to the Multi-Function Output Jack
- Input B Jack: Mixer channel B input jack normaled to the Modulation Sine Output Jack
- Or Output Jack: Unity gain, positive only logical 'or' output of Input A and Input B
- Mix Output Jack: Unity gain mix output of Input A and Input B
- Noise / Sample & Hold Jacks
-
- Noise Output Jack: Analog noise output jack
- Sample Input Jack: CV sampling input jack normaled to Noise Output Jack
- Hold Input Jack: Stepped CV output jack normaled to Modulation Square Output Jack
- Sample & Hold Output Jack: Stepped CV output jack
- Modulation Controls
-
- Frequency Knob: Frequency control sweeps through LFO range
- Square Output Jack: Square wave output jack
- Sine Output Jack: Sine wave output jack
In the Box Pittsburgh Modular Lifeforms Mod Tools Multi-Function Modulation Eurorack Module Ribbon Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pittsburgh Modular Lifeforms Mod Tools Multi-Function Modulation Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPittsburgh Modular PMS2041 Specs | Controls | Multi-Function Controls
LFO/Envelope Switch: Switch between envelope and LFO cycling mode
Sustain/Sustain Off Switch: Input level following sustain on or off
Rise Control Knob: Adjusts the rise/attack time of the envelope or rising side of the LFO
Length CV Attenuverter Knob: Rise and fall modulation level attenuverter
Fall Control Knob: Adjusts the fall/decay time of the envelope or falling side of the LFO
Modulation Controls
Frequency Knob: Frequency control sweeps through LFO range | | Patch Points | Multi-Function Controls
Length CV Input Jack: 1/8" / 3.5 mm
Input Jack: 1/8" / 3.5 mm
Output Jack: 1/8" / 3.5 mm
Analog Logic Jacks
Input A Jack: 1/8" / 3.5 mm
Input B Jack: 1/8" / 3.5 mm
Or Output Jack: 1/8" / 3.5 mm
Mix Output Jack: 1/8" / 3.5 mm
Noise/Sample & Hold Jacks
Noise Output Jack: 1/8" / 3.5 mm
Sample Input Jack: 1/8" / 3.5 mm
Hold Input Jack: 1/8" / 3.5 mm
Sample & Hold Output Jack: 1/8" / 3.5 mm
Modulation Controls
Square Output Jack: 1/8" / 3.5 mm
Sine Output Jack: 1/8" / 3.5 mm | | Indicator LEDs | Signal indicator LED
Frequency (LFO) indicator LED | | Power | Power Usage: +12 V 53 mA, -12 V 46 mA.
Does not require +5 V
Reversed power polarity protection | | Size | Horizontal Pitch (hp): 8 | | Depth | 1.5" / 37 mm | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 6.7 x 3.3 x 3.3" |
