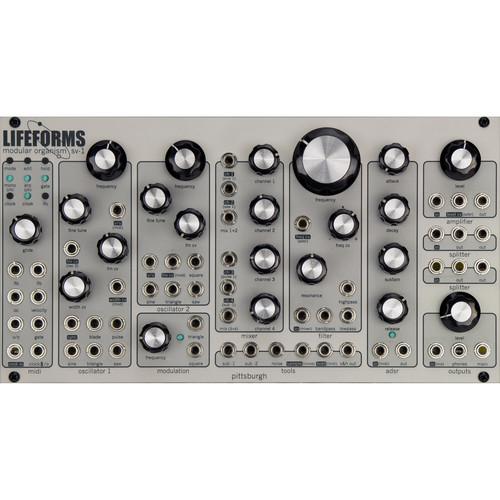

Pittsburgh Modular Lifeforms SV-1 Analog Synthesizer

User Manual for Pittsburgh Modular Lifeforms SV-1 Analog Synthesizer Eurorack Module

• Product category: Synthesizer Modules Pittsburgh Modular
• Brand: Pittsburgh Modular
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Pittsburgh Modular Synthesizer Modules

Product description

Integrated Synthesizer Components

MIDI
•

  • The integrated MIDI-to-CV converter is based on the MIDI 3 module with a modified source code to create a feature set specifically designed for the SV-1. This MIDI-to-CV converter enables you to connect all your MIDI-compatible gear and convert it to control voltage right inside the SV-1. Volt per octave and gate outputs allow you to connect to your MIDI keyboard or DAW and take control of the SV-1 your way
  • Extensive patch options give you access to glide, CC, and velocity. A digital clock-syncable LFO with triangle and quantized random voltage waveforms provides even more modulation options. A clock input allows you to override the internal or MIDI clock and sync to external CV and gate clock signals. A built-in arpeggiator provides all of the deep arpeggio responses from the MIDI 3, including as played, double-triggered, random, and random with random gate. This unlocks another level of playability and the capacity to create complex and fresh musical patterns out of just a few notes.
  Oscillator 1 and Oscillator 2
  •

    • The next-generation dual-analog oscillator provides the sonic framework for massive synth sounds or deep exploration of west coast-style frequency modulation. Sine, triangle, saw, and square waves are at your control, all available to modulate via FM and hard sync. As a bonus, Oscillator 1 also contains our unique blade wave. The shape of the blade wave can be controlled using the width CV input, creating a sweeping or chorusing effect.
    • Oscillator 2 is normalled to the FM of Oscillator 1, providing huge analog FM bass, deep percussive hits, searing leads, and thick, warm analog pads which all come to life from these two modern, organic sounding oscillators. Both analog oscillators dip well below audio rate, allowing them to function as voltage-controllable LFOs.
    Modulation and Tools
    •

      • A wide-range utility LFO with triangle- and square-wave outputs is ideal for VCA or filter-frequency sweeps. Or, turn it up and release the dynamic FM capabilities of either oscillator. A Tools section provides access to two sub-octave oscillators, derived from Oscillator 1’s core frequency. Analog noise and sample & hold finish out the Tools section—the hold function is initially pre-wired to MIDI clock, and equips you to create perfectly timed, random voltage steps.
    Mixer
    •

      • This versatile four-channel mixer comes pre-wired for fast access to Oscillator 1’s sine, saw, pulse and sub. However, you are just a patch cable away from instantly making your own unique blend of waveforms from the SV-1. The mixer can be split into two independent two-channel mixers simply by patching into the top output.
    State-Variable Filter
    •

      • Rich and thick, the sound of the revered Pittsburgh Modular Filter is unmistakable. Absolutely stunning harmonic character with voltage control over the entire frequency range. A provided attenuverter lets you dial in exactly how much CV to feed the frequency input, even inverting the input for dramatic changes in modulation. Separate high-pass, low-pass, and band-pass outputs are provided as breakout options, each with its own powerful sonic timbres. Turn up the resonance for an added growl, giving your tones an aggressive edge that no soft-synth can match.
    Four-Stage Envelope Generator
    •

      • Designed specifically for the Lifeforms SV-1 with a plucky, organic feel, the four-stage analog ADSR allows you to generate envelopes with remarkable, precise control over each stage. Pre-patched to receive gate signals directly from MIDI, the gate input may be overridden by any available clock, trigger, or square-wave source.
    VCA - Voltage-Controlled Amplifier
    •

      • The amplifier section not only controls the overall level of the output, but is voltage controllable. A clean, responsive VCA, capable of everything from transparent control to mild overdrive, contours audio or CV signals. The ADSR is pre-patched to the level CV providing shape to the synthesizer audio.
    Splitters
    •

      • Two unbuffered audio or CV-splitter sections allow you duplicate your signal in creative ways, routing a single audio or CV source to multiple destinations.
    Line-Level and Headphone Outputs
    •

      • High-quality stereo headphone amplifier and monophonic line-level outputs are controlled by a master volume knob.
    In the Box Pittsburgh Modular Lifeforms SV-1 Analog Synthesizer Eurorack Module
  • Ribbon Cable
  • 1/8" to 5-pin DIN MIDI Adapter
  • Limited 1-Year Warranty
