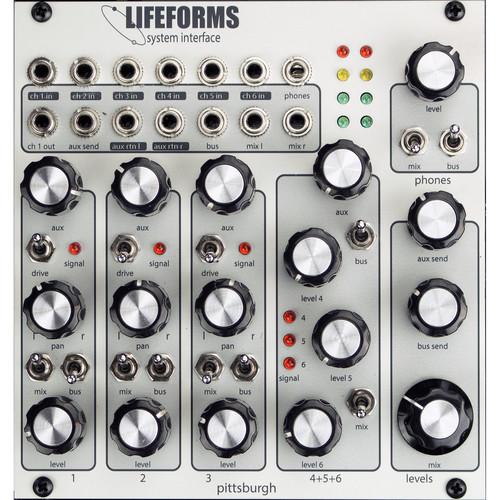

Product description The Lifeforms System Interface from Pittsburgh Modular is a flexible six-channel mixer and audio hub well suited for studio use and live performance applications. The first three channels feature high quality preamps with a 15x soft-clipping gain circuit and stereo panning. Signal routing options include a post level aux send with stereo aux return, and an independent assignable bus and main mix sends. Additionally, the headphone output can be assigned to the main mix, bus, or both. Channel 1 has a dedicated output designed to allow it to function as an input for external sources without hogging the bus or aux send.
Channels 4, 5, and 6 share auxiliary, bus, and main mix controls allowing for maximum channels with a small footprint. The three independent signal paths allow for complex routing possibilities. The auxiliary send can be used as an effect send or alternative mix while the bus is used to cue up sounds for live performance or to split the mixer channels into 2 independent mixers. The Lifeforms System Interface includes a ribbon cable - Input and Output Jacks
-
- Channel 1-6 Input Jacks
- Headphone Output Jack: Stereo headphone output jack
- Channel 1 Output Jack: Post level control and preamp channel 1 output jack
- Aux Send Output Jack: Auxiliary channel post level control output jack
- Aux Return Left Input Jack: Auxiliary left channel return, sent to main mix out left
- Aux Return Right Input Jack: Auxiliary right channel return, sent to main mix out right
- Bus Send Output Jack: Bus channel post level control output jack
- Main Mix Left Output Jack: Main mix left channel post level control output jack
- Main Mix Right Output Jack: Main mix right channel post level control output jack
- Channels 1 / 2 / 3
-
- Auxiliary Send Knob: Post level control auxiliary send
- Drive Switch: 15x preamp with soft-clipping overdrive
- Channel Level LED: Post level control and preamp signal level LED
- Left / Right Pan Knob: Manual channel pan control
- Mix Channel Switch: Sends the channel signal to the main mix
- Bus Channel Switch: Sends the channel signal to the bus
- Channel Level Knob: Attenuator
- Channels 4 / 5 / 6
-
- Auxiliary Send Knob: Post level control auxiliary send
- Bus Channel Switch: Sends channels 4, 5, and 6 to the bus
- Channel 4 Level Knob: Attenuator
- Channel 5 Level Knob: Attenuator
- Channel 6 Level Knob: Attenuator
- Channel 4 Level LED: Post level control and preamp signal level LED
- Channel 5 Level LED: Post level control and preamp signal level LED
- Channel 6 Level LED: Post level control and preamp signal level LED
- Mix Channel Switch: Sends channels 4, 5, and 6 to the main mix
- Phones Section
-
- Headphones Level Knob: Post level control auxiliary send
- Mix Channel Switch: Sends the mix to the headphones
- Bus Channel Switch: Sends the bus to the headphones
- Levels Section
-
- Auxiliary Send Level Knob: Auxiliary level output attenuator
- Bus Send Level Knob: Bus level output attenuator
- Main Mix Level Knob: Main Mix level output attenuator
In the Box Pittsburgh Modular Lifeforms System Interface Flexible 6-Channel Audio Mixer/Hub Eurorack Module Ribbon Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pittsburgh Modular Lifeforms System Interface Flexible 6-Channel Audio Mixer Hub Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPittsburgh Modular PMS2034 Specs | Input and Output Connectors | Channel 1 Input Jack: 1/8" / 6.3 mm
Channel 2 Input Jack: 1/8" / 6.3 mm
Channel 3 Input Jack: 1/8" / 6.3 mm
Channel 4 Input Jack: 1/8" / 6.3 mm
Channel 5 Input Jack: 1/8" / 6.3 mm
Channel 6 Input Jack: 1/8" / 6.3 mm
Headphone Output Jack: Stereo 1/8" / 6.3 mm
Channel 1 Output Jack: 1/8" / 6.3 mm
Aux Send Output Jack: 1/8" / 6.3 mm
Aux Return Left Input Jack: 1/8" / 6.3 mm
Aux Return Right Input Jack: 1/8" / 6.3 mm
Bus Send Output Jack: 1/8" / 6.3 mm
Main Mix Left Output Jack: 1/8" / 6.3 mm
Main Mix Right Output Jack: 1/8" / 6.3 mm | | Power | Power Usage: +12 V 157 mA, -12 V 83 mA
Does not require +5 V
Reversed power polarity protection | | Dimensions | Panel size: 24 hp
Depth: 0.9" / 24 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.7 x 6.4 x 3.4" |
