Pittsburgh Modular Structure EP-270 Triple-Row Eurorack

Search your instruction manual in PDF to download

User Manual for Pittsburgh Modular Structure EP-270 Triple-Row Eurorack Studio Enclosure

Click to enlarge the picture
Pittsburgh Modular Structure EP-270 Triple-Row Eurorack Studio Enclosure Contents of the user manual for the Pittsburgh Modular Structure EP-270 Triple-Row Eurorack
  • Product category: Expansion Options Pittsburgh Modular
  • Brand: Pittsburgh Modular
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Pittsburgh Modular Expansion Options

Pittsburgh Modular Structure EP-270 Triple-Row Eurorack Studio Enclosure Pittsburgh Modular Structure EP-270 Triple-Row Eurorack Studio Enclosure Pittsburgh Modular Structure EP-270 Triple-Row Eurorack Studio Enclosure
User manual for the Pittsburgh Modular Structure EP-270 Triple-Row Eurorack contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Pittsburgh Modular product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Pittsburgh Modular user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Pittsburgh Modular product will considerably shorten its lifespan!



Product description

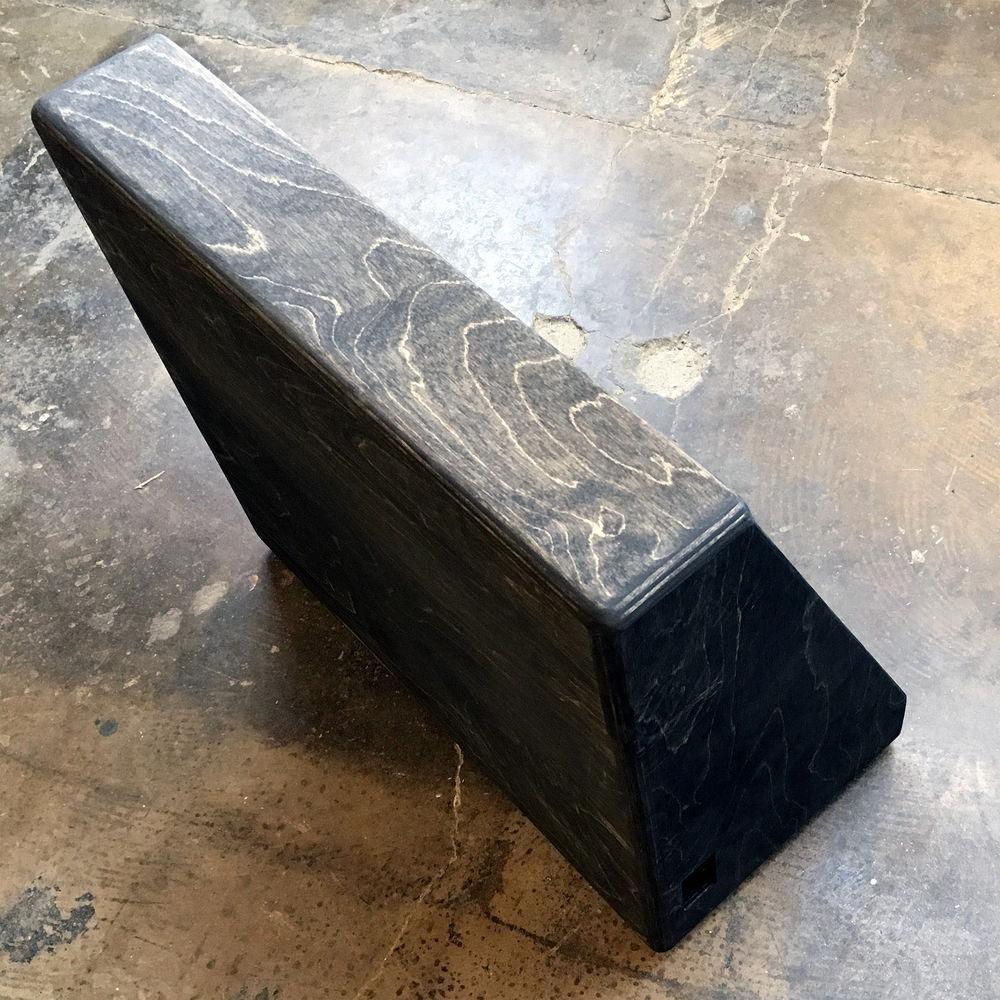

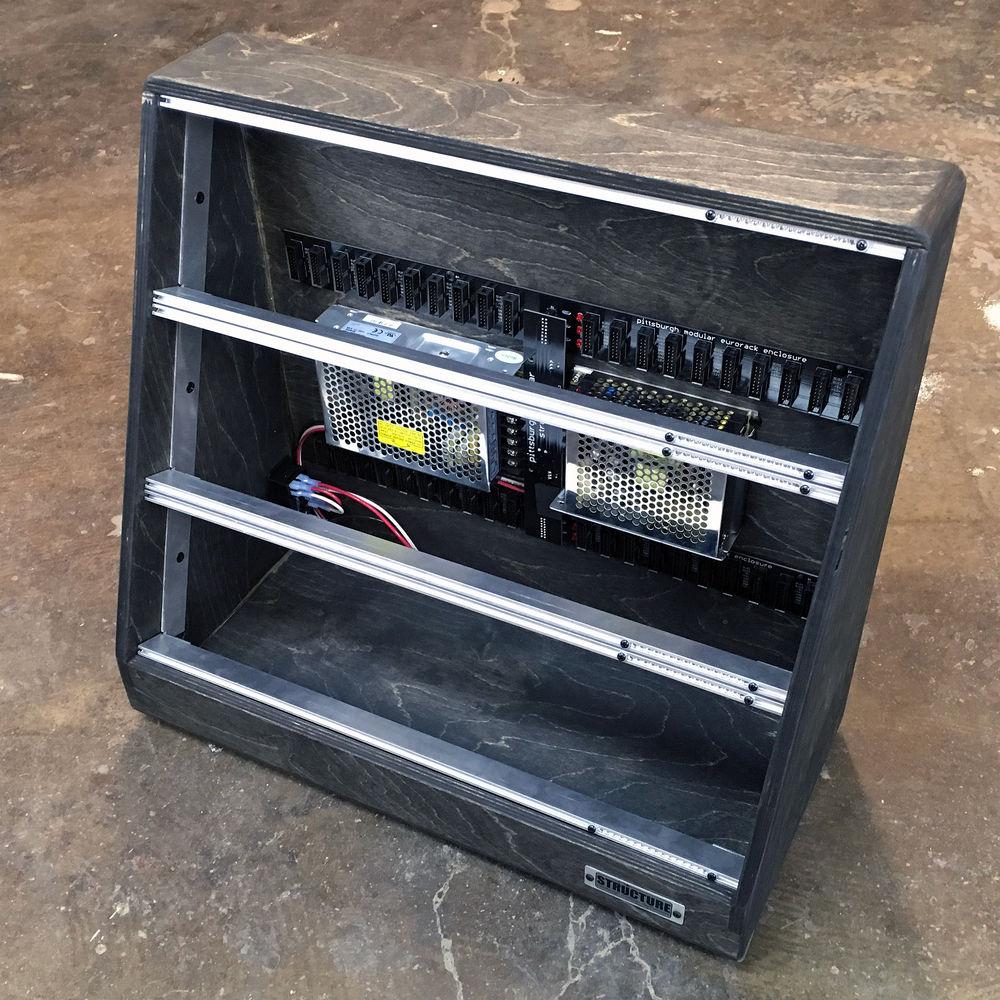

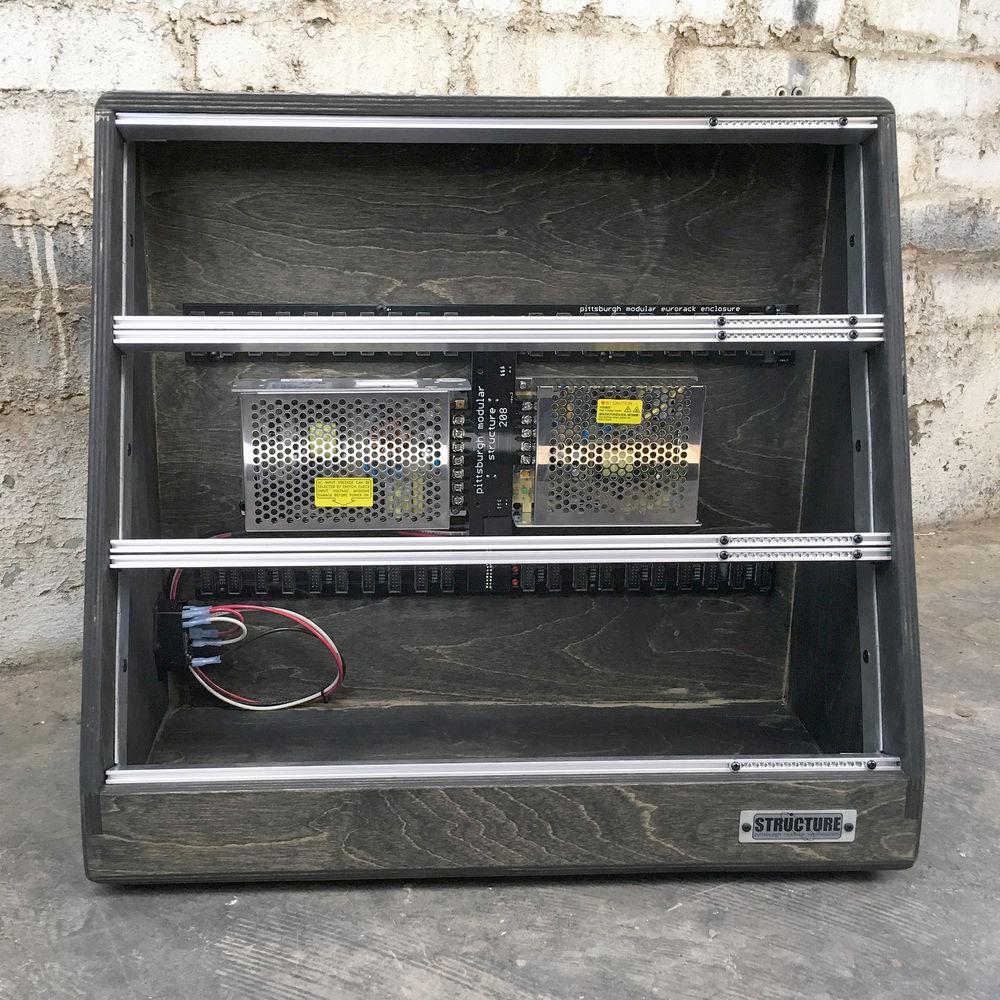

The Structure EP-270 from Pittsburgh Modular is a professional desktop triple-rack Eurorack modular synthesizer enclosure designed to hold up to 54 Eurorack modules. The case is constructed from hand-stained premium hardwood and features six rails, each with 18 sliding square nuts, and 120 black (4-40-sized 1/4") screws for mounting modules. The overbuilt power supply delivers ample power and includes two EMI filters to protect all three power rails and is designed for sensitive analog circuitry, power-hungry digital processors, and ground-sensitive user-interface modules. The Structure EP-270 includes a standard IEC power cord.
    Enclosure
    • Hardwood and aluminum construction
    • Three 90hp rows
    • 270hp total space available
    • Edge to edge rails reduce gaps between modules and the side of the case
    • 18 smooth-sliding square nuts per rail ensures modules always fit perfectly (holds up to 54 modules)
    • Includes 120 black (Size 4-40 1/4") module mounting screws
    • Hand-stained hardwood
    Power
    • 4 amps of clean, filtered +12V power
    • 3 amps of clean, filtered -12V power
    • 2 amps of clean, filtered +5V power
    • 40 keyed Eurorack power headers
    • External power switch with LED
    • Fused power protection
    • Universal IEC power connector
    • 2 EMI filters protect all 3 power rails (+12V, +5V, -12V)
    • Low output ripple & noise
    • UL & CE approved, RoHS compliant
    • Overload and short circuit protection
    • Line regulation (full load): ≤0.5%
    • Output Overload Protection: 10%-150% hiccup mode with auto-recovery
In the Box Pittsburgh Modular Structure EP-270 Triple-Row Eurorack Studio Enclosure
  • 120-Pack of Screws (Size 4-40)
  • Standard IEC Power Cord
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Pittsburgh Modular Structure EP-270 Triple-Row Eurorack Studio Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Pittsburgh Modular PMS3013 Specs

    Size Horizontal Pitch (hp): 270
    Screws 4-40-Sized Panel Screws: 120
    Header Module Power Header: 40
    Dimensions External Depth at Top: 3.5" / 88.9 mm
    External Depth at Base: 9.0" / 228.6 mm
    External Height: 18.0" / 457.2 mm
    External Width: 19.0" / 482.6 mm
    Minimum Internal Depth for Modules: 3.4" / 85.9 mm
    Maximum Internal Depth for Modules: 6.0" / 152.4 mm
    Weight 14.0 lb / 6.4 kg
    Package Weight 17.5 lb
    Box Dimensions (LxWxH) 20.4 x 20.3 x 12.8"

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 31 owners. Add your rating and experience with the product.
