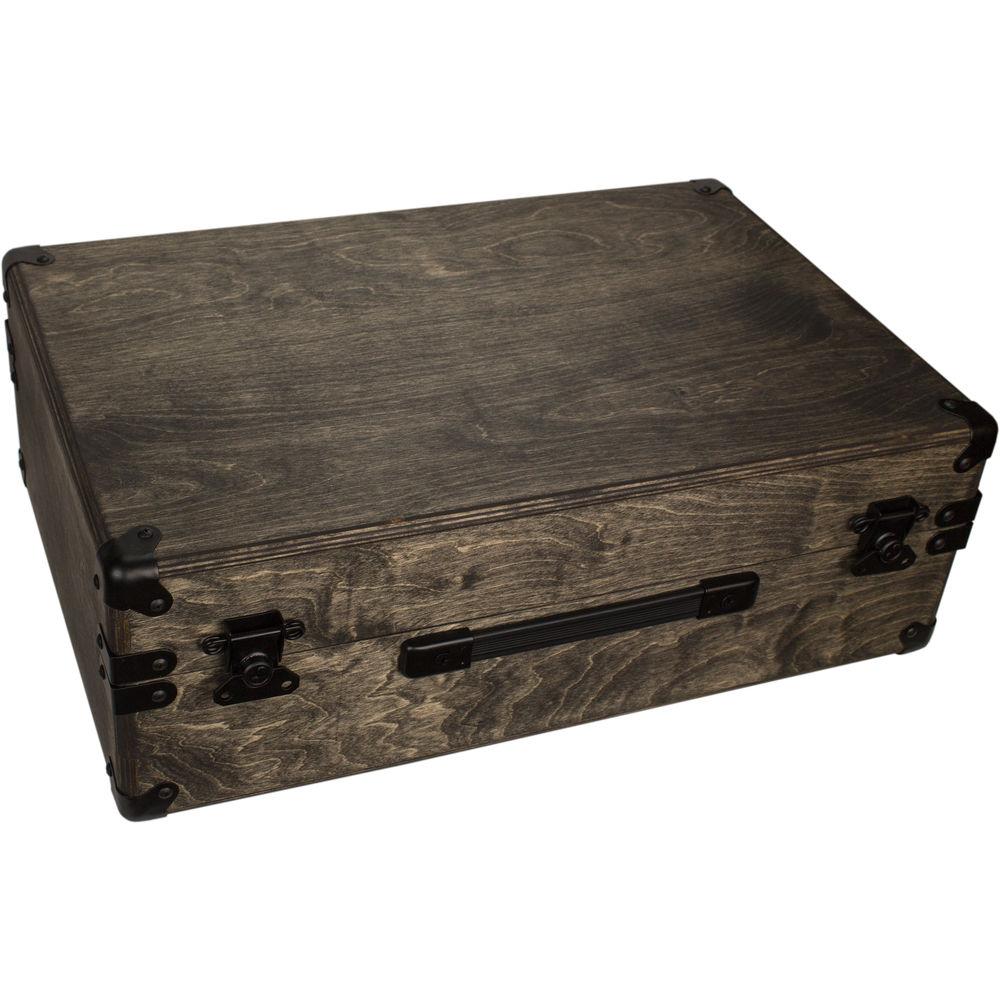

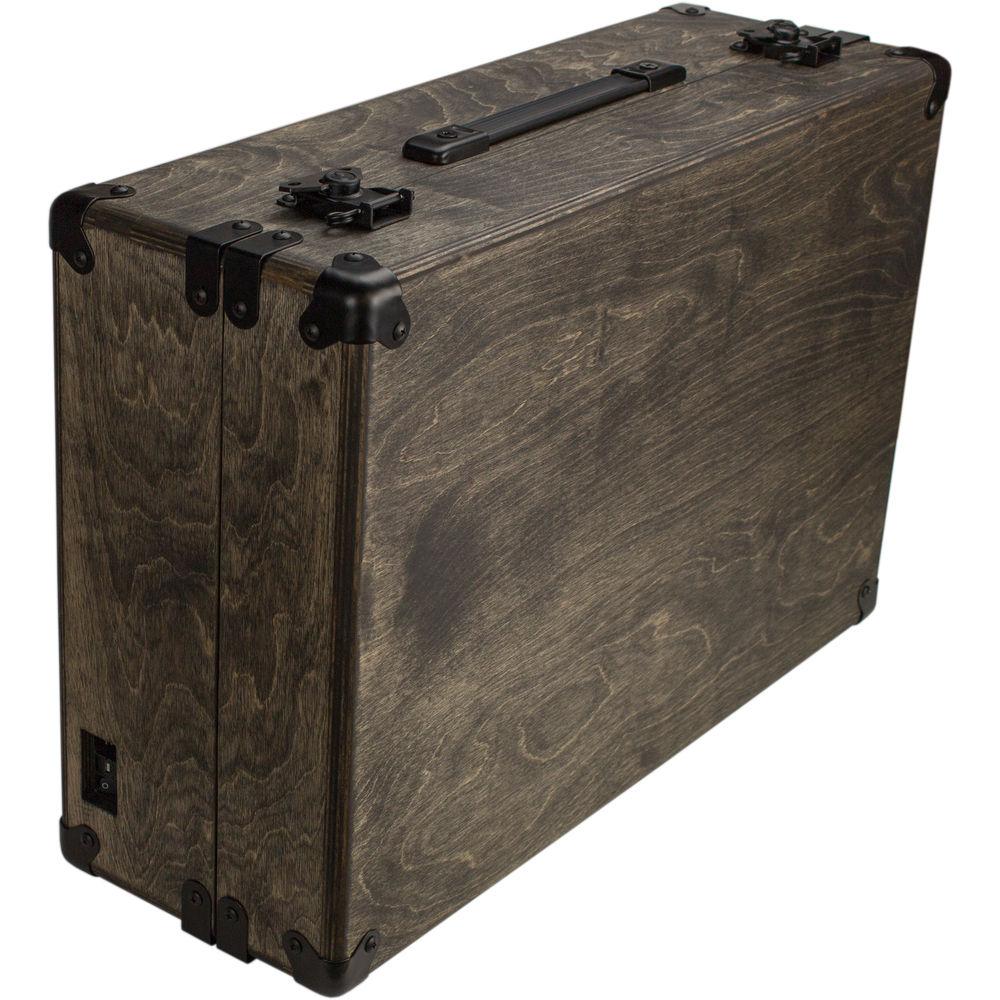

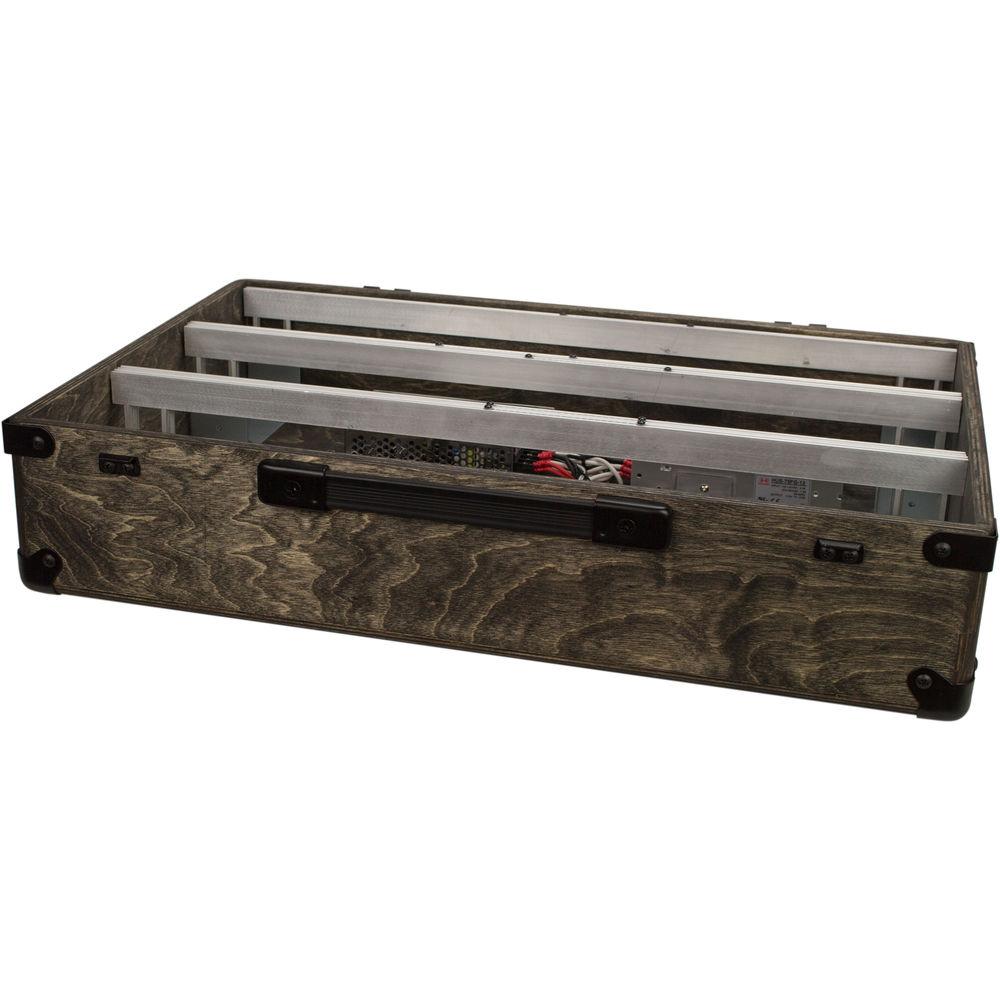

Product description The Structure EP-360 from Pittsburgh Modular is a professional Eurorack modular-synthesizer case designed to transport and protect up to 72 Eurorack modules. The case is constructed from hand-stained premium hardwood and features six rails, each with 24 sliding square nuts, and 150x black (4-40-sized 1/4") screws for mounting modules. The detachable lid allows for enough clearance to leave the modular fully patched during transport. The overbuilt power supply delivers three times the amount of power than most other cases and is designed for sensitive analog circuitry, power-hungry digital processors, and ground-sensitive user-interface modules. The Structure EP-360 ships with a standard IEC power cord. - Enclosure
-
- Hardwood and steel construction
- Three 120hp rows
- 360hp total space available
- Removable lid
- Lid fits over fully patched system (No need to remove patch cables)
- Edge-to-edge rails reduce gaps between modules and the case side
- 24 smooth-sliding square nuts per rail (Holds up to 72 modules)
- Includes 150 black (Size 4-40 1/4") module mounting screws
- Beautifully hand-stained hardwood
- Matching black-steel hardware set
- Power
-
- 6 amps of clean +12V power
- 6 amps of clean -12V power
- 5 amps of clean +5V power
- 45 keyed Eurorack power headers
- External power switch with LED
- Universal IEC power connector
In the Box Pittsburgh Modular Structure EP-360 - Professional Eurorack Modular-Synthesizer Case 150-Pack of Screws (Size 4-40) Standard IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pittsburgh Modular Structure EP-360 - Professional Eurorack Modular-Synthesizer Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPittsburgh Modular PMS3012 Specs | Size | Horizontal Pitch (hp): 3x 120 hp | | Screws | 4-40-Sized Panel Screws: 150 | | Header | Module Power Header: 45 | | Lid | Removable | | Dimensions (W x D x H) | External Depth with lid: 9.3" / 23.5 cm
External Depth without Lid: 5.5" / 14.0 cm
External Height: 17.0" / 43.2 cm
External Width: 25.5" / 64.8 cm
Internal Depth Above Power Supply: 2.8" / 7.0 cm
Internal Depth Above Bus Board: 3.8" / 9.5 cm
Internal Depth Above Nothing: 4.3" / 10.8 cm | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 27.0 x 18.7 x 10.9" |
