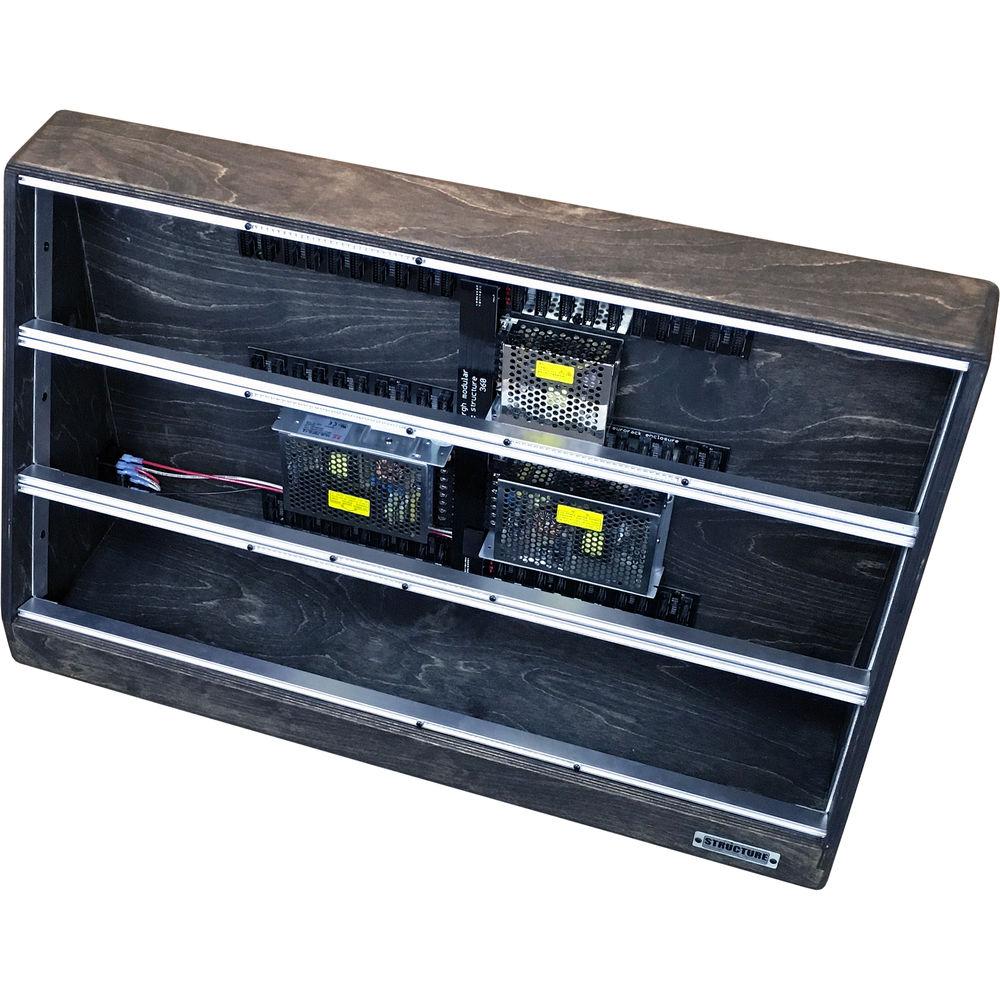

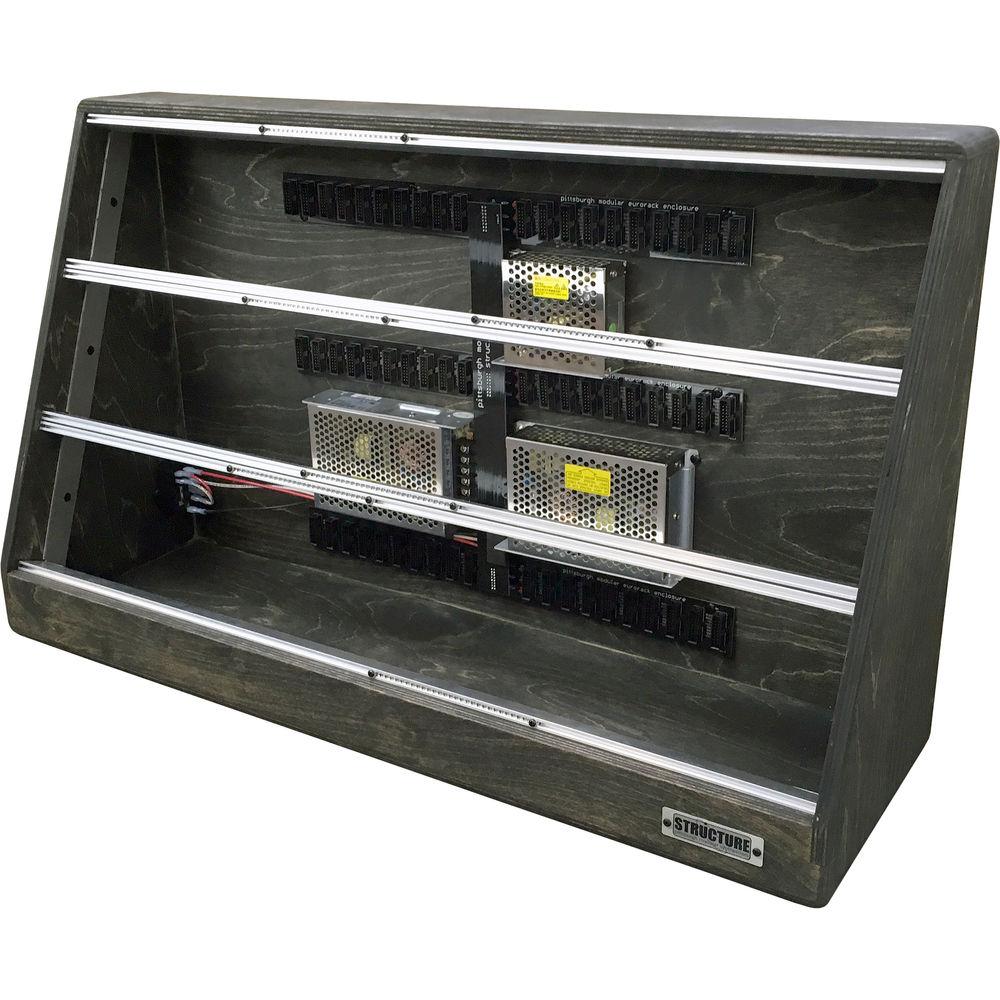

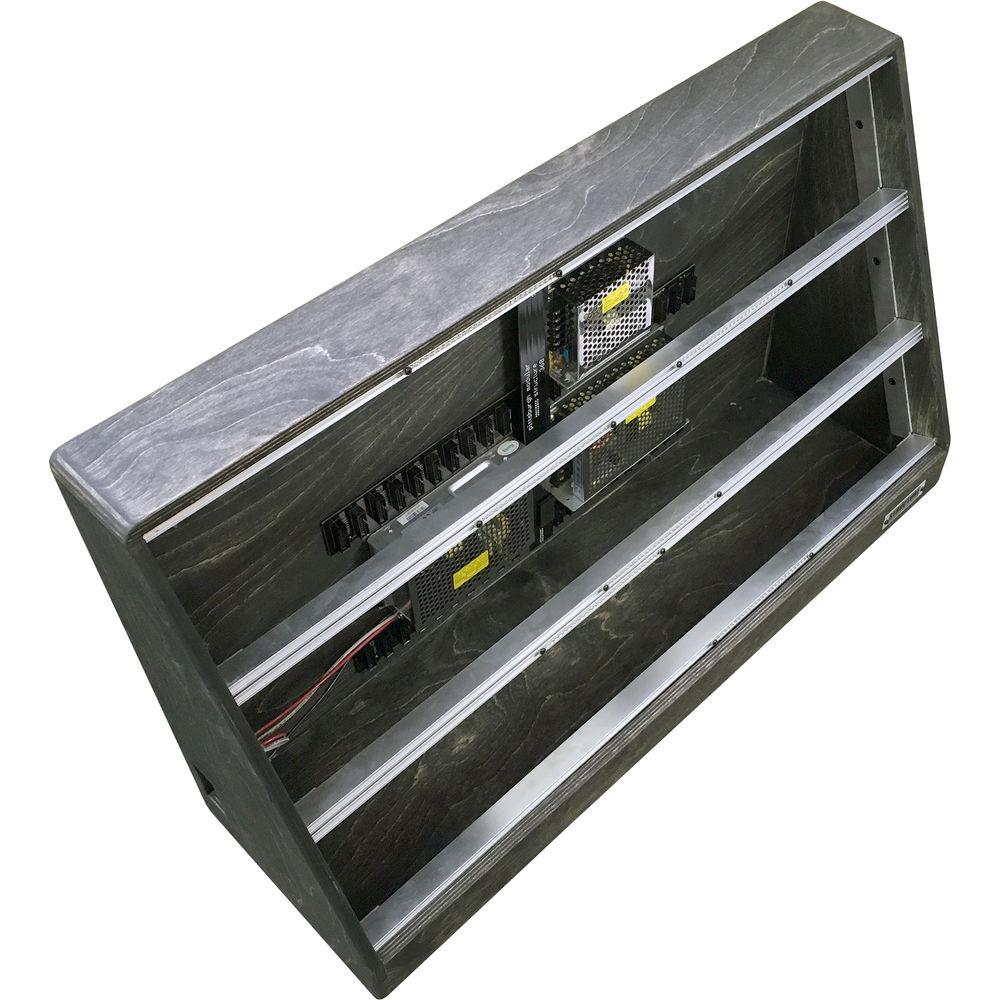

Product description The Structure EP-420 from Pittsburgh Modular is a professional desktop triple-rack Eurorack modular synthesizer enclosure designed to hold up to 90 Eurorack modules. The case is constructed from hand-stained premium hardwood and features six rails, each with 30 sliding square nuts, and 180x black (4-40-sized 1/4") screws for mounting modules. The overbuilt power supply delivers ample power and includes three EMI filters to protect all three power rails and is designed for sensitive analog circuitry, power-hungry digital processors, and ground-sensitive user-interface modules. The Structure EP-420 ships with a standard IEC power cord. - Enclosure
-
- Hardwood and aluminum construction
- Three 140hp rows
- 420hp total space available
- Edge to edge rails reduce gaps between modules and the side of the case
- 30 smooth-sliding square nuts per rail ensures modules always fit perfectly (holds up to 90 modules)
- Includes 180 black (size 4-40 1/4") module mounting screws
- Hand-stained hardwood
- Power
-
- 6 amps of clean, filtered +12V power
- 6 amps of clean, filtered -12V power
- 5 amps of clean, filtered +5V power
- 60 keyed Eurorack power headers
- External power switch with LED
- Fused power protection
- Universal IEC power connector
- Discrete EMI filter per power rail (+12V, +5V, -12V)
- Low output ripple & noise
- UL & CE approved, RoHS compliant
- Overload and short circuit protection
- Line Regulation (Full Load): ≤0.5%
- Output Overload Protection: 10%-150% hiccup mode with auto-recovery
In the Box Pittsburgh Modular Structure EP-420 Triple-Row Eurorack Studio Enclosure 120-Pack of Screws (Size 4-40) Standard IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pittsburgh Modular Structure EP-420 Triple-Row Eurorack Studio Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPittsburgh Modular PMS3014 Specs | Size | Horizontal Pitch (hp): 420 | | Screws | 4-40-Sized Panel Screws: 180 | | Header | Module Power Header: 60 | | Dimensions | External Depth at Top: 3.5" / 89 mm
External Depth at Base: 9.0" / 229 mm
External Height: 18.0" / 457 mm
External Width: 29.0" / 737 mm
Minimum Internal Depth for Modules: 3.4" / 86 mm
Maximum Internal Depth for Modules: 6.0" / 152 mm | | Weight | 20.0 lb / 9.1 kg | | | | Package Weight | 28.1 lb | | Box Dimensions (LxWxH) | 31.5 x 24.0 x 13.52" |
