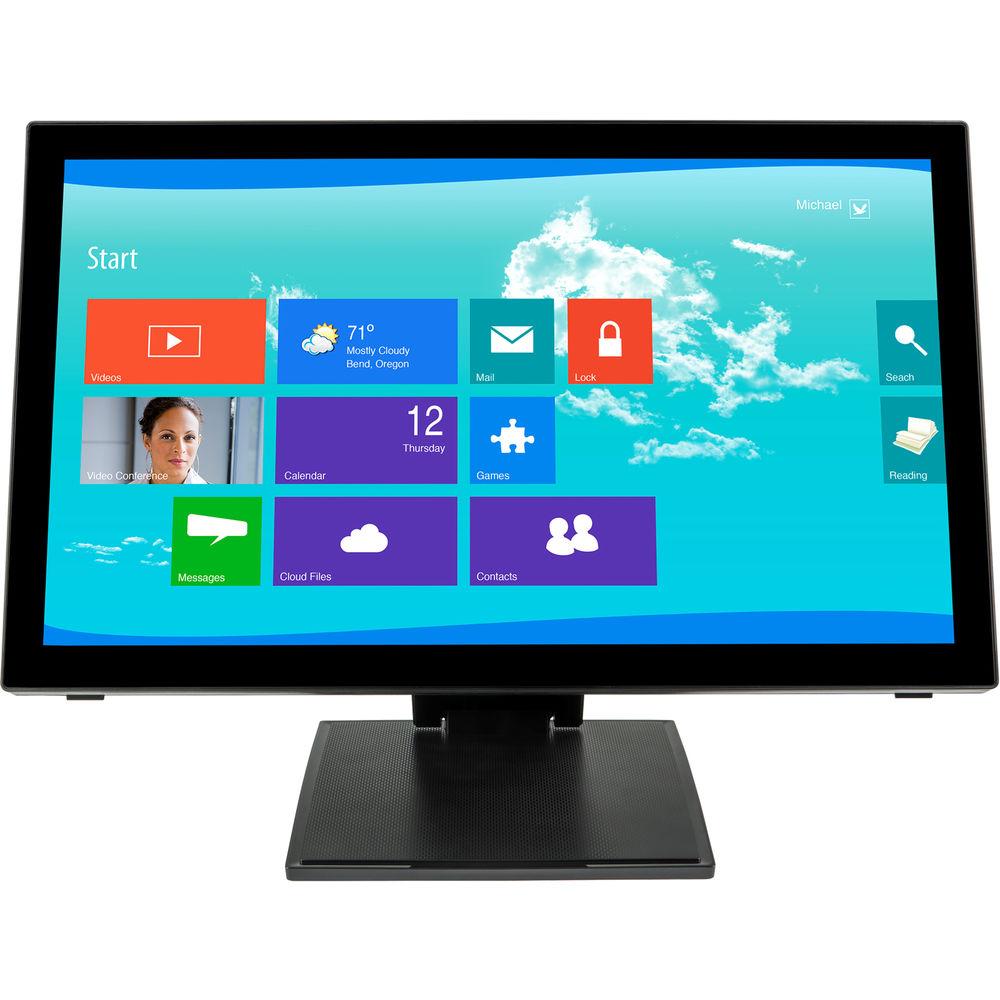

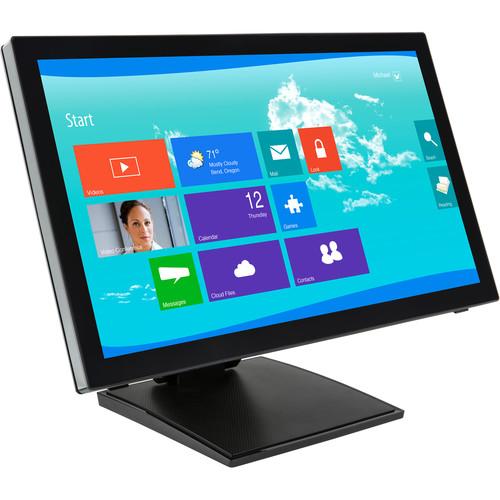

User Manual for Planar Systems PCT2265 21.5" 16:9 Multi-Touch LCD Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PCT2265 21.5" 16:9 Multi-Touch
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PCT2265 21.5" 16:9 Multi-Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With the ability to register up to 10 simultaneous touches, the PCT2265 21.5" 16:9 Multi-Touch LCD Monitor from Planar Systems supports a variety of multimedia applications as well as the Windows 10 operating system. The Full HD 1920 x 1080 display offers enhanced picture quality while the 2000:1 contrast ratio and palette of 16.7 million colors ensures colors are rendered properly for improved color accuracy. Setup is simple with VGA, DVI, and HDMI inputs. The PCT2265 even comes equipped with a USB port, making it easy to connect a laptop, tablet, or other USB compatible devices to the display. -
- 21.5" touch screen monitor with 1920 x 1080 resolution
- Windows 10 Ready - no driver loading required
- Multi-touch with up to 10 touch points
- Edge-to-edge glass surface delivers sleek design and smooth touch operation
- Built-in USB hub for easy connectivity to virtually any peripheral
UPC: 810689000013 In the Box Planar Systems PCT2265 21.5" 16:9 Multi-Touch LCD Monitor Power Cord VGA Cable DVI-D Cable HDMI Cable USB Cable Audio-In Cable Limited 3-Year Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PCT2265 21.5" 16:9 Multi-Touch LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems PCT2265 Specs | Screen Size | 21.5" (54.6 cm) | | Viewable Image Area | 18.77 x 10.56" (47.68 x 26.82 cm) | | Touchscreen | Type: Projected capacitive
Touch Points: 10
Interface: USB | | Contrast Ratio | 2000:1 | | Viewing Angles (H/V) | 178°/178° | | Response Time | 18 ms | | Brightness | With Touchscreen
225 cd/m²
Without Touchscreen

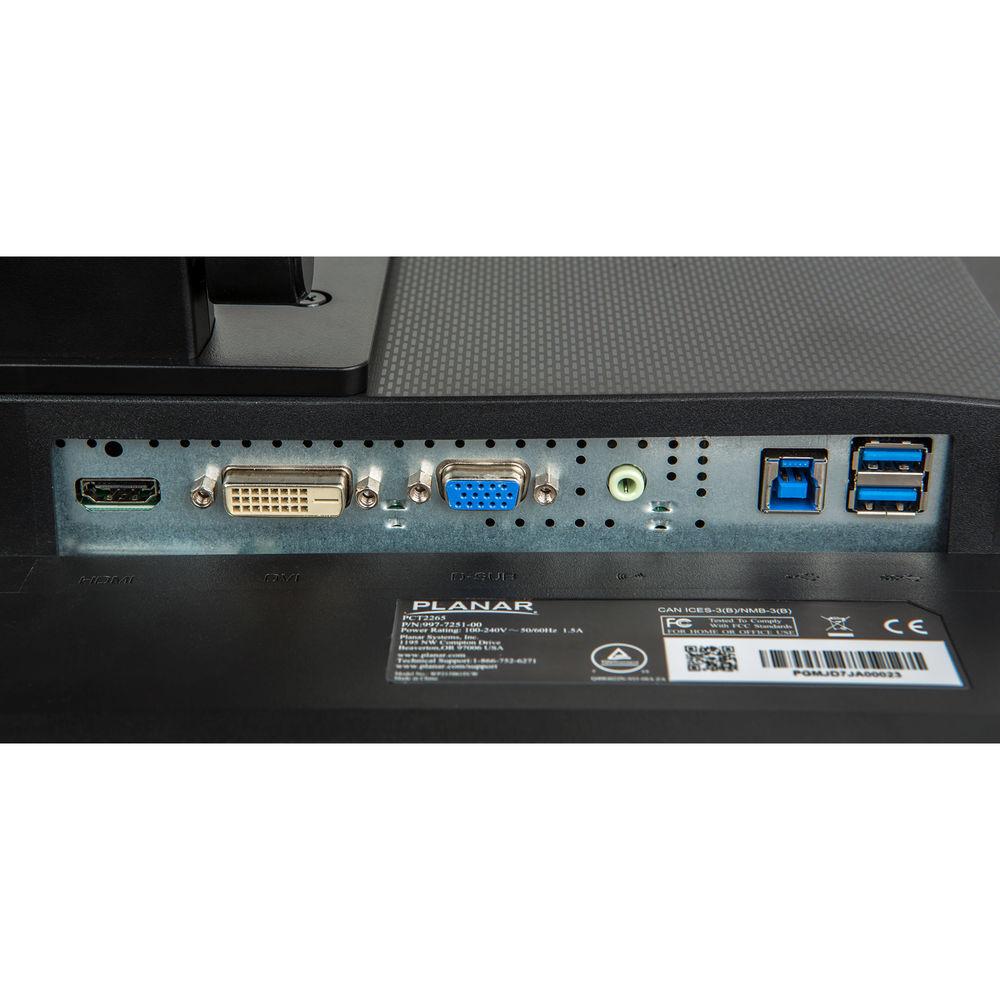

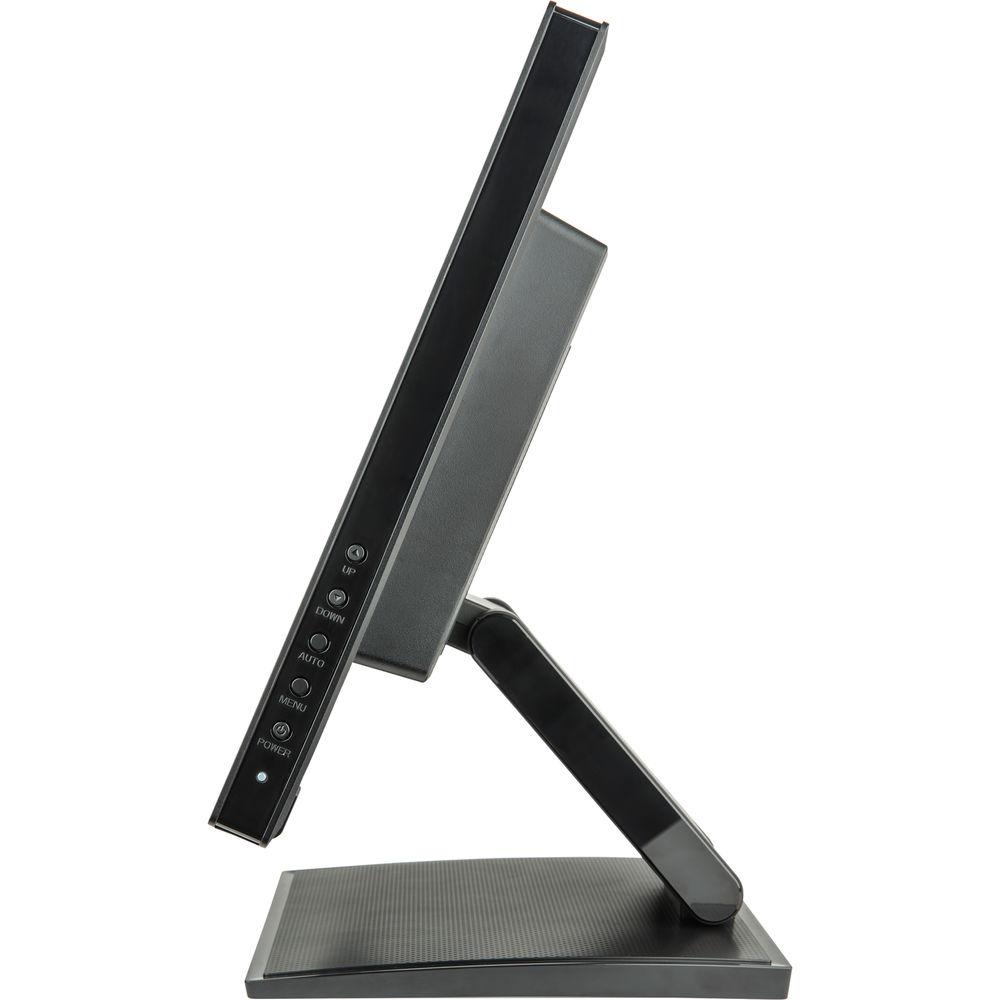

250 cd/m² | | Display Type | LED edge-lit LCD | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Tilt | -5 to 90° | | Colors Supported | 16.7 million colors | | Pixel Pitch | 0.2482 mm | | Refresh Rate | 50-76 Hz | | Video Inputs | Analog and digital (DVI-D w/HDCP, HDMI) | | External Connections | VGA (15-pin D-Sub)
DVI
HDMI
3.5 mm audio in
AC power in
USB 3.0 hub (1 up, 4 down) | | Audio Output | 2 x 2 W | | Compatibility | Windows 7, 8, 10 - HID Compliant - no drivers needed for basic touchscreen operation | | Power | Power Supply: Internal
Power Consumption (max): <28 w (typical)
Power Consumption (standby/off) <0.5 W

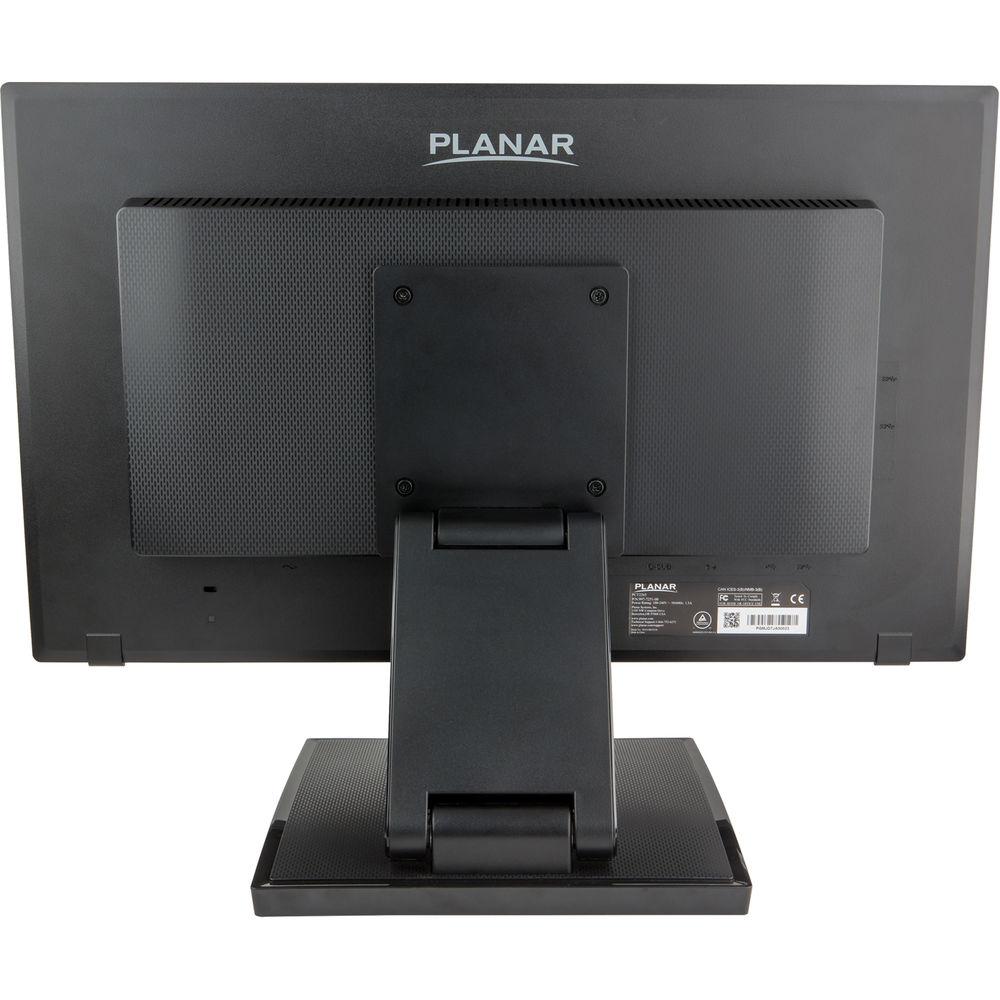

Power Requirements: 100~240 VAC, 50/60 Hz | | Operating Temperature | 32 to 104°F (0 to 40°C) | | VESA Compatibility | 100 x 100 mm | | Certifications | cTUVus, CE, FCC-B, RoHS II | | Dimensions | With Stand: 20.57 x 15.16 x 9.39" (52.2 x 38.5 x 23.9 cm)
Without Stand: 20.57 x 12.54 x 2.49" (52.2 x 31.8 x 6.3 cm) | | Weight | With Stand: 14.6 lb (6.64 kg)
Without Stand: 9.5 lb (4.31 kg) | | | | Package Weight | 18.35 lb | | Box Dimensions (LxWxH) | 22.9 x 17.0 x 7.3" |
