User Manual for Planar Systems PCT2785 27" 16:9 Multi-Touch LCD Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PCT2785 27" 16:9 Multi-Touch
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PCT2785 27" 16:9 Multi-Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|

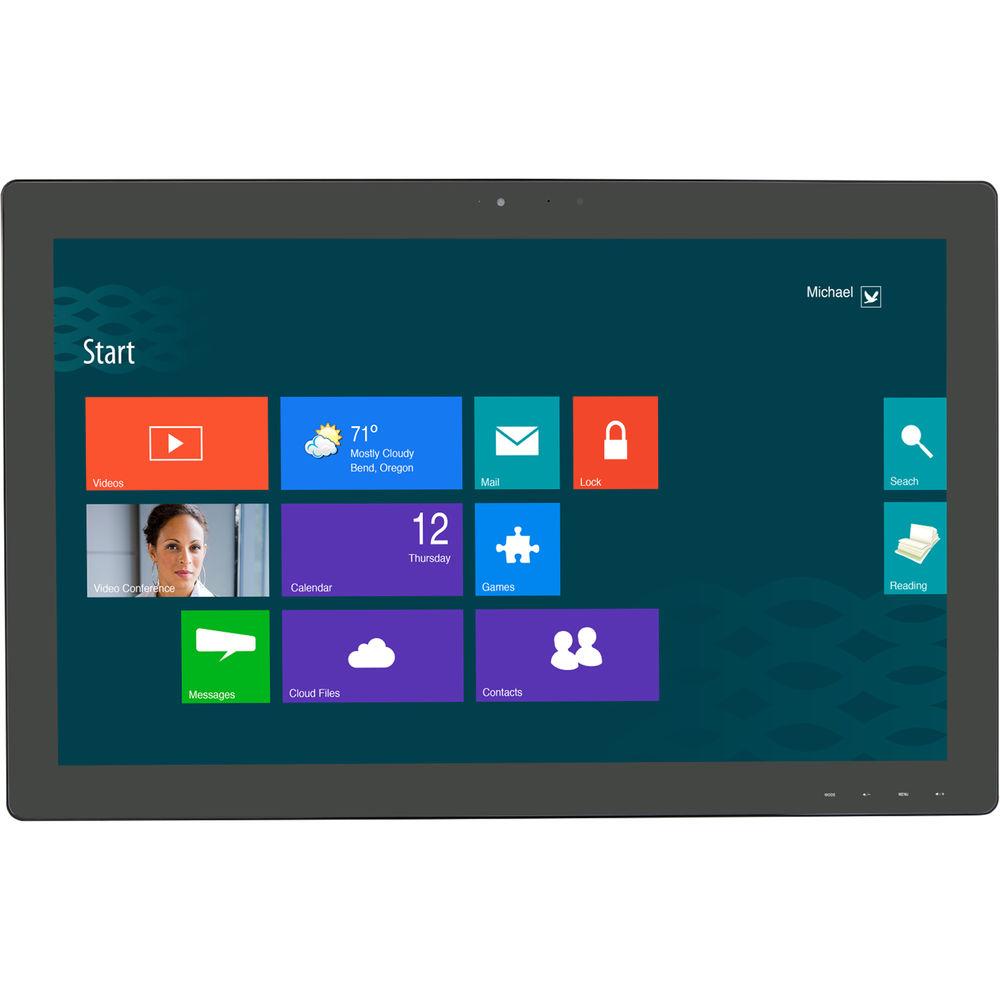

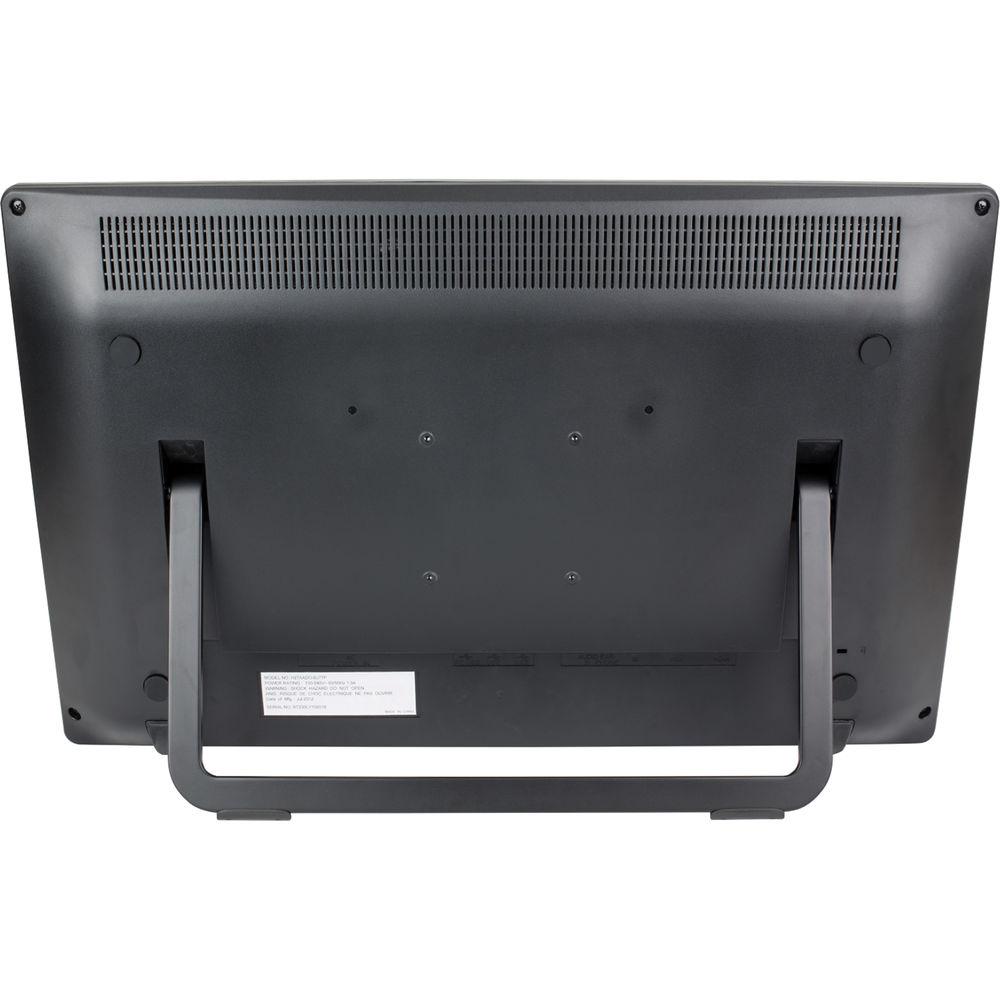

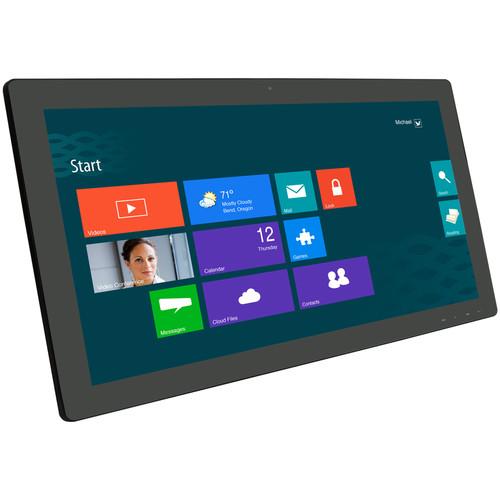

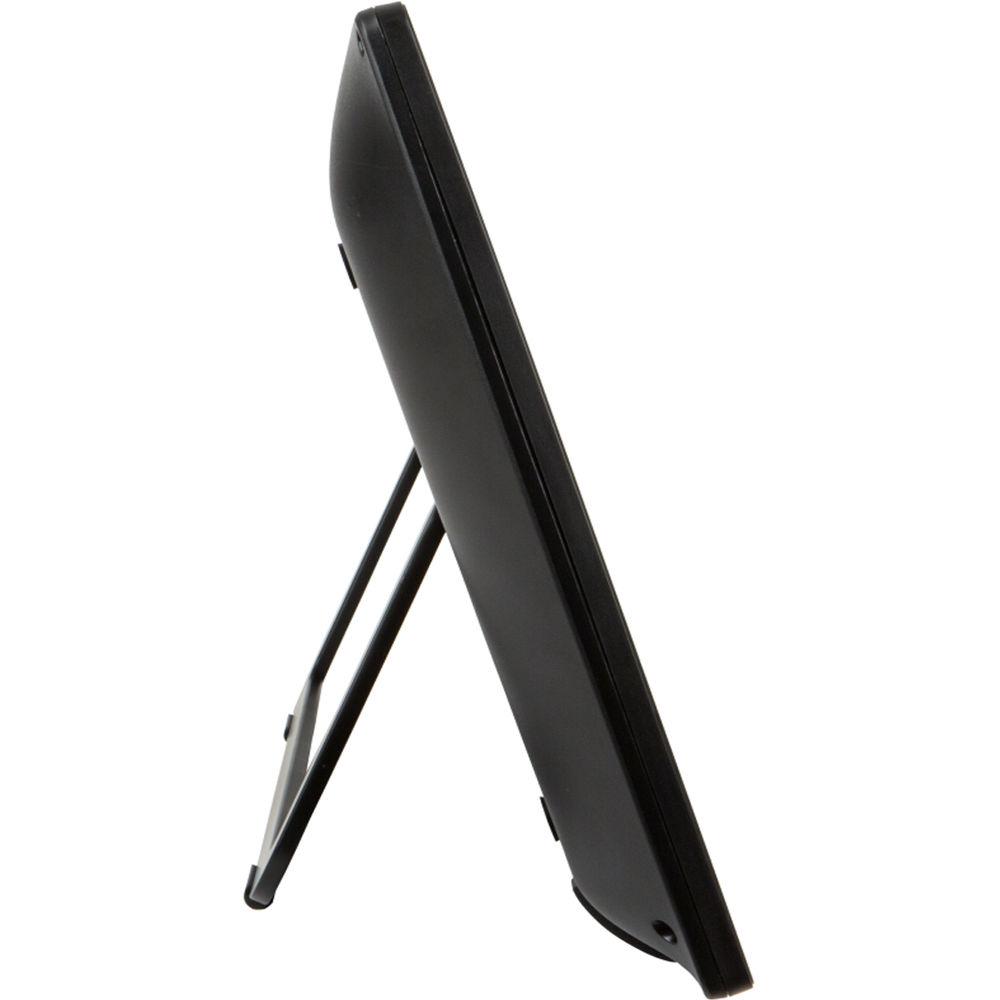

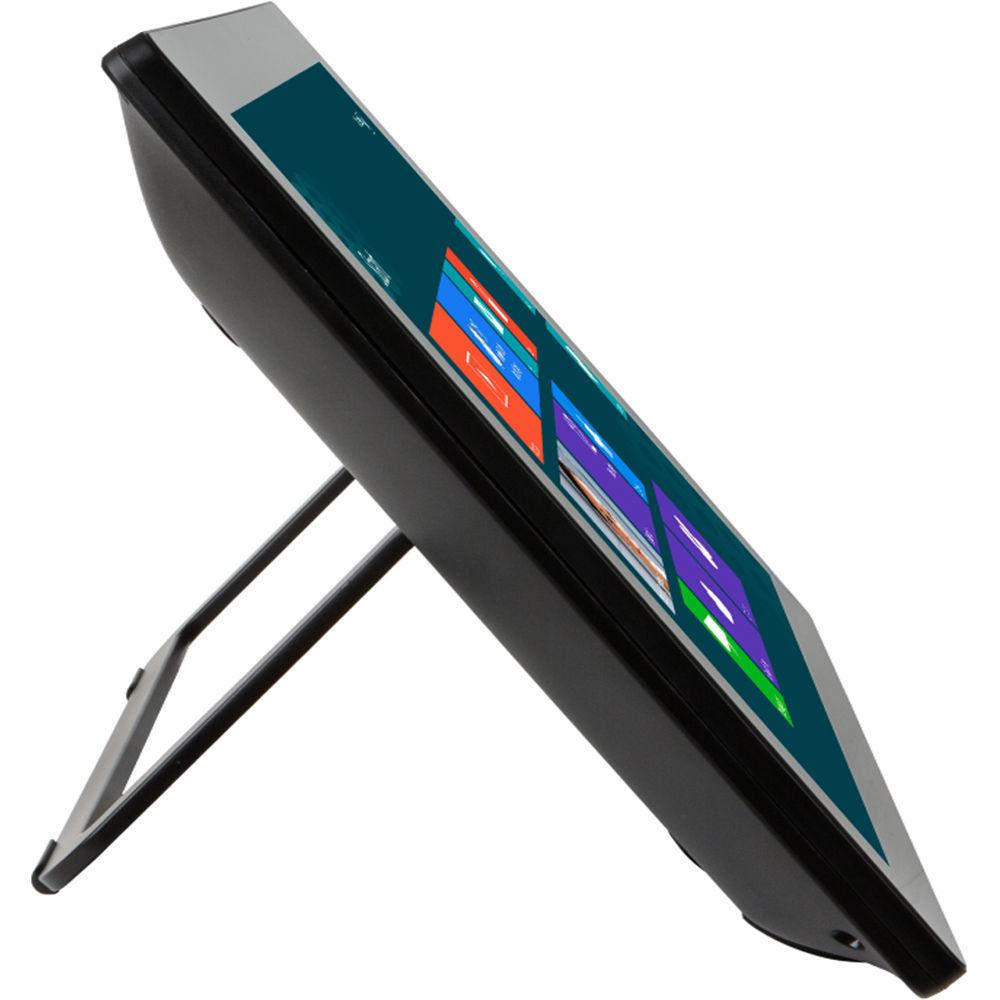

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an edge-to-edge glass surface and support up to 10 touch points, the PCT2785 27" 16:9 Multi-Touch LCD Monitor from Planar Systems offers an intuitive touchscreen experience. In addition to a capacitive multi-touch display, this monitor features a Full HD 1920 x 1080 resolution, a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and 178° horizontal and vertical viewing angles, allowing viewers to see the display from virtually any angle. Video inputs include a VGA, HDMI, and DisplayPort inputs, making it easy to plug the monitor into a variety of computer configurations, while the built-in stand allows you to prop up the display or fold the stand away and use it in a flat orientation. -
- Integrated 720p HD webcam and microphone
- Built-in USB 2.0 hub
- Kensington security slot
- Edge-to-edge glass surface
- Wide viewing angles
- Ergonomically friendly Helium Stand
- Windows 10 compatible
- Recommended usage of up to 16 hours per day
UPC: 810689068488 In the Box Planar Systems PCT2785 27" 16:9 Multi-Touch LCD Monitor Power Cord VGA Cable HDMI Cable USB 3.0 Cable Audio-In Cable Cleaning Cloth Stylus Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PCT2785 27" 16:9 Multi-Touch LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems PCT2785 Specs | Screen Size | 27" (68.6 cm) | | Viewable Image Area | 23.5 x 13.2" (59.8 x 33.6 cm) | | Touchscreen | Touchscreen Type
Projected capacitive
Number of Touch Points
10
Touchscreen Interface
USB | | Contrast Ratio | 1000:1 | | Viewing Angles (H/V) | 178°/178° | | Response Time | 14 ms | | Brightness | With Touchscreen
217 cd/m²
Without Touchscreen

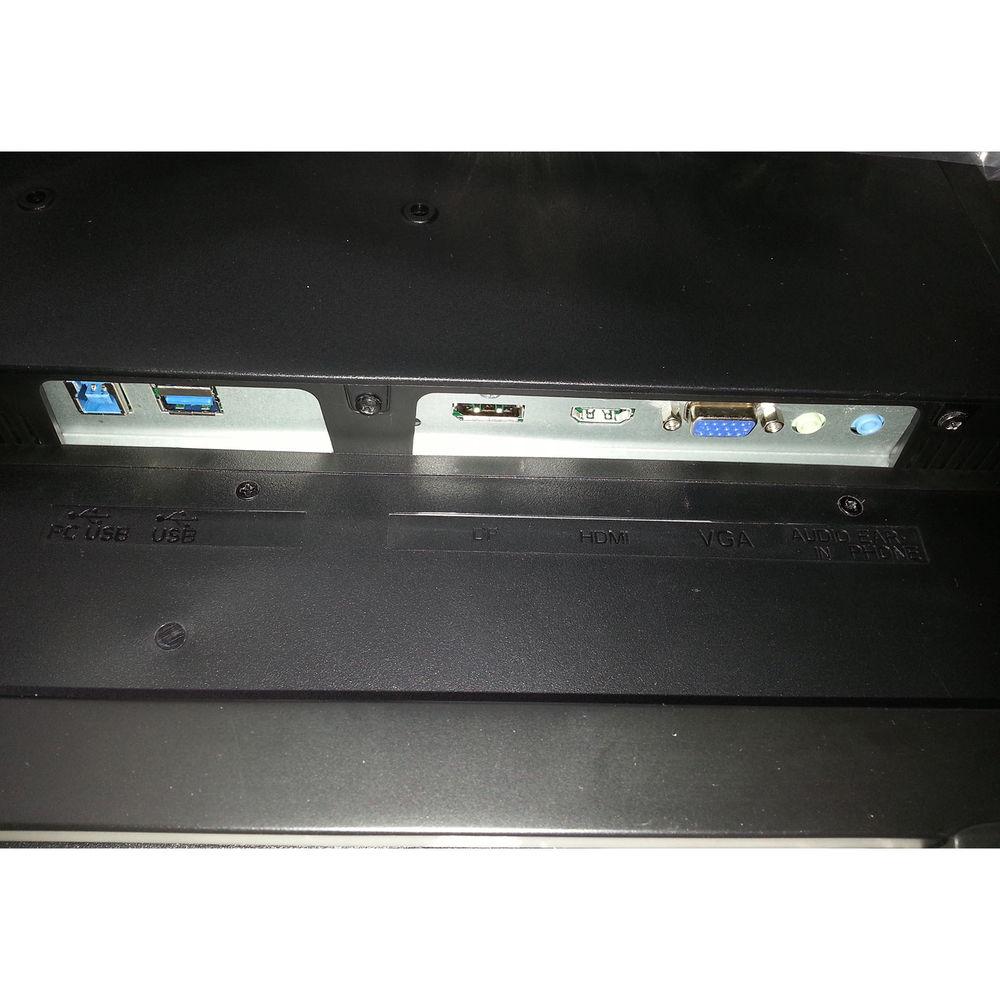

250 cd/m² | | Display Type | Edge-lit LED LCD | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Tilt | 15 to 70° and flat | | Colors Supported | 16.7 million | | Pixel Pitch | Not specified by manufacturer | | Refresh Rate | Not specified by manufacturer | | Video Inputs | Analog, HDMI, DisplayPort (w/HDCP) | | Audio Output | 2 x 2 W speakers | | Compatibility | Windows 7, 8, 10 - HID Compliant - no drivers needed for basic touchscreen operation | | Power | Power Supply
Internal
Power Requirements
100-240 VAC, 50/60 Hz
Power Consumption
45 W (typical)
2.4 W (standby and off modes) | | VESA Mount Compatible | 100 x 100 mm | | Certifications | UL/cUL, FCC, CE, TUV, RoHS | | Dimensions | 26.5 x 16.5 x 2" (67.7 x 41.9 x 5 cm) | | Weight | 19.5 lb (8.8 kg) | | | | Package Weight | 24.75 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 5.0" |
