User Manual for Planar Systems PLL1500M 15" 4:3 LCD Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PLL1500M 15" 4:3 LCD
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PLL1500M 15" 4:3 LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|

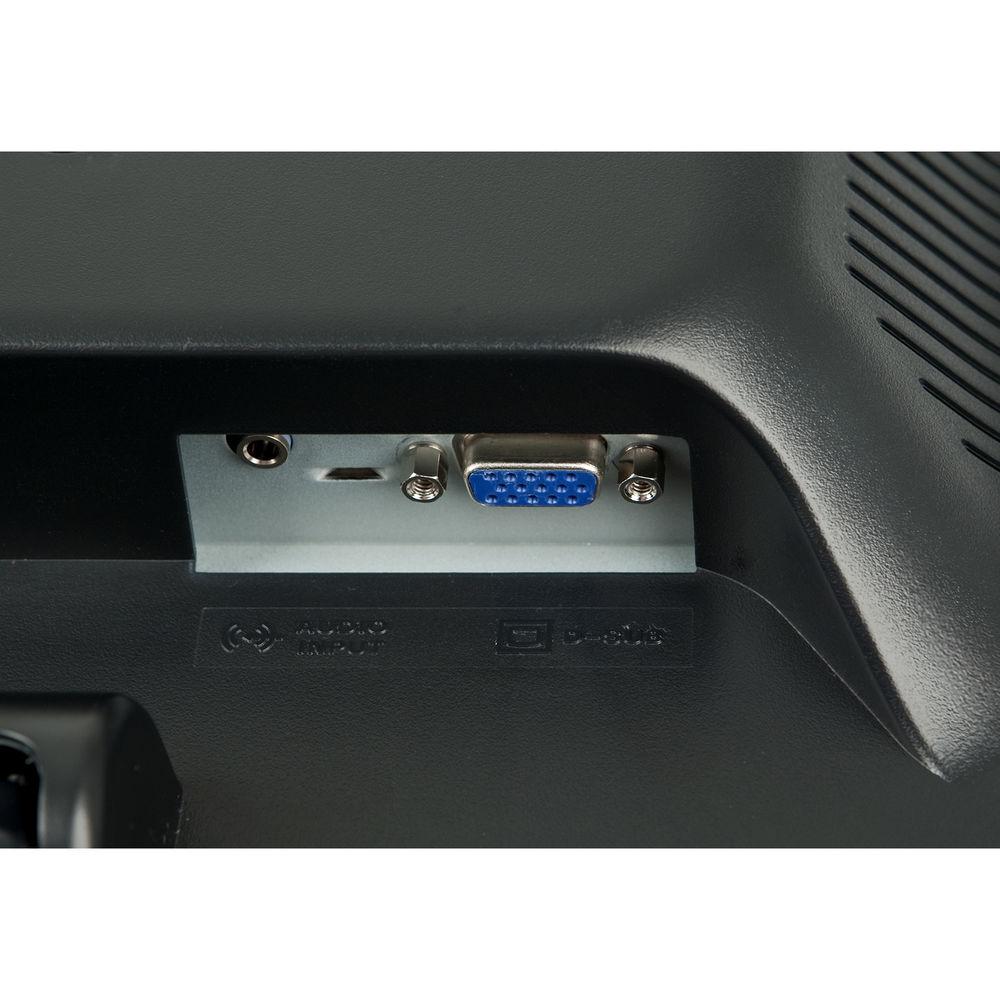

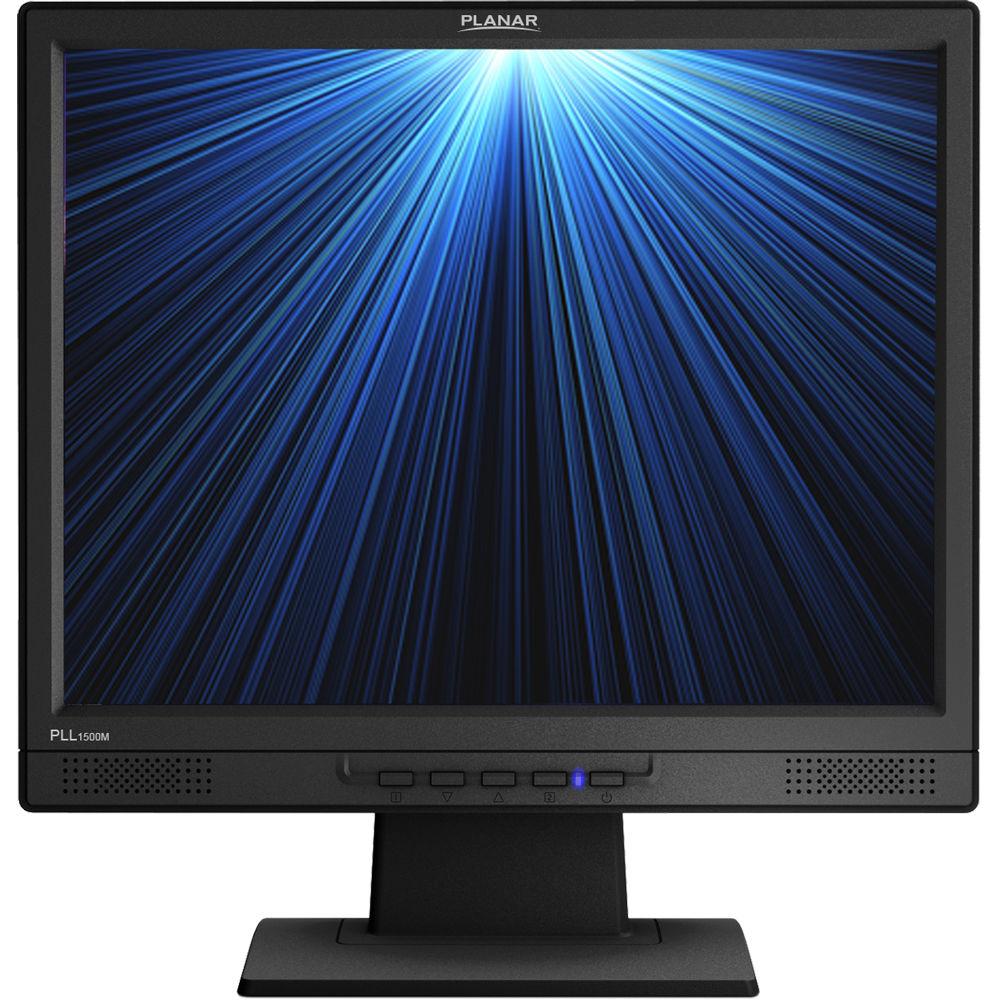

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed for a variety of applications, the PLL1500M 15" 4:3 LCD Monitor from Planar Systems features a 1024 x 768 resolution, a 700:1 contrast ratio, a 300 cd/m² brightness rating, and an 8 ms response time for a more dynamic viewing experience with reduced ghosting. Setup is simple thanks to the single VGA input, and the display can be attached to the included base or mounted using a VESA compatible display mount. Once configured, the display features integrated speakers, allowing for a complete multimedia experience. -
- 15" LED LCD monitor with 1024 x 768 resolution
- Analog input
- Integrated speakers and internal power supply

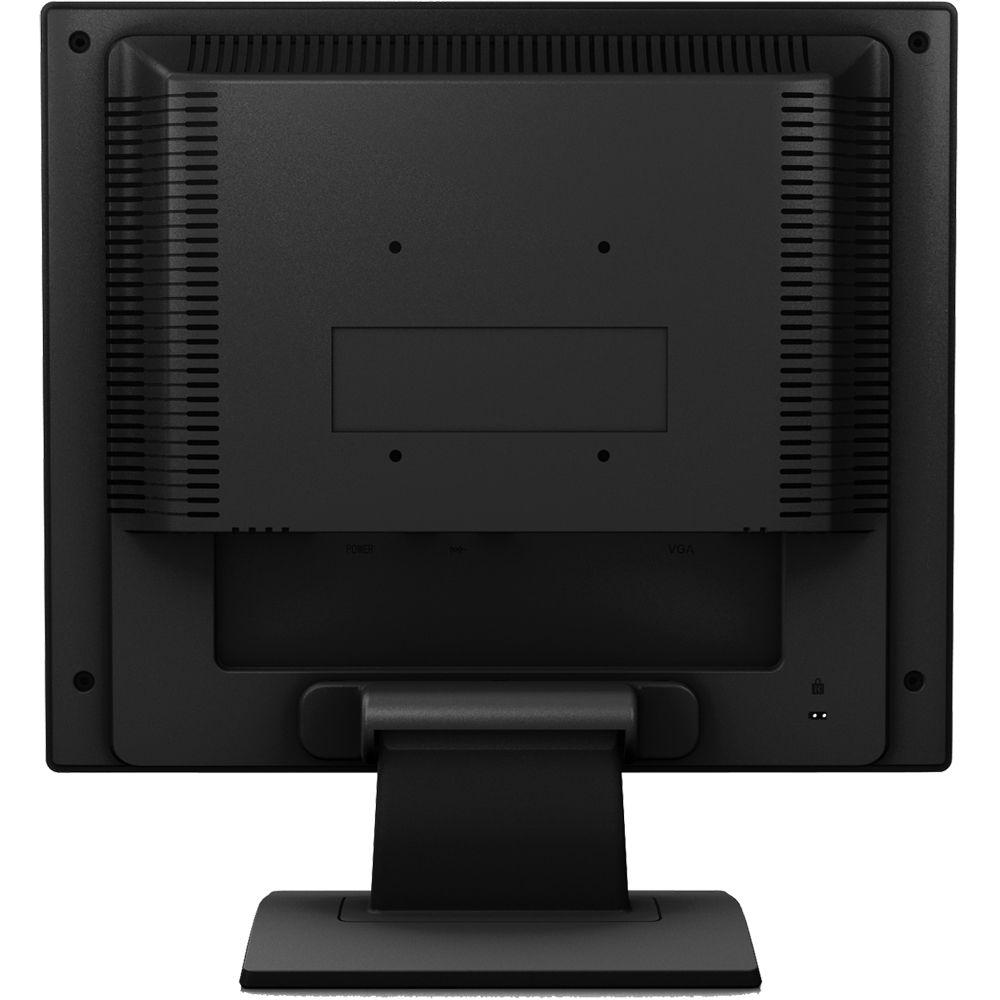

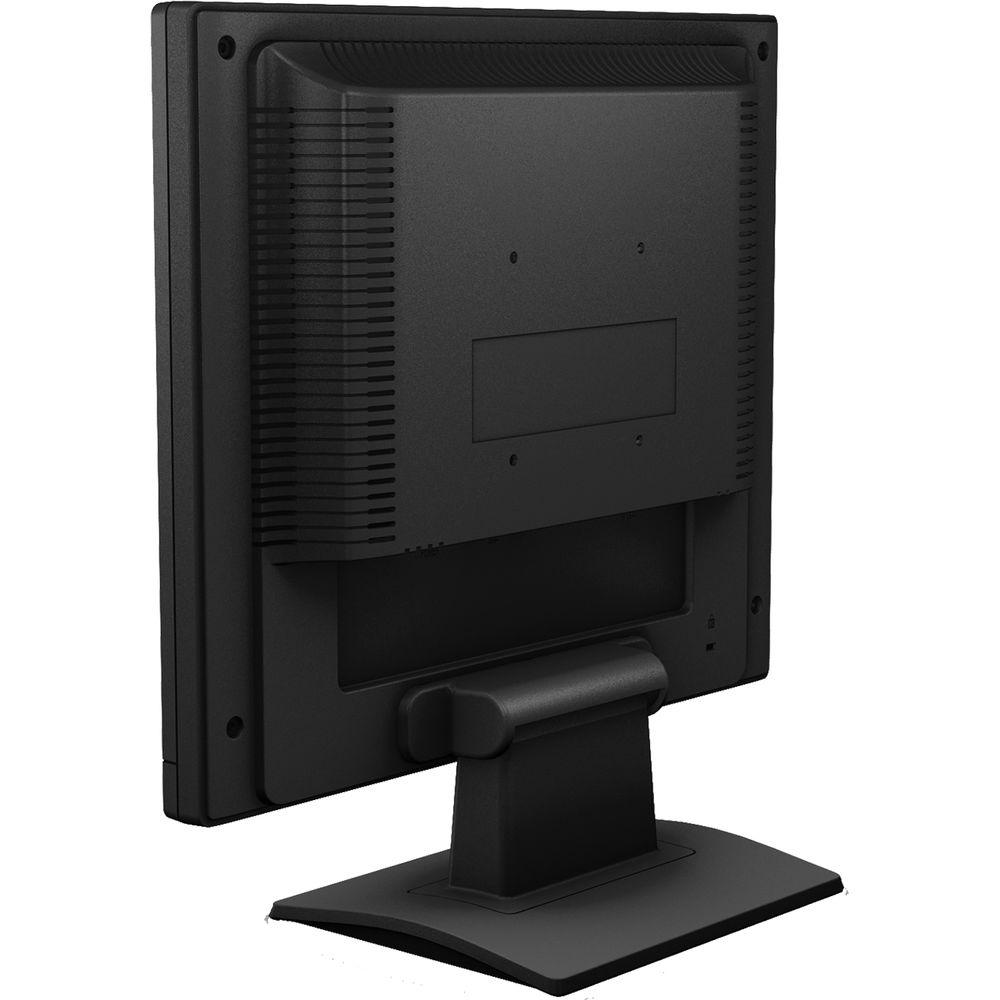

- Compatible with mounting options that use 75mm VESA standard, easy wall or arm mounting
UPC: 810689002260 In the Box Planar Systems PLL1500M 15" 4:3 LCD Monitor - Power Cable
- VGA Cable
- Base
- Limited 3-Year Warranty
User Manual PDF 1.2mbxcxvsuwdcqfuuaetfxvfrdteaxvxtxdbufu Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PLL1500M 15" 4:3 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems 997-7318-01 Specs | | | Size | 15" | | Screen Area | 11.97 x 8.98" / 30.4 x 22.8 cm | | Touchscreen | No | | Resolution | 1024 x 768 | | Aspect Ratio | 4:3 | | Pixels Per Inch (ppi) | 85 ppi | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 700:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 8 ms | | Viewing Angle | Horizontal: 160°
Vertical: 130° | | Dot Pitch | 0.297 x 0.297 mm | | | | Connectivity | 1 x VGA | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 8 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | CE, FCC, RoHS, UL, cUL, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -1 to 20° | | Mounting-Hole Pattern | 75 x 75 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 13.3 x 13.7 x 5.8" / 33.9 x 34.7 x 14.7 cm (With Stand)
13.3 x 11.3 x 2.0" / 33.9 x 28.7 x 5.2 cm (Without Stand) | | Weight | 6.61 lb / 3 kg (With Stand)
5.73 lb / 2.6 kg (Without Stand) | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 16.0 x 15.0 x 6.0" |
