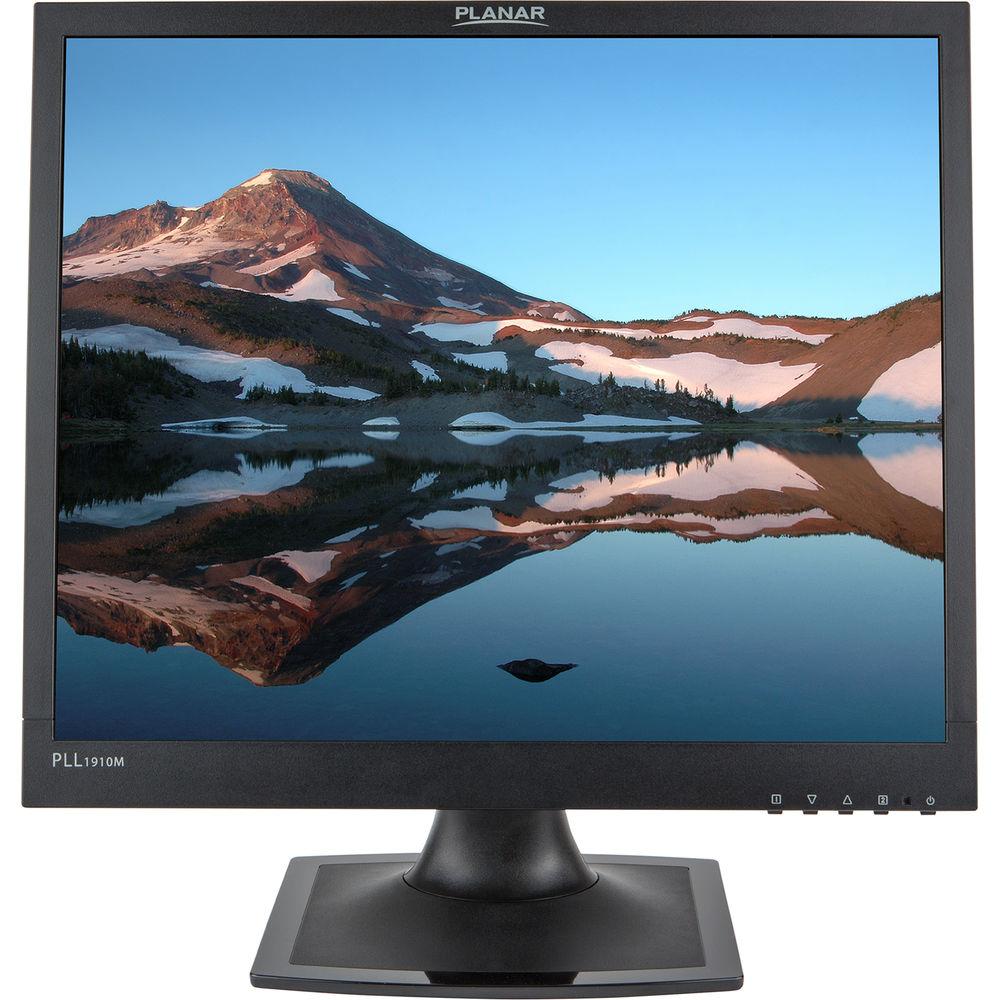

User Manual for Planar Systems PLL1910M 19" 5:4 LCD Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PLL1910M 19" 5:4 LCD
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PLL1910M 19" 5:4 LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More wqqurbcvbracequqvxwzyvyafbcqazctcfv With a 1280 x 1024 display, the PLL1910M 19" 5:4 LCD Monitor from Planar Systems offers an enhanced viewing experience with increased clarity. This high-resolution monitor also features a 1000:1 contrast ratio, a 250 cd/m² brightness rating, a 5 ms response time, and support for up to 16.7 million colors for a more dynamic picture with reduced blurring. The IPS (In-Plane Switching) display is simple to set up as it comes equipped with both VGA and DVI-D inputs and can be mounted to the wall using a VESA compatible wall mount to take full advantage of the 178° horizontal and vertical viewing angles. -
- 19" display with 1280 x 1024 resolution
- IPS edge-lit LED backlit LCD panel

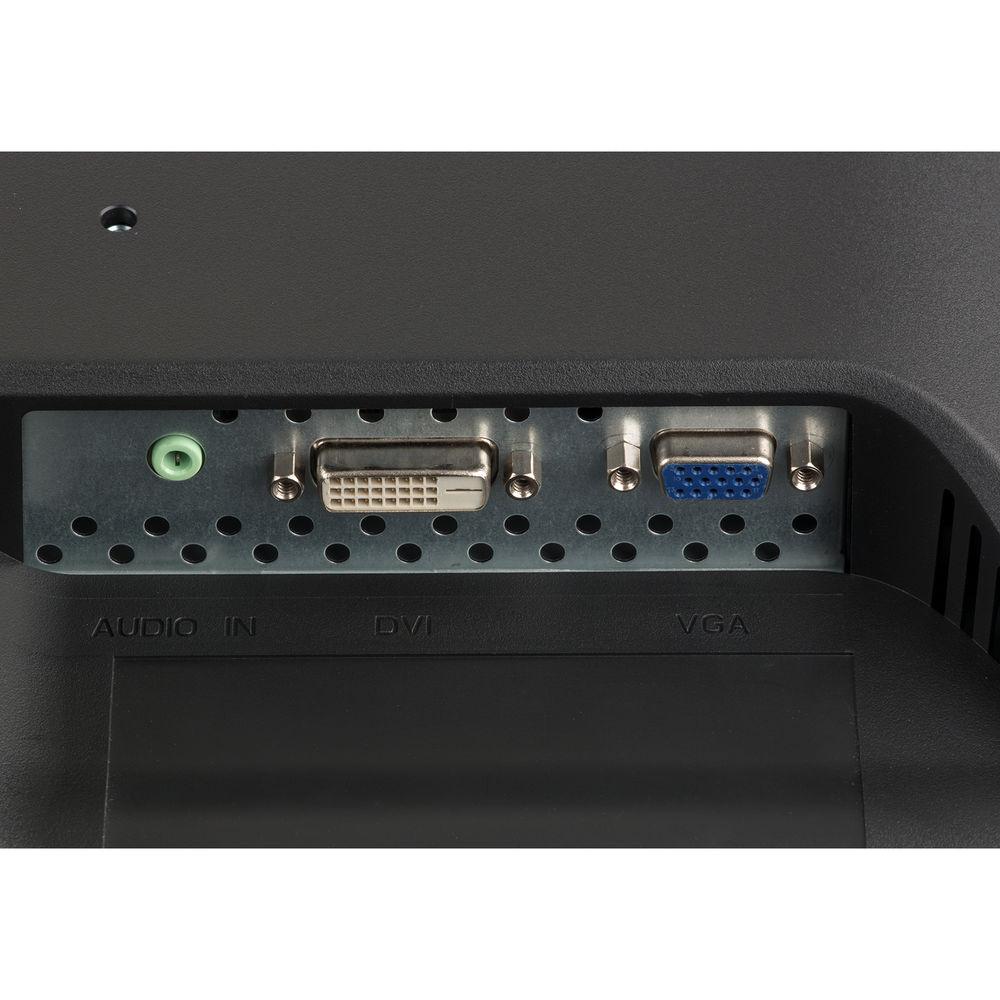

- VGA and DVI inputs
- Invisible integrated speakers
- 178°/178° horizontal and vertical viewing angles
- 100mm VESA mount
- Anti-glare coating
- Multi-language display
- On screen display (OSD)
- Kensington security lock function
In the Box Planar Systems PLL1910M 19" 5:4 LCD Monitor Power Cord VGA Cable DVI Cable Audio Cable Limited 3-Year Warranty User Guide PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PLL1910M 19" 5:4 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems 997-6958-00 Specs | | | Size | 19" | | Screen Area | 14.81 x 11.85" / 37.62 x 30.10 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1280 x 1024 | | Aspect Ratio | 5:4 | | Pixels Per Inch (ppi) | 86 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 76 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.294 x 0.294 mm | | | | Connectivity | 1 x DVI Input
1 x VGA Input
1 x 3.5 mm | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 21 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | CE, FCC, RoHS, UL, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | 0 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 16.0 x 16.0 x 7.0" / 40.6 x 40.6 x 17.8 cm (With Stand)
16.0 x 13.8 x 2.4" / 40.6 x 35.1 x 6.1 cm (Without Stand) | | Weight | 6.6 lb / 2.99 kg (With Stand)
6.1 lb / 2.77 kg (Without Stand) |
