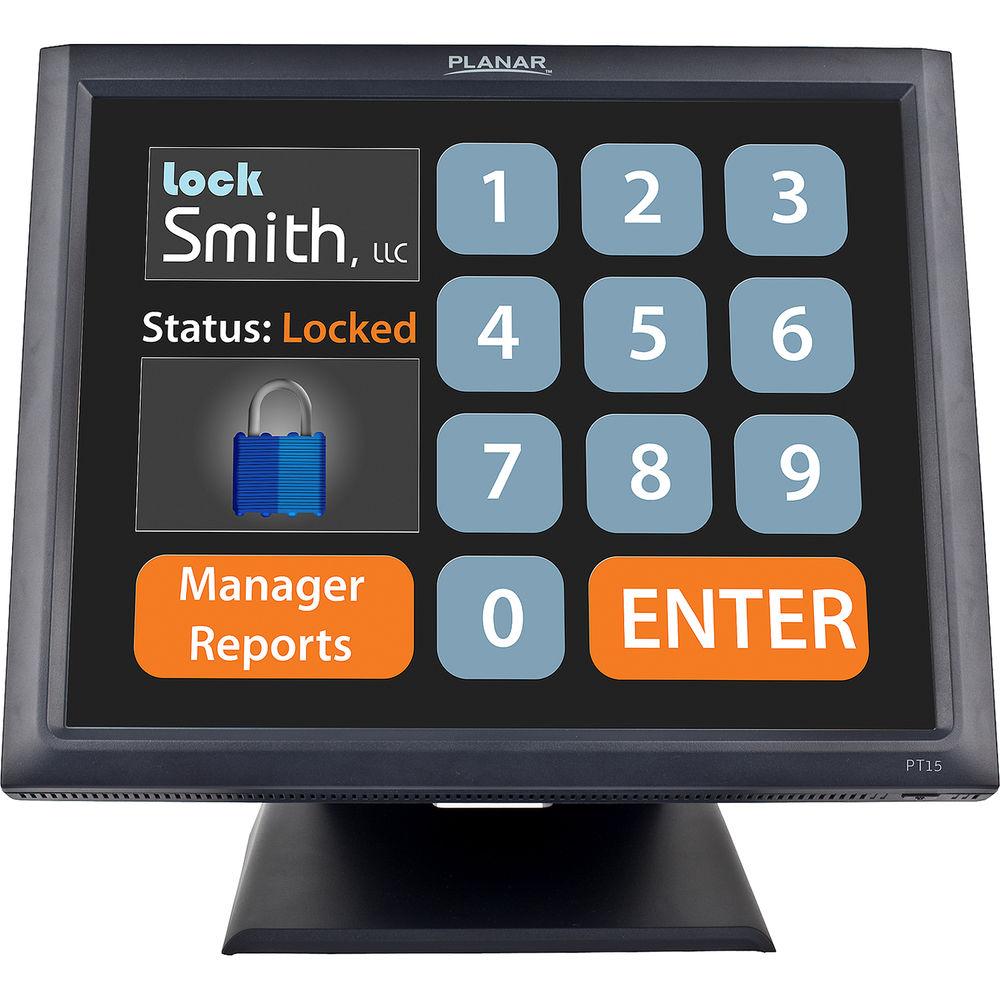

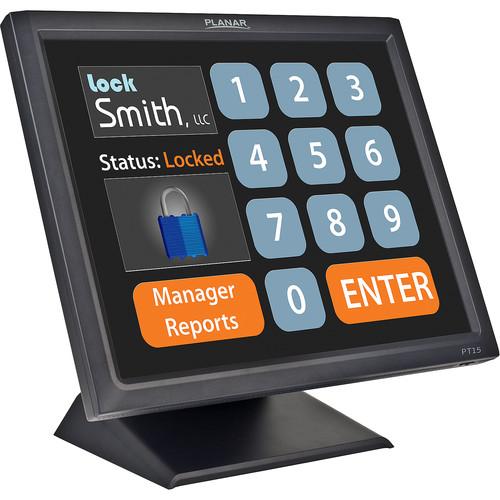

User Manual for Planar Systems PT1545R 15" 4:3 Single Touch LCD Touchscreen Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PT1545R 15" 4:3 Single
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PT1545R 15" 4:3 Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an intuitive touchscreen design, the PT1545R 15" 4:3 Single Touch LCD Touchscreen Monitor from Planar Systems is suited for use in a variety of environments including retail, point-of-sale, education, healthcare, and more. This display supports single touch functionality and features 5-wire resistive touchscreen technology that offers improved feedback and sensitivity when using the touch display.

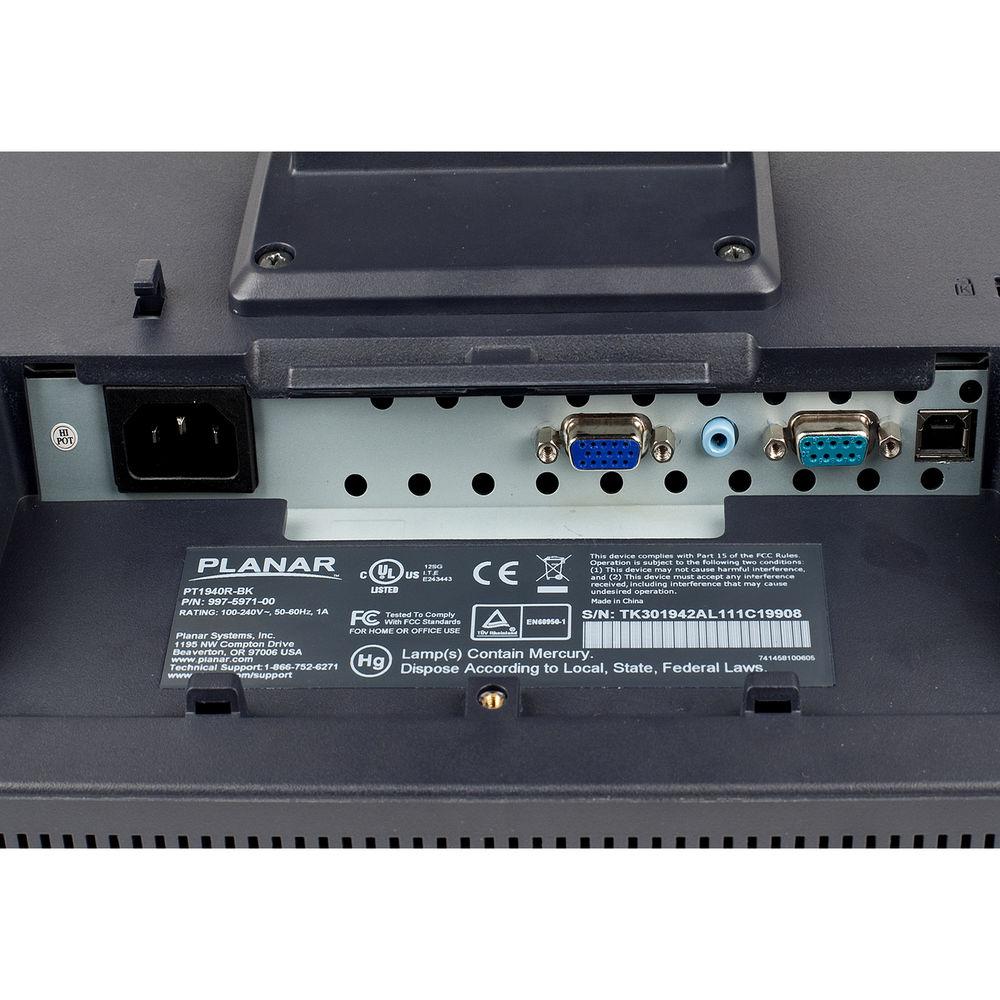

Installation is simple as the display requires no drivers for basic touchscreen operation, and it comes compatible with Windows, Mac, and Linux operating systems. Once installed viewers can take advantage of the 1024 x 768 resolution screen, a 500:1 contrast ratio, a 250 cd/m² brightness rating with the touchscreen off, an 8 ms response time, and support for up to 16.7 million colors. Additionally, setup is simple as the PT1545R comes equipped with 9-pin and 15-pin VGA inputs along with a USB Type-B port and a 3.5mm audio jack. -
- 15" touchscreen monitor
- 5-wire resistive touchscreen
- No drivers needed for basic touchscreen operation
- Internal power supply
- Brightness rating of 200 cd/m
|
Upload User Manual
Have you got an user manual for the Planar Systems PT1545R 15" 4:3 Single Touch LCD Touchscreen Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems 997-5967-00 Specs | | | Size | 15" | | Screen Area | 11.97 x 8.98" / 30.40 x 22.81 cm | | Touchscreen | Yes | | Resolution | 1024 x 768 | | Aspect Ratio | 4:3 | | Pixels Per Inch (ppi) | 85 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 500:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 8 ms | | Viewing Angle | Horizontal: 140°
Vertical: 125° | | Dot Pitch | 0.297 x 0.297 mm | | | | Connectivity | 2 x VGA
1 x 3.5 mm Output
1 x USB Type-B | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 18.5 W (Maximum)
1.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Certifications | CE, FCC, RoHS, UL, cUL, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 90° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 13.8 x 12.1 x 8.0" / 35.1 x 30.7 x 20.3 cm (With Stand)
13.8 x 10.8 x 2.3" / 35.1 x 27.4 x 5.8 cm (Without Stand) | | Weight | 10.6 lb / 4.81 kg (With Stand)
7.3 lb / 3.31 kg (Without Stand) |
