User Manual for Planar Systems PT1745R 17" 5:4 Single Touch LCD Touchscreen Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PT1745R 17" 5:4 Single
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PT1745R 17" 5:4 Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|

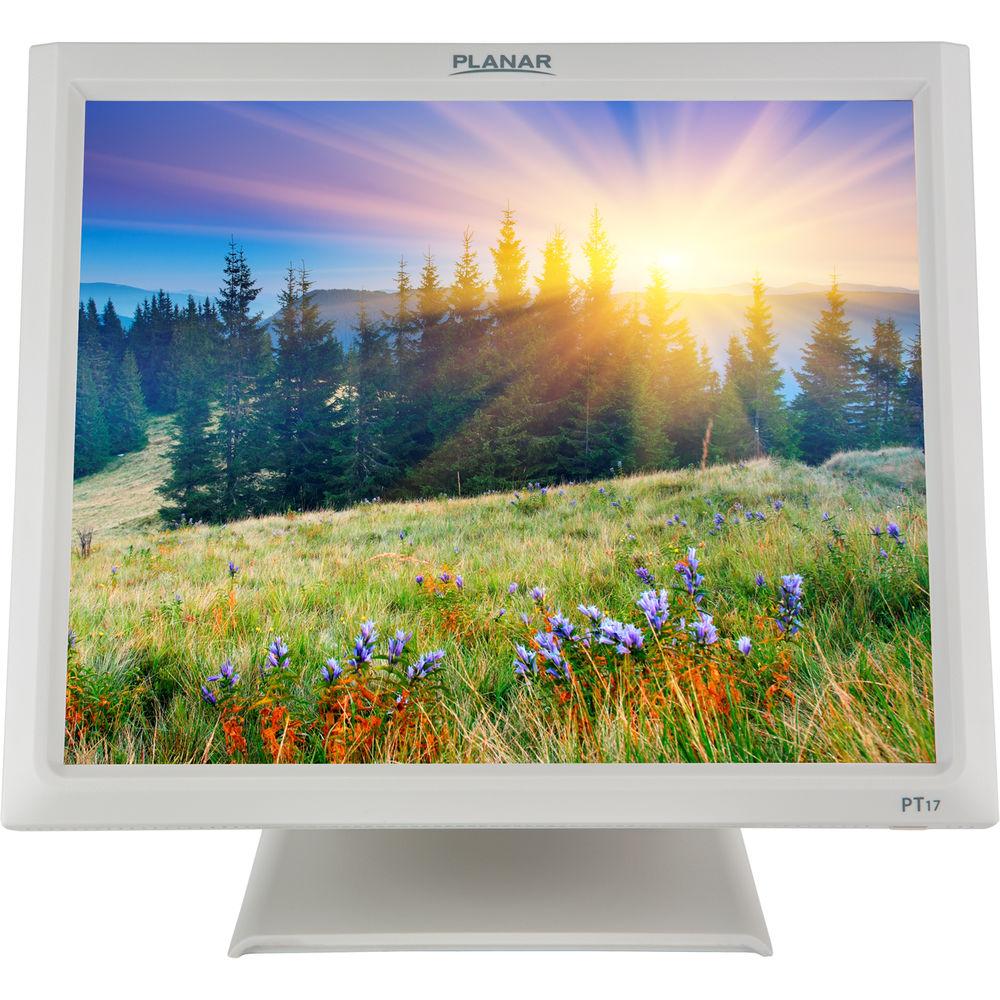

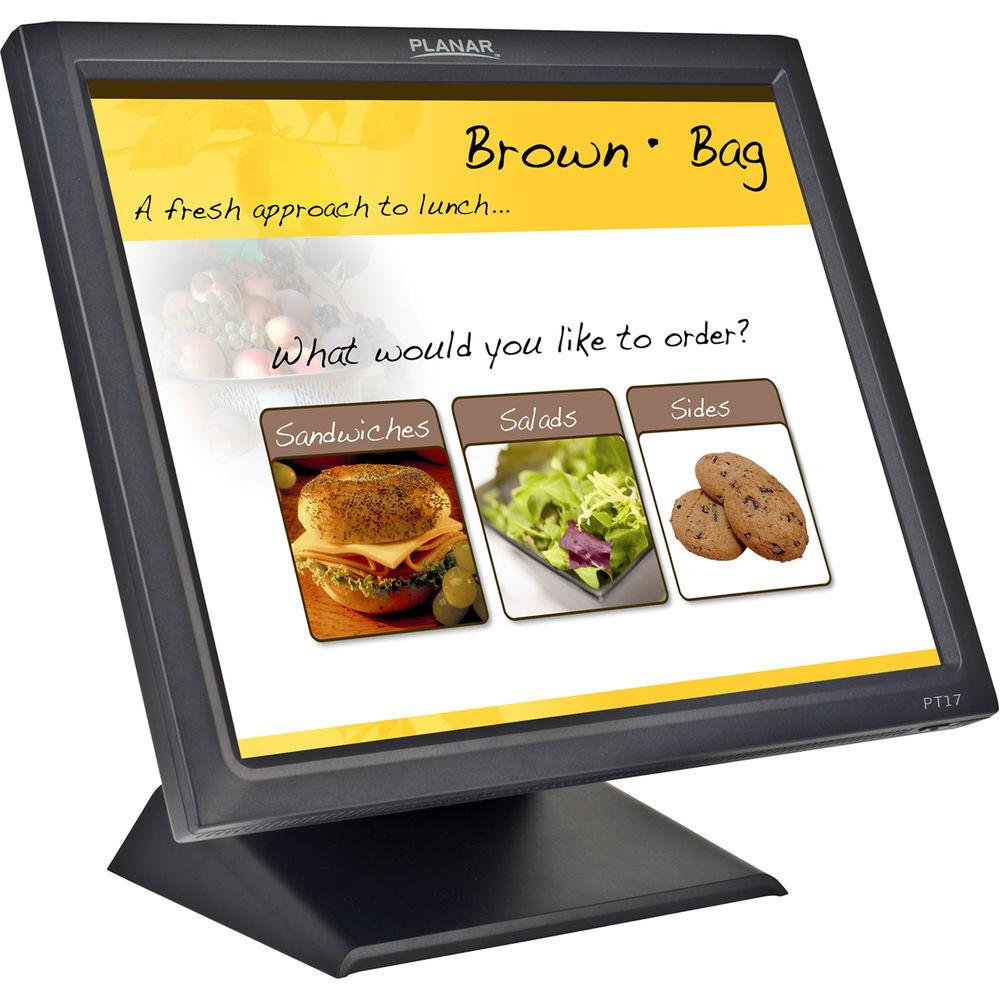

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an intuitive touchscreen design, the PT1745R 17" 5:4 Single Touch LCD Touchscreen Monitor from Planar Systems is suited for use in retail, point-of-sale, education, healthcare, and more. This display supports single touch functionality and features 5-wire resistive touchscreen technology, which offers improved feedback and sensitivity when using the touch display.

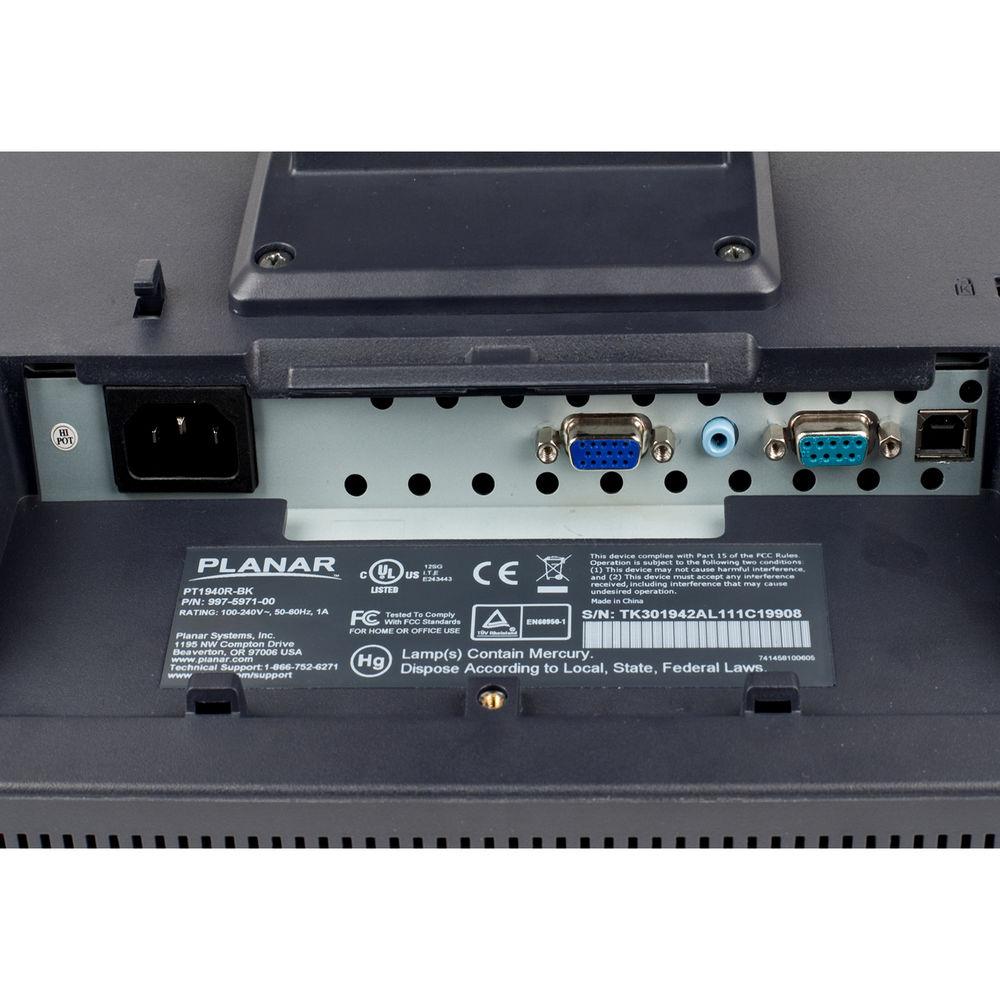

Installation is simple as the display requires no drivers for basic touchscreen operation, and it comes compatible with Windows, Mac, and Linux operating systems. Once installed viewers can take advantage of the 1280 x 1024 resolution screen, a 1000:1 contrast ratio, a 250 cd/m² brightness rating with the touchscreen off and 200 cd/m² with the touchscreen on, a 5 ms response time, and support for up to 16.7 million colors. Additionally, setup is simple as the PT1745R comes equipped with 9-pin and 15-pin VGA inputs along with a USB Type-B port and a 3.5mm audio jack. -
- 17" touch screen monitor with 1280 x 1024 resolution

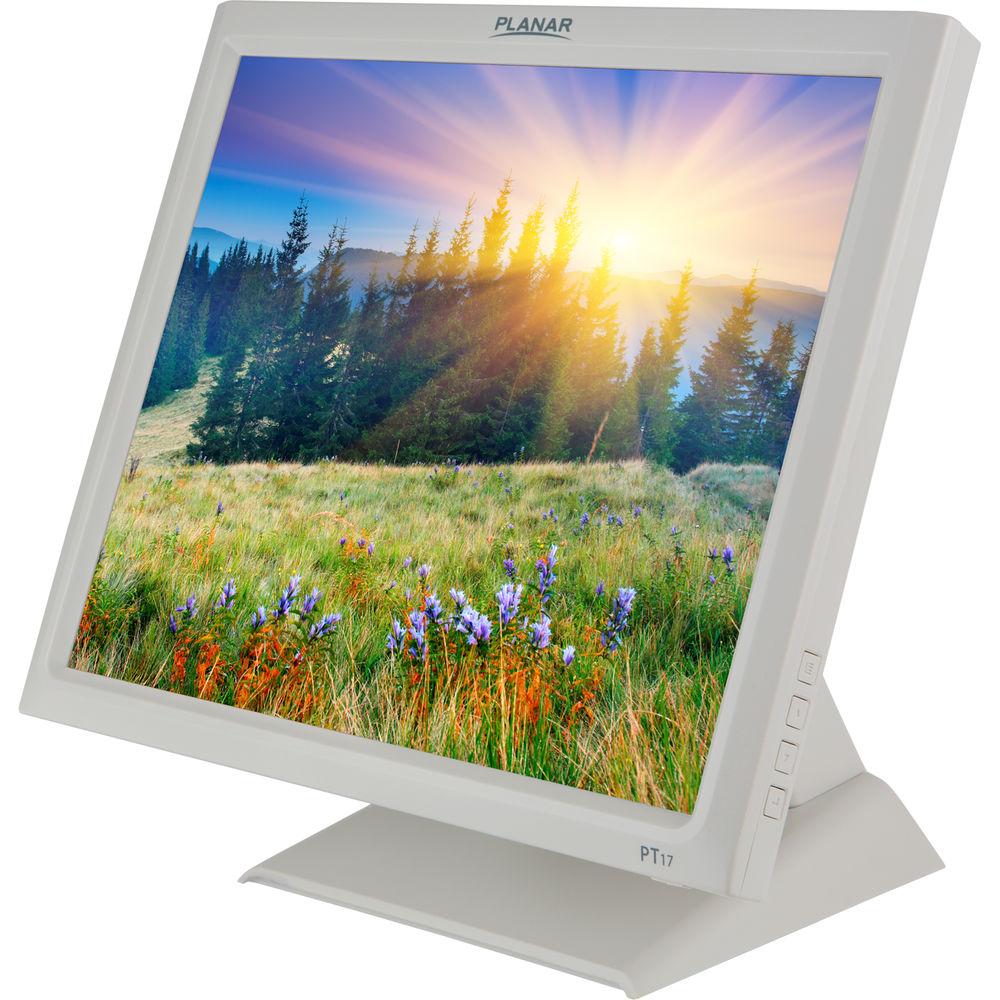

- Available in black or white
- 5-wire resistive touch screen for indoor environments
- Internal power supply Dual Serial/USB touch screen interface

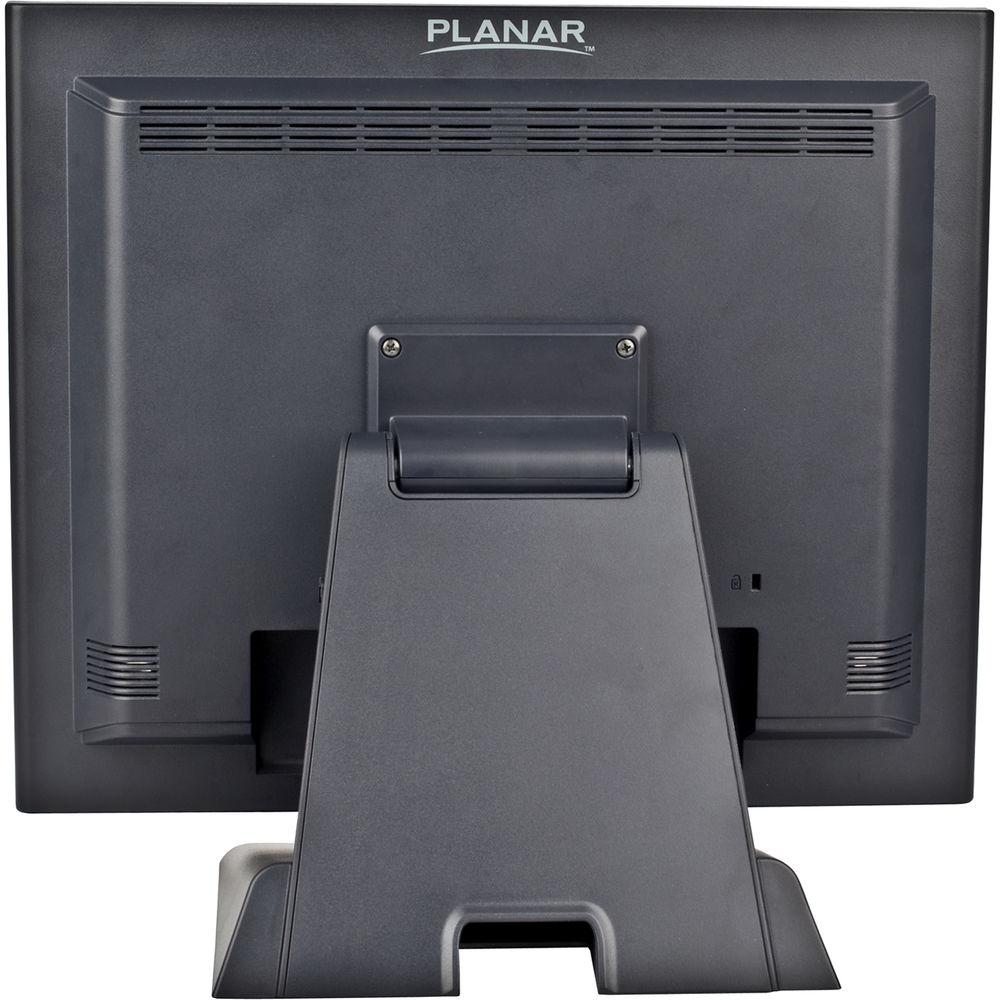

- Compatible with mounting options that use the 100mm VESA standard
- Offers 80% transmissivity
In the Box Planar Systems PT1745R 17" 5:4 Single Touch LCD Touchscreen Monitor (White) Power Cord VGA Cable RS-232 Cable USB Cable Audio-In Cable Limited 3-Year Warranty User Guide PDF 700.7kbdaedtdzfttdcvwbvvxvesevuvzuwxxwud Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PT1745R 17" 5:4 Single Touch LCD Touchscreen Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems 997-7454-00 Specs | | | Size | 17" | | Screen Area | 13.3 x 10.64" / 33.78 x 27.03 cm | | Touchscreen | Yes | | Resolution | 1280 x 1024 | | Aspect Ratio | 5:4 | | Pixels Per Inch (ppi) | 96 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.264 x 0.264 mm | | | | Connectivity | 2 x VGA
1 x USB Type-B
1 x 3.5 mm | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 21.4 W (Maximum)

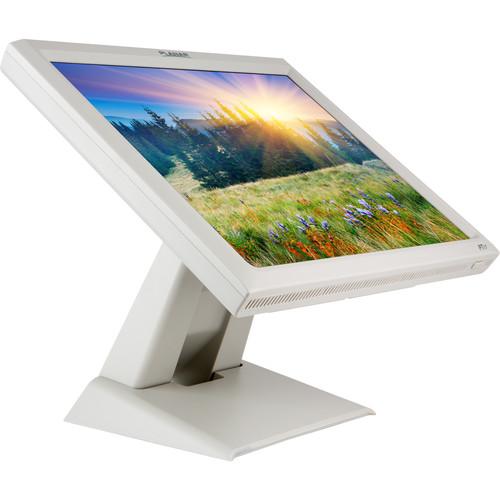

1.7 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Storage Temperature | 32 to 104°F / 0 to 40°C | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 90° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 15.2 x 13.5 x 8.0" / 38.7 x 34.2 x 20.2 cm (With Stand)
15.2 x 12.6 x 2.3" / 38.7 x 31.9 x 5.9 cm (Without Stand) | | Weight | 12.79 lb / 5.8 kg (With Stand)
9.26 lb / 4.2 kg (Without Stand) |
