User Manual for Planar Systems PT1945R 19" 5:4 Touchscreen LCD Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PT1945R 19" 5:4 Touchscreen
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PT1945R 19" 5:4 Touchscreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|

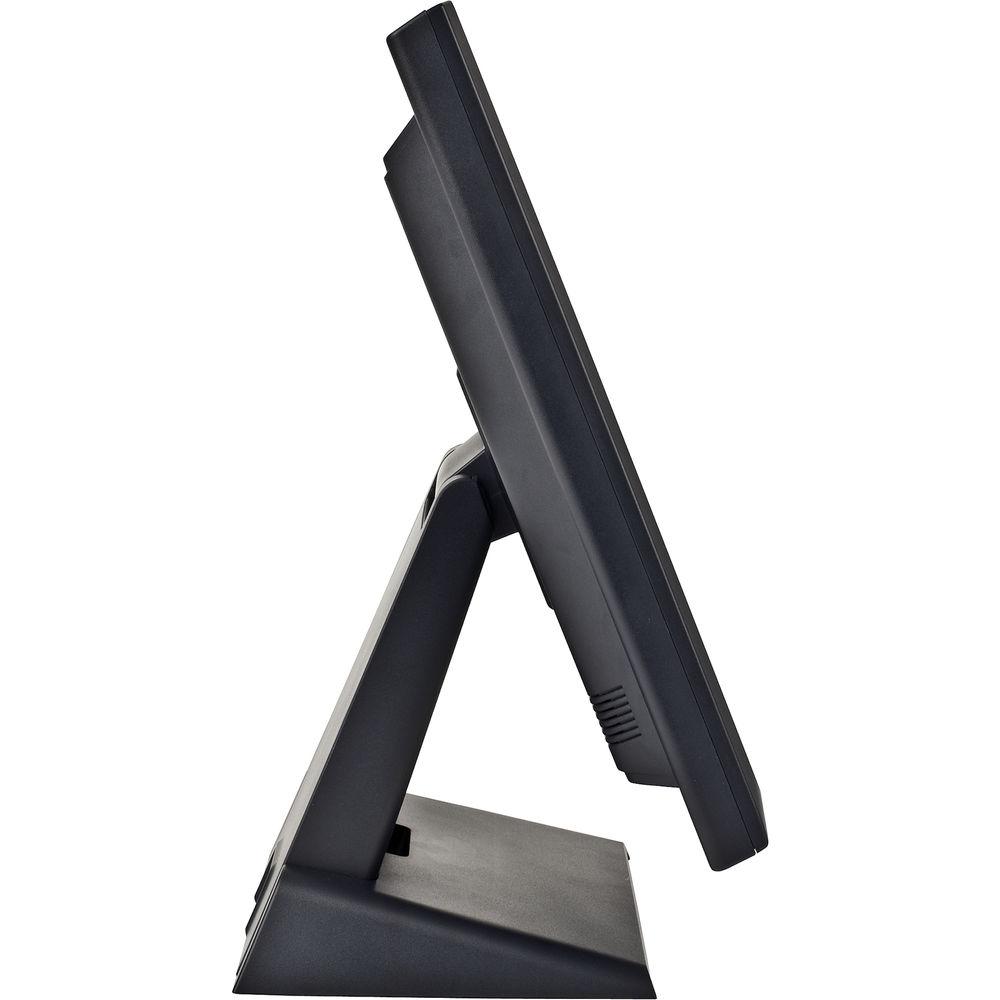

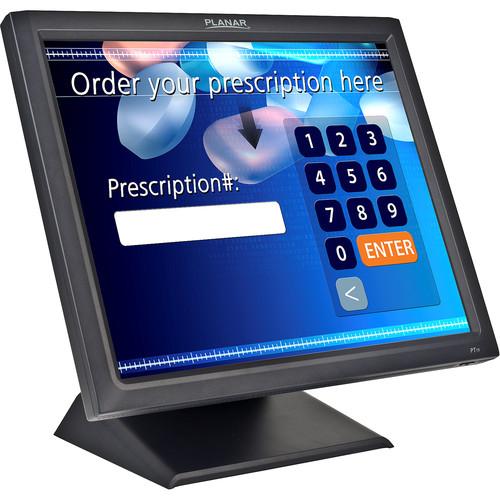

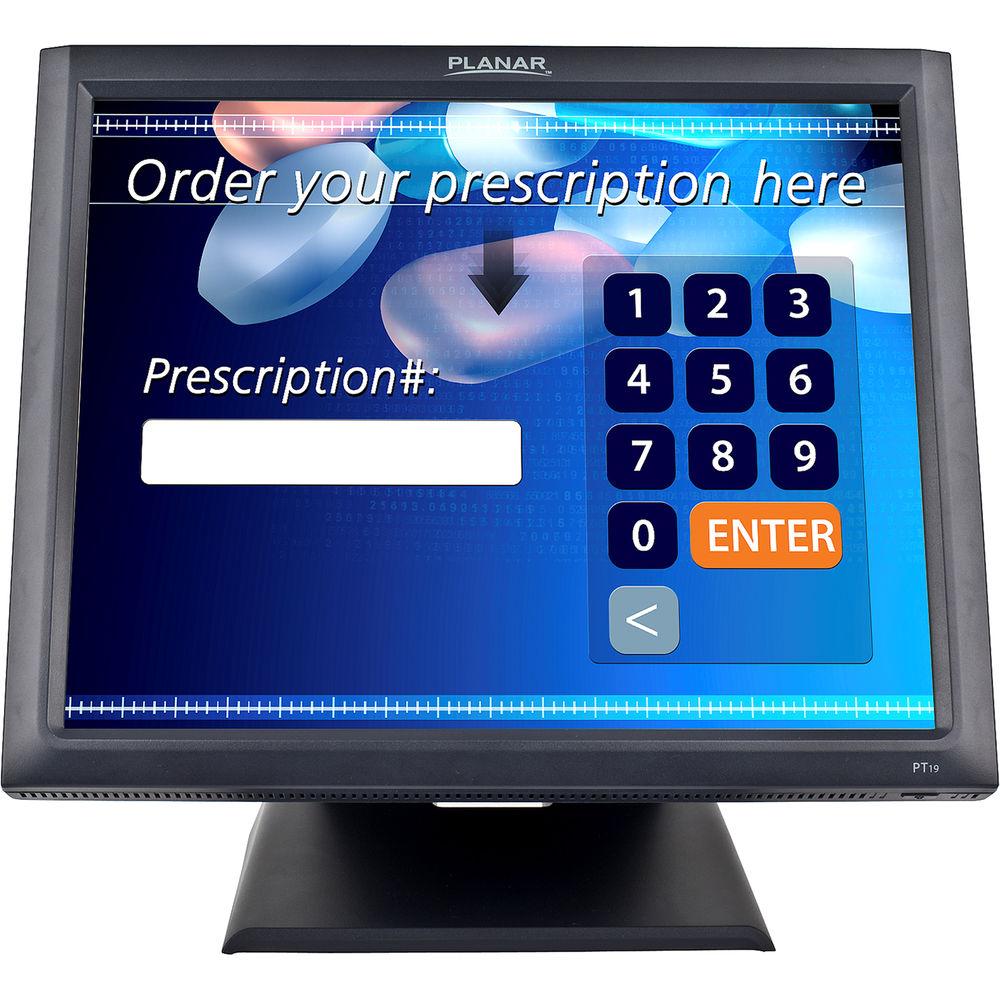

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed for use in a variety of environments from retail to government and even healthcare, the PT1945R 19" 5:4 Touchscreen LCD Monitor from Planar Systems features an intuitive single touch display that allows users to easily navigate their work all from the display. In addition to the touchscreen design, this monitor comes with a 1280 x 1024 resolution, a 1000:1 contrast ratio, a 5 ms response time, and supports up to 16.7 million colors. It also has a brightness rating of 250 cd/m² with the touchscreen off and 200 cd/m² with the touchscreen on. Installation is simple as the PT1945R comes equipped with VGA and USB inputs and can be viewed from the included stand or mounted using a VESA compatible wall mount. -
- 19" touch screen monitor with 1280 x 1024 resolution
- 5-wire resistive touchscreen display
- Dual serial/USB touch screen interface
- Internal power supply

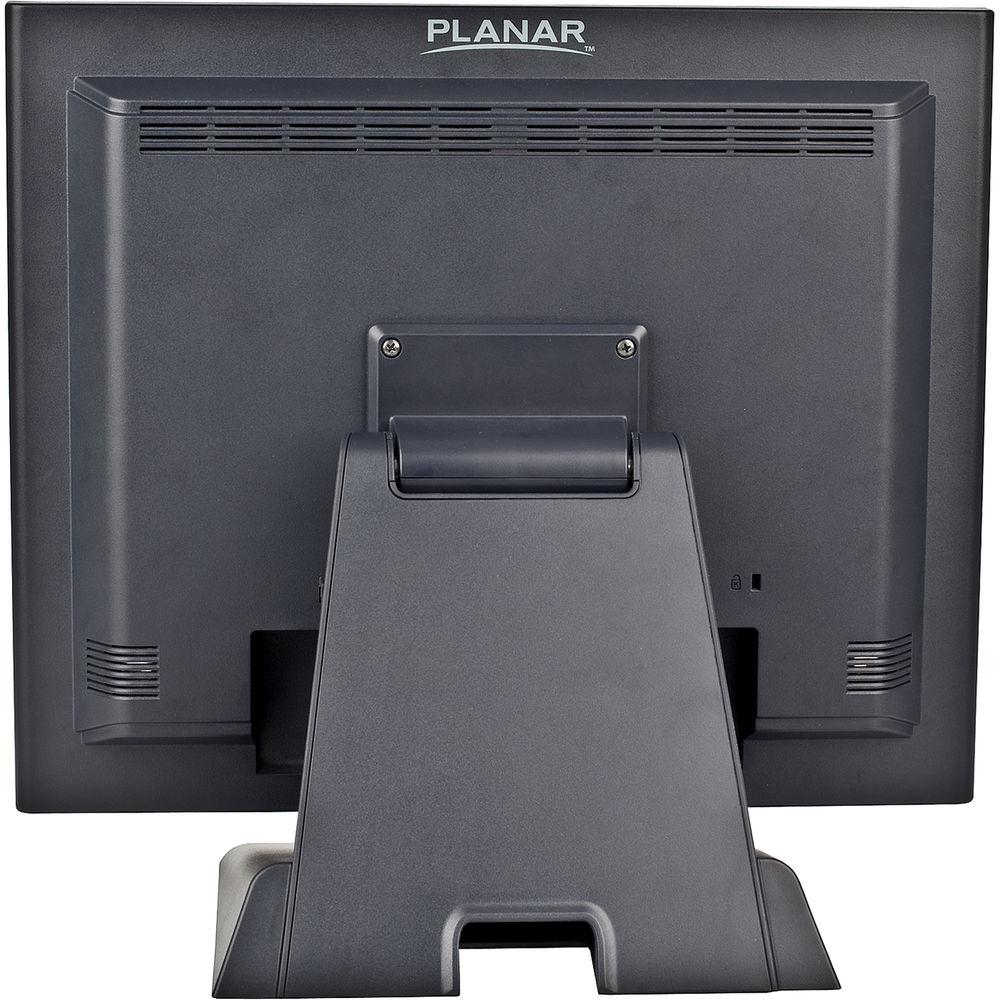

- Compatible with mounting options that use 100mm VESA standard
- Anti-glare coating
- Multi-language support
- On Screen Display (OSD)
- Kensington Security slot
In the Box Planar Systems PT1945R 19" 5:4 Touchscreen LCD Monitor Power Cord VGA Cable RS-232 Cable USB Cable Audio-In Cable Limited 3-Year Warranty User Guide PDF 870.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PT1945R 19" 5:4 Touchscreen LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems 997-5971-00 Specs | | | Size | 19" | | Screen Area | 14.81 x 11.85" / 37.62 x 30.10 cm | | Touchscreen | Yes | | Resolution | 1280 x 1024 | | Aspect Ratio | 5:4 | | Pixels Per Inch (ppi) | 86 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°

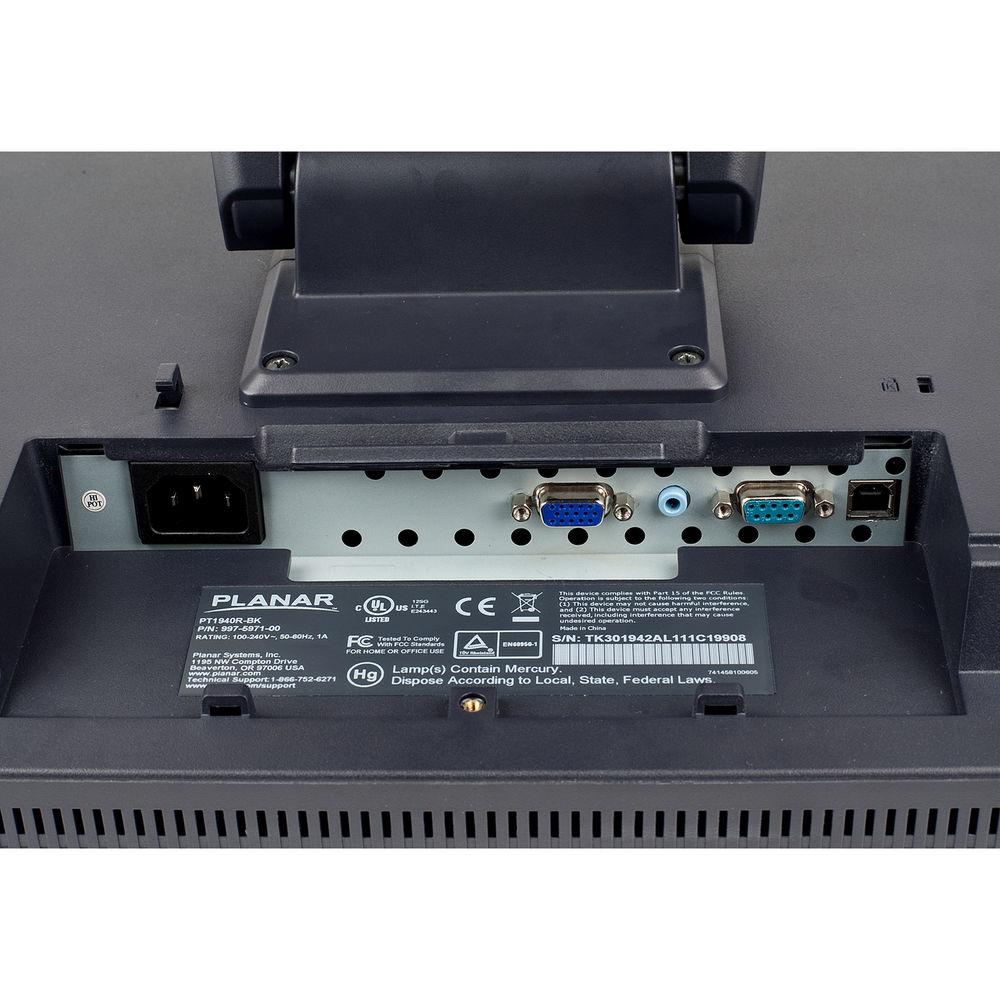

Vertical: 160° | | Dot Pitch | 0.294 x 0.294 mm | | | | Connectivity | 2 x VGA
1 x USB Type-B
1 x 3.5 mm Input | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 18.1 W (Typical)
1.4 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Certifications | CE, FCC, RoHS, UL, cUL, as per Manufacturer | | | | Tilt Adjustment | -5 to 90° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 17.0 x 15.4 x 8.6" / 43.2 x 39.1 x 21.8 cm (With Stand)
17.0 x 14.0 x 2.3" / 43.2 x 35.6 x 5.8 cm (Without Stand) | | Weight | 14.6 lb / 6.62 kg (With Stand)
9.7 lb / 4.40 kg (Without Stand) |
