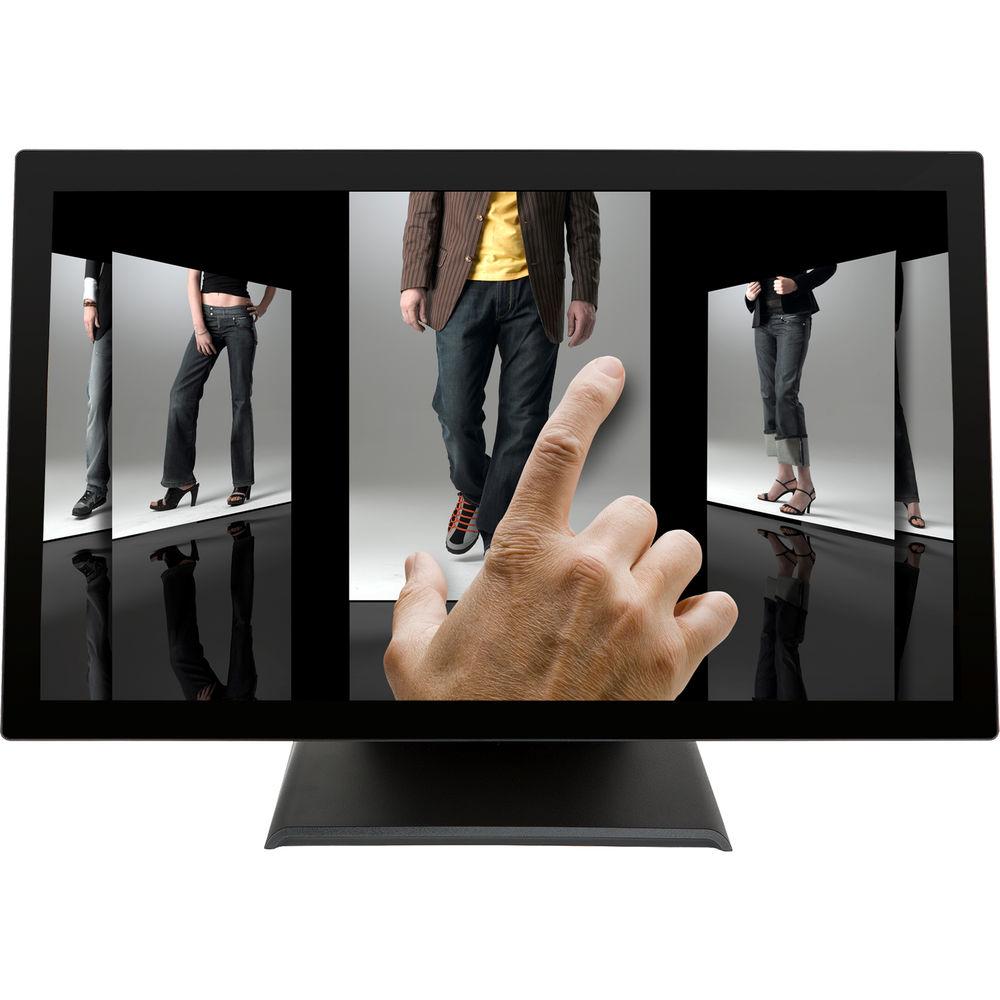

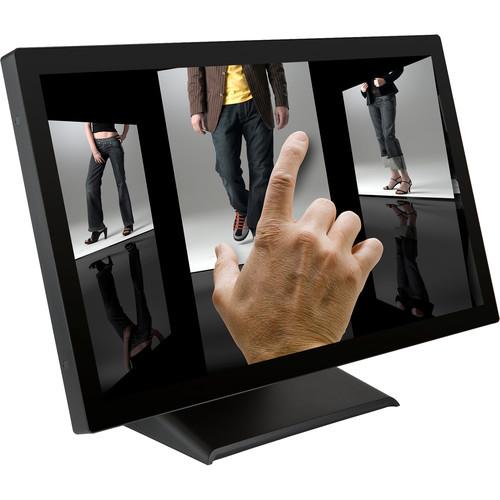

User Manual for Planar Systems PT2245PW 21.5" 16:9 Multi-Touch LCD Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PT2245PW 21.5" 16:9 Multi-Touch
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PT2245PW 21.5" 16:9 Multi-Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More uqsbyefyawsqrczryrdxbf Designed for use in a variety of locations including retail, hospitality, and healthcare, the PT2245PW 21.5" 16:9 Multi-Touch LCD Monitor from Planar Systems features an intuitive 10-point capacitive touchscreen display, making it easy to interact with the content on the screen.

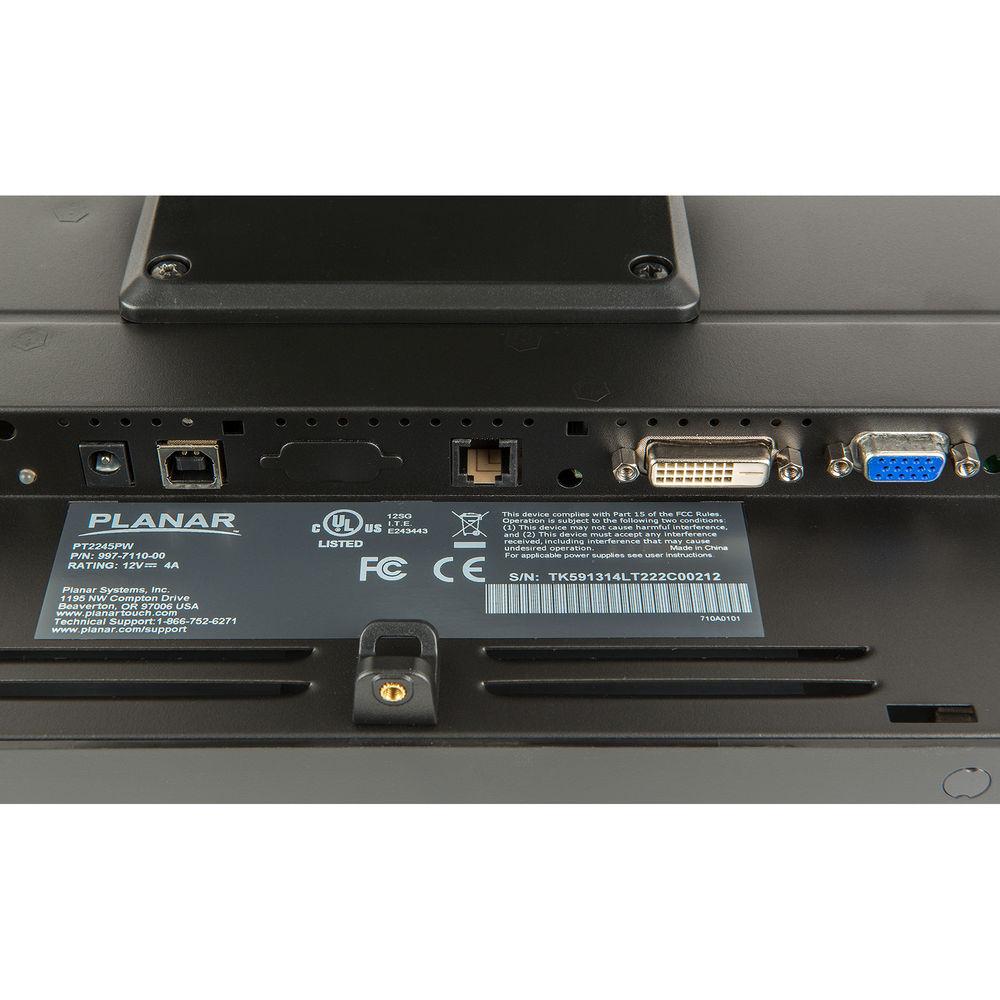

Setup of the PT2245PW is simple as it comes equipped with D-Sub, DVI-D, and USB inputs. Once configured, viewers can take advantage of a Full HD 1920 x 1080 resolution screen, a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and support for up to 16.7 million colors to ensure the content on the display is rendered clearly. -
- 22" Touch screen monitor with 1920 x 1080 resolution
- Zero bezel, all glass front surface 10-point multi-touch screen
- DC powered (external power supply) ideal for carts
- Compatible with 100mm VESA mounts

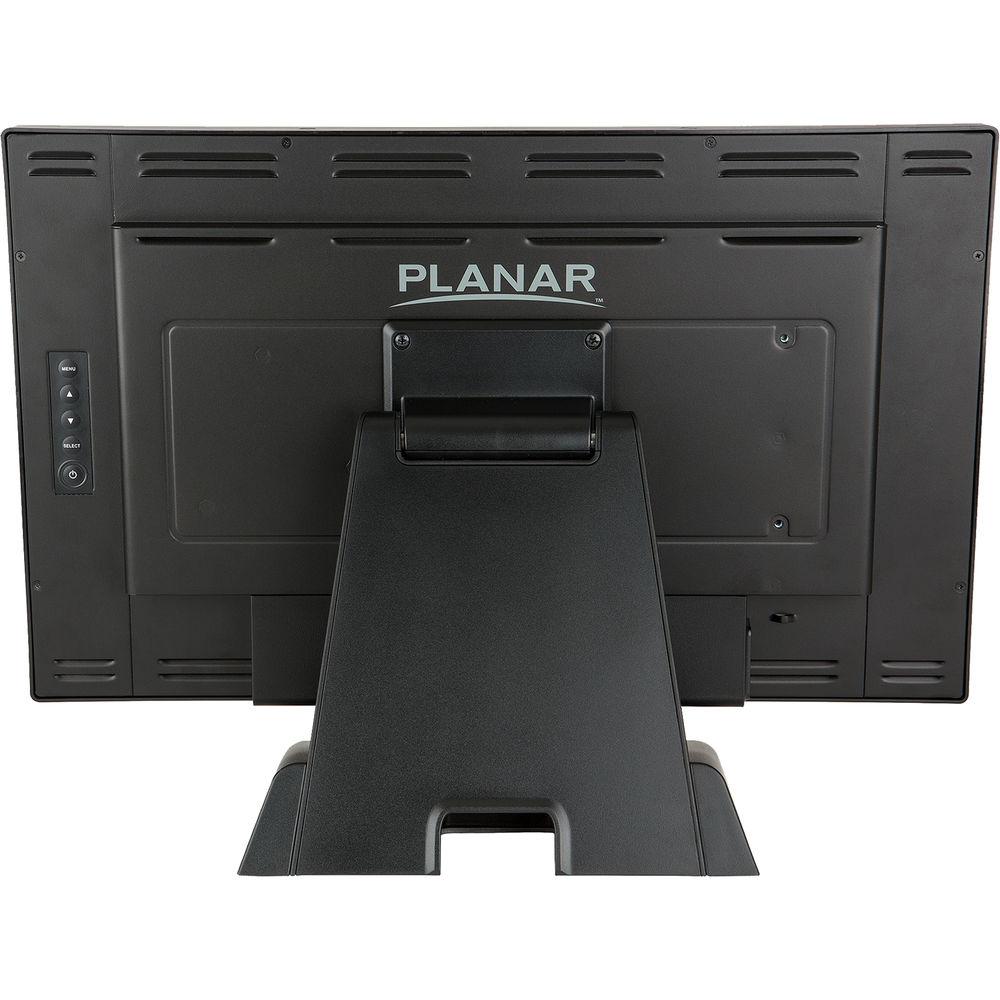

- Easy to operate desk stand allows tilt up to 90°
UPC: 810689000259 In the Box Planar Systems PT2245PW 21.5" 16:9 Multi-Touch LCD Monitor Power Supply Power Cord VGA Cable DVI-D Cable USB Cable Cable Cover and Screw Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PT2245PW 21.5" 16:9 Multi-Touch LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Planar Systems PT2245PW 21.5" 16:9 Multi-Touch LCD Monitor can be downloaded in PDF format at the link stated below.
Technical parametersPlanar Systems 997-7416-00 Specs | Screen Size | 21.5" (54.6 cm) diagonal | | Viewable Image Area | 18.77 x 10.56" (47.68 x 26.82 cm) | | Touchscreen | Touchscreen Type
Projected capacitive
Number of Touch Points
10
Touchscreen Interface
USB | | Contrast Ratio | 1000:1 | | Viewing Angles (H/V) | 178°/178° | | Response Time | 14 ms | | Brightness | With Touchscreen
225 cd/m²
Without Touchscreen
250 cd/m² | | Display Type | Edge-Lit LED LCD | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Tilt | -5 to 90° | | Colors Supported | 16.7 million | | Pixel Pitch | 0.24795 mm | | Refresh Rate | 56 to 75 Hz | | Video Inputs | Analog and digital (DVI-D) | | Compatibility | Windows 10, 8, 7, Vista, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Apple Mac OS, Linux, HID Compliant - no drivers needed for basic touchscreen operation | | External Connections | D-Sub (15-pin), DVI-D, USB Type-B, DC power-in | | Power | Power Supply
External (DC power)
Power Requirements
100-240 VAC, 50/60 Hz
Power Consumption
26.4 W (1.8 W standby, 0.8 W off) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | VESA Mount Compatible | 100 x 100 mm | | Certifications | UL/c-UL, FCC-Class B, CE, RoHS II | | Dimensions | With Stand: 20.4 x 13.8 x 8.6" (51.7 x 35.2 x 21.9 cm)
Without Stand: 20.4 x 12.3 x 1.8" (51.7 x 31.3 x 4.6 cm) | | Weight | With Stand: 17.2 lb (7.8 kg)
Without Stand: 11 lb (5 kg) | | | | Package Weight | 21.2 lb | | Box Dimensions (LxWxH) | 24.1 x 17.6 x 12.9" |
