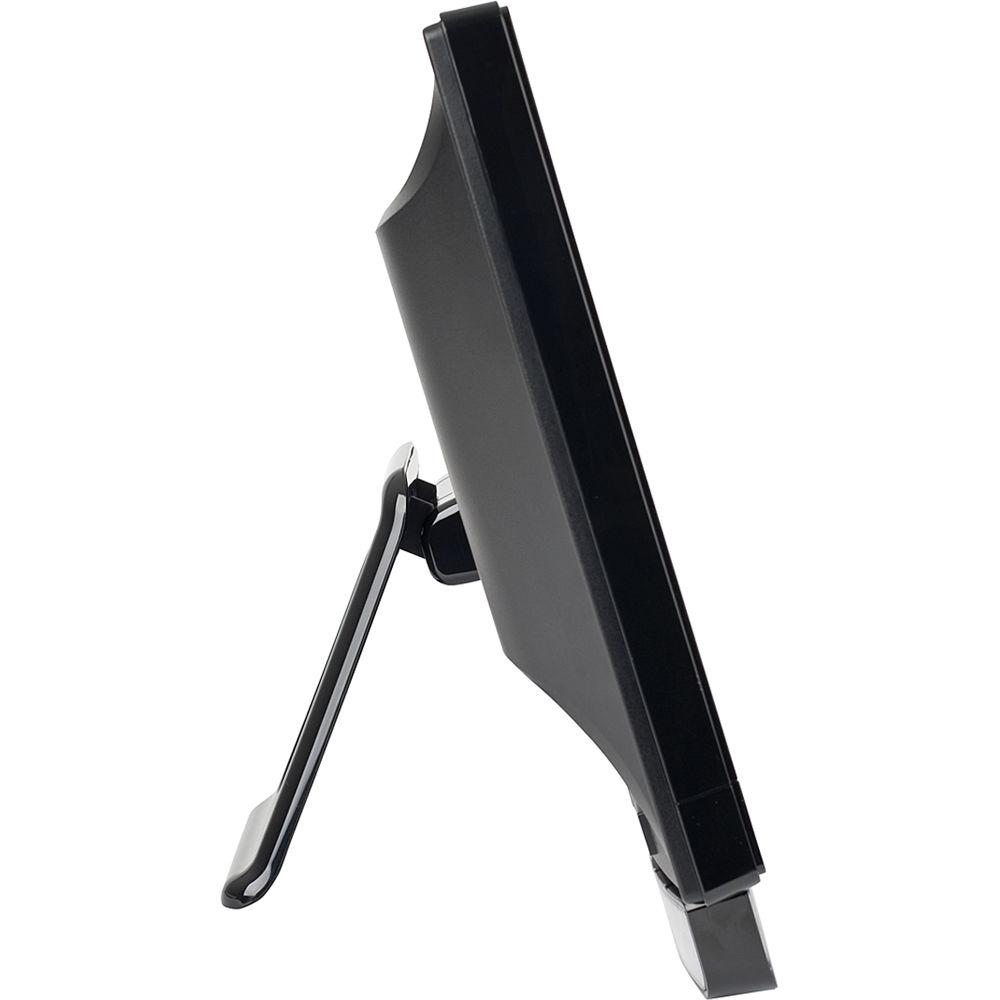

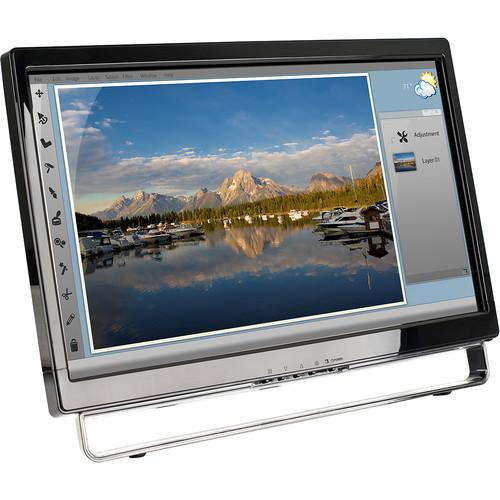

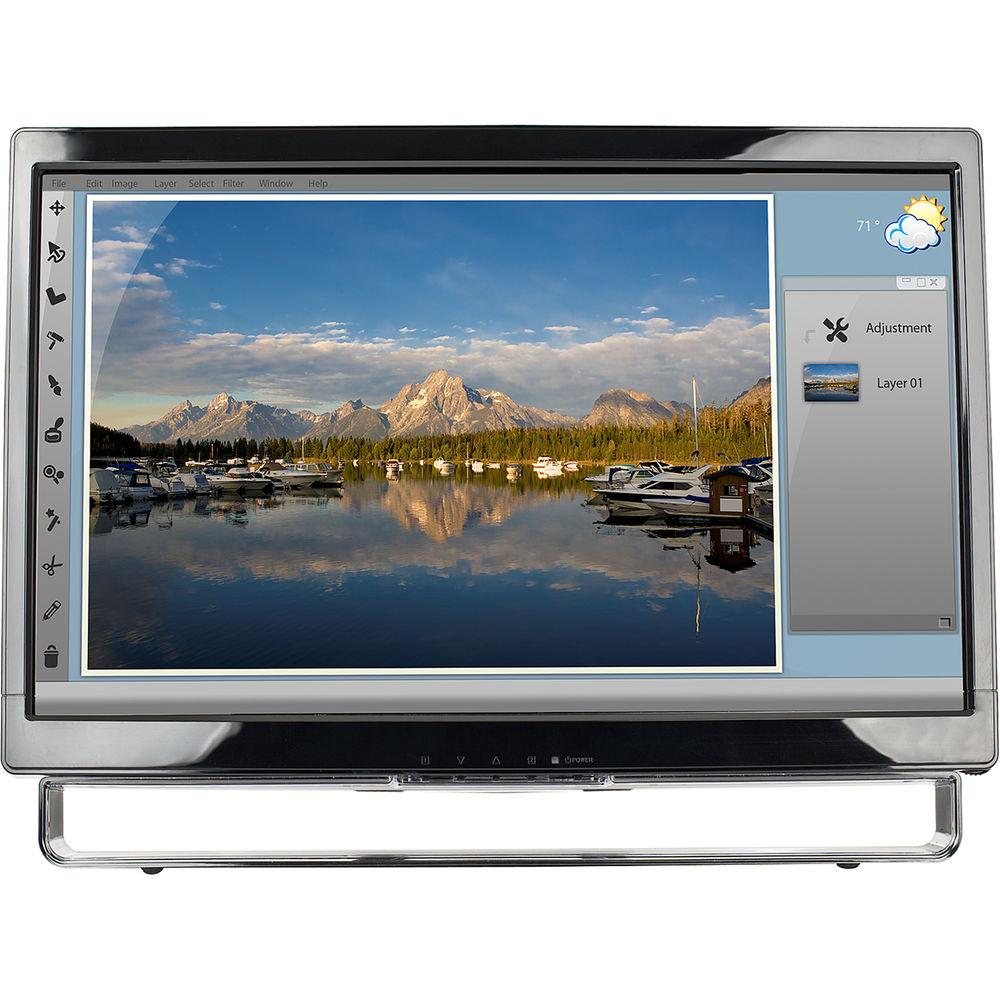

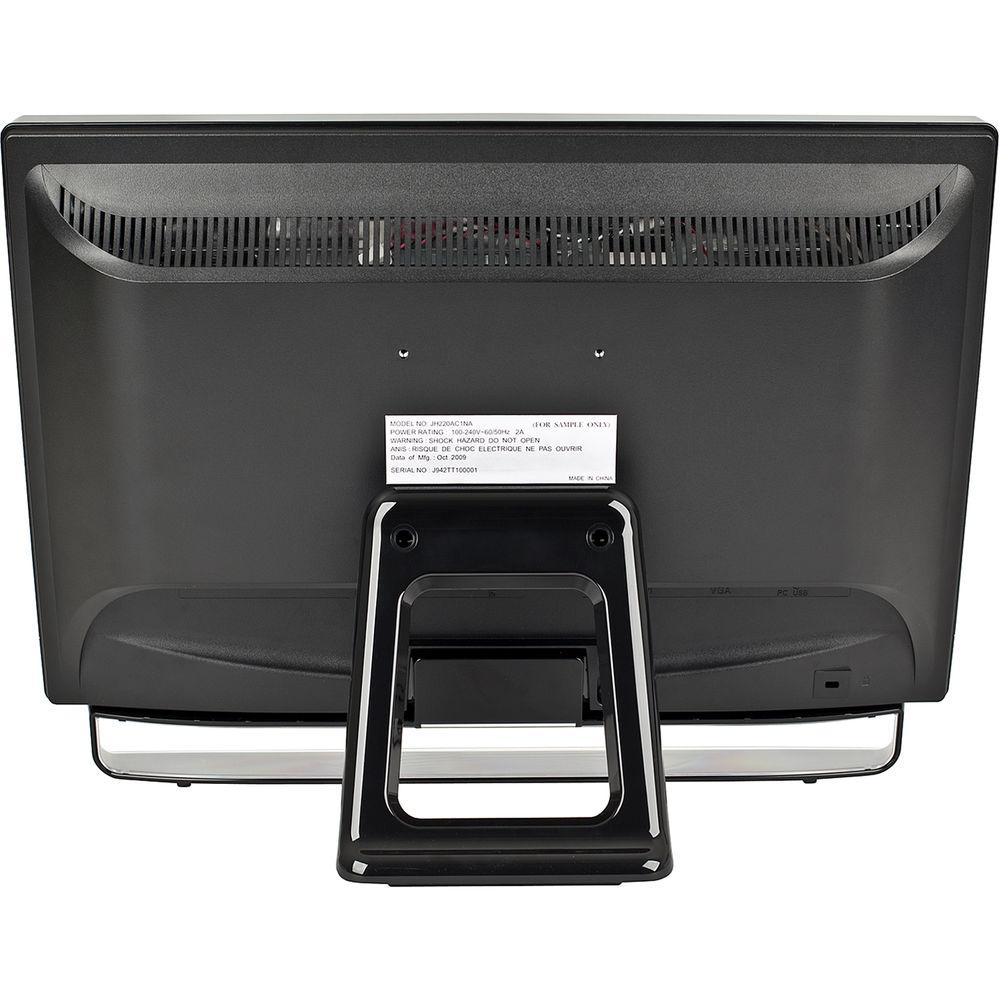

User Manual for Planar Systems PXL2230MW 21.5" 16:9 Touchscreen LCD Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PXL2230MW 21.5" 16:9 Touchscreen
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PXL2230MW 21.5" 16:9 Touchscreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More eyfyfzztxvyutxuyza With dual-touch functionality, the PXL2230MW 21.5" 16:9 Touchscreen LCD Monitor from Planar Systems is designed for use with Windows and offers an intuitive touchscreen interface. The touch display can even accept input from a finger, gloved hand, or stylus, making the PXL2230MW suitable for a variety of environments from the classroom to the computer lab.
This dual-touch monitor features a Full HD 1920 x 1080 resolution accompanied by a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and a 5 ms response time for clear picture quality along with reduced ghosting and blur. Setup is simple thanks to multiple input connectors including D-Sub, DVI-D, HDMI, and USB ports as well as an audio jack to connect headphones directly to the display. Once configured, the screen can be viewed from nearly any angle as this Planar Systems monitor supports 170° horizontal and 160° vertical viewing angles and comes equipped with dual 1W speakers for a complete multimedia viewing experience. -
- 21.5" LED LCD monitor with 1920 x 1080 resolution
- Optimized for multimedia applications
- Compatible with Microsoft Windows 10
- Recognizes touch input from finger, gloved hand or stylus
- Compatible with mounting options that use 100mm VESA standard
UPC: 810689070399 In the Box Planar Systems PXL2230MW 21.5" 16:9 Touchscreen LCD Monitor Power Cord VGA Cable DVI Cable USB Cable Audio-In Cable Stylus Limited 3-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PXL2230MW 21.5" 16:9 Touchscreen LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems 997-7039-00 Specs | Screen Size | 21.5" (54.6 cm) | | Viewable Image Area | 18.77 x 10.56" (47.68 x 26.82 cm | | Touchscreen | Type: Optical
Touch Points: 2
Interface: USB | | Contrast Ratio | 1000:1 | | Viewing Angles (H/V) | 170°/160° | | Response Time | 5 ms | | Brightness | With Touchscreen
200 cd/m²
Without Touchscreen
250 cd/m² | | Display Type | LED edge-lit LCD | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Tilt | 0 to 20° | | Colors Supported | 16.7 million colors | | Pixel Pitch | 0.248 mm | | Video Inputs | Analog and digital (DVI-D w/HDCP, HDMI) | | External Connections | D-sub 15-pin
DVI-D 24-pin (w/HDCP)
HDMI
USB Type-B
Audio port
AC power-in | | Audio Output | 2 speakers, 1 W/ch | | Compatibility | Windows | | Power | Power Supply: Internal
Power Consumption (max): <25 w (typ)
Power Consumption (sleep): <0.5 W
Power Consumption (off): <0.5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | VESA Compatibility | 100 x 100 mm | | Certifications | UL/cUL, CE, FCC-B, RoHS | | Dimensions | With Stand: 20.3 x 14.7 x 4.9" (51.6 x 37.3 x 12.3 cm)
Without Stand: 20.3 x 12.9 x 2.8" (51.6 x 32.9 x 7.1 cm) | | Weight | With Stand: 9.9 lb (4.5 kg)
Without Stand: 8.9 lb (4 kg) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 22.5 x 17.0 x 6.5" |
