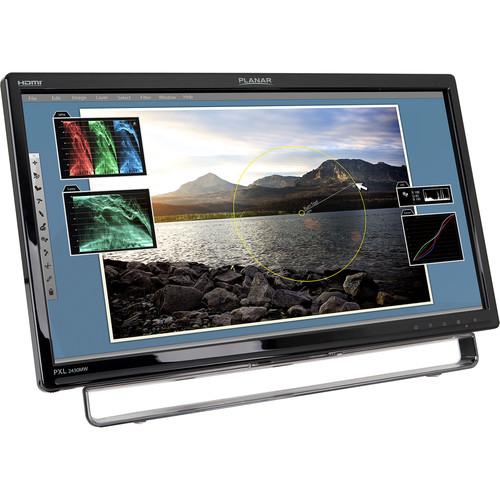

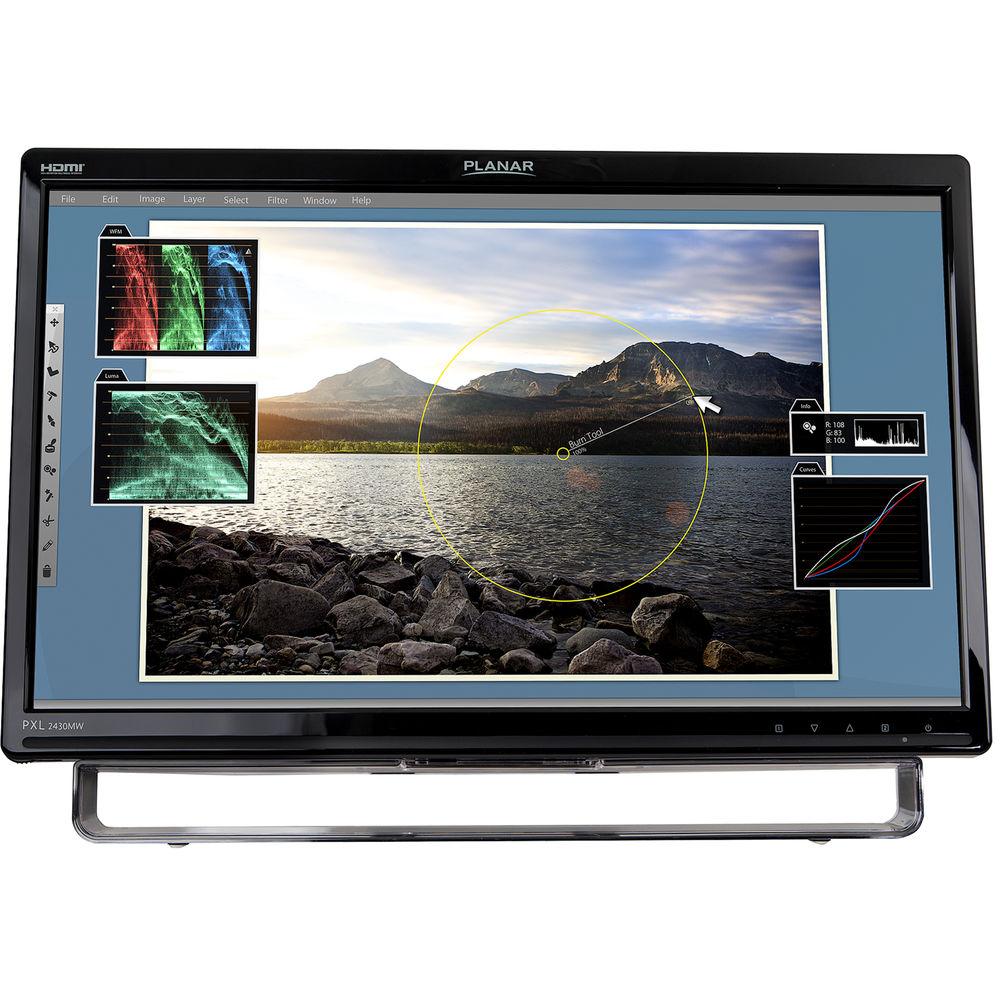

User Manual for Planar Systems PXL2430MW 24" 16:9 Touchscreen LCD Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PXL2430MW 24" 16:9 Touchscreen
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PXL2430MW 24" 16:9 Touchscreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|

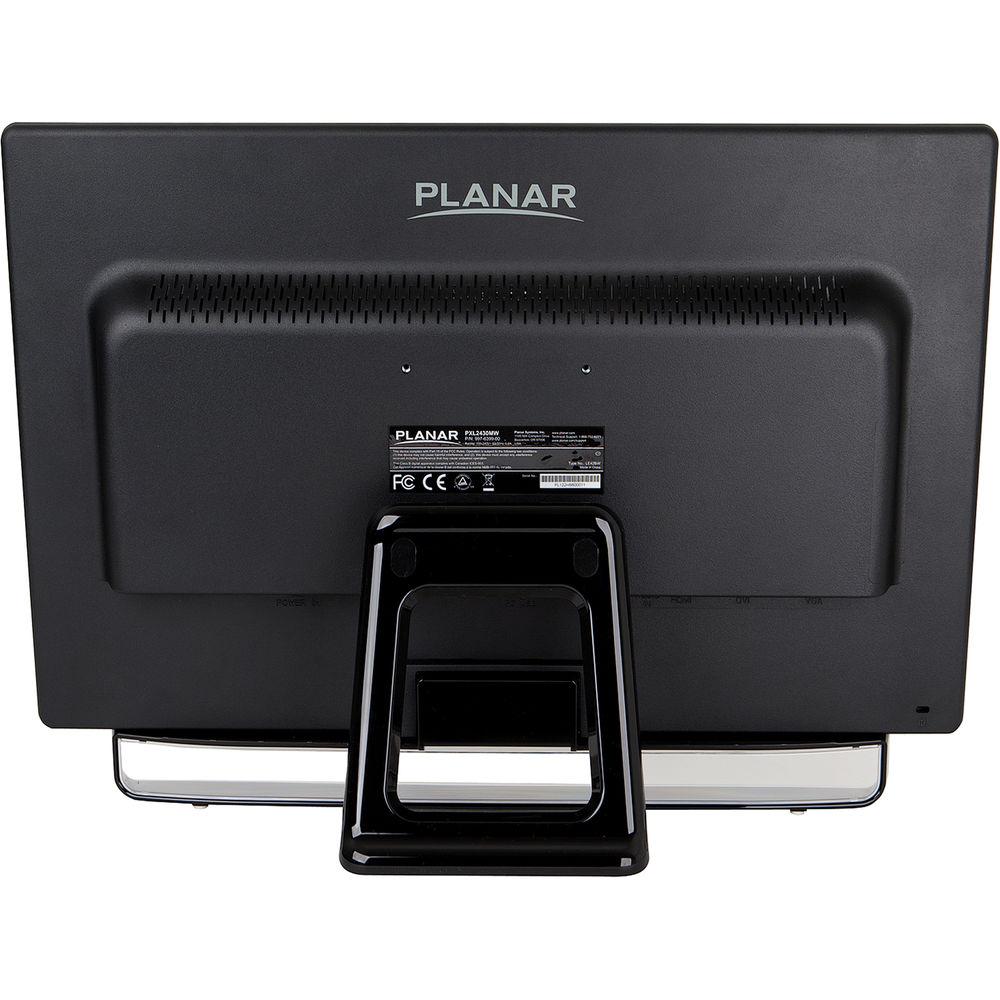

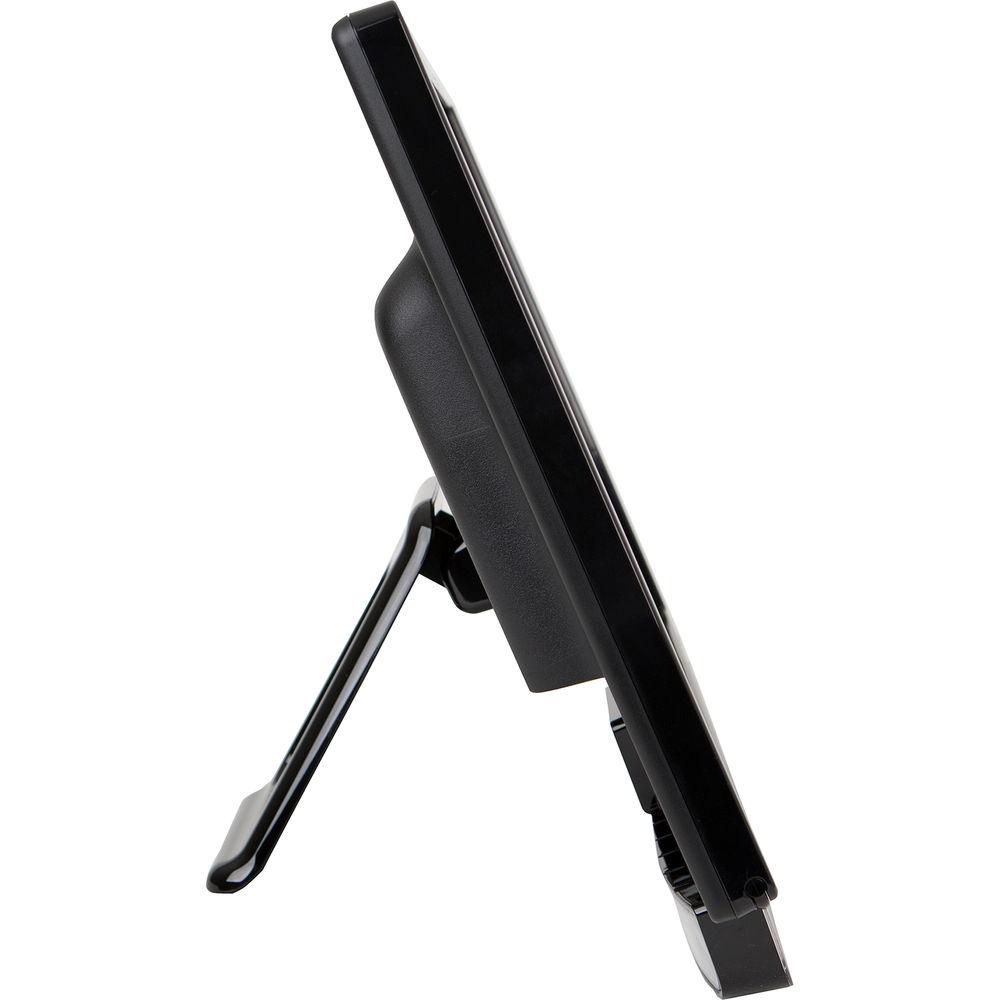

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More daedtdzfttdcvwbvvxvesevuvzuwxxwud With support for dual-touch optical feedback, the PXL2430MW 24" 16:9 Touchscreen LCD Monitor from Planar Systems is designed to allow users to take full advantage of the various touchscreen options offered by Windows 10. In addition to touchscreen functionality, this monitor features a Full HD 1920 x 1080 resolution, a 1000:1 contrast ratio, and a 5 ms response time, all within an edge-lit LED backlit LCD display. Installation is simple as the PXL2430MW comes equipped with D-Sub, DVI-D, HDMI, and USB inputs, making this monitor compatible with a variety of computer configurations. If that's not enough, the display can also be viewed from the included stand or mounted to the wall using a VESA compatible wall mount for optimal viewing. -
- 23.6" LED LCD monitor with 1920 x 1080 resolution
- Compatible with Microsoft Windows 10
- Energy-saving mercury-free LED backlit display
- Compatible with mounting options that use 100mm VESA standard
- Blue light reduction
- Multi-language on screen display (OSD)
- Kensington security slot
- Recommended usage of 16 hours per day
UPC: 810689063995 In the Box Planar Systems PXL2430MW 24" 16:9 Touchscreen LCD Monitor Power Cord VGA Cable DVI Cable USB Cable Audio-In Cable Stylus Limited 3-Year Warranty User Guide PDF 1.4mbdaedtdzfttdcvwbvvxvesevuvzuwxxwud Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PXL2430MW 24" 16:9 Touchscreen LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems 997-6399-00 Specs | Screen Size | 23.6" (60 cm) | | Viewable Image Area | 20.52 x 11.54" (52.12 x 29.31 cm) | | Touchscreen | Touchscreen Type
Optical
Number of Touch Points
2
Touchscreen Interface
USB | | Contrast Ratio | 1000:1 | | Viewing Angles (H/V) | 170°/160° | | Response Time | 5 ms | | Brightness | With Touchscreen
264 cd/m²
Without Touchscreen

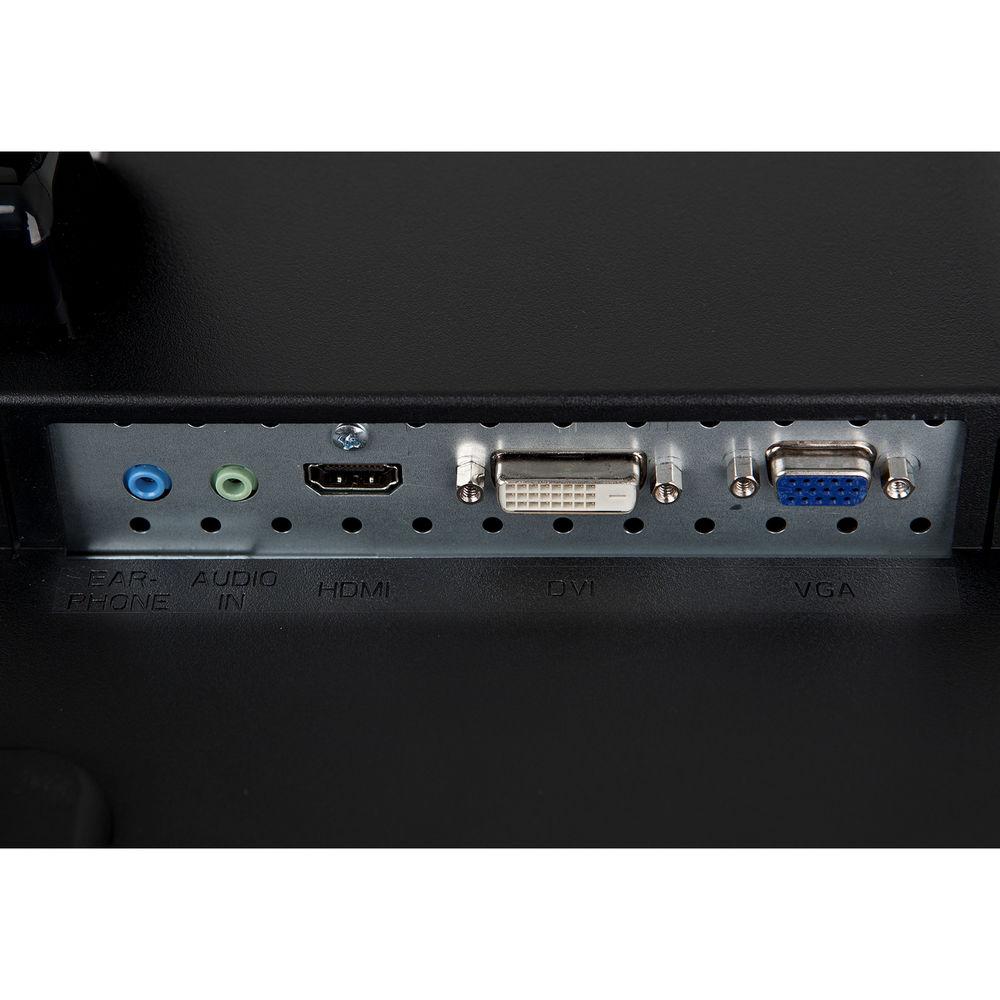

300 cd/m² | | Display Type | Edge-lit LED LCD | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Tilt | 0 to 20° | | Colors Supported | 16.7 million | | Pixel Pitch | 0.272 mm | | Refresh Rate | 55-76 Hz (60 Hz recommended) | | Audio Output | 2 W | | Compatibility | Windows 10 | | External Connections | D-Sub
DVI-D (w/HDCP)
HDMI
USB Type-B
Audio Port
AC Power-In | | Power | Power Supply
Internal
Power Requirements
100-240 VAC, 50/60 Hz
Power Consumption
35 W (max.) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | VESA Mount Compatible | Built-in 100 mm VESA, back | | Certifications | UL/c-UL, FCC-Class B, CE, RoHS | | Dimensions | With Stand: 21.9 x 15.5 x 4.3" (55.6 x 39.4 x 10.8 cm)
Without Stand: 21.9 x 13.7 x 2.2" (55.6 x 34.7 x 5.6 cm) | | Weight | With Stand: 12.6 lb (5.7 kg)
Without Stand: 11.4 lb (5.2 kg) | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 23.9 x 18.2 x 5.9" |
