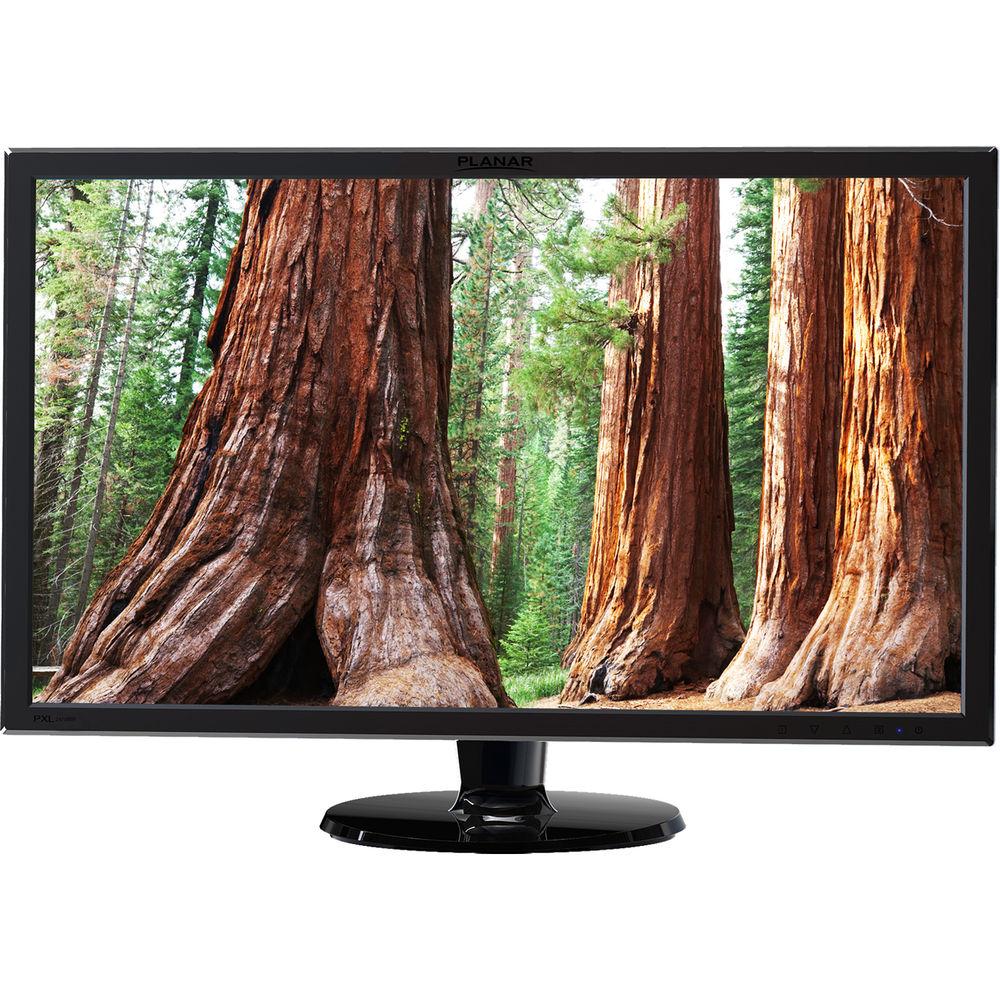

User Manual for Planar Systems PXL2470MW 24" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PXL2470MW 24" 16:9 IPS
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PXL2470MW 24" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With enhanced 178° horizontal and vertical viewing angles on the PXL2470MW 24" 16:9 IPS Monitor from Planar Systems, the screen can be viewed from multiple angles without degradation in clarity. In addition to enhanced viewing angles, this monitor features a Full HD 1920 x 1080 resolution, a 5 ms response time, a 1000:1 contrast ratio, and support for up to 16.7 million colors to ensure improved precision and color accuracy.

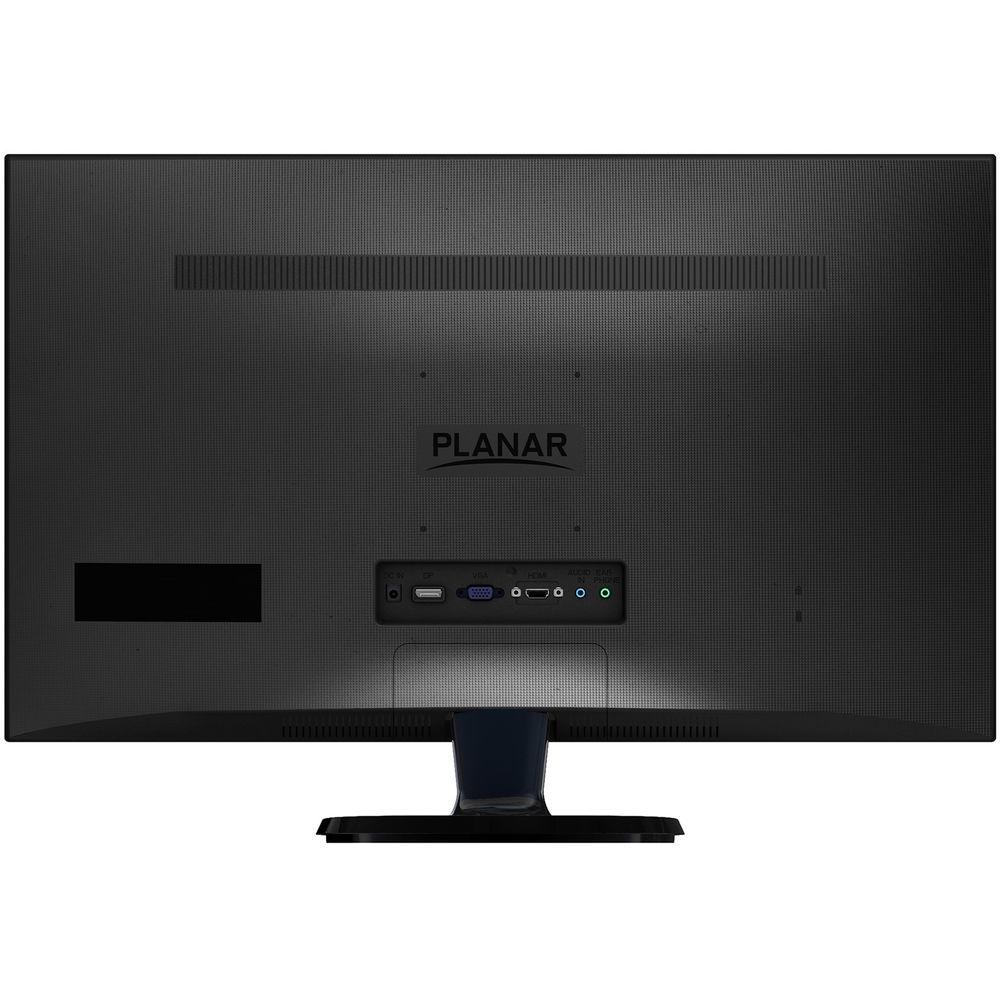

Setup is simple as this Planar Systems monitor comes equipped with HDMI, VGA, and DisplayPort inputs, and the monitor has built-in speakers and a headphone jack as well. The display can be viewed from the included stand or mounted to the wall using a VESA compatible wall mount. Once installed, the PXL2470MW can be plugged in to both Windows and Mac systems although an adapter may be required for use with Mac computers. -
- 23.6" with 1920 x 1080 resolution
- IPS edge-lit LED LCD
- DisplayPort, HDMI, VGA inputs
- 100mm VESA compatibility
- Anti-glare coating
- Multi-language display
- Kensington lock slot
- External power supply
- Integrated TrueMedia speakers
UPC: 810689000181 In the Box Planar Systems PXL2470MW 24" 16:9 IPS Monitor - Power Adapter
- Power Cord
- VGA Cable
- DisplayPort Cable
- Audio Cable
- Limited 3-Year Warranty
User Guide PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PXL2470MW 24" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems 997-7346-00 Specs | Screen Size | 23.6" (59.9 cm) | | Viewable Image Area | 20.52 x 11.54" (52.12 x 29.31 cm) | | Aspect Ratio | 16:9 | | Contrast Ratio | 1000:1 | | Viewing Angles (H/V) | 178°/178° (specified at CR>10:1) | | Response Time | 5 ms (GtG) | | Brightness | 250 cd/m² | | Display Type | IPS edge-lit LED LCD | | Resolution | 1920 x 1080 | | Colors | 16.7 million colors | | Pixel Pitch | 0.2715 mm | | Refresh Rate | 55-76 Hz (60 Hz recommended) | | Audio Output | 2 x 1 W | | Video Input | HDMI, DisplayPort, VGA | | External Connections | HDMI 19-pin
DisplayPort 20-pin
VGA 15-pin
3.5 mm audio in
3.5 mm headphone out | | HDCP compatible | Yes | | Compatibility | Windows and Mac (adapter may be required for Mac) | | Power Supply | Power Supply
External
Power Consumption
26 W (typical)
< 0.5 W (standby)
Power Requirements
100-240 VAC | | VESA Compatibility | 100 x 100 mm | | Ergonomics | Tilt
-5 to 20° | | Certifications | FCC-B, CE, UL/cUL, RoHS | | Dimensions | With Stand: 22.1 x 15.73 x 7.85" (56.1 x 40 x 19.9 cm)
Without Stand: 22.1 x 13.12 x 1.58" (56.1 x 33.3 x 4 cm) | | Weight | With Stand: 7.8 lb (3.53 kg)
Without Stand: 7.1 lb (3.2 kg) | | | | Package Weight | 11.65 lb | | Box Dimensions (LxWxH) | 25.0 x 18.5 x 4.8" |
