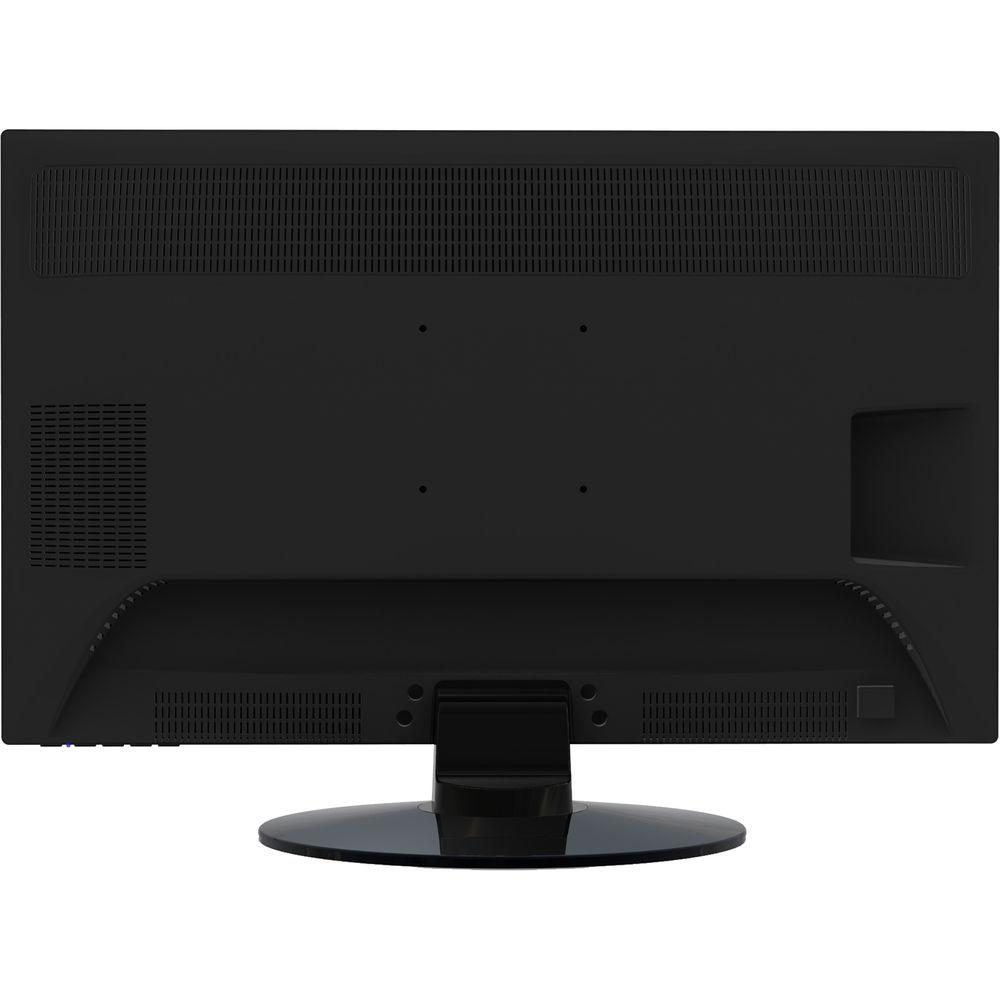

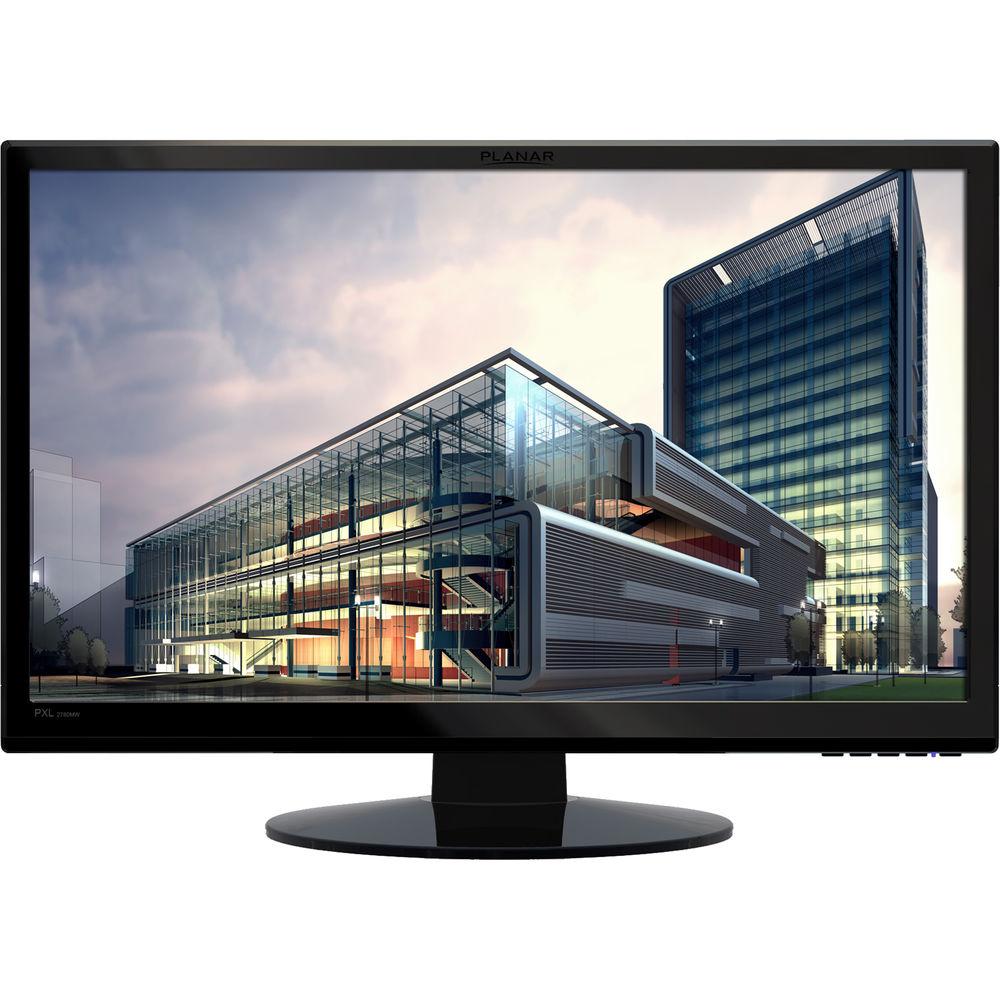

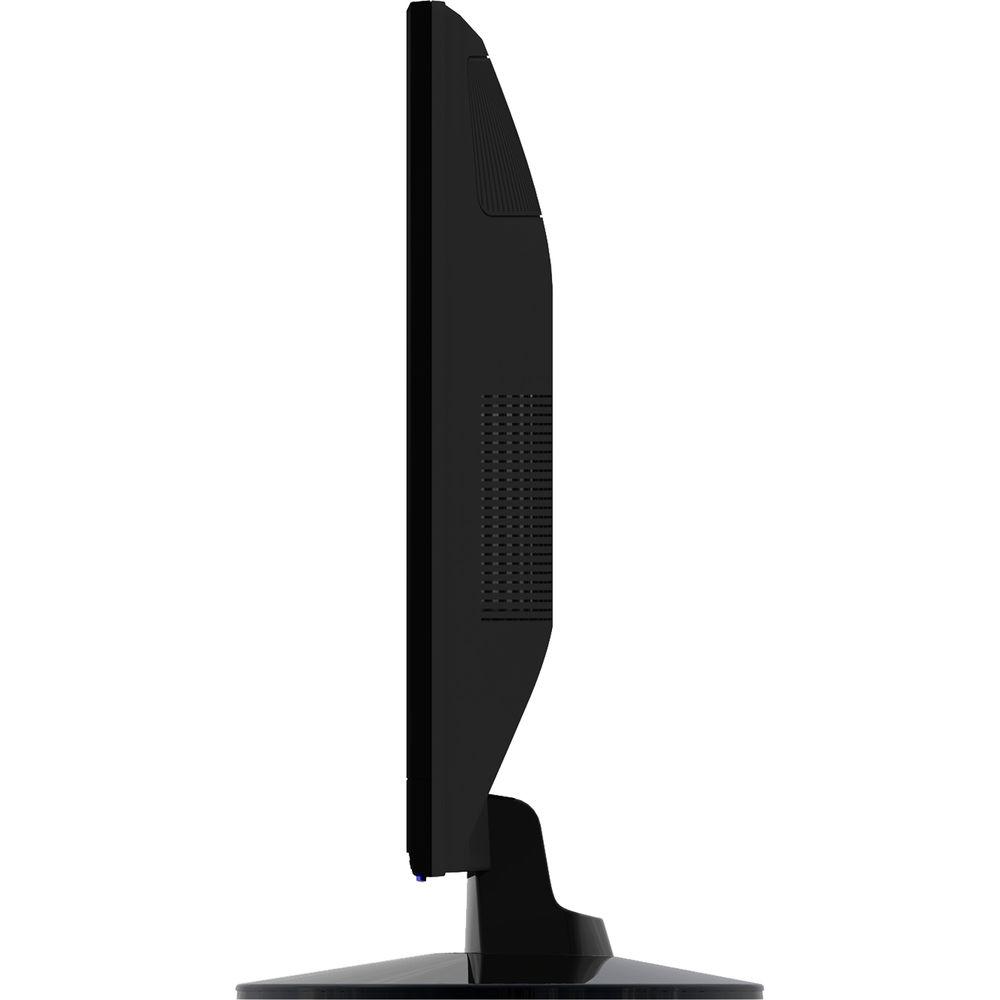

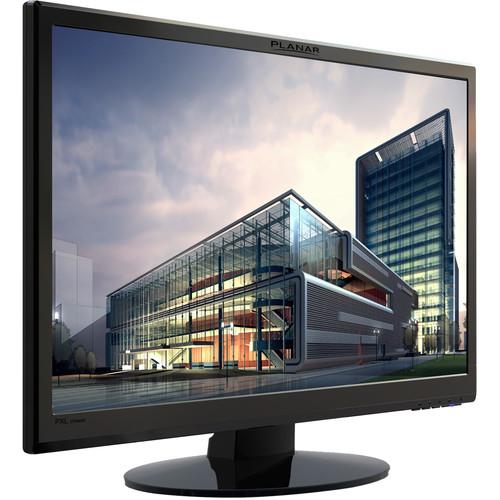

User Manual for Planar Systems PXL2780MW 27" 16:9 WQHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PXL2780MW 27" 16:9 WQHD
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PXL2780MW 27" 16:9 WQHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More txadsexrxewextxwdrebwexcrdurxu With a 2560 x 1440 WQHD resolution found on the PXL2780MW 27" 16:9 WQHD IPS Monitor from Planar Systems viewers can take advantage of a display providing up to four times the clarity offered by a standard 720p monitor. In addition to the enhanced resolution, this monitor features a 1000:1 contrast ratio, a 300 cd/m² brightness rating, and a 6.5 ms response time for enhanced picture clarity with reduced ghosting and blur. Configuring the PXL2780MW has been simplified thanks to VGA, DIV-D, HDMI, and DisplayPort inputs, making it easy to plug this monitor into a variety of computer configurations. The monitor can also be viewed from the included stand or mounted to the wall using a VESA compatible wall mount. -
- 27" display with a WQHD 2560 x 1440 resolution
- IPS edge-lit LED backlit panel
- 77% more resolution than Full HD
- 178° horizontal and vertical viewing angles
- HDMI, DisplayPort, DVI-Dual Link, and analog inputs
- 100mm VESA compatible
- Multi-language display
- On screen display (OSD)
- Kensington security slot
- Recommended usage of up to 16 hours per day
UPC: 810689002253 In the Box Planar Systems PXL2780MW 27" 16:9 WQHD IPS Monitor Power Cord DVI-Dual Link Cable DisplayPort Cable Audio Cable Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PXL2780MW 27" 16:9 WQHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems 997-7912-00 Specs | Screen Size | 27" (68.6 cm) | | Viewable Image Area | 23.5 x 13.2" (59.7 x 33.6 cm) | | Aspect Ratio | 16:9 | | Contrast Ratio | 1000:1 | | Viewing Angles (H/V) | 178°/178° | | Response Time | 6.5 ms (GtG) | | Brightness | 300 cd/m² | | Display Type | IPS LCD Active Matrix Flat Panel Display (TFT) | | Resolution | 2560 x 1440 | | Tilt | -5 to 20° | | Colors Supported | 16.7 million | | Pixel Pitch | 0.2331 mm | | Refresh Rate | 49 to 76 Hz (60 Hz recommended) | | Audio Output | Integrated 2 W/channel stereo speakers | | Video Inputs | Analog, DVI-Dual Link, HDMI, DisplayPort | | External Connections | DVI-Dual Link
DisplayPort
HDMI
VGA
3.5 mm audio in
3.5 mm headphone out | | HDCP compatible | Yes | | Compatibility | For Windows:
VGA Support up to 2048 x 1152, HDMI Support up to 1920 x 1080, DVI-D/ DP support up to 2560 x 1440 (non-interlaced)
For Mac:
VGA Support up to 2048 x 1152, HDMI Support up to 1920 x 1080, DVI-D/ DP Support up to 2560 x 1440
(Note: For Mac OSX 10.8.3, DVI-D only supports up to 1920 x 1080) | | Power | Power Supply
Internal
Power Consumption
31 W (typical)
< 0.5 W standby
Power Requirements
100 to 240 VAC | | VESA Mount Compatible | 100 x 100 mm | | Certifications | UL/c-UL, FCC-Class B, CE, RoHS | | Bezel | Left/Right/Top: 0.9" (22 mm)
Bottom: 1.4" (36 mm) | | Dimensions | With Stand: 25.4 x 17.8 x 9.4" (64.5 x 45.2 x 23.9 cm)
Without Stand: 25.4 x 15.6 x 2.6 (64.5 x 39.6 x 6.6 cm) | | Weight | With Stand: 18 lb (8.2 kg)
Without Stand: 17 lb (7.7 kg) | | | | Package Weight | 17.1 lb | | Box Dimensions (LxWxH) | 28.2 x 20.3 x 5.8" |
