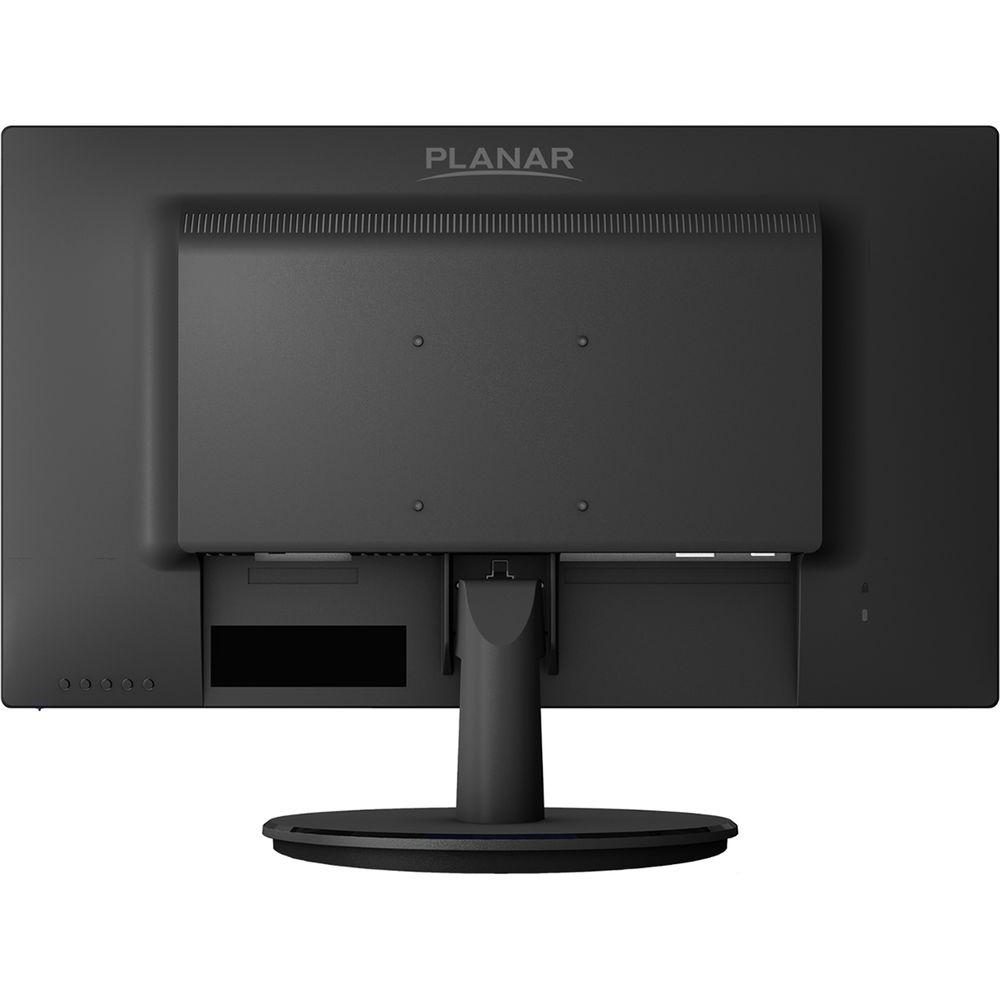

User Manual for Planar Systems PXN2770MW 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Planar Systems PXN2770MW 27" 16:9 IPS
- Product category: Computer Monitors Planar Systems
- Brand: Planar Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Planar Systems Computer Monitors
 |
User manual for the Planar Systems PXN2770MW 27" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Planar Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Planar Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Planar Systems product will considerably shorten its lifespan!
|

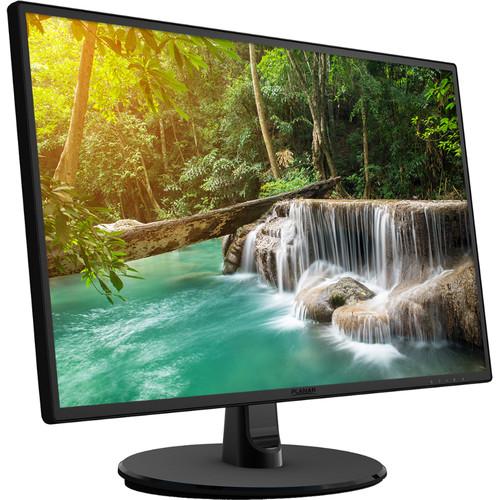

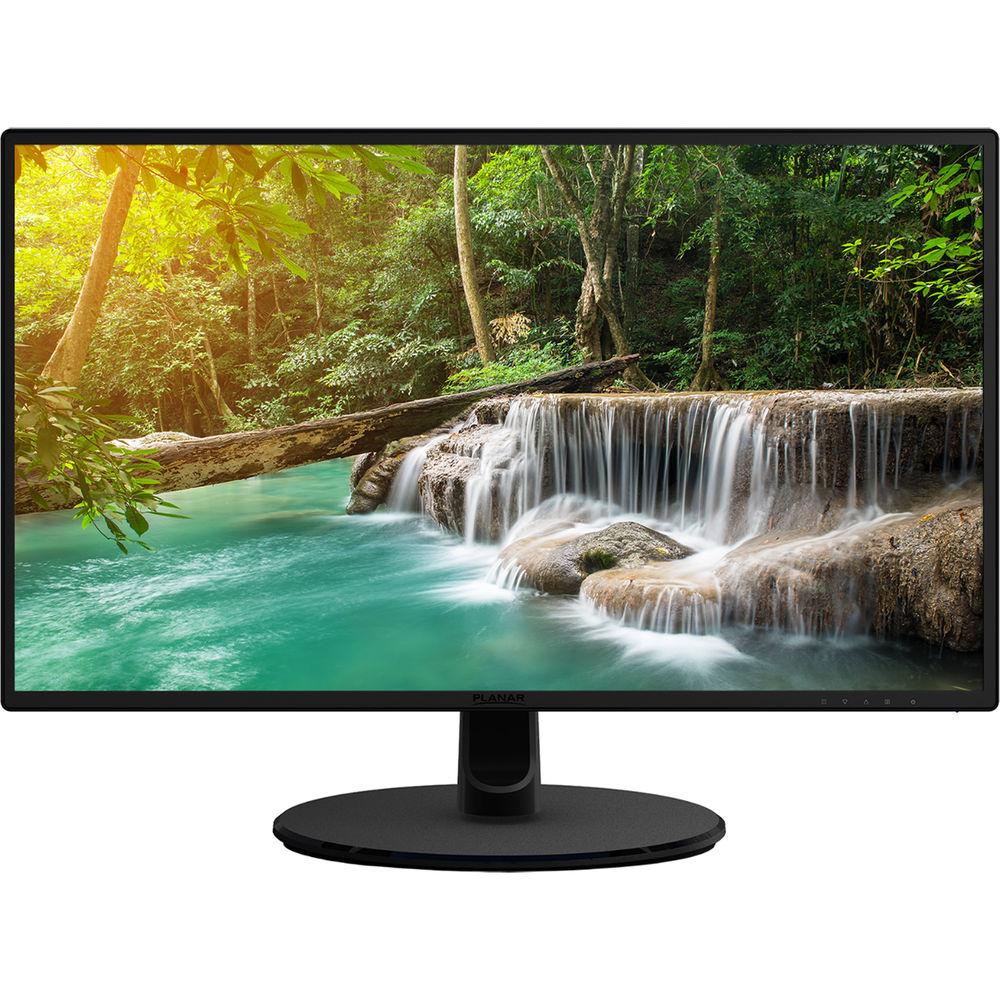

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The virtually borderless PXN2770MW 27" 16:9 IPS Monitor from Planar Systems offers an enhanced overall viewing experience without the distraction of a thick border surrounding the screen. Within the thin bezels, you have a Full HD 1920 x 1080 resolution display, a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and support for up to 16.7 million colors to ensure you receive a crisp, clear picture with enhanced color accuracy. Setup is simple as the PXN2770MW comes equipped with HDMI, DisplayPort, and VGA inputs and features dual 2W speakers for a complete multimedia viewing experience. This display can even be mounted to the wall using a VESA compatible wall mount for optimal viewing. -
- 27" with 1920 x 1080 resolution
- IPS (In-Plane Switching) edge-lit LED LCD display
- HDMI, DisplayPort, and VGA video inputs
- Wide viewing angles
- 100mm VESA mount compatibility
- Blue light reduction
- Flicker-free technology
- Nearly borderless bezel
- Anti-glare coating
- Multi-language display
- On-screen display support
- Kensington lock slot
- Recommended usage of up to 16 hours per day
UPC: 810689003168 In the Box Planar Systems PXN2770MW 27" 16:9 IPS Monitor Power Cord VGA Cable DisplayPort Cable Audio Cable Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Planar Systems PXN2770MW 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlanar Systems 997-8369-00 Specs | Screen Size | 27" (68.6 cm) | | Viewable Image Size | 23.54 x 13.24" (59.79 x 33.63 cm) | | Aspect Ratio | 16:9 | | Contrast Ratio | 1000:1 | | Viewing Angles (H/V) | 178°/178° (specified at CR>10:1) | | Response Time | 14 ms | | Brightness | 250 cd/m² | | Display Type | IPS LCD Active Matrix flat panel display (TFT) | | Resolution | 1920 x 1080 | | Tilt | -5 to 20° | | Colors Supported | 16.7 million | | Pixel Pitch | 0.3114 mm | | Refresh Rate | 55-76 Hz (60 Hz recommended) | | Audio Output | 2 x 2 W speakers | | Video Inputs | HDMI, DisplayPort, VGA | | HDCP compatible | Yes | | External Connections | HDMI
DisplayPort
VGA
3.5 mm audio in
3.5 mm headphone out | | Compatibility | Windows and Mac (adapter may be required for Mac) | | Power | Power Supply
Internal
Power Consumption
32 W (typical)
< 0.5 W (standby)
Power Requirements
100-240 VAC | | VESA Mount Compatible | 100 x 100 mm | | Certifications | UL, FCC-B, CE, cUL, RoHS | | Dimensions | With Stand: 24.4 x 17.4 X 9.8" (62.02 x 44.26 x 24.85 cm)
Without Stand: 24.4 x 14.3 x 1.8" (62.02 x 36.22 x 4.51 cm) | | Weight | With Stand: 11.3 lb (5.1 kg)
Without Stand: 10.8 lb (4.9 kg) | | | | Package Weight | 15.1 lb | | Box Dimensions (LxWxH) | 27.3 x 18.5 x 5.3" |
