Product description Designed for working with 10 Gigabit Cat6A shielded cables, as well as Cat6E, Cat7, and oversized Cat5e/6 industrial Ethernet cables for data, audio, and video applications, the 10Gig Termination Kit from Platinum Tools is a manufacturer's kit that includes a Tele-TitanXg Cat6A/10Gig Crimp Tool, 100 x RJ45 Cat6A/10Gig Shielded Connectors, a Cyclops 2 Cable Jacket Stripper, and a CT-360 External Ground Crimp Tool.

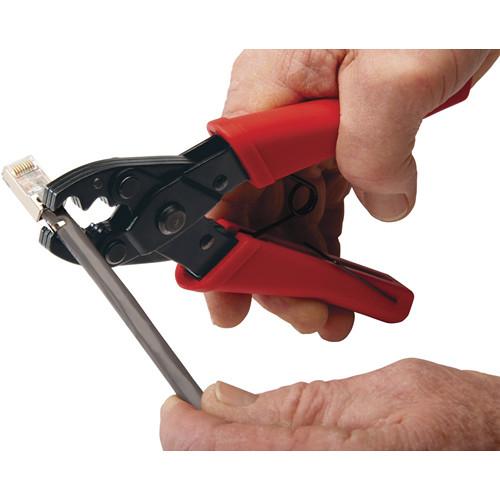

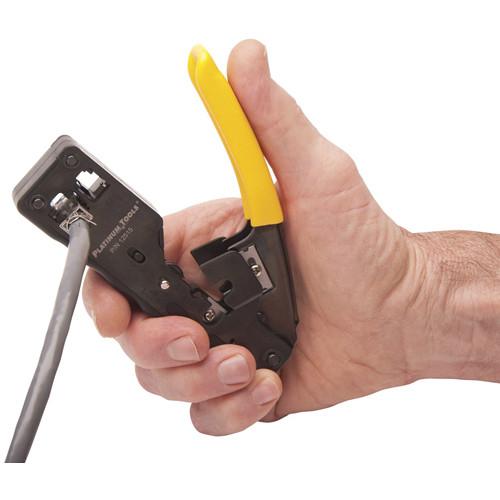

The Tele-TitanXg is specifically made for terminating Cat6A/10Gig connectors, the CT-360 External Ground Crimp Tool will perform 360° crimps on the external ground tab of shielded RJ45 connectors, the Cyclops 2 Cable Jacket Stripper automatically adjusts to help cut PVC, plenum, and others without damaging the braids, foils, or conductors, and the RJ45 Cat6A/10Gig Shielded Connectors are headers that attach to the cable ends, allowing the RJ45 cables to interface with a LAN outlet. General Features Tele-TitanXg CAT6A/10Gig Crimp Tool - Specifically made for terminating larger cables, such as RJ45 Cat6A/10-GIg shielded connectors (not for standard RJ45 modular plugs)
- Minimal hand force necessary while crimping
- Straight action vertical crimp force
- Terminates to industry specified crimp heights
- Stays securely closed with its gun-style lock
- Built-in cable stripper for round wire and flat satin
- Easily control the blade depth when stripping
- Applications: Cat6E, Cat6A, Cat7 & over-sized Cat5e/6 industrial Ethernet cables

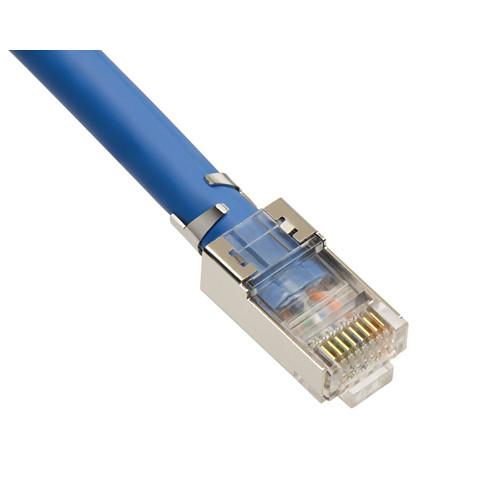

RJ45 Cat6A/10Gig Shielded Connectors (100 pieces) - Max cable OD: 0.34" (8.50mm)
- Max conductor OD: 0.05" (1.35mm)

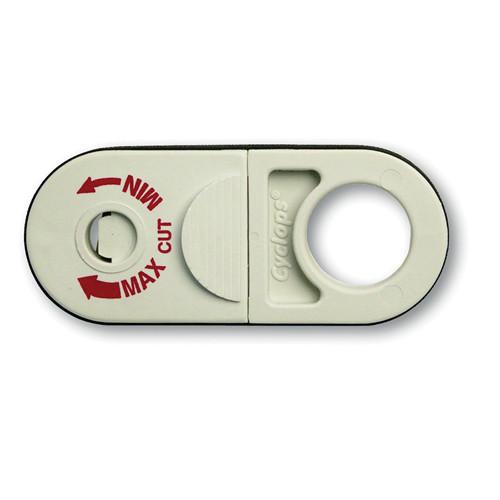

Cyclops 2 Cable Jacket Stripper - Self-adjusts to automatically score PVC, Plenum, and others without damaging braids, foil, or conductors
- Ready-to-use out of the kit without having to make adjustments
- Works with shielded/unshielded twisted pair single & multi-core and fiber optic cables
- Accepts cable ODs 0.10 to 0.43" (2.54 to 10.92mm)
CT-360 External Ground Crimp Tool - 360° crimp on the external ground tab of shielded RJ45 connectors
- Perform concentric termination with full control to prevent over or under crimping. Dual cavity covers wide range of cable ODs ranging from 0.245" to 0.335" (6.22mm to 8.51mm)
- Spring-loaded, non-ratcheted design
- All steel frame, rust-resistant black oxide finish, molded plastic handles

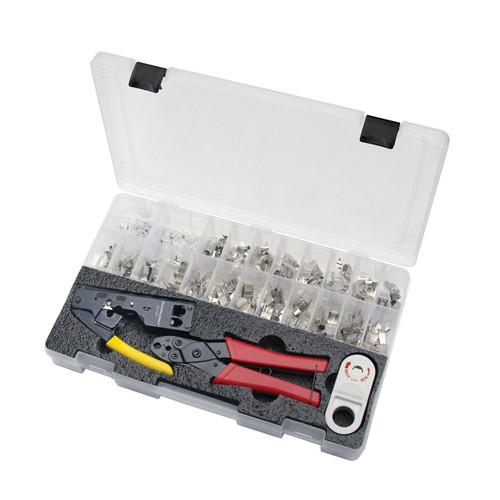

UPC: 849160006435 In the Box Platinum Tools 10Gig Termination Kit Tele-TitanXg CAT6A/10Gig Crimp Tool wqzcdrrbtwbzdfexyacrufrdre Cyclops 2 Cable Jacket Stripper RJ-45 CAT6A/10-Gig Shielded Connectors with Liners (100) wqzcdrrbtwbzdfexyacrufrdre CT-360 External Ground Crimp Tool (Clamshell Packaging) Limited 1-Year Warranty Table of Contents
|
