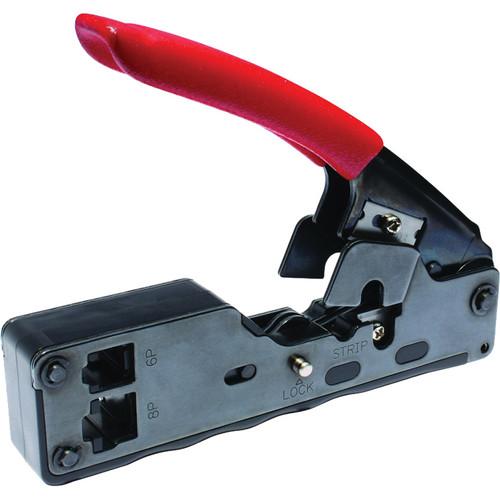

User Manual for Platinum Tools 12507C Tele-Titan Modular Plug Crimp Tool Click to enlarge the picture
Contents of the user manual for the Platinum Tools 12507C Tele-Titan Modular Plug
- Product category: Installation & Maintenance Tools Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Installation & Maintenance Tools
|
User manual for the Platinum Tools 12507C Tele-Titan Modular Plug contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|
Product description Breeze through cable installations with newfound comfort and precision thanks to the 12507C Tele-Titan Modular Plug Crimp Tool from Platinum Tools. For professional results, your Tele-Titan functions as a coax compression tool and delivers straight action termination. Parallel crimping force delivers even pressure on each of the plug's pins, thus ensuring precise seating to industry-specified crimp heights. Compact, sturdy, rugged, and well-balanced, the Tele-Titan nests comfortably in your hand. Best of all, the handle is cushioned with PVC to reduce fatigue.
Save storage space by locking the handle in the closed position. Fully-featured, your Tele-Titan has embedded cable strippers for round and flat cables, plus a built-in cable cutter. The blade depth is easily-adjusted for stripping Cat5e/6 cables. This little giant of modular crimp tools is built to provide the reliable, repeatable use demanded by professional installers. A durable tool, it's finished in black oxide for resisting rust. - Compact, balanced, easy to use, and fits well in the hand
- Uses true parallel or straight action, vertical crimp force
- Precisely seats or terminates all pins to industry-specified crimp heights
- Stays securely closed for storage with gun safety lock-style design
- Crimps with nominal hand force
- Embedded cable strippers for round and flat cables and built-in cable cutter
- Easily adjust and control depth of the blade when stripping Cat5e/6 cables
- Built for repeated use and reliability, and required for professional installations
- For use with WE/SS standard-style modular plug stranded and solid connectors: RJ-45 Cat3/4/5/5e/6 (8x8) (8P8C), RJ-12 six-position (6x6) (6P6C), RJ-11 four-position (6x4) (6P4C), and RJ-11 two-position (6x2) (6P2C) 1
Please Note: Not for use with AMP / TYCO-style plugs close - Rust-resistant black oxide finish
UPC: 849160004073 In the Box Platinum Tools 12507C Tele-Titan Modular Plug Crimp Tool Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools 12507C Tele-Titan Modular Plug Crimp Tool in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools Tele-Titan Specs | Material | Body: ABS integrated parts with S45C carbon steel frame
Spring: S80C
Blade: SK5
Handle: PVC dip process | | Hardness | HRC 42 ± 4 | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 8.9 x 2.8 x 1.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
