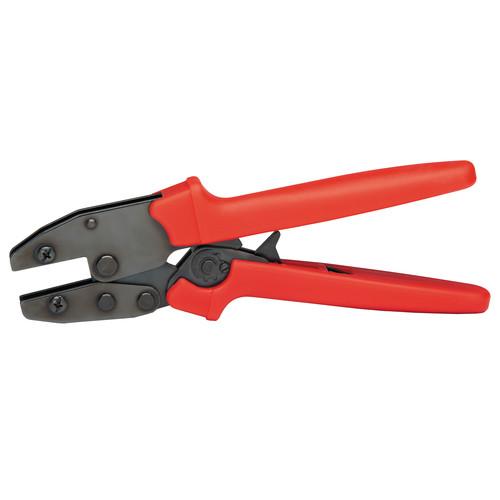

User Manual for Platinum Tools 16509C 9" Ergo Crimp Tool Click to enlarge the picture
Contents of the user manual for the Platinum Tools 16509C 9" Ergo Crimp
- Product category: Installation & Maintenance Tools Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Installation & Maintenance Tools
|
User manual for the Platinum Tools 16509C 9" Ergo Crimp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|
Product description The 16509C 9" Ergo Crimp Tool from Platinum Tools has a straight plate lower jaw assembly, which eliminates critical structural stress points while crimping. The crimp tool has a reduced handle grip distance which makes it suitable for all hand sizes and allows for prolonged, comfortable use. It does not break under heavy stress, and makes crimping easier and comfortable. - Reduced handle grip distance makes it ideal for all hand sizes and allows for prolonged, comfortable use
- Smooth triple ratchet design eliminates breakover hand force
- Adjustable cam allows precision ratchet adjustment for a precise crimp, no matter the die set or application
- For SMA, SMB, Mini 59, BNC, TNC, mini UHF connectors
- Accepts crimp die sets from most other tools. It can work with your old crimping dies
UPC: 849160006756 In the Box Platinum Tools 16509C 9" Ergo Crimp Tool Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools 16509C 9" Ergo Crimp Tool in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools 16509C Specs | Cable Type | RG-174, 187, 188, 316
Mini Coaxia | | Crimp Type/Size | Hex 0.178 / 0.128 / 0.068 | | Connector Types | SMA, SMB, mini 59, BNC, TNC, mini UHF | | Dimension | Length: 9.0" (228.6 mm) | | Weight | 16.0 oz (453.6 g) |
