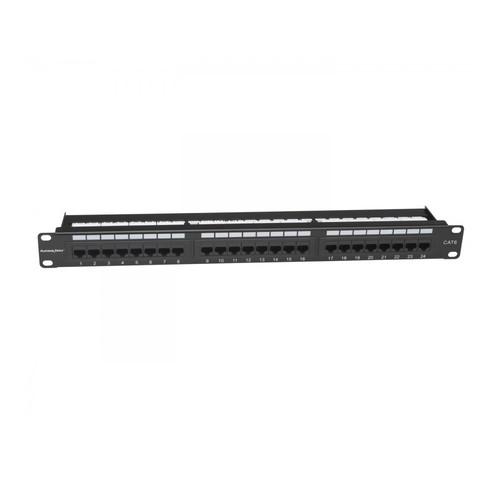

User Manual for Platinum Tools 24-Port Cat6 Non-Shielded Patch Panel Click to enlarge the picture
Contents of the user manual for the Platinum Tools 24-Port Cat6 Non-Shielded Patch
- Product category: Patchbays Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Patchbays
|
User manual for the Platinum Tools 24-Port Cat6 Non-Shielded Patch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|
Product description The 24-Port Cat6 Non-Shielded Patch Panel from Platinum Tools is a 1 RU Ethernet patch panel for installation in equipment racks. It features 24 gold-plated Gigabit RJ45 Ethernet ports designed for connecting Cat6 cables. It meets the ANSI/EIA/TIA 568C.2 standards. This panel is an efficient and convenient solution for terminating all the cable runs coming in from various locations to the server room or wiring closet. It features a removable cable management bracket that eliminates cable disconnects. - Traditional 19" rack design, 1 RU Spacing
- Removable cable management bracket; helps support/eliminate cable disconnects (removable)
- High-strength frame for rigidity and durability; eliminates flexing and warping
- Color-coded label (T568A and T568B) for easy wiring
- Meets ANSI/EIA/TIA 568C.2 standards
- Compatible with the 110/Krone PRO-Strike Punchdown Tool (available separately)
- Solid or stranded 22 through 26 AWG wire
- Suitable for voice, data, video, and audio applications
- Gold-plated RJ45 port contacts
- Secures your cables and keeps them tidy for easy identification
- Easier to reconfigure and troubleshoot your network
UPC: 849160007739 In the Box Platinum Tools 24-Port Cat6 Non-Shielded Patch Panel (1 RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools 24-Port Cat6 Non-Shielded Patch Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools 661-24C6 Specs | Rack Size | 1 RU | | Dimensions (L x W x H) | 19.8 x 4.0 x 2.3" (50.2 x 10.2 x 5.7 cm) | | Weight | 32.2 oz (911.7 g) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 19.6 x 4.1 x 2.2" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
