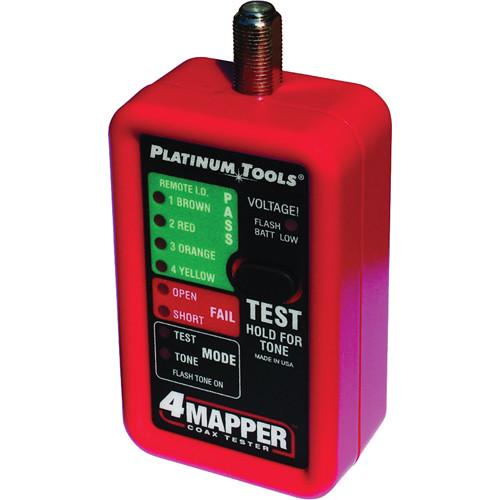

Product description The 4Mapper Coax Mapper from Platinum Tools is designed to troubleshoot and identify multiple coax cables at a clip. It’s a handy tool for technicians servicing televisions, routers, security cameras, splitters, and more. With this device, you can track up to four connections at any one time, using only one button for push-to-test functionality. An integrated tone generator is also provided.
The device tracks coax cables through individually-identified remotes, and each remote has its own color-coded indicator to indicate that signal is passing, with more indicators situated just below to indicate open, and short. A flashing low-battery LED lets you know if the unit is in danger of running out of juice, while a line-voltage warning LED also comes in handy. All LEDs are bright and easily readable in open daylight. The unit itself is relatively small and lightweight at 2.7 oz, so it'll fit easily in the palm of your hand and into your toolkit. Included are four custom F remotes and a holster. - Key Features at a Glance
-
- One Button design
- Displays pass, open or short
- Integrated tone generator
- Automatic power off
- Line-voltage warning LED
- Flashing low-battery LED
- Bright LEDs, easy to see in the daylight
- Includes four custom F remotes, push on design
- Small and compact at 2.7 oz
- Made in the USA
UPC: 849160002499 In the Box Platinum Tools 4Mapper Coax Tester 4 x Push-On F Remotes F (F to F) Adapter Remote Holster Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools 4Mapper Coax Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools T104C Specs | Max Conductor DC Resistance | 100 Ohms | | Cable Length | Min: 0' / 0 m for testing
Max: 3000' / 914.4 m for testing | | Material | Body: ABS plastic
Label Material: Lexan | | Battery | 6 V 4LR44 / A544 | | Dimensions (L x W x H) | 3.3 x 2 x 1.3" / 83 x 51 x 32 mm | | Weight | 2.7 oz / 76.5 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 8.1 x 4.7 x 1.1" |
