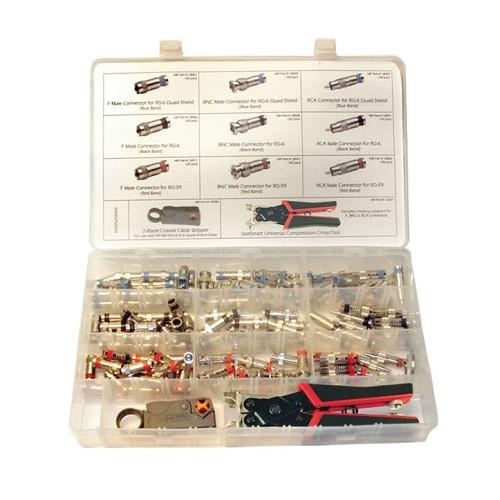

Product description The Platinum Tools 90126 SealSmart Field Installation Kit (Gold) allows you to store your tools and connectors in a rugged, high-impact, plastic case with compartments to assist in identifying, sorting, and re-stocking all components quickly and easily. Available with nickel-plated connector. If your job requires you to use compression F, RCA, and BNC connectors in assorted cables sizes and you have been trying to figure out how to keep it all organized, this SealSmart Field Installation Kit provides the ideal solution.
The kit includes the 15030C Coax Cable Stripper (2-Level RG58/59/62/6/6Q), 16201C SealSmart Compression Crimp Tool, and sets of SealSmart F, BNC and RCA connectors in a SealSmart Compartmented Plastic Case.
The 15030C Coax Cable Stripper is simple to operate and ensures a professional, repeatable strip every time. These strippers include a hex wrench for adjustable blade depth. Stripping lengths are also adjustable.
The 16201C SealSmart Compression Crimp Tool provides simple, fast, and reliable terminations for F-, RCA-, and BNC compression-style connectors on coaxial wires; the tool is an ideal solution for CATV, DSS, security, and residential structured wiring installations. Connector adapters can be mounted on the handle for easy storage. Straight action mechanism provides uniform compression.
The SealSmart Connectors for the RG6 Quad Cable provide simple, fast, and reliable terminations. They are the perfect solution for CATV, DSS, security, home theater, and residential structured wiring installations. - 15030C 2-Level Coaxial Cable Stripper
-
- Works with RG58/59/62/6/6 Quad coaxial cables
- Adjustable stripping depth for various insulation types and thicknesses
- Preset for 6mm (referred to as the 1/4” strip) but adjusts to additional dimensions
- Uses drop-in replacement blades, no cassettes required
- Hex wrench snaps into housing for convenient storage
- Molded from high-impact plastic for long life
- Adjustable to additional settings 0.157, 0.315, and 0.472" (4, 8, and 12 mm)
- 16201C SealSmart Compression Crimp Tool
-
- Crimps F, RCA, and BNC, and right-angle compression style connectors; simply insert the proper adapter
- Used with RG-59, RG-6, and RG-6 Quad shield cables
- Adjustable crimp stroke enables tool to work with SealSmart compression connectors as well as those from other manufacturers
- F, RCA, and BNC connector-crimping adapters included (spare adapters available)
- Includes 1 x F Connector Adapter, 1 x RCA Connector Adapter, and 1 x BNC Connector Adapter
- SealSmart Connectors
-
- Available for RG59, RG6, and RG6 Quad shield and mini RGB cable
- Connectors are color coded for identifying the cable type
- Molded in gasket provides a weather tight seal at cable entry
- Single crimp termination with captive center contact design
UPC: 899740000759 In the Box Platinum Tools 90126 SealSmart Field Installation Kit (Gold) 15030C Two-Level Coaxial Cable Stripper 16201C SealSmart Compression Crimp Tool 20 x F-Type Gold SealSmart Coaxial RG6 Quad Connector (100 Pieces) 20 x F-Type Gold SealSmart Coaxial RG6 Quad Connector (Bulk Package) 20 x F RG59 Gold-Plated SealSmart Coaxial Compression Connector (100 Pieces Bulk Package) 10 x F-Type Gold SealSmart Coaxial Compression RG59 Connector (25 Pieces Bulk Packaging) 10 x BNC-Type Gold SealSmart Coaxial RG6 Quad Connector 10 x BNC-Type Gold SealSmart Coaxial Compression RG6 Connector (25 Pieces Bulk Packaging) 10 x BNC-Type Gold SealSmart Coaxial RG59 Connector (25 Pieces Bulk Packaging) 10 x RCA-Type Gold SealSmart Coaxial RG6 Quad Connector (25 Pieces Bulk Packaging) 10 x RCA-Type Gold SealSmart Coaxial Compression RG6 Connector (25 Pieces Bulk Packaging) 4050 SealSmart Compartmented Plastic Case for Field Installation Kits Set of Laminated Instruction Sheets 1-Year Warranty Table of Contents
|
