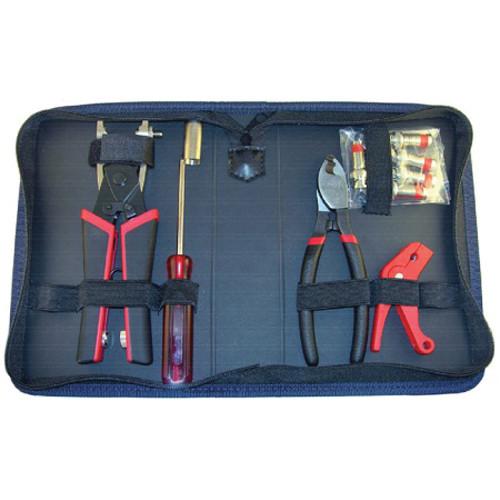

Product description The Platinum Tools 90137 SealSmart CCTV Coax Kit is an ideal solution when working with the RG59 cable for CCTV security installations and includes all the essential tools to help you complete your job. The kit contains 10510C BTP-6 Coax & Data Cable Cutter, 15023C SealSmart Coax Stripper for the RG59 cable, 16201C SealSmart Compression Crimp Tool, 11006 BNC Connector 8" Removal Tool, 18041 SealSmart BNC Connectors for RG59 Cable (6 Pieces), 4001NPT Nylon Zippered Case, and Product Instructions.
The 10510C BTP-6 Coax & Data Cable Cutter is a rugged drop-forged construction that provides good durability and professional results. Dual elliptical cutting blades are precision ground to allow for low effort cutting of coaxial cables without deforming the dielectric. Cuts twisted pair cables, both UTP / STP, and a wide range of coaxial cables. Non-slip cushioned handles fit the hand and the tool pouch.
The 15023C SealSmart Coax Stripper for RG59 Connector (Red) is factory pre-set for specific cable sizes. It delivers fast, accurate results right out of the box. It is color-coded red to indicate that it is used with the SealSmart Compression RG59 Connector.
The 16201C SealSmart Compression Crimp Tool provides simple, fast, and reliable terminations for F, RCA, & BNC compression-style connectors on coaxial wires; an ideal solution for CATV, DSS, security, and residential structured wiring installations. Connector adapters can be mounted on the handle for easy storage. Straight action mechanism provides uniform compression.
The 11006 BNC Connector 8" Removal Tool features a barrel that is precision machined from high-strength tool steel and is heat treated for long life. It also features an extruded and polished resin handle.
The 18041 SealSmart BNC Connectors for RG59 Cable (6 Pieces) provides simple, fast, and reliable terminations. It is an ideal solution for CATV, DSS, security, home theater, and residential structured wiring installations. - 10510C BTP-6 Coax & Data Cable Cutter
-
- Cuts solid, stranded and multi-conductor cables to 6 AWG
- Cuts coaxial cables without deforming the dielectric
- Dual elliptical cutting blades
- 15023C SealSmart Coax Stripper for RG59 Connector (Red)
-
- Preset, requires no adjustments
- 1/4" braid, 2 level strip
- Meets industry standard for all compression connectors
- Red finish
- 16201C SealSmart Compression Crimp Tool
-
- Crimps F, RCA, and BNC, and right-angle compression-style connectors; simply insert proper adapter
- Used with RG-59, RG-6, and RG-6 Quad shield cables
- Adjustable crimp stroke enables tool to work with SealSmart compression connectors and those from other manufacturers
- F, RCA, and BNC connector crimping adapters included (spare adapters available)
- Includes 1 x F Connector Adapter, 1 x RCA Connector Adapter, and 1 x BNC Connector Adapter
- 11006 BNC Connector 8" Removal Tool
-
- Designed and manufactured for the true Broadcast and Telco installation professional
- Does not stretch
- Used to insert and remove BNC connectors in digital video patchbays and in high-density DSX cross-connect systems
- Wider barrel slot fits over Canare L-7CFB and Belden 9292 cables
- Extruded and polished resin handle
- 18041 SealSmart BNC Connectors for RG59 Cable (6 Pieces)
-
- Molded in gasket provides a weather tight seal at cable entry
- Single crimp termination with captive center contact design
- Connectors are color coded for cable type
UPC: 849160000778 In the Box Platinum Tools 90137 SealSmart CCTV Coax Kit 10510C BTP-6 Coax & Data Cable Cutter fzzaaeqdxbdyxu SealSmart Coax Cable Stripper for RG59 16201C SealSmart Compression Crimp Tool 11006 8" BNC Removal Tool BNC-Type Nickel SealSmart Coaxial RG59 Connector (25 Pieces Bulk Packaging) 4001NPT Heavy-Duty Reinforced Nylon Zippered Case Product Instructions 1-Year Warranty Table of Contents
|
