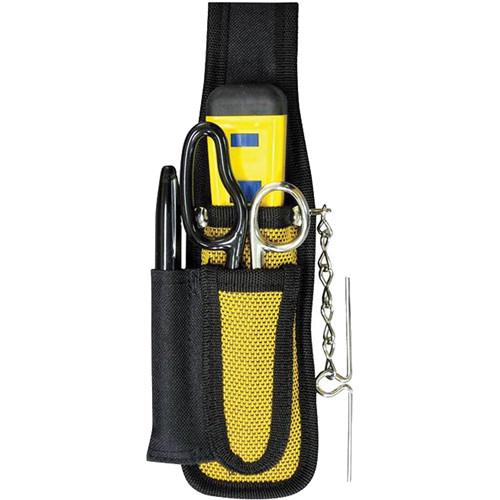

Product description The Platinum Tools 90152 PRO Punchdown Tool Kit keeps your tools readily accessible and organized so you’re always ready to perform those datacomm jobs. This belt pouch kit will quickly become part of your daily gear.
The kit contains the 10525C Professional Electrician’s Scissors, the 13100C PRO Punchdown Tool, 13002C 110 Punchdown Blade, and the 4015 Punchdown Tool Pouch with a black fine tip sharpie pen.
The 10525C Professional Electrician’s Scissors is designed for use in electrical, telephone and datacom service applications. Its ergonomically designed large ring provides more power, reduces fatigue and wrist strain. It fits comfortably in the power portion of the palm producing a cleaner, quicker cut with less effort. The bottom blade has serrated teeth, while the full length of the cutting edge allows you to grip the cable/wire properly. The scissors are made from thru hardened (RC59) steel.
The 13100C PRO Punchdown Tool combines a rugged design with an ergonomic function. It provides precise, repeatable and reliable terminations. It features precision-controlled impact force settings for optimum termination of sensitive circuitry found in Cat5e and Cat6 cross connects.
Also included is the 13002C 110-Style Punchdown Blade that is a bayonet-style twist & lock blade that is compatible with all industry standard punchdown tools. - 10525C Professional Electrician's Scissors
-
- Cuts stranded wire to 12 AWG
- Cuts solid wire to 16 AWG
- Strips 19 to 23 AWG wire
- Serrated edges on back of blades for cleaning wire and binding posts
- 13100C PRO Punchdown Tool
-
- Terminate and trim wires in 66, 110, Krone and BIX-style cross connect blocks and in 110 and 630 wall jack modules
- Bayonet style (twist & lock) blade retention socket is compatible with industry standard tools and blades
- Spring-loaded for fast, low effort wire seating and termination
- Adjustable high- or low-impact settings are precisely controlled to meet industry standard 8762D specification
- Will not damage sensitive circuitry
- Embedded rubber finger grip
- Spare blade storage compartment in tool handle
- 13002C 110-Style Punchdown Blade
-
- Manufactured from high carbon tool steel
- Heat-treated for durability
UPC: 849160002345 In the Box Platinum Tools 90152 PRO Punchdown Tool Kit 10525C Professional Electrician's Scissors eyduawsuebcauswseuvysrdqfbubcytc 13100C PRO Punchdown Tool Without Blades (Clamshell) 13002C Punchdown 110 Style Blade (Clamshell) 4015 Punchdown Tool Pouch (Red/Black) 1-Year Warranty Table of Contents
|
