Product description The Platinum Tools 90201 Premier CATV Connectivity Kit for RG-6 Cables delivers a practical solution and offers the installer a balanced mix of popular products that are known to withstand tough jobs. The kit also provides essential tools such as a cable cutter and coax stripper as well as connectors required for CATV F cable runs.
The 10500C Coax & Round Wire Cable Cutter is durable and economically designed to cut solid and stranded wire to 8 AWG, multi-conductor, and coaxial cables to 1.5" (38.1mm) diameter. It features a curved and precision-ground blade that will not deform the conductors or dielectric and is stamped from high carbon tool steel and heat, which is treated for long life.
The 15020C Double-Ended Coax Stripper quickly and easily strips a broad range of coax cables in a single step without any adjustments. Its blades are designed to produce a 1.25" (31.75mm) braid, 2-level strip, and the standard for compression connectors.
The 16220C SealSmart II Compression Crimp Tool easily terminates F, RCA and BNC compression style connectors without changing adapters. The universal head easily adjusts to the proper crimp stroke, making it compatible with standard compression connectors.
The 11021 8" F Connector Assembly and Removal Tool is a dual function tools that features a 7.437” (188.89mm) hex socket at one end and 3.37 to 32” (85.59 to 812.8mm) thread at the other end. The hex socket slides over the cable and rear of the connector for easy mating and un-mating of hard to grasp F connectors. The threaded end provides a stable surface for cable insertion when prepping connectors for termination and can also be used as a thread chaser.
Each of the 10 SealSmart F Connectors for RG 6 Cables provides simple, fast, and reliable terminations, which is an excellent solution for CATV, DSS, security, home theater, and residential structured wiring installation.
10500C Coax & Round Wire Cable Cutter - Cuts solid and stranded wire to 8 AWG
- Cuts multi-conductor cable to 1.5" (38.1mm) diameter
- Cuts coaxial cables without deforming the dielectric
- Spring loaded with locking latch
15020C Double-Ended Coax Stripper - Works with RG7/11/213/8 and RG59/6/6 Quad cables
- Quickly removes cable jacket and dielectric
- Preset, requires no adjustments
- Compact, lightweight, and simple operation
16220C SealSmart II Compression Crimp Tool - Crimps all standard F, RCA, BNC, and right-angle compression-style connectors
- Works with RG-59, RG-6, RG-6 Quad, and Mini RGB coax cables
- Lock washer holds head in place once adjusted to proper crimp stroke
11021 8" F Connector Assembly and Removal Tool - 7.437" (188.89mm) hex socket for mating and un-mating
- 3.37 to 32" (85.59 to 812.8mm) threaded end for connector assembly
- Rugged extruded plastic handle
18006 SealSmart F Connectors for RG 6 Cable (Pack of 10) - Connectors are color-coded depending on the cable type
- Molded in gasket provides a weather-tight seal
- Single crimp termination with captive center contact design

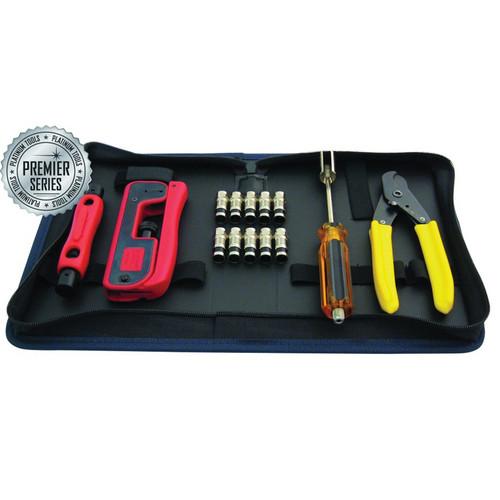

UPC: 849160002758 In the Box Platinum Tools 90201 Premier CATV Connectivity Kit 10500C Coax & Round Wire Cable Cutter 15020C Double-Ended Coax Stripper 16220C SealSmart II Compression Crimp Tool 11021 8" F Connector Assembly and Removal Tool 10 x 18006 SealSmart F Connectors for RG 6 Cable 4001NPT Nylon Zippered Case Product Instructions 1-Year Warranty Table of Contents
|
