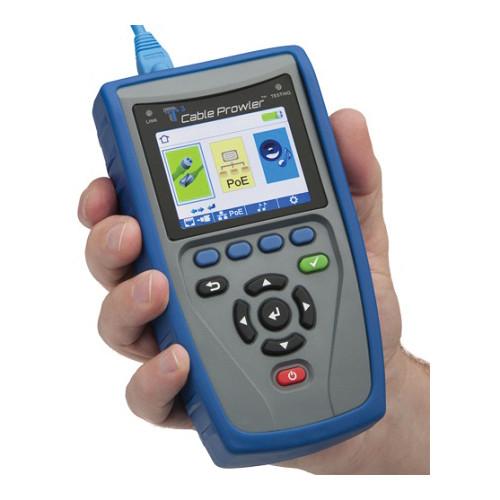

User Manual for Platinum Tools Cable Prowler Cable Tester Click to enlarge the picture
Contents of the user manual for the Platinum Tools Cable Prowler Cable Tester
- Product category: Cable Testers & Tone Generators Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Cable Testers & Tone Generators
|
User manual for the Platinum Tools Cable Prowler Cable Tester contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|
Product description The Platinum Tools Cable Prowler Cable Tester provides full cable testing on any category network, coax, or telephone cable. It combines the functions of a high-end cable tester and cable length measurement tester. It has the capability to identify link status, link capability, and PoE detection. All of this is displayed in a full color graphical display and it has an internal memory to save, download, and output results.
This tester displays full color graphical wire-mapping, numbered ID remotes for network and telephone cables, and any faults including shorts, opens, miswires, split pairs, and reverses. The Cable Prowler measures cable length using TDR (Time Domain Reflectometry) technology and generates tone levels for signal tracing and cable identification on all pairs, a selected pair, or a selected pin. All of this is displayed in a full color graphical display for easy viewing in any environment.
The Cable Prowler also has the ability to name each cable and save all test results. Furthermore, the generated cable results can be exported to a computer via a micro USB cable for record keeping and printing.
The Cable Prowler enables quick identification of network drops, link capabilities, and current link status. It also detects the presence of PoE on the network drop and what class of PoE per IEEE 802.3 af/at with load test for voltage drop. These network tests can also be saved for record keeping and printing. - Full color cable testing and report management for CAT 3 / 5e / 6 / 6a, Coax, and telephone cables
- Measures and displays cable length measurement for each pair in feet or meters using TDR (Time Domain Reflectometry) technology
- Tests PoE to ensure adequate power for powered devices such as VoIP phones
- Detects presence of PoE and class of PoE per IEEE 802.3af/at with load test for voltage drop
- Detects and reports current link speed and link capabilities for active Ethernet drops up to 1 Gb/s
- Link light to identify location on a hub / switch / router port
- Tests Ethernet cable configuration and verifies connectivity while conducting tests for opens, shorts, miswired cables, split pairs, and reverses
- Generates selectable tones on selected pins for use with tone tracers
- Tests and supports up to 8 testing (network and telephone drops) and ID remotes for network and telephone cables
- Supports up to 20 network and coax ID remotes (only mapping remotes)
- Conducts single ended and remote cable tests with display of PASS, wire map, ID, and faults for network and coax cables
- Enables viewing of saved cable tests
- Locates unlabeled network and coax cables with up to 20 remote identifiers
- Full color graphical wire-mapping
- Ability to define cable name, save cable tests, export saved tests to your computer, and print all results for record keeping (cable testing and network testing)
- Multilingual (English, French, & Spanish)
- High resolution full color graphical display
- Displays wire map in color per TIA-568A/B color codes, in pin or pair order (configurable)
- Protective silicone holster
- Micro USB connector (to export cable reports), RJ45 connector, and Coax connector
UPC: 849160006640 In the Box Platinum Tools Cable Prowler Cable Tester Coax and Network Remote Set (#1 to 5, F-Conn Coupler with Foam Holder) Network/Tel Testing and ID Remote #1 2 x RJ12 Cable Micro USB Cable Handy Hanging Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools Cable Prowler Cable Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools Cable Prowler Specs | Measurements | Time Domain Reflectometry (TDR) | | Cable | Cable Testing and ID: up to 1,000.0' (304.8 m)
Split Pair Detection: 3.0' (0.9 m) to 1,000.0' (304.8 m)
Length Measurement: 0 to 1,500.0' (457.2 m), ± (5% + 1.0' (0.3 m)
Supports 8 continuity and ID number remotes (RJ-45)
Supports 20 x RJ-45 and 20 x F-connector ID only remotes | | Power Over Ethernet | Tests for IEEE 802.3af and IEEE 802.3at (PoE Plus) compliant PoE
Tests for classes and loads cable up to 25.5 W (at class 4)
Identifies Mode A or B (pairs with PoE) | | Ethernet | Active Ethernet:
Indicates advertised speeds of 10 / 100 / 1000 Base-T half or full duplex
Can link to network at 10 / 100 Base-T | | Maximum Voltage | RJ Jack: 66 VDC or 55 VAC
F-connector: 50 VDC or VAC Parameters refer to the maximum voltage that can be applied to any 2 connector pins without causing damage to the tester. | | Test Output | Save Test Results: Stores up to 250 cable or network tests with user defined names | | Tone Generator | Tone Frequencies: 730 Hz and 1,440 Hz | | Language | English, French, Spanish | | Battery Life | For 6 x AA, 9 VDC, 2,200 mA-hr (typical) alkaline battery
Operating: 20 hours typical
Standby: 1.5 years typical (maximum of 200 µA standby current) Batteries are included. | | Altitude | Operating: 10,000' (3,048 m) | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -22 to 140°F (-30 to 60°C) | | Humidity | 10 to 90% non-condensing | | Enclosure | High-strength PC / ABS plastic with V0 rating with boot
Withstands 4.0' (1.2 m) drop on to concrete | | Dimensions (L x W x H) | 6.80 x 3.60 x 1.85 (17.27 x 9.14 x 4.69 cm) | | Weight | With batteries: 1.2 lb (0.5 kg) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 13.2 x 5.6 x 3.2" |
