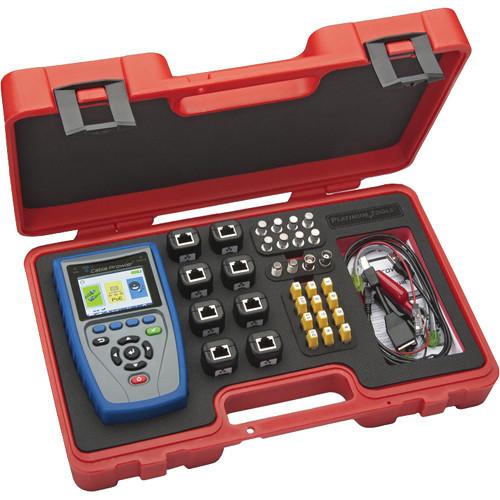

User Manual for Platinum Tools Cable Prowler PRO Test Kit Click to enlarge the picture
Contents of the user manual for the Platinum Tools Cable Prowler PRO Test
- Product category: Cable Testers & Tone Generators Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Cable Testers & Tone Generators
|
User manual for the Platinum Tools Cable Prowler PRO Test contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|
Product description The Cable Prowler PRO Test Kit from Platinum Tools includes the Cable Prowler tester, #1 to 8 smart remote set, #1 to 8 coax remote set, #1 to 12 data remote set, micro USB cable, two no-fault cables, RJ45 port saver, and 12" RJ45 to alligator cable. This kit also includes a set of two F-female to F-female adapters, a BNC female to F-female adapter, a BNC female to F-male adapter, and a durable plastic carry case. The Cable Prowler tester combines the functions of a high-end cable tester and length measurement tester, with the capability to identify link status, link capability, and PoE detection. It provides full cable testing on any category network, coax, or telephone cable and will display wire mapping, numbered ID remotes for network and telephone cables, and any faults, including shorts, opens, miswires, split pairs, and reverses. The Cable Prowler measures cable length using TDR (Time Domain Reflectometry) technology and generates tone levels for signal tracing and cable identification on all pairs, a selected pair, or a selected pin. All of the test results are displayed in a full color graphical display for easy viewing in any environment. The tester also has the ability to name each cable and save all the generated test results. Furthermore, the generated cable results can be exported to a computer via the included micro USB cable for record keeping and printing. The tester enables quick identification of network drops link capability and current link status. It also detects the presence of PoE on the network drop and the class of PoE per IEEE 802.3 af/at with load test for voltage drop. These network tests can also be saved for record keeping and printing. The #1 to 8 Smart Remote Set allows you to test & map/identify up to 8 voice/data cables simultaneously. This set includes numbered custom (#1 to 8) remotes for easy identification. Each remote is compatible with CAT6, CAT6a, CAT5e, CAT5, CAT4, and CAT3 shielded and unshielded cables. The #1 to 8 Coax Remote Set lets you map/identify up to 8 video (coax) cables at once. This set includes numbered custom F remotes (#1 to 8) for easy identification. The #1 to 12 Data Remote Set enables mapping/identification of up to 12 data (twisted pair) cables or data ports / jacks at one time. This set includes numbered custom RJ45 remotes (#1 to 12) for easy identification. The 7.5" no-fault cable uses no-fault RJ12 connectors on both ends to assure no damage to the RJ45 jacks. It is the ideal patch cable to use when mapping or shooting tone. Extend the life of your tester by using the RJ45 Port Saver as your sacrificial cable. This cable eliminates the wear and tear from constantly plugging in and out of the tester port. Use the RJ45 alligator cable when shooting tone via the data port. The RJ45 alligator cable conductors are terminated on contact #1 and #2, so you can program your Cable Prowler to shoot tone on pair 1 and 2. Main Highlights - Displays length measurement and distance to faults for each pair in feet or meters using TDR technology
- Detects presence of PoE and class of PoE per IEEE 802.3af/at with load test for voltage drop
- Detects and reports current link speed and link capabilities for active Ethernet drops up to 1 Gb/s
- Link light to identify location on a hub/switch/router port
- Tests Ethernet cable configuration and verifies connectivity while conducting tests for opens, shorts, miswires, split pairs, and reverses
- Generates selectable tones on selected pins for use with tone tracers
- Supports up to 8 testing & ID remotes for network & telephone cables
- Supports up to 20 network & coax ID-only mapping remotes (#1 to 12 data remotes and #1 to 8 coax remotes included)
- Full color graphical wire-mapping
- Ability to define cable name, save cable tests and print all results (cable testing & network testing)
- Multilingual (English, French, Spanish)
Physical Features - High-resolution full color graphical display
- Displays wire map in color per TIA-568A/B color codes, in pin or pair order (configurable)
- Protective silicone holster
- A micro USB connector to export cable reports, an RJ45 connector, and a coax connector
Applications - Measure cable length and length to faults using TDR technology
- Network testing of link capability, link status, and link light
- Test PoE to ensure adequate power for powered devices such as VoIP phones
- Conduct single-ended and remote cable tests with display of PASS, wire map, ID, and faults for network & coax cables
- Locate unlabeled network & coax cables with up to 20 remote identifiers
- Test multiple (up to 8) network & telephone drops with testing & identifier remotes
- Define a cable name for your cable test, save every cable test, export to your computer for record keeping and printing
UPC: 849160006657 In the Box Platinum Tools Cable Prowler PRO Test Kit Cable Prowler Tester Main Unit with Batteries VDV MapMaster 2.0 Smart Remote Kit ystqfucftbzcxdfrcdasr T127C Coax ID Remote Set: #1 to 8, Includes Foam Holder T128C RJ45 Data Remote Set: # 1 to 12, Includes Foam Holder TCA007 Micro USB Cable 2 x T126C RJ12 to RJ12 No-Fault Cable (7.5" / 190.5mm) RJ45 PortSaver (Clamshell Packaging) Toner Cable RJ45/Alligator for VDV MapMaster (Clamshell Packaging) 2 x F81 Coaxial F Connector Coupler (2-Pack) 18303 F-Jack to BNC Jack Adapter (2-Pack) 18305C BNC Female to F-Male Adapter 4072 Durable Plastic Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools Cable Prowler PRO Test Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools Cable Prowler Specs | Measuring Type | TDR (Time Domain Reflectometry) Technology | | Cable | Cable Testing and ID: Up to 1,000.0' (304.8 m)
Split Pair Detection: 3.0' to 1,000.0' (0.9 to 304.8 m)
Length Measurement: 0 to 1,500.0' (0 to 457.2 m), ± (5% + 1.0' (0.3 m))
Supports 8 continuity and ID number remotes (RJ-45)
Supports 20 x RJ-45 and 20 x F-connector ID only remotes | | PoE | Tests for IEEE 802.3af and IEEE 802.3at (PoE Plus) compliant PoE
Tests for classes and loads cable up to 25.5 W (at class 4)
Identifies Mode A or B (pairs with PoE) | | Ethernet | Active Ethernet:
Indicates advertised speeds of 10 / 100 / 1000 Base-T half or full duplex
Can link to network at 10 / 100 Base-T | | Maximum Voltage | RJ Jack: 66 VDC or 55 VAC
F-connector: 50 VDC or 50 VAC Parameters refer to the maximum voltage that can be applied to any two connector pins without causing damage to the tester. | | Test Output | Save Test Results: Stores up to 250 cable or network tests with user-defined names | | Tone Generator | Tone Frequencies: 730 and 1,440 Hz | | Language | English, French, Spanish | | Battery Life | For 6 x AA, 9 VDC, 2,200 mAh (Typical) Alkaline Battery:
Operating: 20 hours typical
Standby: 1.5 years typical (maximum of 200 µA standby current) Batteries are included. | | Operating Altitude | 10,000' (3,048 m) | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -22 to 140°F (-30 to 60°C) | | Humidity | 10 to 90% non-condensing | | Enclosure | High-strength PC / ABS plastic with V0 rating with boot
Withstands 4.0' (1.2 m) drop on to concrete | | Dimensions (L x W x H) | 6.80 x 3.60 x 1.85" (17.27 x 9.14 x 4.69 cm) | | Weight | 1.2 lb (0.5 kg) with batteries | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 15.0 x 10.0 x 2.3" |
