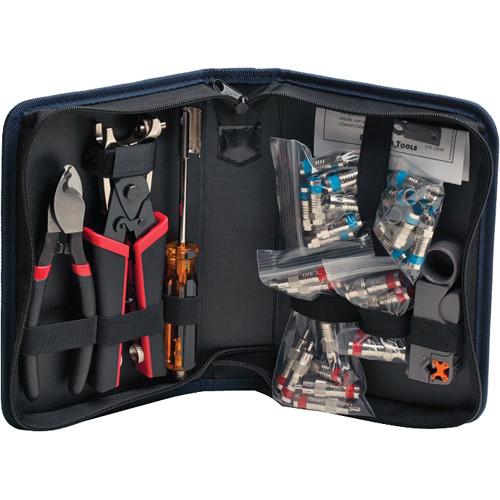

User Manual for Platinum Tools Coaxial Termination Kit Click to enlarge the picture
Contents of the user manual for the Platinum Tools Coaxial Termination Kit
- Product category: Installation & Maintenance Tools Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Installation & Maintenance Tools
|
User manual for the Platinum Tools Coaxial Termination Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|
Product description The Platinum Tools Coaxial Termination Kit is used with coaxial cables for CATV, satellite TV, HDTV, home theater, residential structured wiring, and security installations. It features the SealSmart Compression Connector Crimp Tool and a selection of some popular SealSmart compression connectors. This kit also features the BTP-6 Coax and Data Cable Cutter, the 8" (20.3 cm) F Connector Assembly and Removal Tool, F Connectors for RG6 Quad Shield (20 pieces), RCA Compression Connectors for RG59 Cable (10 pieces), and BNC Compression Connectors for RG59 Cable (4 pieces), all in a nylon zippered case.
The 10510C BTP-6 Coax and Data Cable Cutter is a rugged drop forged construction that ensures high level of durability and professional results. The dual elliptical cutting blades are precision ground and allow for low effort cutting of coaxial cables without deforming the dielectric. The cuts twisted pair cables include both UTP & STP and a wide range of coax. The non-slip cushioned handles fit the hand and the tool pouch.
The 16201C SealSmart Compression Crimp Tool provides simple, fast, and reliable terminations of F, RCA, and BNC compression-style connectors. This tool is thus a perfect solution for CATV, DSS, security, and residential structured wiring installations. The connector adapters mount in handle for easy storage, and straight action mechanism provide uniform compression.
The 11021 8" (20.3 cm) F Connector Assembly and Removal Tool is a dual-function tool that features a 7.44” (188.89mm) hex socket at one end and 3.37 to 32” (85.59 to 812.8mm) thread at the other end. The hex socket slides over the cable and at the rear of the connector for easy mating and un-mating of hard-to-grasp F connectors. The threaded end provides a stable surface for cable insertion when prepping connectors for termination and can also be used as a thread chaser.
The F Connectors for RG6 Quad Shield (20 pieces), RCA Compression Connectors for RG59 Cable (10 pieces), and BNC Compression Connectors for RG59 Cable (4 pieces) provide simple, fast, and reliable terminations, and are a good solution for CATV, DSS, security, home theater, and residential structured wiring installations. 10510C BTP-6 Coax and Data Cable Cutter: - Cuts solid, stranded, and multi-conductor cables to 6 AWG
- Cuts coaxial cables without deforming the dielectric
- Dual elliptical cutting blades
16201C SealSmart Compression Crimp Tool: - Crimps F, RCA, and BNC and right-angle compression style connectors; simply insert the proper adapter
- Use with RG-59, RG-6, and RG-6 Quad shield cables
- Adjustable crimp stroke enables tool to work with SealSmart compression connectors as well as those from other manufacturers
- F, RCA, and BNC connector crimping adapters included
11021 8" (20.3 cm) F Connector Assembly and Removal Tool: - 7.437" (188.89mm) hex socket for mating and un-mating
- 3.37 to 32" (85.59 to 812.8mm) threaded end for connector assembly
- Rugged extruded plastic handle
18001 F Connectors for RG6 Quad Shield (20 pieces): - Molded-in gasket provides a weather-tight seal at cable entry
- Single crimp termination with captive center contact design
- Universal crimp tool terminates all the 3 SealSmart Connector designs
18065 RCA Compression Connectors for RG59 Cable (10 pieces): - Molded-in gasket provides a weather-tight seal at cable entry
- Single crimp termination with captive center contact design
- Universal crimp tool terminates all the 3 SealSmart Connector designs
18035 BNC Compression Connectors for RG59 Cable (4 pieces): - Molded-in gasket provides a weather-tight seal at cable entry
- Single crimp termination with captive center contact design
- Universal crimp tool terminates all the 3 SealSmart Connector designs
UPC: 899740000537 In the Box Platinum Tools Coaxial Termination Kit 10510C BTP-6 Coax & Data Cable Cutter 16201C SealSmart Compression Crimp Tool 11021 8" F Connector Assembly & Removal Tool F-Type Nickel SealSmart Coaxial RG6 Quad Connector (Bulk Package) RCA-Type Nickel SealSmart Coaxial RG6 Quad Connector (25 Pieces Bulk Packaging) BNC-Type Nickel SealSmart Coaxial RG6 Quad Connector Universal Coaxial Stripper Nylon Zippered Case Product Instructions 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools Coaxial Termination Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools 90123 Specs | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 9.4 x 6.6 x 2.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
