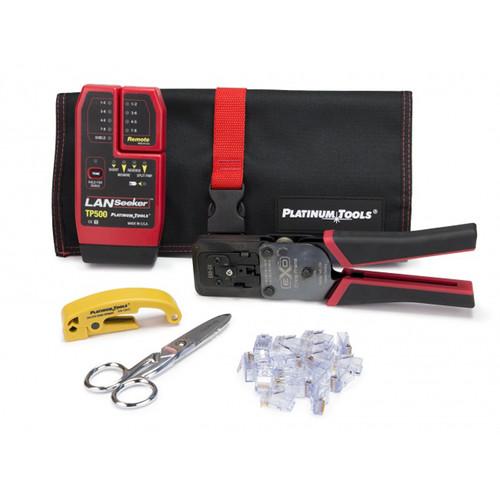

User Manual for Platinum Tools EXO ezEX-RJ45 Termination and Test Kit Click to enlarge the picture
Contents of the user manual for the Platinum Tools EXO ezEX-RJ45 Termination and
- Product category: Cable Testers & Tone Generators Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Cable Testers & Tone Generators
|
User manual for the Platinum Tools EXO ezEX-RJ45 Termination and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|
Product description The EXO ezEX-RJ45 Termination and Test Kit from Platinum Tools is a kit that includes the termination, preparation, and test tools needed to properly terminate ezEX44 connectors (Cat 5e and Cat 6 cables). It includes an EXO crimp frame with EXO-EX Die, a LANSeeker cable tester, a Scissor-run electrician's scissors, a Cat 5/6 cable jacket stripper, 30 ezEX44 connectors, and a hanging pouch. - EXO Crimp Frame with EXO-EX Die With the EXO Crimp Frame with EXO-EX Die from Platinum Tools you can terminate large cables and conductors including Cat6 and Cat6A cabling. This crimp frame tool features an easily interchangeable and reversible EXO Die for ambidextrous operation. Additionally, this tool comes with the EXO-EX Die designed to crimp ezEX 44 and ezEX 48 connectors.
- Single cycle crimp and flush trim
- EXO Die is easily interchangeable
- Reversible EXO Die for ambidextrous operation
- Connectors lock into tool for correct positioning during crimp
- Push button lock for easy storage
- Ergonomic comfort grip TPR handles
- Includes EXO-EX Die for crimping ezEX 44 and ezEX 48 connectors
- Terminates larger cables and conducts Cat6 and Cat6A
UPC: 849160008507 - LANSeeker Cable Tester Useful for residential and commercial cable installers, the Platinum Tools LANSeeker is a cable tester and tone generator designed to test the usability of Ethernet cables. It identifies shorts, miswires, opens, reverses and split pairs, with a debug mode that diagnoses faults one pair at a time, displaying them on LED indicators on the main and remote unit. The LED monitors battery status as well.
The LANSeeker generates audio tones, making it suitable for use with tone tracers. Running off of a single 9V battery, the unit sports a relatively long battery life, giving you 20 hours of testing, 170 hours of audio tone, and 2.5 years of life in standby. Indeed, the battery lasts so long there is no off-switch; the tester automatically powers on within two seconds upon sensing a cable connection, and switches off within five seconds of sensing a cable disconnection. - Key Features at a Glance
-
- Works with Cat 7, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 4 or Cat 3 connections—shielded or unshielded
- Displays cable test results on main and remote units in less than two seconds
- Immediately detects shorts by just plugging in one end of a cable to the tester
- Identifies shorts, opens, miswires, reversed and split pairs
- No on/off switch, automatically starts test when a connection is sensed between main and remote unit
- Debug mode diagnoses and displays faults one pair at a time
- Includes tone generator
- Self-stored remote
- Made in the USA
UPC: 849160008286 - 10517C 5" Scissor-Run Electrician's Scissors (Clamshell Packaging) Confidently cut and strip different types of wire with the 10517C 5" Scissor-Run Electrician's Scissors from Platinum Tools. These smooth-cutting scissors will cut Kevlar, foil, and wire such as 16 AWG solid, and 12 AWG stranded. A versatile tool, it also strips wire up to 19 AWG and 23 AWG. The bottom blade is fully serrated for non-slip cutting. Strong, durable, and easy to resharpen, the scissors are made with double-plated chrome over nickel and through-hardened, high carbon steel for improved edge retention and easy re-sharpening. Best of all, the scissors have a scraper and file on the backside of the blades. Your scissors will come ready-to-use in clamshell packaging.
- Full-serrated bottom blade for non-slip cutting
- Through-hardened, high carbon steel for edge retention
- Double-plated chrome over nickel
- Easily re-sharpens and holds cutting edge
- Scraper and file on backside of blades
- For telecom, datacom, security, and electrical applications
- Cuts solid wire up to 16 AWG
- Cuts stranded wire up to 12 AWG
- Screw permits easy adjustment
- Available in a clamshell package
UPC: 849160004691 - Cat5/6 Cable Jacket Stripper Strip cable jackets from Category 5, 5e, and 6 twisted pair cables with the Cat5/6 Cable Jacket Stripper by Platinum Tools. This device features a long-life blade designed to self-adjust and prevent nicks to inner conductors, and is recommended for PVC cable jackets as well. It will accept cable diameters from 0.18 to 0.25". For strength and durability, the Jacket Stripper's housing is made of high-impact, molded yellow plastic, which also makes it easy to find in low-light conditions.
- Removes the cable jacket on Category 5, 5e, and 6 cables
- Accepts cable diameters from 0.18 to 0.25"(4.5 to 6.3mm)
- No adjustments required; easily switch from one cable type or insulation to another
- Does not nick inner conductor
- Recommended for PVC cable jackets
UPC: 899740000261 - 4007 Hanging Pouch The Platinum Tools 4007 Hanging Pouch is designed for carrying the Coax Clarifier, which displays cable run quality, detects coax RF remotes through splitters, and identifies cable faults. UPC: 849160004899
- TOR Replacement Blade (Clamshell)
In the Box Bundle Items EXO Crimp Frame with EXO-EX Die xxbdwfwratrwrcessvyrsauff LANSeeker Cable Tester 10517C 5" Scissor-Run Electrician's Scissors (Clamshell Packaging) Cat5/6 Cable Jacket Stripper 3 x TOR Replacement Blade (Clamshell) xxbdwfwratrwrcessvyrsauff 4007 Hanging Pouch Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools EXO ezEX-RJ45 Termination and Test Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EXO Crimp Frame with EXO-EX Die
| | | Box Dimensions (LxWxH) | 10.6 x 3.2 x 1.1" | - LANSeeker Cable Tester
| Battery Life (approx.) | Standby: 2.5 years
Cable Testing: 20 hours
Tone Mode: 170 hours | | Cable Types | Cat 7, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 4, and Cat 3 (shielded or unshielded) | | Cable Length | Minimum Cable Length for Testing for Split Pairs: 3.3' / 1.0 m
Maximum Cable Length for Testing: 1000.7' / 305.0 m | | Temperature | Operating: 32 to 122°F / 0 to 50°C
Storage: -4 to 158°F / -20 to 70°C | | Humidity (Non-Condensing) | 10 to 90% | | Dimensions (L x W x H) | 5.7 x 2.8 x 1.2" / 14.5 x 7.2 x 3.0 cm | | Weight | 5.7 oz / 162 g | | | | Box Dimensions (LxWxH) | 9.1 x 5.1 x 1.5" | - 10517C 5" Scissor-Run Electrician's Scissors (Clamshell Packaging)
| Finish | Double-plated chrome over nickel | | Materials | Through-hardened, high carbon steel | | | | Box Dimensions (LxWxH) | 6.6 x 2.2 x 0.7" | - Cat5/6 Cable Jacket Stripper
| Materials | High-impact, molded plastic housing | | | | Box Dimensions (LxWxH) | 4.4 x 4.1 x 0.8" | - TOR Replacement Blade (Clamshell)
| | | Box Dimensions (LxWxH) | 4.5 x 2.5 x 0.2" | - 4007 Hanging Pouch
| | | Box Dimensions (LxWxH) | 11.7 x 5.7 x 0.8" |
