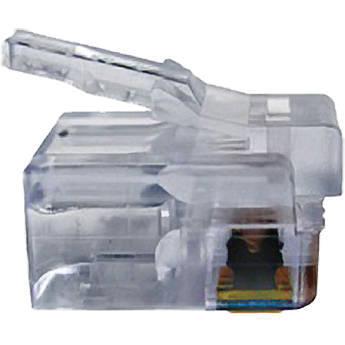

User Manual for Platinum Tools EZ-RJ12 11 Connector with Long Tab Click to enlarge the picture
Contents of the user manual for the Platinum Tools EZ-RJ12 11 Connector with
- Product category: RJ45 Network & RJ11 Telecom Connectors Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools RJ45 Network & RJ11 Telecom Connectors
|
User manual for the Platinum Tools EZ-RJ12 11 Connector with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|
Product description The Platinum Tools EZ-RJ12/11 Connector with Long Tab, available in a box of 100, lets you terminate your solid and stranded wires so you can create RJ12 or RJ11 cables for telephone and security installations. To simplify twisted-pair terminations, each connector features an EZ pass-through design that allows you to insert the wire through the connector and out the front. This design also enables you to verify the proper wiring order before you crimp. Furthermore, the tab on the connector is longer than the standard tab so you can quickly disconnect from the jack. - Fast, easy terminations with reduced scrap
- Modular plug with six connectors
- For conductors with maximum O.D. of 0.038"
- Designed for round cables
- Works on solid or stranded wire
UPC: 849160001553 In the Box Platinum Tools EZ-RJ12/11 Connector with Long Tab (Box, 100-Pieces) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools EZ-RJ12 11 Connector with Long Tab in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools 100026LTB Specs | Wire Gauge Capacity | 24 to 26 AWG | | Contact Material | Phosphor bronze 0.014" / 0.04 cm | | Contact Plating | 50 microinch selective 24K hard gold in contact area over 100 microinch minimum nickel plate | | Plug Material | Polycarbonate | | Operation Temperature | -40 to 158°F / -40 to 70°C | | Flame Auto Extinguish | 94-VO | | Insertion / Extraction | 1000 cycles | | Contact Resistance | 10 milliohms maximum | | Voltage | 30 VAC / 42 VDC | | Current | 1.5 A | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 4.8 x 4.4 x 2.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
