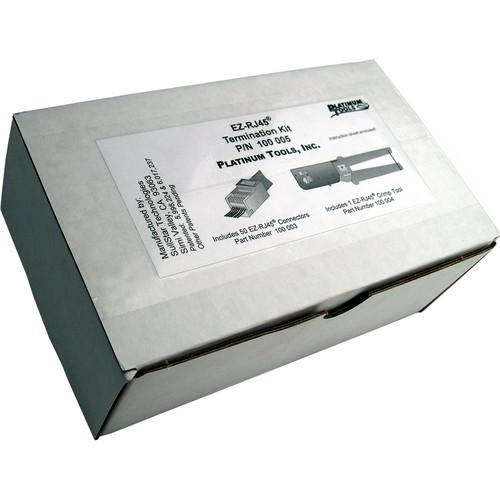

User Manual for Platinum Tools EZ-RJ45 Basic Installation Kit Click to enlarge the picture
Contents of the user manual for the Platinum Tools EZ-RJ45 Basic Installation Kit
- Product category: Installation & Maintenance Tools Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Installation & Maintenance Tools
|
User manual for the Platinum Tools EZ-RJ45 Basic Installation Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|
Product description The Platinum Tools EZ-RJ45 Basic Installation Kit includes the EZ RJ45 Crimp Tool and connectors. In addition to these, it includes other cable preparation tools that you will need to complete your job. The kit includes detailed instructions as well.
The 10500C Coax & Round Wire Cable Cutter is durable and designed to cut solid and stranded wires up to 8 AWG, multi-conductors, and coaxial cables to 0.5" (12.7mm) diameter. It features a curved and precision-ground blade that will not deform the conductors or dielectric. This is stamped from high carbon tool steel and heat, which is treated for long life.
The 15015C Cat 5/6 Cable Jacket Stripper is an economical tool that strips the cable jacket from Category 5, 5e, and 6 twisted pair cables with professional results. It features a life-long blade specifically designed to self-adjust and prevent nicks to the inner conductors. It is durable and has a high-impact plastic housing, which is molded in yellow to make it easy to locate.
The 100004C EZ-RJ45 Crimp Tool is a high-quality tool designed to quickly crimp and cut the wires of the EZ-RJ45 Connector in one easy, simple operation. The ratcheted straight action crimping motion ensures a uniform crimp in every cycle. It features precision cast crimping dies for superior accuracy and has a built-in wire cutter and stripper for silver satin. It features an all-steel frame with rust-resistant black oxide finish.
The 105003 EZ-RJ45 Cat 5/5e Connector (50 Pieces) simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out from the front to easily verify the proper wiring order. Pulling the connector down over the cable jacket and seating it tightly in the rear of the connector optimizes electrical performance of the termination. It reduces the distance between the wire twists and contacts which also improves performance. 10500C Coax & Round Wire Cable Cutter: - Cuts solid and stranded wires up to 8 AWG
- Cuts multi-conductor cables to 0.5" (12.7mm) diameter
- Cuts coaxial cables without deforming the dielectric
- Spring loaded with locking latch
15015C Cat 5/6 Cable Jacket Stripper: - Removes the cable jacket on Category 5, 5e, and 6 cables
- Accepts cable diameters from 0.18 to 0.25" (4.5 to 6.3mm)
- No adjustments required; easily switch from one cable type or insulation to another
- Does not nick inner conductors
- Recommended for PVC cable jackets
100004C EZ-RJ45 Crimp Tool: - Crimps and trims extended wire in the EZ-RJ45 Connector in a single cycle
- For use with EZ-RJ45 Cat 5/5e and Cat 6 connectors
- Features precision cast crimping dies for superior accuracy
- Built-in wire cutter and stripper for silver satin
- Laser marked with wiring guide for proper wire sequence
- Also compatible with all standard modular plugs (except AMP)
50x 105003 EZ-RJ45 Cat 5/5e Connectors: - Through holes allow wire pairs to be inserted through front of connector for faster termination
- EZ to verify wire sequence
- More reliable and higher performance
- Works with solid or stranded wire; separate connectors not required, reducing inventory, and confusion
- Reduces scrap by eliminating wasted crimps
- Simple one-piece design-bars or liners not required
- Use in Category 3, 5, 5E, or 6 compliant data networks
- Patented and manufactured in USA
UPC: 849160000815 In the Box Platinum Tools EZ-RJ45 Basic Installation Kit 10500C Coax & Round Wire Cable Cutter Cat5/6 Cable Jacket Stripper 100004C EZ-RJ45 Crimp Tool (Clamshell) 50 x EZ-RJ45 CAT5/5e Connectors (Bag, 500) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools EZ-RJ45 Basic Installation Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools 100012 Specs | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 8.7 x 5.4 x 3.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
