Product description Crimp, connect, strip, cut, and more with the EZ-RJPRO HD Termination Kit from Platinum Tools. This versatile kit includes an EZ-RJPRO HD crimping tool and connectors for simple, fast, and high-performing installations of Cat5/5e/6 data networks.
Comfortable and ergonomically designed, the 10525C electrician's scissors are useful for electrical, telephone, and datacom service applications. The large ring provides more power, reduces fatigue and wrist strain, and fits comfortably in the power portion of the palm, thus allowing for a cleaner, effortless, quicker cut. The bottom blade has serrated teeth along the full length of the cutting edge to grip the cable/wire.
The 15015C jacket stripper removes the cable jacket from Category 5, 5e, and 6 twisted pair cables with professional results. It features a life-long blade specifically designed to self-adjust and prevent nicks to the inner conductors. This durable tool has a high-impact plastic housing, which is molded in yellow to make it easy to locate in low light.
The 100054C EZ-RJPRO HD crimping tool allows for easy installation of Cat5/5e and Cat6 connectors. This tool delivers consistent, reliable, and repeatable terminations, even when working with larger outer diameter cables. All the blades are user-replaceable, for a long service life. Proper use assures that every termination will meet FCC specifications.
The 105003 EZ-RJ45 Cat5/5e connector (10-piece) simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out from the front to easily verify the proper wiring order. Pulling the connector down over the cable jacket and seating it tightly in the rear of the connector optimizes electrical performance of the termination. It reduces the distance between the wire twists and contacts, which also improves performance.
All the items in this kit are stored and organized inside the zippered nylon case with elastic bands. For convenience, the case fully unzips and lies flat for easy access to all the tools and connectors. - 100054C EZ-RJPRO HD Crimp Tool Designed for telecommunications, information technology, and security professionals, the EZ-RJPRO HD Crimp Tool from Platinum Tools allows for easy installation of Cat 5/5e and Cat 6 connectors. This tool delivers consistent, reliable, and repeatable terminations, even when working with larger outer diameter cables. All the blades are user-replaceable, for a long service life. Proper use assures that every termination will meet FCC specifications.
- Compatible with all EZ-RJ45 and EZ-RJ12/11 connectors, as well as all standard modular plugs, except AMP
- Ratcheted, high-leverage, stable platform for consistent, repeatable terminations
- Patented crimp-and-trim system delivers a clean, flush trim on the extended conductors
- Zero flex frame prevents torque loss
- Tool steel die head assembly provides 360 degrees of connector support
- Full surface-to-surface contact delivers uniform crimp force
- Built-in cutter and stripper for flat and round cable
- Built-in stripper for round and flat cable
- Laser-marked with wiring guide for proper wire sequence
UPC: 849160001201 - 10525C Professional Electrician's Scissors Confidently cut and strip different types of wire with the 10525C Professional Electrician's Scissors from Platinum Tools. The ergonomic design and large ring provide comfort with reduced fatigue and wrist strain. These scissors will cut stranded wire to 12 AWG, and solid wire to 16 AWG. A versatile tool, it also strips wire from 19 AWG to 23 AWG. The blades are serrated on the back to improve grip while cleaning wire and binding posts. The scissors are made in the USA.
- RC59 (thru hardened) stainless steel blades
- Cuts stranded wire to 12 AWG
- Cuts solid wire to 16 AWG
- Serrated edges on the back of the blades for cleaning wire and binding posts
UPC: 899740000056 - Cat5/6 Cable Jacket Stripper Strip cable jackets from Category 5, 5e, and 6 twisted pair cables with the Cat5/6 Cable Jacket Stripper by Platinum Tools. This device features a long-life blade designed to self-adjust and prevent nicks to inner conductors, and is recommended for PVC cable jackets as well. It will accept cable diameters from 0.18 to 0.25". For strength and durability, the Jacket Stripper's housing is made of high-impact, molded yellow plastic, which also makes it easy to find in low-light conditions.
- Removes the cable jacket on Category 5, 5e, and 6 cables
- Accepts cable diameters from 0.18 to 0.25"(4.5 to 6.3mm)
- No adjustments required; easily switch from one cable type or insulation to another
- Does not nick inner conductor
- Recommended for PVC cable jackets
UPC: 899740000261 - 4002PT Nylon Zippered Case with Handles (Black) Installers will appreciate how well the black Nylon Zippered Case with Handles from Platinum Tools stores, protects, and transports their gear. Tools are easily secured and organized by elastic bands and zippered interior accessory pocket. For easy access, the case features a lay-flat design with a dual pull, 360-degree zipper. Carry your Platinum Tools Case by the top carry handles. UPC: 849160002857

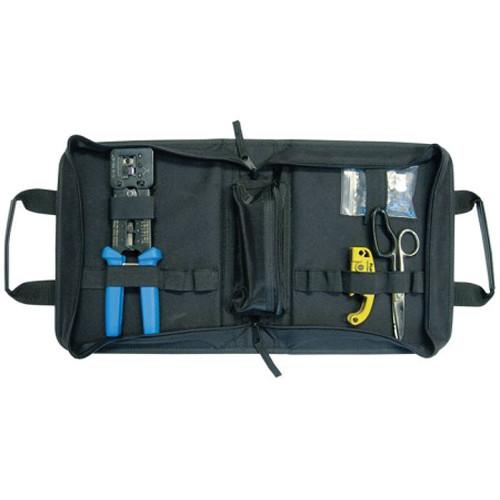

In the Box Bundle Items 100054C EZ-RJPRO HD Crimp Tool fzzaaeqdxbdyxu 10525C Professional Electrician's Scissors Cat5/6 Cable Jacket Stripper 4002PT Nylon Zippered Case with Handles (Black)
Also Includes - 10 x EZ-RJ45 Cat5/5e Connectors
- Limited 1-Year Warranty
