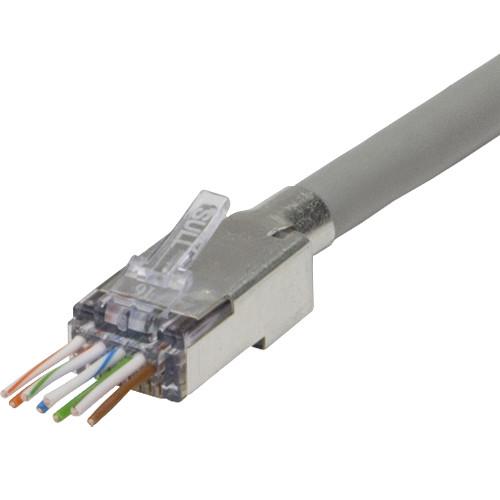

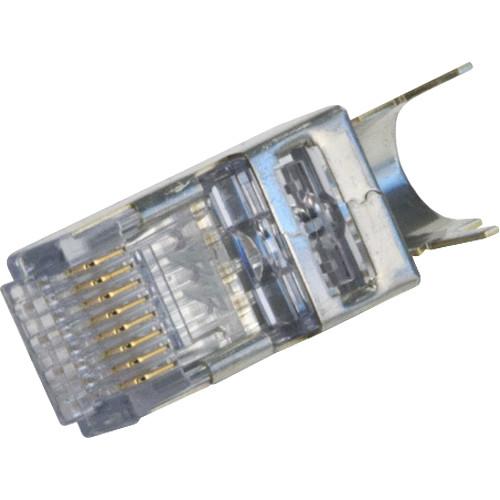

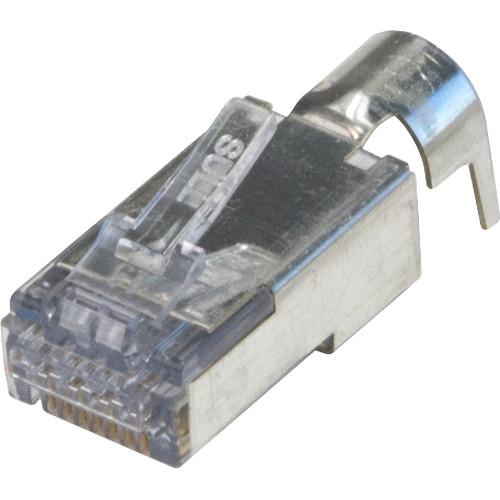

Product description With an integrated hi-lo stagger design, the ezEX 48 Shielded, External Ground, Cat 6A Connector from Platinum Tools features isolated conductors along with a simple, one piece, pass-through design so you can verify the wiring sequence before terminating. The connector is shielded 6/6A compliant with a insulation diameter of 0.043 to 0.048" and a maximum outer diameter of 0.305". -
- Hi-lo stagger to isolate each conductor
- Simple one piece/pass through design, no bars or liners
UPC: 849160009986 In the Box Platinum Tools ezEX 48 Shielded, External Ground, Cat 6A Connector (25 Piece / Clamshell) Limited 25-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools ezEX 48 Shielded, External Ground, Cat 6A Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools 100027C Specs | | | Type | RJ45 Male | | Quantity | 25 | | | | Supported Cable Diameter | 0.3" / 7.8 mm | | Wire Gauge Supported | 22 to 24 AWG | | Networking Type | CAT 6, CAT 6a | | | | Compliance | RoHS, TAA, TIA, UL, FCC | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 7.1 x 3.1 x 1.2" |
