User Manual for Platinum Tools Fault Trapper for Unattended Monitoring of Circuits for NFF Conditions Click to enlarge the picture
Contents of the user manual for the Platinum Tools Fault Trapper for Unattended
- Product category: Cable Testers & Tone Generators Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Cable Testers & Tone Generators
|
User manual for the Platinum Tools Fault Trapper for Unattended contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|

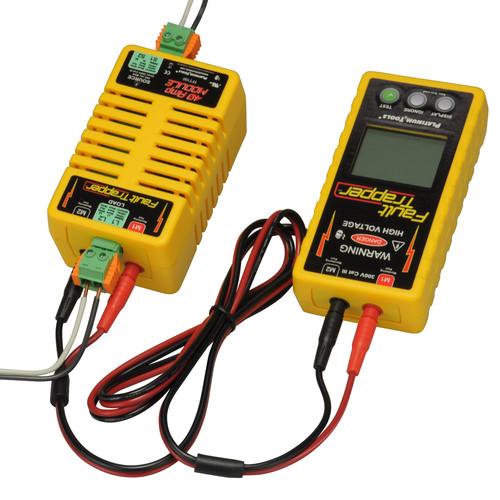

Product description The Fault Trapper from Platinum Tools allows you to determine the type of fault in a recurring electrical event, and thus, give you the information necessary for overcoming frequent circuit-breaker trips and No Fault Found conditions. Consisting of a meter and an inline module, the device Fault Trapper technology called Spread Spectrum Time Domain Reflectometry (SSTDR) to monitor live circuits, capturing the time and distance to shorts, opens, and arc faults, and saving the event information in its memory for later perusal. The inline 40A module divorces any circuit under its surveillance from the breaker panel, as well as any other breaker. Any last fault can be seen off-line by means of its backup battery.The setup of this unit is quite simple: Put it in line, press the test button, and that’s it. After a period of time, you’ll be able to see, on its display, the particularities of breaker trips and NFF conditions in plain language like “open short” or “short”, with the distance clearly indicated above the description. Its LCD is backlit for dark areas, and it runs on inline power while monitoring. This unit will work with dedicated circuits up to 300 VAC and 40A. - Key Features at a Glance
- In-line monitoring of energized dedicated circuits up to 300 VAC and 40 ampsAllows unattended monitoring of intermittent or sustained electrical eventsNo Splicing – Plug in with existing wiringIdentifies opens, shorts, and arc faultsDetects the last event whether or not the breaker tripsRuns on in-line power in monitor modeFault location reported as distance from the Fault Trapper in feet/metersEasy-to-use three-button operation, with one-button testingBacklit LCD display for dark areasBack-up battery allows capture of breaker trips/unpowered display of results
UPC: 849160008057 In the Box Platinum Tools Fault Trapper for Unattended Monitoring of Circuits for NFF Conditions Banana Plug Assembly Set of Plug-in Terminal Blocks Insulated Screwdriver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools Fault Trapper for Unattended Monitoring of Circuits for NFF Conditions in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools TFT100 Specs | Input Rating | Fault Trapper Meter: 90 to 265 VAC RMS, 50/60 Hz, 4 W max
Inline Amp Module: 300 VAC RMS, 40 A circuit (maximum) supplied power to main unit | | Measurement Method | Spread Spectrum Time Domain Reflectometry (SSTDR) | | Accuracy | 97% | | Maximum Length | 300' / 91.4 on NM-B or wire in conduit | | Battery Level | Battery low level: Approximately 5.5 V | | Battery Life | Standby mode (von-viewing): 2 years
Active viewing mode: 4 hours, typical | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | Normal: -4 to 140°F / -20 to 60°C
Long term storage with battery: 95°F / 35°C maximum | | Humidity | 10% to 90%, non-condensing | | Altitude | 6561' / 2000 m maximum | | Rating | 300 V CAT III, 120/240 VAC, 40 amps or less, single phase | | Dimensions | Fault Trapper Meter: 6.0 x 3.0 x 1.5" / 15.3 x 7.6 x 3.8 cm
Inline Amp Module: 4.5 x 3.0 x 2.3" / 11.5 x 7.6 x 5.9 cm | | Weight | Fault Trapper Meter: 9.0 oz / 255.1 g
Inline Amp Module: 11.0 oz / 311.8 g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 13.1 x 5.5 x 3.3" |
